HEADLAMP AIMING SYSTEM (AUTOMATIC)

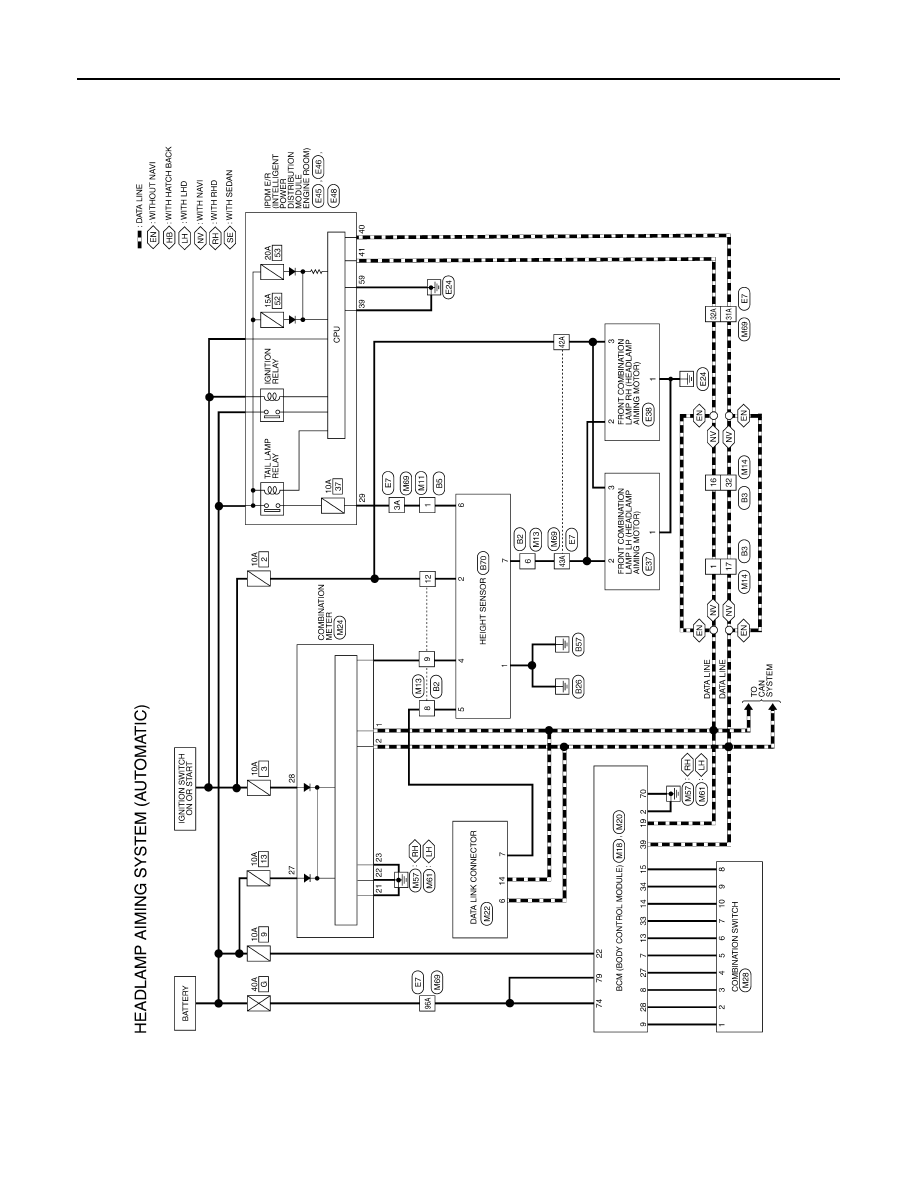

HEADLAMP AIMING SYSTEM (AUTOMATIC)

Wiring Diagram

INFOID:0000000001527580

ALLWA0047GB

DAYTIME LIGHT SYSTEM

EXL-63

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

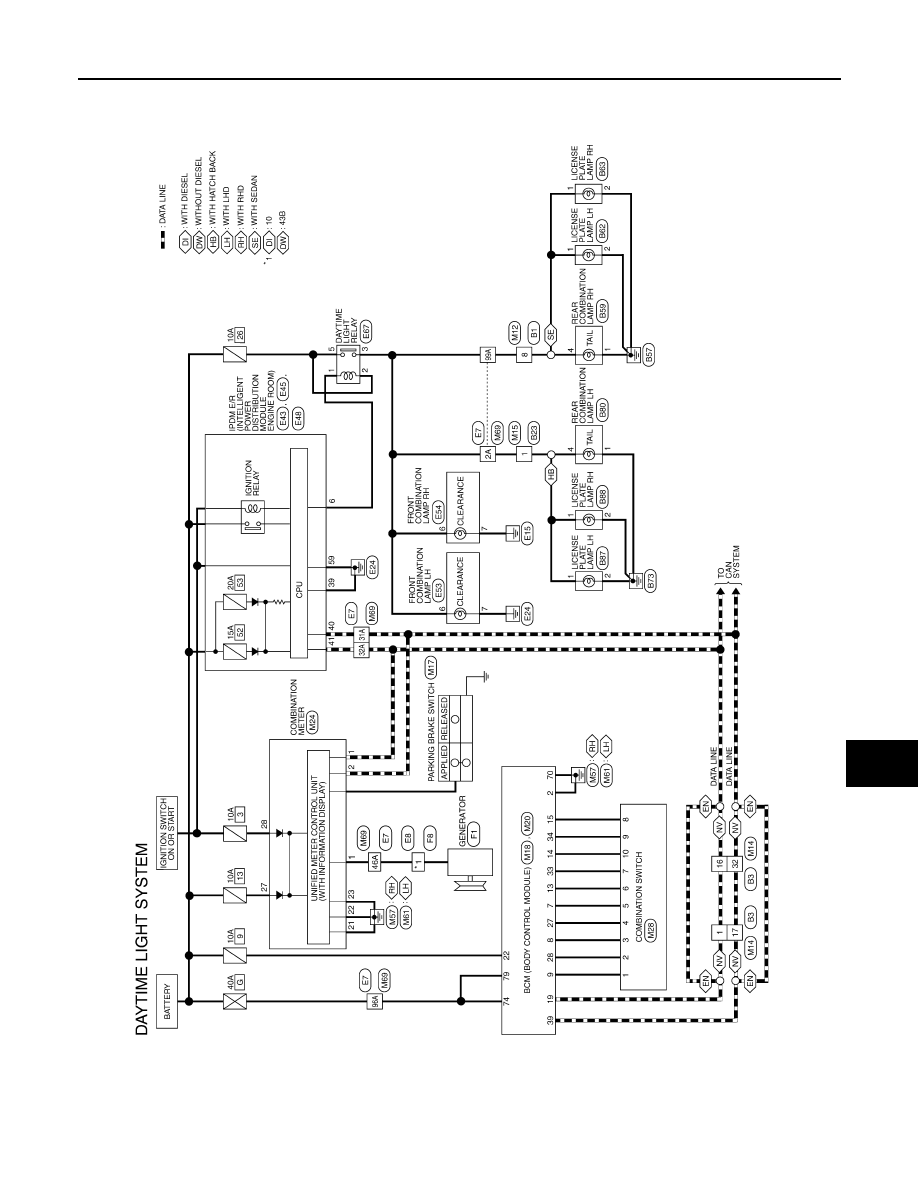

DAYTIME LIGHT SYSTEM

Wiring Diagram

INFOID:0000000001523278

ALLWA0048GB

EXL-64

< COMPONENT DIAGNOSIS >

FRONT FOG LAMP

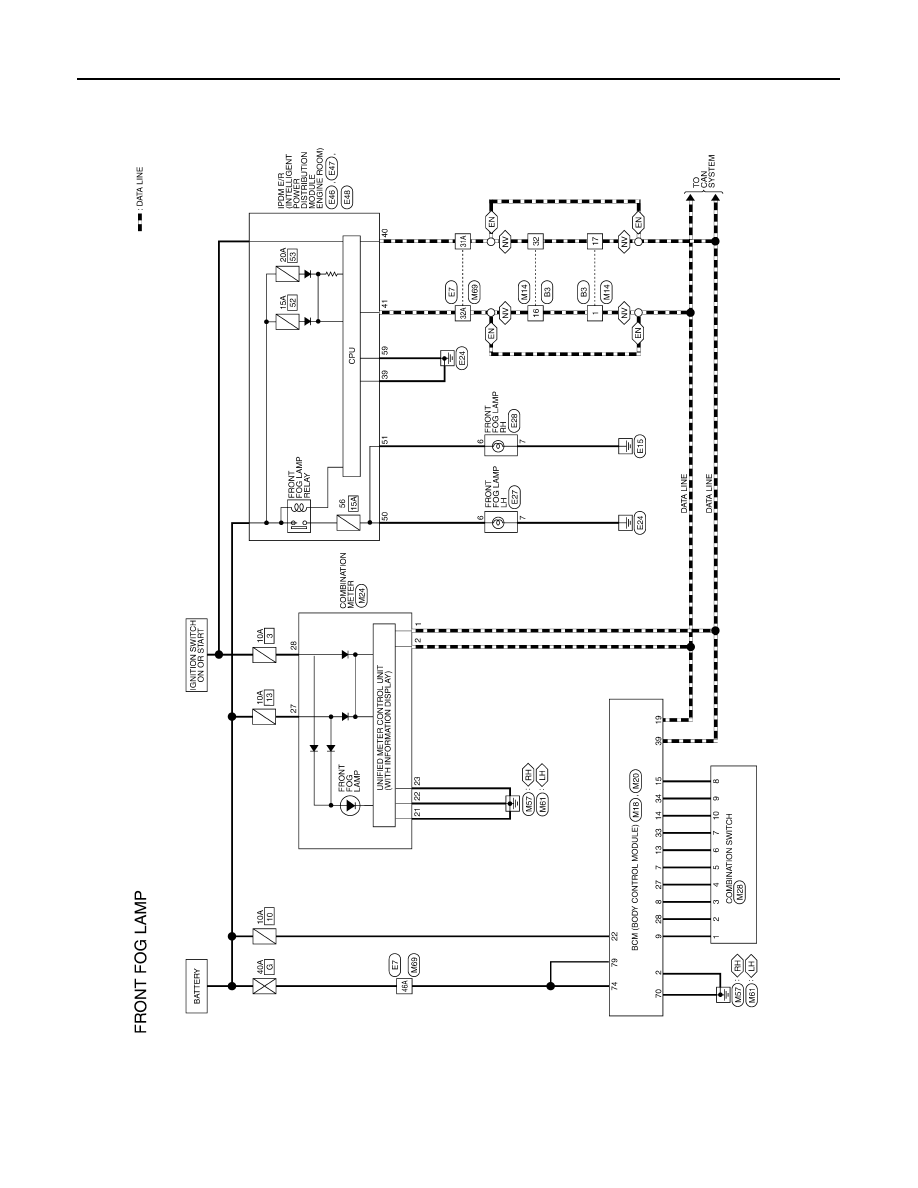

FRONT FOG LAMP

Wiring Diagram

INFOID:0000000001523280

ALLWA0049GB

REAR FOG LAMP

EXL-65

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

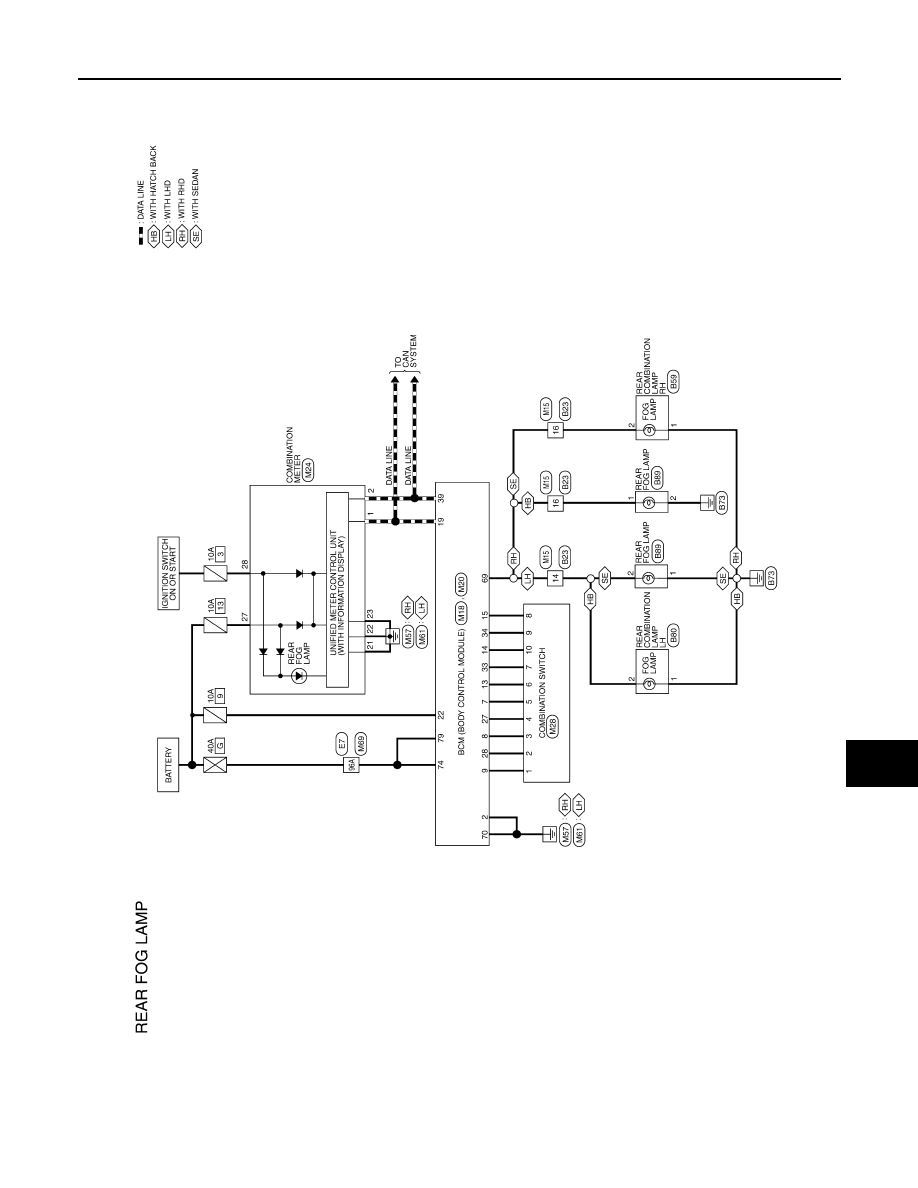

REAR FOG LAMP

Wiring Diagram

INFOID:0000000001527582

ALLWA0050GB
