Nissan Tiida C11. Manual - part 767

EXL-66

< COMPONENT DIAGNOSIS >

TURN SIGNAL AND HAZARD WARNING LAMPS

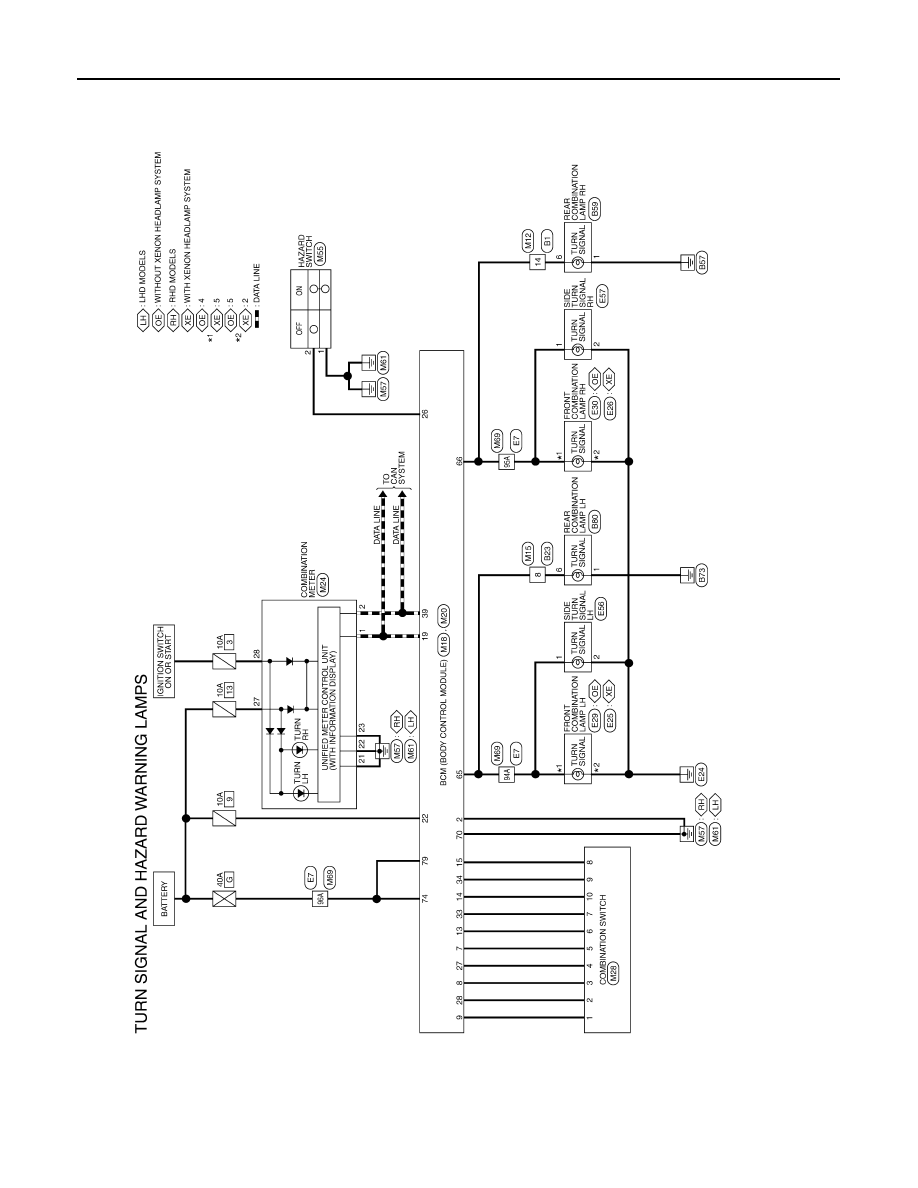

TURN SIGNAL AND HAZARD WARNING LAMPS

Wiring Diagram

INFOID:0000000001523281

ALLWA0051GB

PARKING, LICENSE PLATE AND TAIL LAMPS

EXL-67

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

PARKING, LICENSE PLATE AND TAIL LAMPS

WITH DAYTIME LIGHT SYSTEM

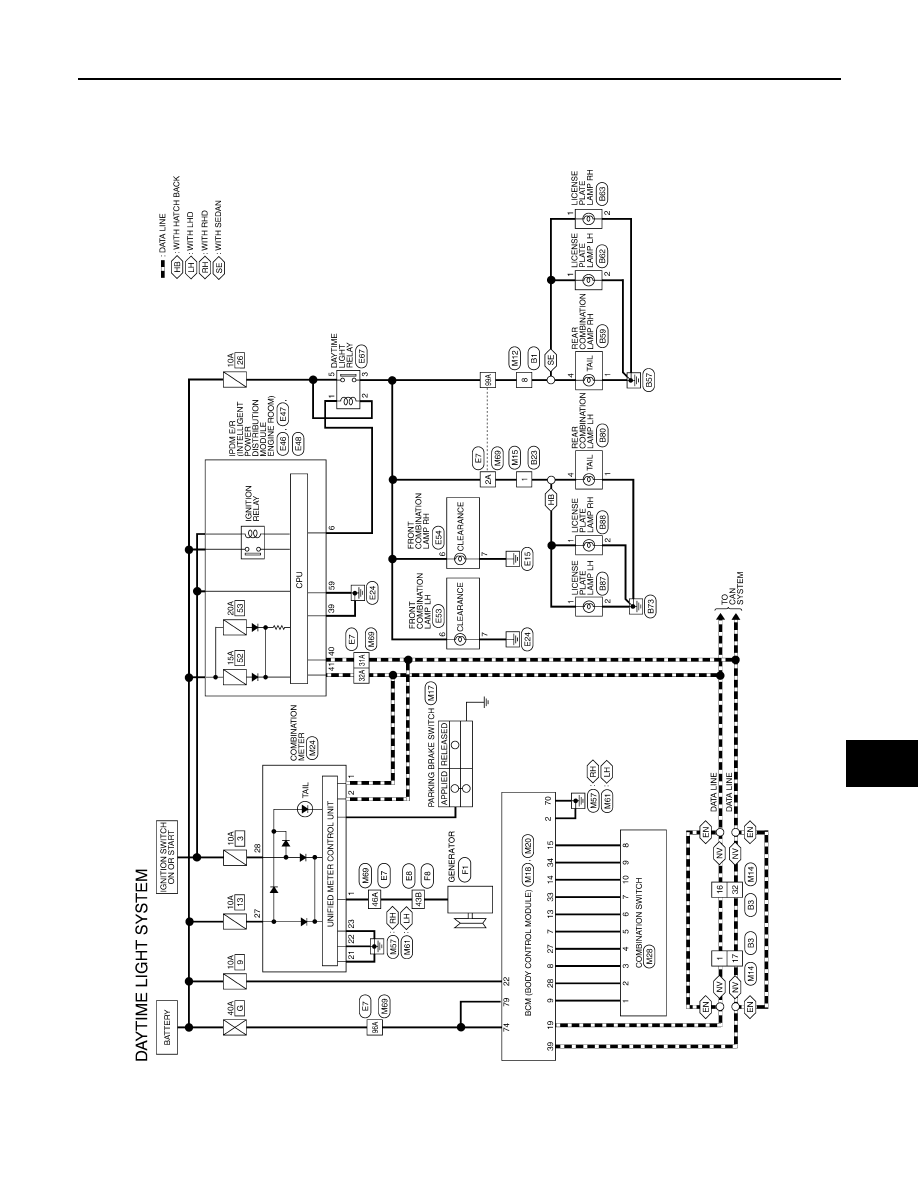

WITH DAYTIME LIGHT SYSTEM : Wiring Diagram

INFOID:0000000001523282

WITHOUT DAYTIME LIGHT SYSTEM

ALLWA0053GB

EXL-68

< COMPONENT DIAGNOSIS >

PARKING, LICENSE PLATE AND TAIL LAMPS

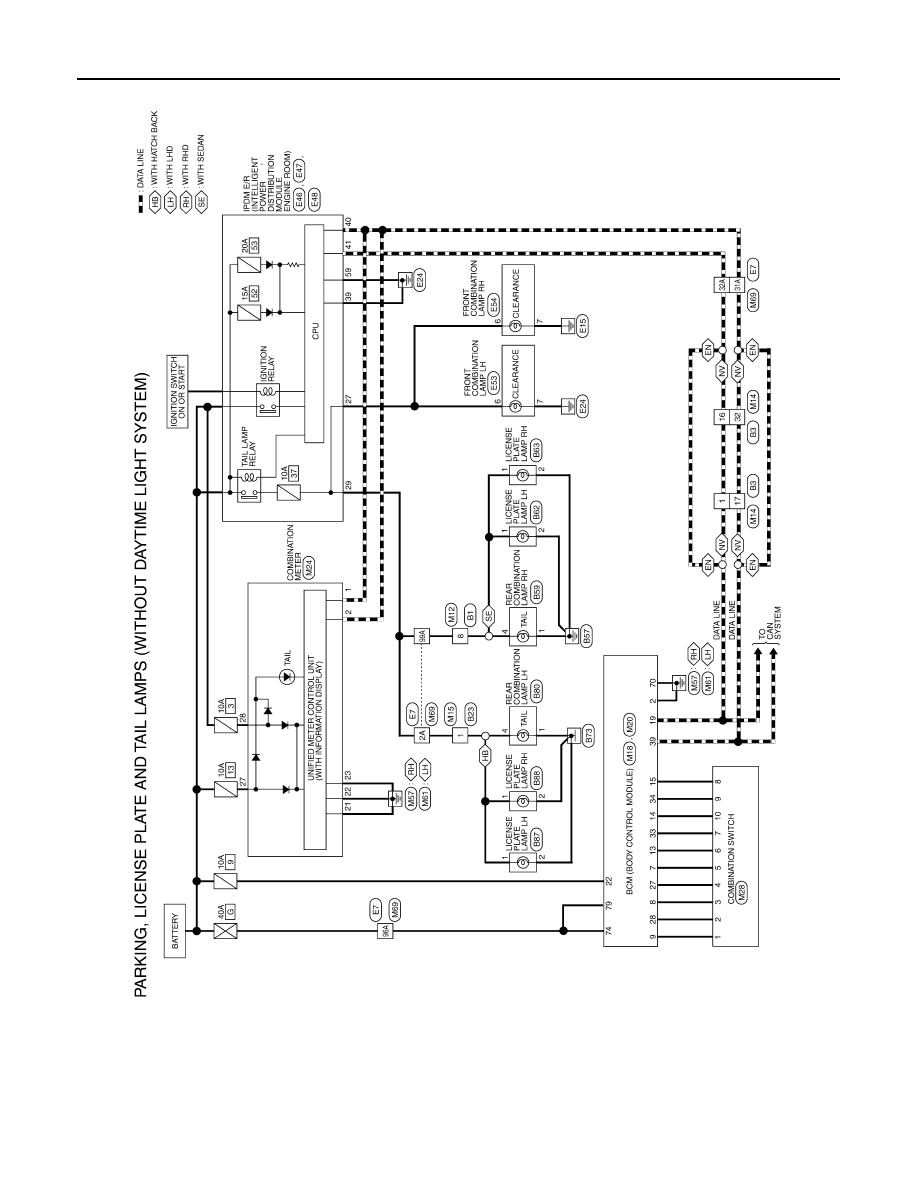

WITHOUT DAYTIME LIGHT SYSTEM : Wiring Diagram

INFOID:0000000001527581

ALLWA0052GB

STOP LAMP

EXL-69

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

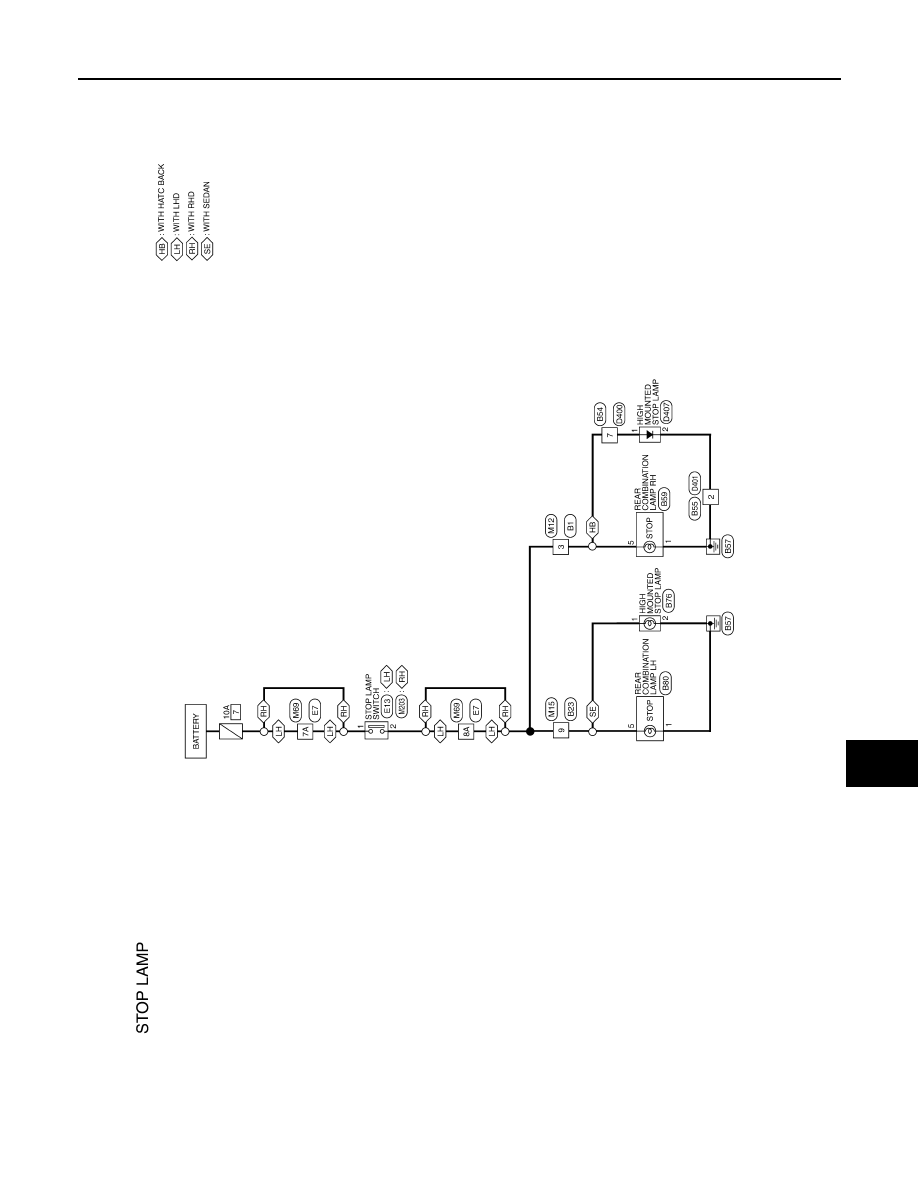

STOP LAMP

Wiring Diagram

INFOID:0000000001523283

ALLWA0054GB
