EXL-58

< COMPONENT DIAGNOSIS >

HEADLAMP (HALOGEN)

HEADLAMP (HALOGEN)

Wiring Diagram

INFOID:0000000001523277

ALLWA0043GB

HEADLAMP (XENON)

EXL-59

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

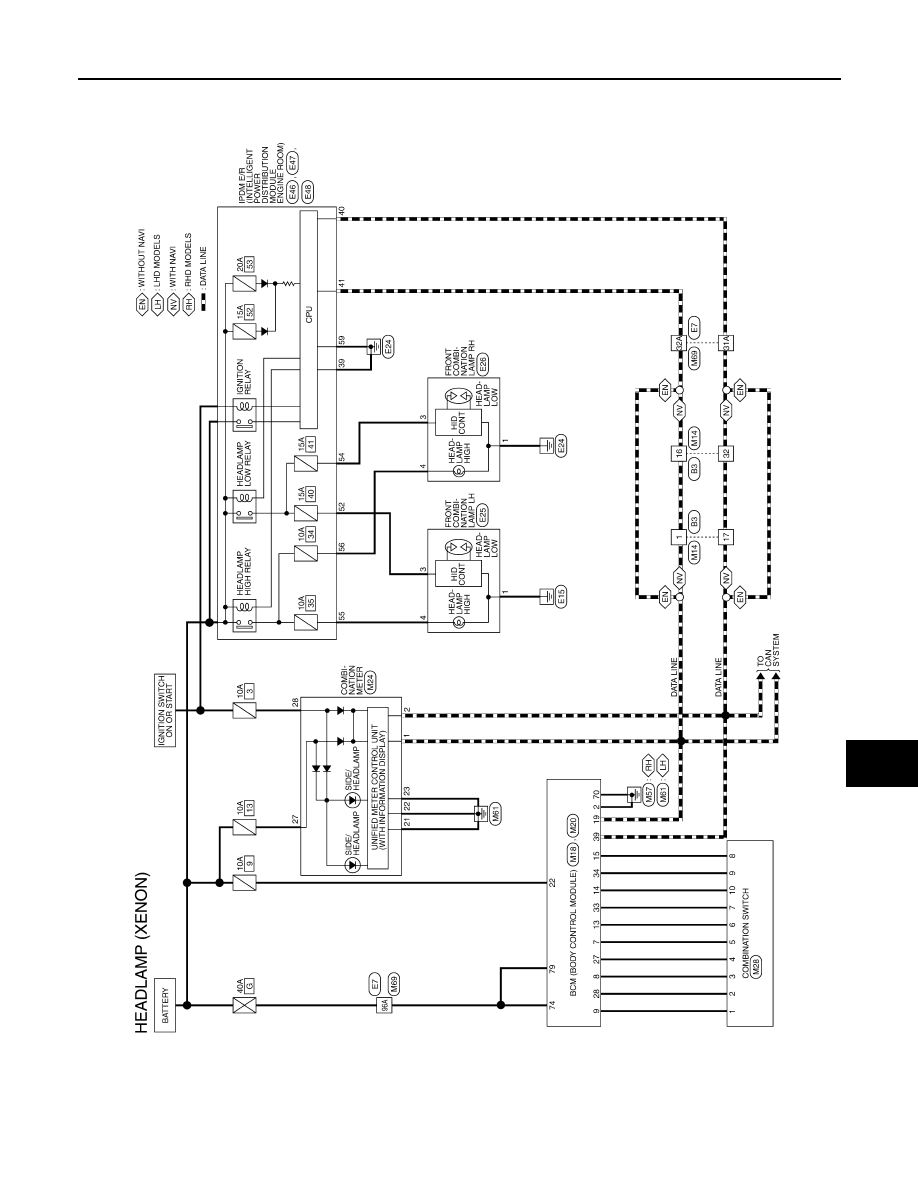

HEADLAMP (XENON)

Wiring Diagram

INFOID:0000000001527578

ALLWA0044GB

EXL-60

< COMPONENT DIAGNOSIS >

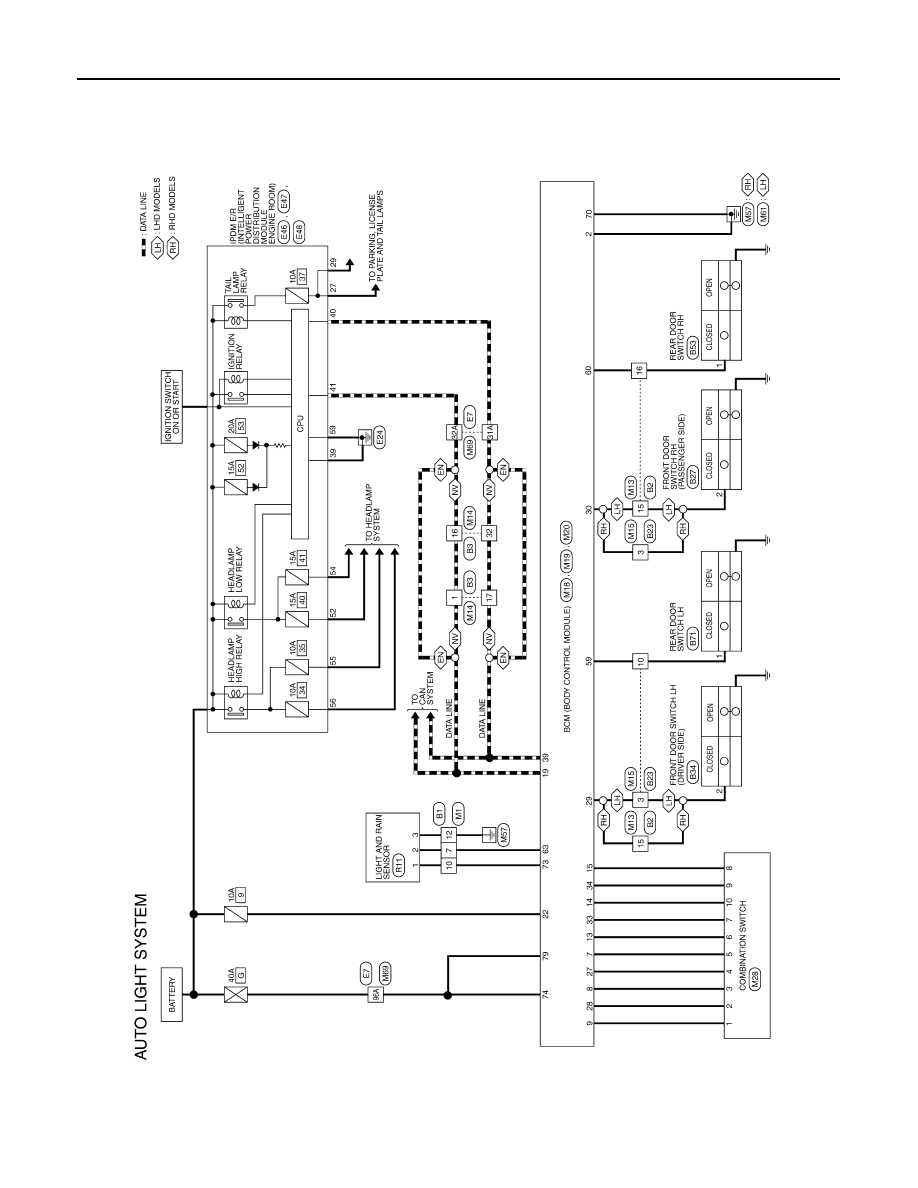

AUTO LIGHT SYSTEM

AUTO LIGHT SYSTEM

Wiring Diagram

INFOID:0000000001523279

ALLWA0045GB

HEADLAMP AIMING SYSTEM (MANUAL)

EXL-61

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

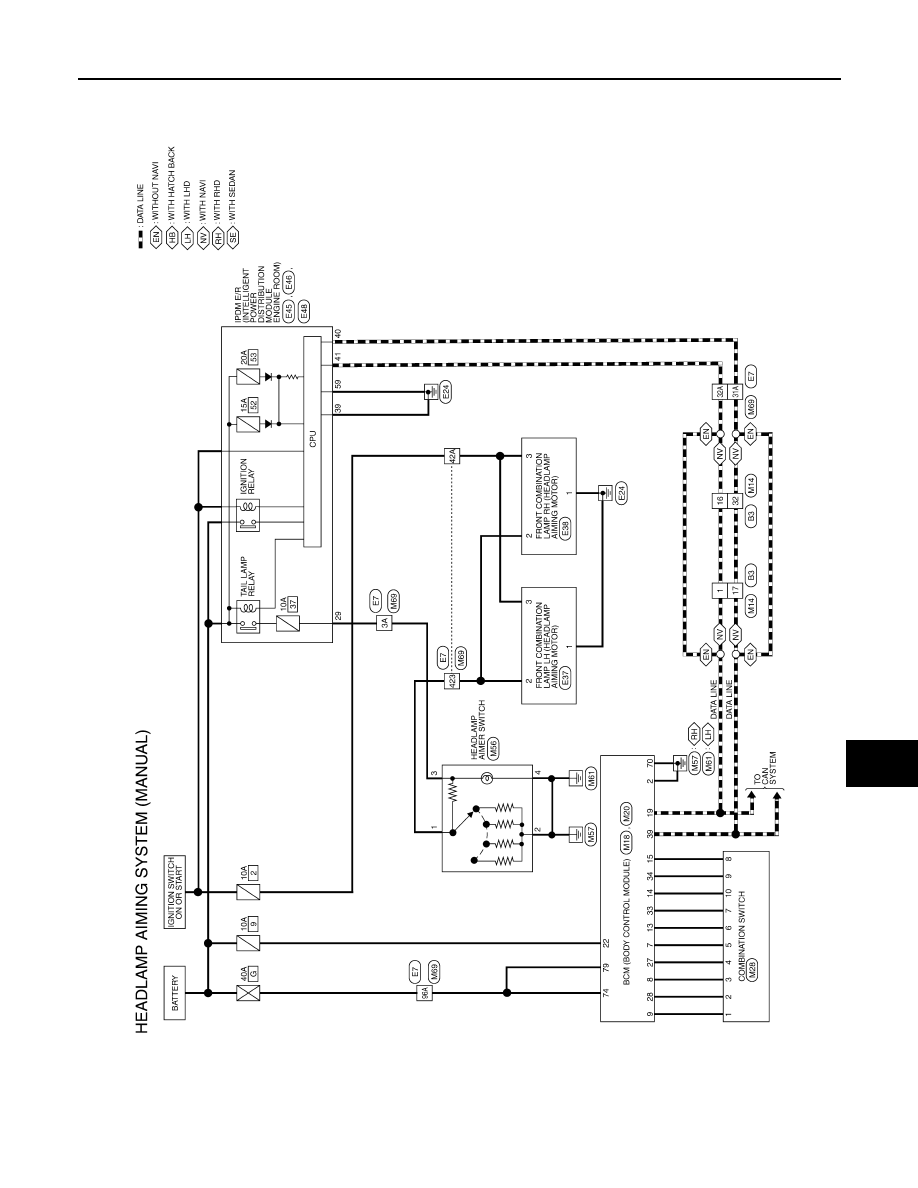

HEADLAMP AIMING SYSTEM (MANUAL)

Wiring Diagram

INFOID:0000000001527579

ALLWA0046GB
