EM-296

< ON-VEHICLE REPAIR >

[K9K]

TIMING BELT

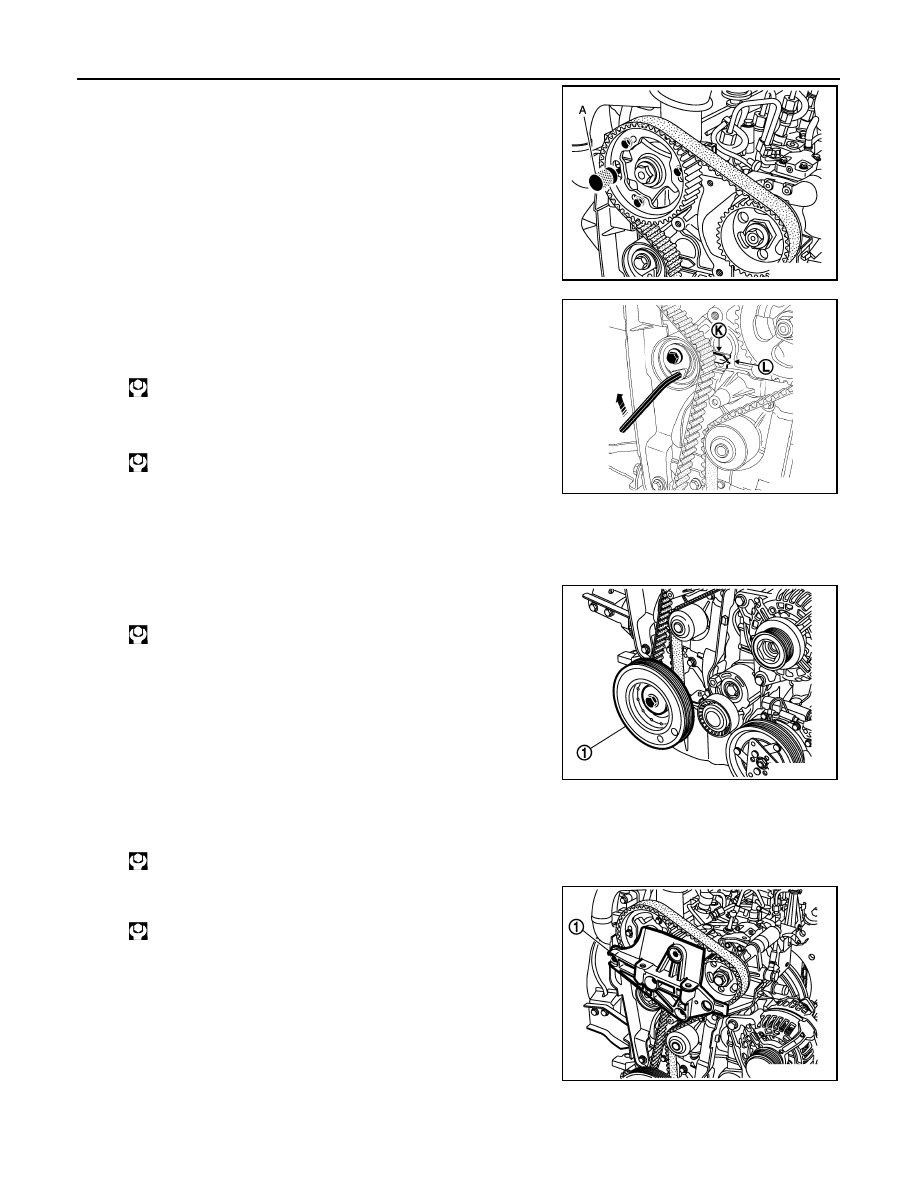

16. Insert TDC set pin [SST: KV113B0110 (Mot. 1430)] (A).

If the pin cannot be inserted, perform the following.

a.

Remove TDC set pin [SST: KV113B0130 (Mot. 1489)].

b.

Loosen camshaft sprocket wheel bolts.

c.

Turn camshaft pulley to adjust.

d.

Confirm that the crankshaft sprocket groove is facing upward.

e.

Loosen timing belt tensioner bolt.

f.

Move the movable index of the drive belt tensioner into the posi-
tion as shown, by turning the key clockwise.

g.

Tighten timing belt tensioner bolt.

h.

Install and tighten camshaft sprocket wheel bolts.

i.

Turn the crankshaft two revolutions in a clockwise direction (tim-
ing side). Just before the hole (A) of the camshaft pulley is opposite the cylinder head hole (B), insert TDC
set pin [SST: KV113B0130 (Mot. 1489)] into the cylinder block.

j.

Then turn the crankshaft slowly and smoothly against TDC set pin.

17. Install crankshaft pulley and tighten the bolt (1).

18. Turn bolt 95 degrees clockwise.

CAUTION:

Check and confirm the tightening angle by using the angle
wrench [SST: KV10112100 ( — )] or protractor. Avoid judg-
ment by visual inspection without the tool.

19. Remove TDC set pin [SST: KV113B0130 (Mot. 1489)] and TDC

set pin [SST: KV113B0110 (Mot. 1430)].

20. Apply liquid gasket to the thread of TDC pin plug.

21. Install TDC pin plug.

22. Install the cylinder head suspended bracket (1).

E1BIA0044ZZ

: 27.0 N·m (2.8 kg-m, 20 ft-lb)

: 14.0 N·m (1.4 kg-m, 10 ft-lb)

MBIB0511E

: 120 N·m (12 kg-m, 89 ft-lb)

: 20 N·m (2.0 kg-m, 15 ft-lb)

: 21 N·m (2.1 kg-m, 15 ft-lb)

E1BIA0045ZZ

E1BIA0042ZZ

TIMING BELT

EM-297

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

23. Install the timing cover by positioning the tab (M) into the hole

(N) on the inner timing cover.

24. Installation is in the reverse order of removal.

MBIB0514E

EM-298

< ON-VEHICLE REPAIR >

[K9K]

CAMSHAFT

CAMSHAFT

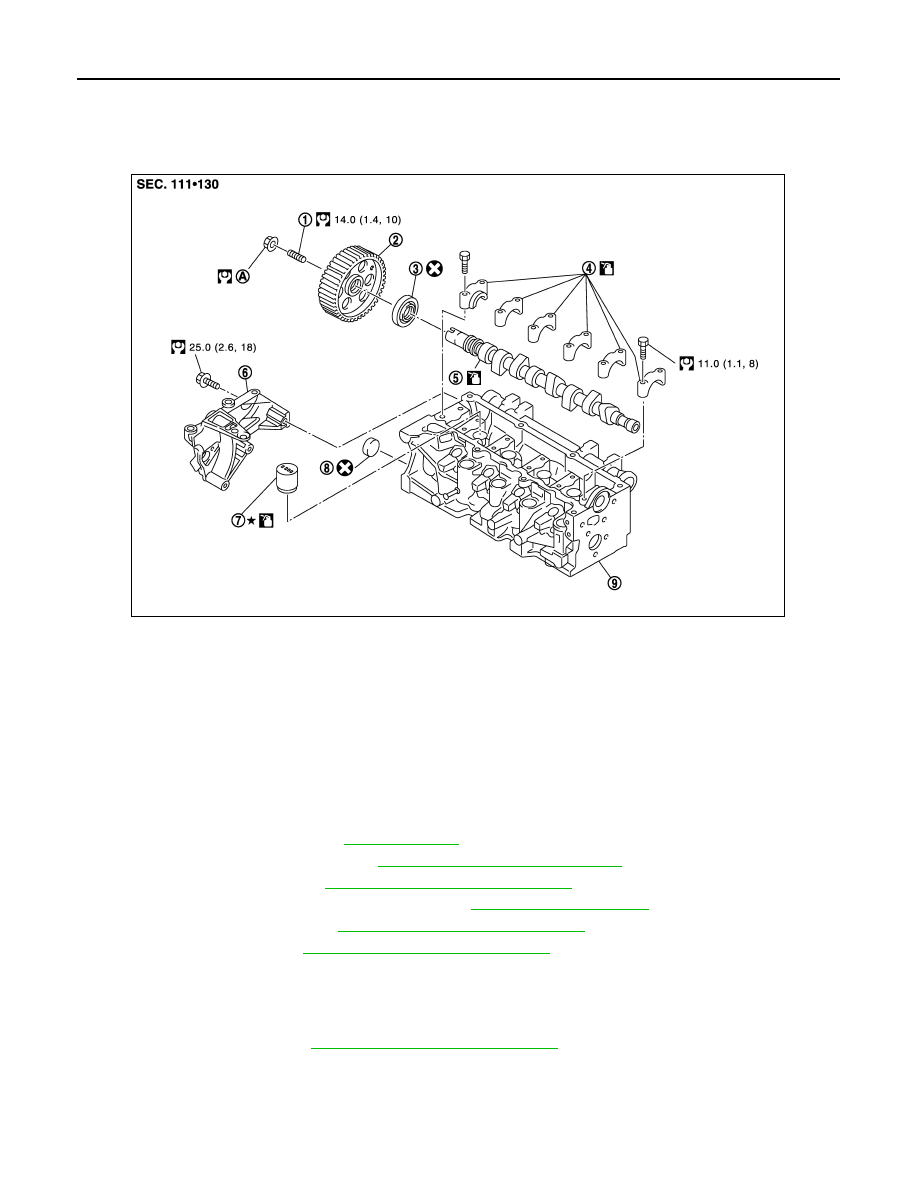

Exploded View

INFOID:0000000001381501

Removal and Installation

INFOID:0000000001381502

CAUTION:

Apply new engine oil to parts marked in illustration before installation.

REMOVAL

1.

Remove front wheel RH. Refer to

WT-6, "Rotation"

.

2.

Remove fender protector RH. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove rocker cover. Refer to

EM-289, "Removal and Installation"

.

4.

Remove electronic throttle control actuator. Refer to

EM-272, "Exploded View"

.

5.

Remove vacuum pump. Refer to

EM-280, "Removal and Installation"

.

6.

Remove drive belt. Refer to

EM-263, "Removal and Installation"

.

7.

Support the engine using suitable tool.

CAUTION:

Put a piece of wood or something similar as supporting surface to secure a completely stable con-
dition.

8.

Remove timing belt. Refer to

EM-291, "Removal and Installation"

.

9.

Remove camshaft brackets.

10. Remove camshaft.

11. Remove valve lifter.

INSTALLATION

1.

Camshaft sprocket stud bolt

2.

Camshaft sprocket

3.

Oil seal

4.

Camshaft bracket

5.

Camshaft

6.

Cylinder head suspended bracket

7.

Valve lifter

8.

Cap

9.

Cylinder head

A.

30.0 N·m (3.1 kg-m, 22 ft-lb) and 86 degrees

E1BIA0023GB

CAMSHAFT

EM-299

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

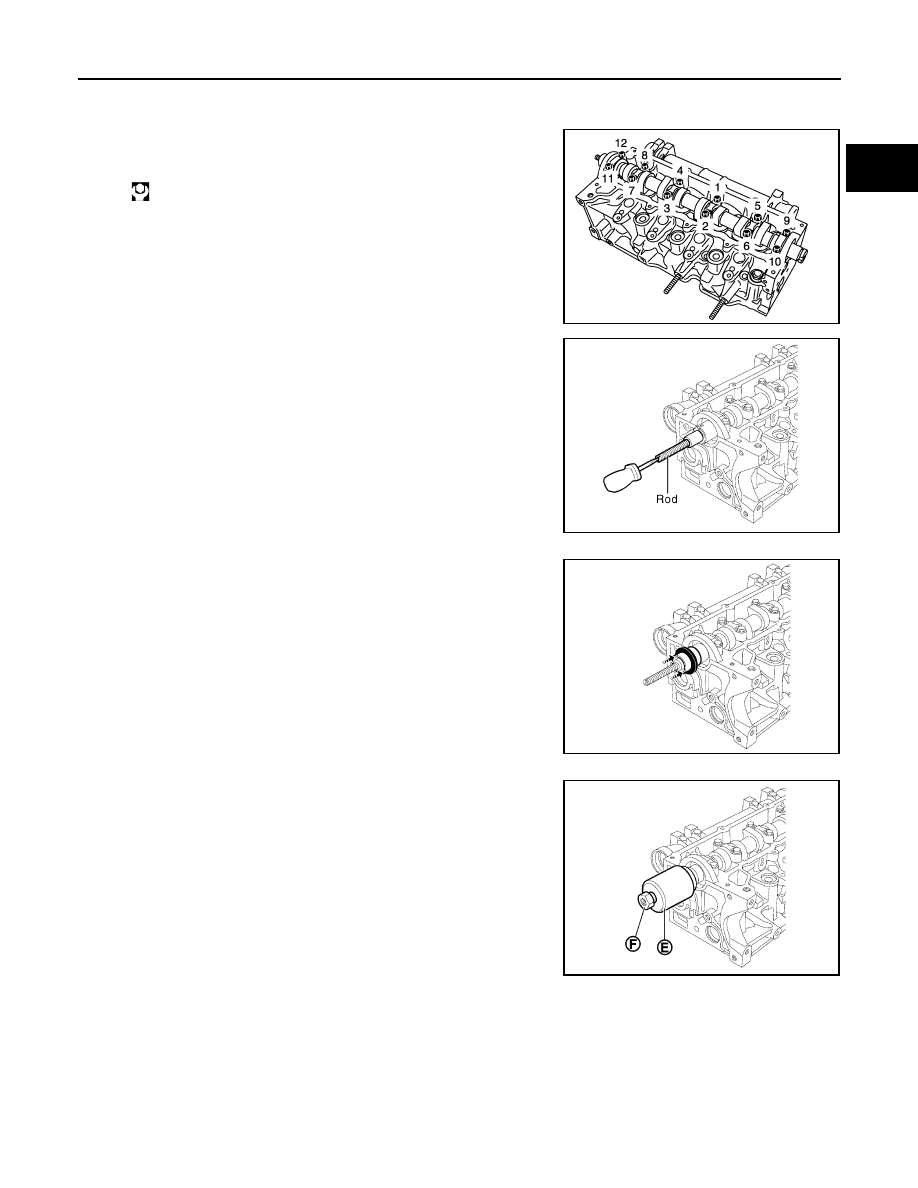

1.

Install valve lifter.

2.

Install camshaft.

3.

Install camshaft bracket and tighten bolts in numerical order as
shown.

4.

Screw the shouldered rod of camshaft seal insert [SST:
KV113B0230 (Mot. 1632)] onto the stud of the camshaft.

5.

For the new seal, put the protector with the seal on the cam-
shaft, taking care not to touch the seal.

6.

Install the cover (E) and the collar nut (F) of camshaft seal insert
[SST: KV113B0230 (Mot. 1632)].

: 11 N·m (1.1 kg-m, 8 ft-lb)

E1BIA0050ZZ

MBIB0430E

MBIB0431E

MBIB0432E
