HIGH PRESSURE SUPPLY PUMP

15. Plug all the holes of the injection circuit.

16. Remove the three mounting bolts from the high pressure supply pump then remove it.

INSTALLATION

1.

Install the pump then position the mounting bolts without tightening them.

2.

Before fitting the new injection tube, lightly lubricate the nut threads with the oil from the sachet provided
in the new parts kit.

3.

Install the injection tubes according to the following:
• remove the protective plugs.
• insert the injection tube olive into the taper of the high pressure pump outlet.
• insert the injection tube olive into the taper of the high pressure rail inlet.

4.

Finger tighten the nuts of the injection tube starting with the one located on the rail side.

5.

Tighten the bolts on the high pressure pump.

6.

Tighten the injection tube nut.

7.

Install the high pressure supply pump protector.

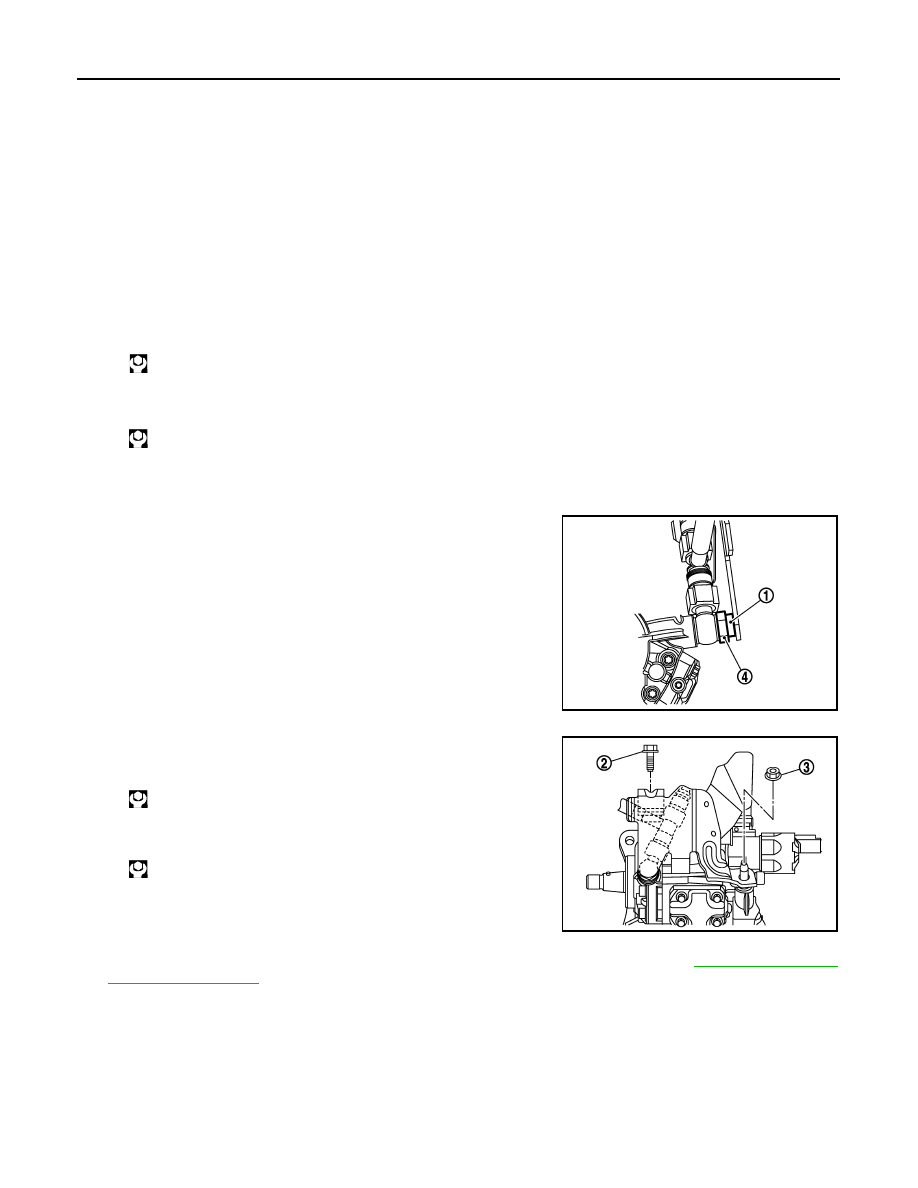

CAUTION:

When installing the high pressure supply pump protector, follow the steps below.
• Be sure rubber spacer (1) is touching bolt head of high

pressure supply pump (4) as shown.

• Tighten bolt (2) while holding protector towards the high

pressure supply pump.

• Tighten nut (3).

• Be sure rubber spacer (1) is touching bolt head of high

pressure supply pump (4).

8.

Installation is in the reverse order to removal.

9.

Test the sealing of the high pressure supply pump after it has been repaired (refer to

EM-253, "Precaution

for Diesel Equipment"

).

: 21.0 N·m (2.1 kg-m, 15 ft-lb)

: 24.0 N·m (2.4 kg-m, 18 ft-lb)

E1BIA0117ZZ

: 21.0 N·m (2.1 kg-m, 15 ft-lb)

: 21.0 N·m (2.1 kg-m, 15 ft-lb)

E1BIA0118ZZ

ROCKER COVER

EM-289

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

ROCKER COVER

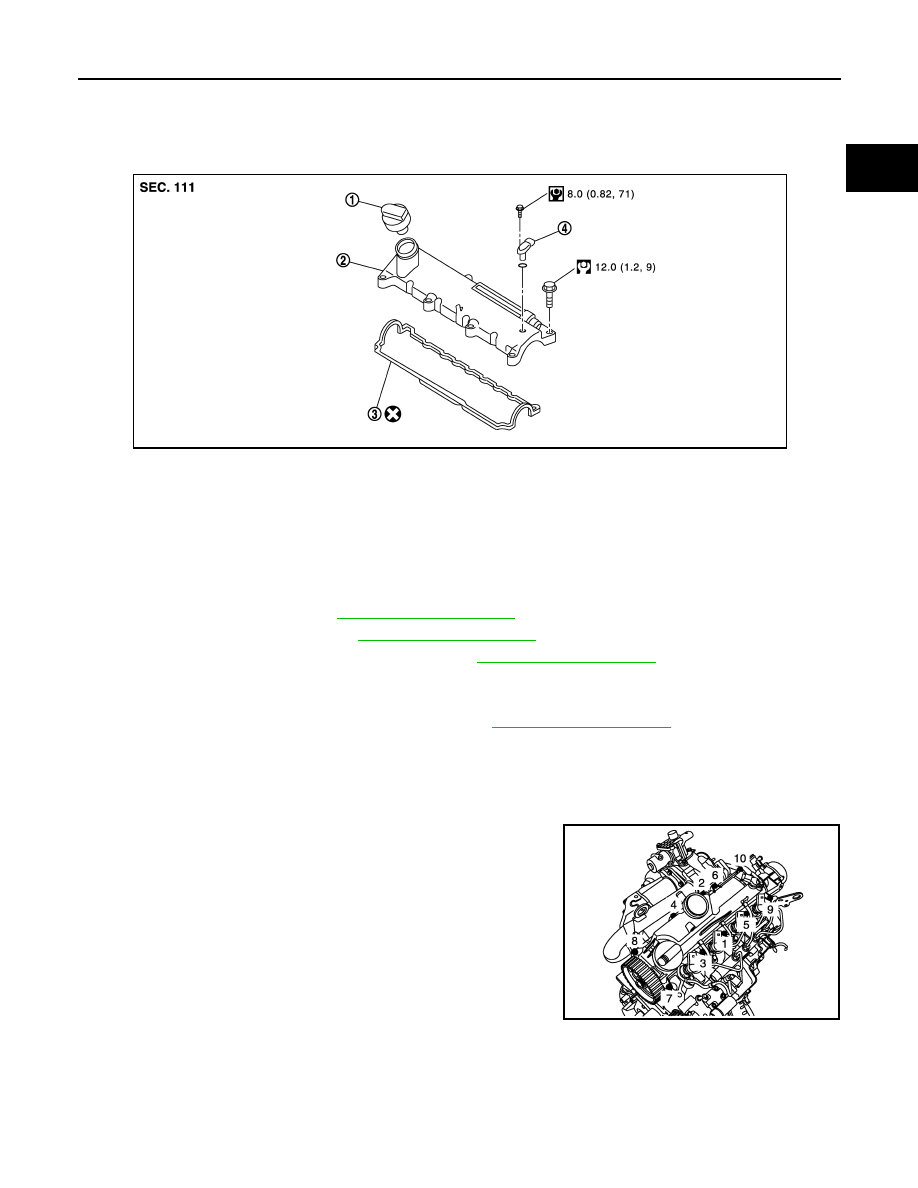

Exploded View

INFOID:0000000001381497

Removal and Installation

INFOID:0000000001381498

REMOVAL

1.

Remove engine cover.

2.

Remove air duct (inlet). Refer to

EM-269, "Exploded View"

.

3.

Remove air duct (suction). Refer to

EM-269, "Exploded View"

.

4.

Remove charge air cooler pipes and hoses. Refer to

EM-270, "Exploded View"

.

5.

Disconnect and remove camshaft position sensor.

6.

Remove fuel hose shield.

7.

Disconnect electronic throttle control actuator. Refer to

EM-272, "Exploded View"

.

8.

Remove blow-by hose.

9.

Remove high pressure pipes protection cover (upper).

10. Unclip fuel injector spill hose from rocker cover.
11. Unclip timing belt upper cover.

12. Remove rocker cover.

NOTE:
Loosen bolts in the reverse order as shown.

INSTALLATION

1.

Install new gasket to rocker cover.

1.

Oil filler cap

2.

Rocker cover

3.

Gasket

4.

Camshaft position sensor

E1BIA0006GB

E1BIA0048ZZ

EM-290

< ON-VEHICLE REPAIR >

[K9K]

ROCKER COVER

2.

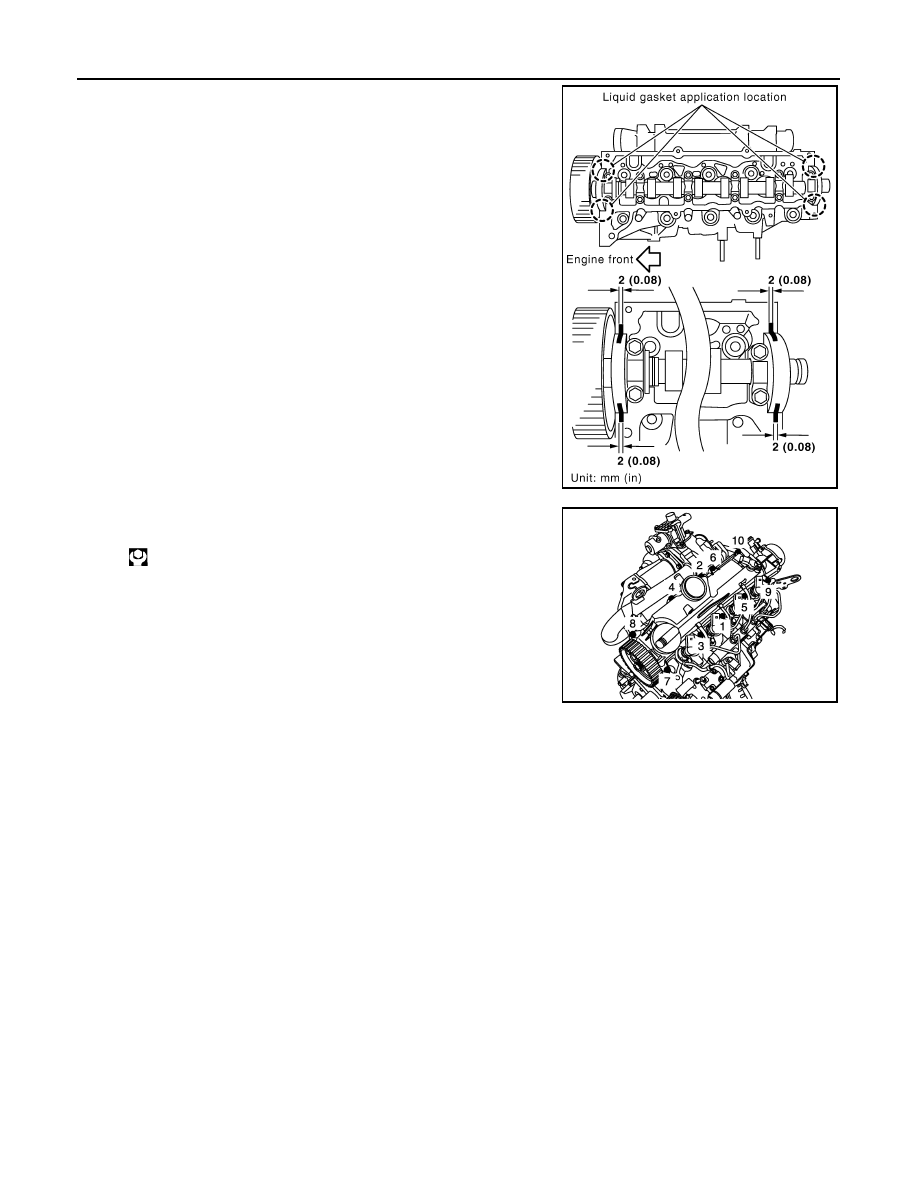

Apply liquid gasket on locations shown.
Use Genuine Liquid gasket or equivalent.

3.

Tighten bolts in the numerical order as shown.

4.

Installation is in the reverse order of removal.

MBIB0581E

: 12.0 N·m (1.2 kg-m, 9 ft-lb)

E1BIA0048ZZ

TIMING BELT

EM-291

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

TIMING BELT

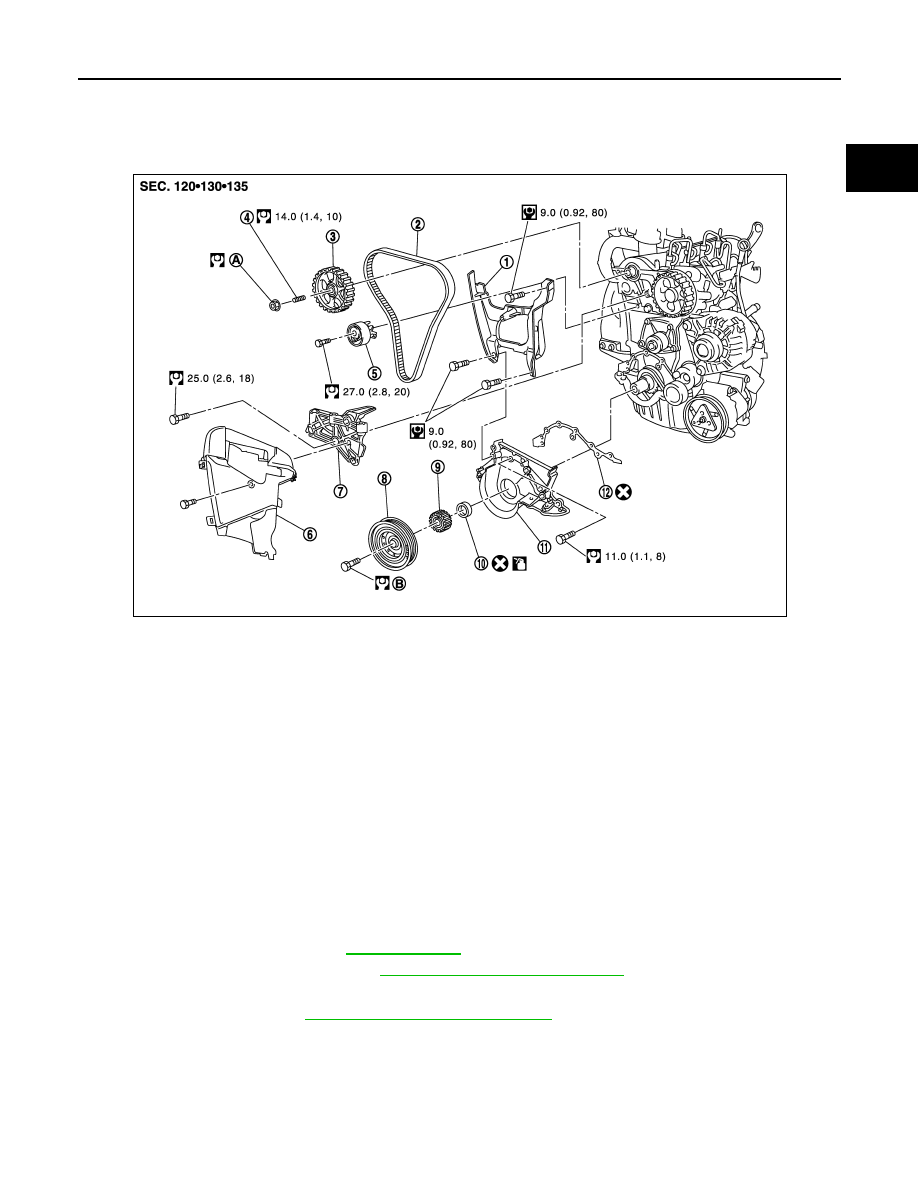

Exploded View

INFOID:0000000001381499

Removal and Installation

INFOID:0000000001381500

CAUTION:

• Apply new engine oil to parts marked in illustration before installation.
• Replace any belt that has been removed.
• Never turn the engine in the direction opposite to that of normal operation.
• When replacing the timing belt, be sure to replace the timing belt tensioner.
• Do not run the engine without the drive belts to avoid damaging the crankshaft pulley.

REMOVAL

1.

Remove front wheel RH. Refer to

WT-6, "Rotation"

.

2.

Remove fender protector RH. Refer to

EXT-22, "Removal and Installation"

.

3.

Remove engine cover.

4.

Remove drive belt. Refer to

EM-291, "Removal and Installation"

.

5.

Support the engine using suitable tool.

6.

Remove RH engine torque rod.

7.

Remove RH engine mounting support bracket and RH engine mounting insulator.

1.

Timing belt inner cover

2.

Timing belt

3.

Camshaft sprocket

4.

Camshaft sprocket stud bolt

5.

Timing belt tensioner

6.

Timing belt cover

7.

Cylinder head suspended bracket

8.

Crankshaft pulley

9.

Crankshaft sprocket (timing belt)

10. Oil seal

11.

Crankshaft cover

12. Gasket

A.

30.0 N·m (3.1 kg-m, 22 ft-lb) and 86 degrees

B.

120.0 N·m (12 kg-m, 89 ft-lb) and 95 degrees

E1BIA0022GB
