Nissan Tiida C11. Manual - part 733





EM-284

< ON-VEHICLE REPAIR >

[K9K]

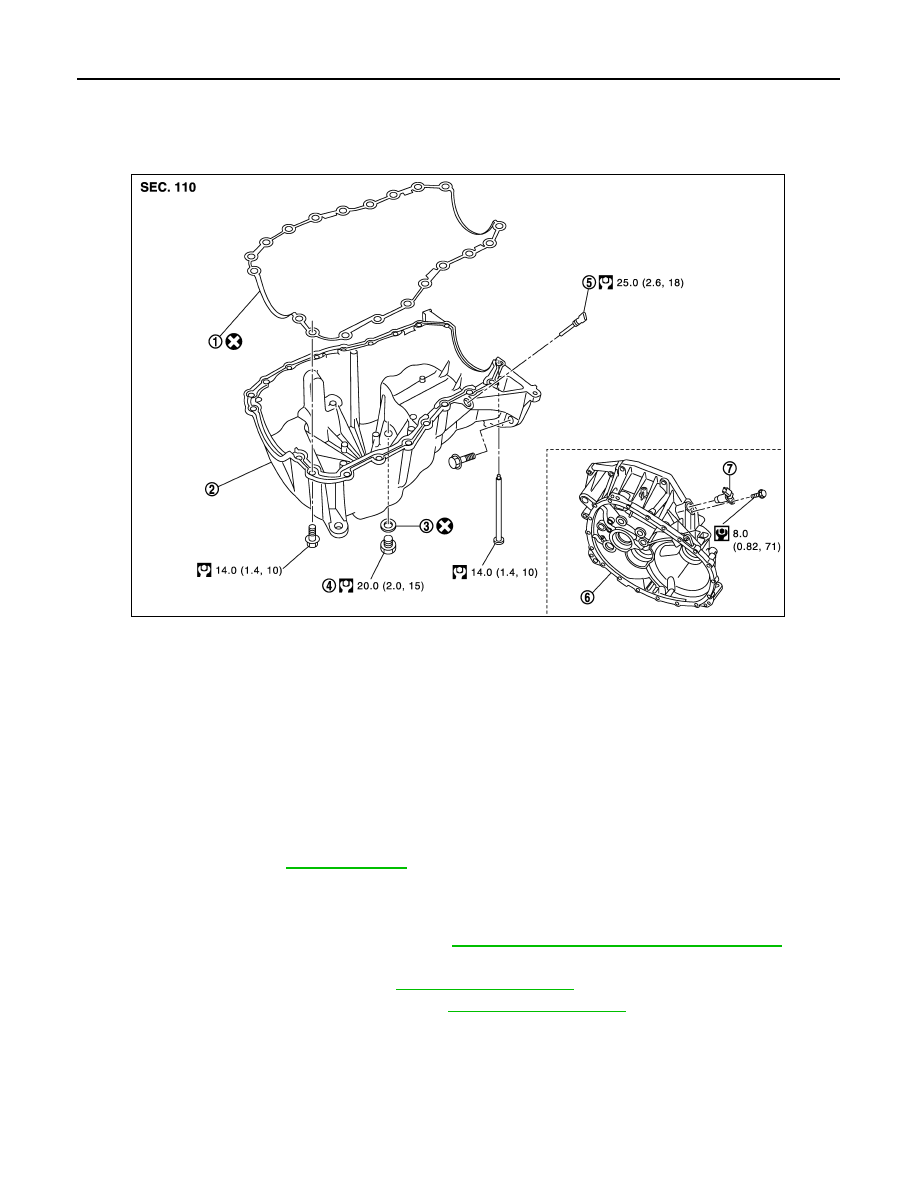

OIL PAN

OIL PAN

Exploded View

INFOID:0000000001381492

Removal and Installation

INFOID:0000000001381493

CAUTION:

To avoid the danger of being scalded, never drain the engine oil when the engine is hot.

REMOVAL

1.

Remove engine undercover using power tool.

2.

Remove oil level indicator.

3.

Drain engine oil. Refer to

LU-27, "Draining"

.

CAUTION:

Perform when engine is cold.

4.

Remove fender protector (RH).

5.

Remove front driveshaft assembly (RH). Refer to

FAX-11, "Removal and Installation (Right Side)"

.

6.

Remove driveshaft center bearing bracket.

7.

Remove rear torque rod (lower). Refer to

EM-302, "Exploded View"

.

8.

Remove bolts from the catalyst bracket. Refer to

EM-274, "Exploded View"

.

9.

Disconnect and remove oil level sensor.

1.

Gasket

2.

Oil pan

3.

O-ring

4.

Drain plug

5.

Oil level sensor

6.

Clutch housing

7.

Crankshaft position sensor

E1BIA0008GB

OIL PAN

EM-285

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

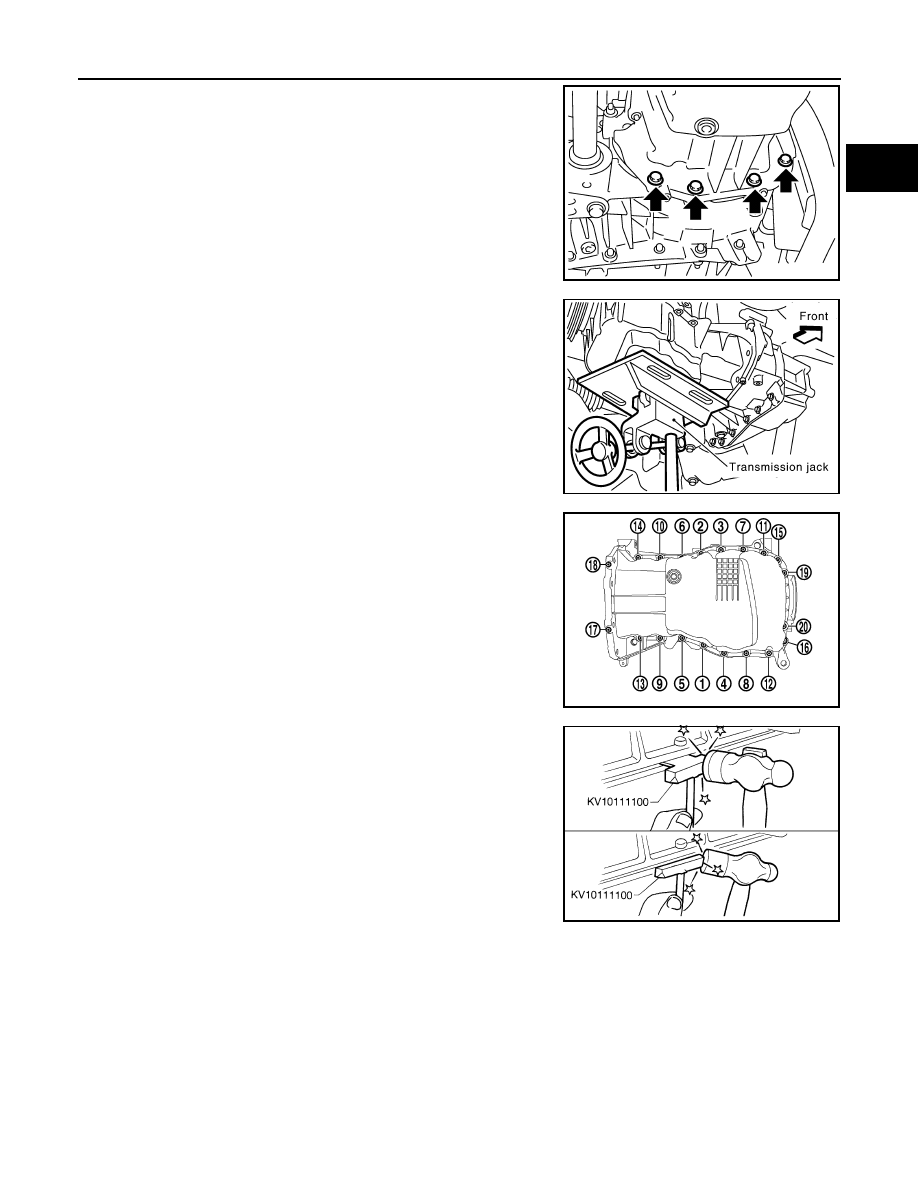

10. Remove oil pan and transaxle joint bolts.

11. Support the engine bottom of the oil pan with a transmission jack

etc.

12. Remove oil pan bolts in reverse order as shown.

13. Insert seal cutter [SST: KV10111100 (—)] between upper oil pan

and cylinder block. Slide tool by tapping on the side of the tool
with a hammer.

CAUTION:

Exercise care not to damage mating surface.

14. Remove oil pan.

INSTALLATION

• Installation is in the reverse order of removal.

MBIB1039E

MBIB0575E

MBIB1257E

SEM365EA

EM-286

< ON-VEHICLE REPAIR >

[K9K]

OIL PAN

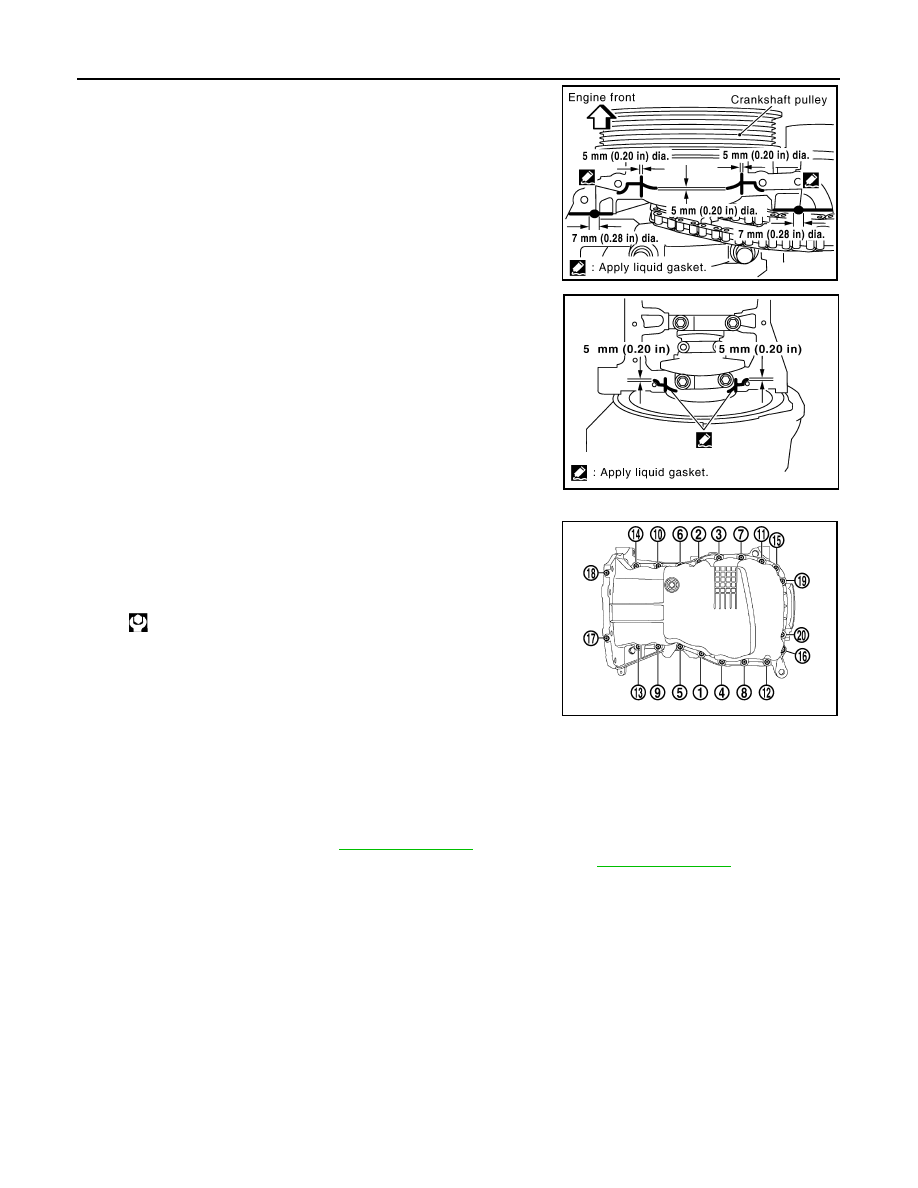

1.

Apply liquid gasket as shown.
• Use Genuine Liquid Gasket or equivalent.

2.

Using suitable tool, align the oil pan with the cylinder block.

3.

Install oil pan bolts in numerical order as shown.
NOTE:
Wait at least 30 minutes after oil pan is installed before filling
engine with engine oil.

Inspection

INFOID:0000000001381494

INSPECTION AFTER REMOVAL

Clean oil pump assembly if any objects attached.

INSPECTION AFTER INSTALLATION

• Check the engine oil level. Refer to

LU-26, "Inspection"

.

• Start the engine and make sure there are no leaks of engine oil. Refer to

LU-26, "Inspection"

.

MBIB0593E

MBIB0594E

: 14.0 N·m (1.4 kg-m, 10 ft-lb)

MBIB1257E

HIGH PRESSURE SUPPLY PUMP

EM-287

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

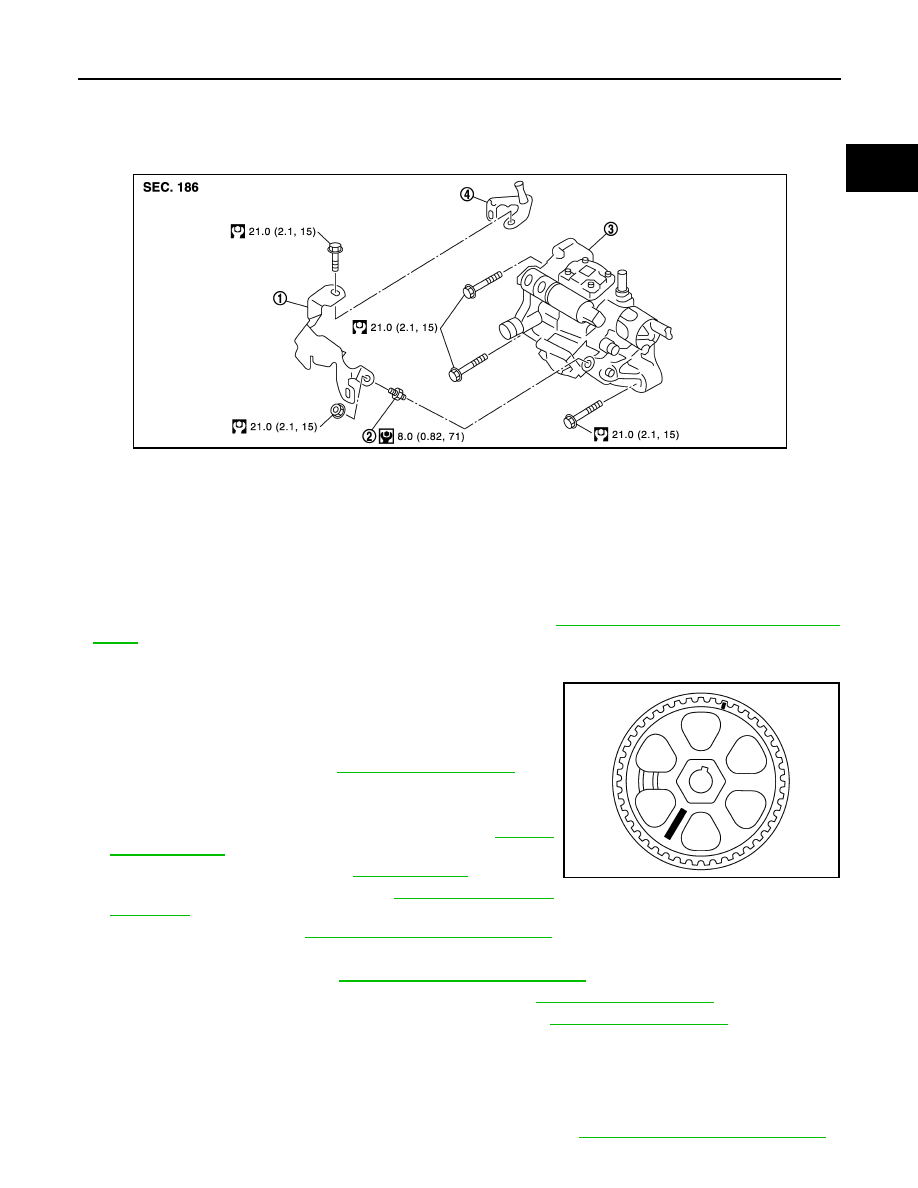

HIGH PRESSURE SUPPLY PUMP

Exploded View

INFOID:0000000001381495

Removal and Installation

INFOID:0000000001381496

REMOVAL

CAUTION:

• Be sure to read “Precautions for Diesel Equipment”. Refer to

EM-253, "Precaution for Diesel Equip-

ment"

.

• Wait until the fuel temperature drops before carrying out any work.
• Order the special high pressure injection circuit plug kit.
• It is strictly forbidden to remove any high pressure supply

pump sprocket marked number 070 575 (see diagram). If the
pump is being replaced, the pulley must be replaced.

1.

Disconnect the battery.

2.

Remove air duct (inlet). Refer to

EM-269, "Exploded View"

.

3.

Remove engine cover.

4.

Remove blow-by hose.

5.

Remove charge air cooler hose and pipes. Refer to

EM-270,

"Exploded View"

.

6.

Remove the RH front tire. Refer to

WT-6, "Rotation"

.

7.

Remove fender protector (RH). Refer to

EXT-22, "Removal and

Installation"

.

8.

Remove drive belt. Refer to

EM-263, "Removal and Installation"

.

9.

Support the engine using suitable tool.

10. Remove the timing belt. Refer to

EM-291, "Removal and Installation"

.

11. Remove the oil level gauge guide and plug the hole. Refer to

EM-281, "Exploded View"

.

12. Remove high pressure pipes protection cover (upper). Refer to

EM-281, "Exploded View"

.

13. Carefully disconnect:

• The connectors from the flow actuator,
• The connectors from the fuel temperature sensor,
• On the pump, the fuel supply and return pipes.
• The return pipe connecting the injectors with the pump.

14. Remove the injection tube connecting the pump to the rail. Refer to

EM-281, "Removal and Installation"

.

1.

High pressure supply pump protec-
tor

2.

Stud bolt

3.

High pressure supply pump

4.

Engine cover bracket

E1BIA0119GB

MBIB9036E
