EM-300

< ON-VEHICLE REPAIR >

[K9K]

CAMSHAFT

7.

Screw the collar nut until the cover touches the cylinder head.

8.

Install camshaft sprocket and sprocket holder [SST: — (Mot.
1606-A)] (A).

9.

Install timing belt. Refer to

EM-291, "Removal and Installation"

.

10. Installation is in the reverse order of removal.

Inspection

INFOID:0000000001381503

INSPECTION AFTER REMOVAL

Camshaft Runout

1.

Put V-block on a precise flat table, and support No. 2 and 4 journal of camshaft.

CAUTION:

Never support No. 1 journal (on the side of camshaft
sprocket) because it has a different diameter from the other
four locations.

2.

Set dial indicator (A) vertically to No. 3 journal.

3.

Turn camshaft in one direction and measure the camshaft
runout on dial indicator. (Total indicator reading)

4.

If it exceeds the limit, replace camshaft.

Camshaft Cam Height

1.

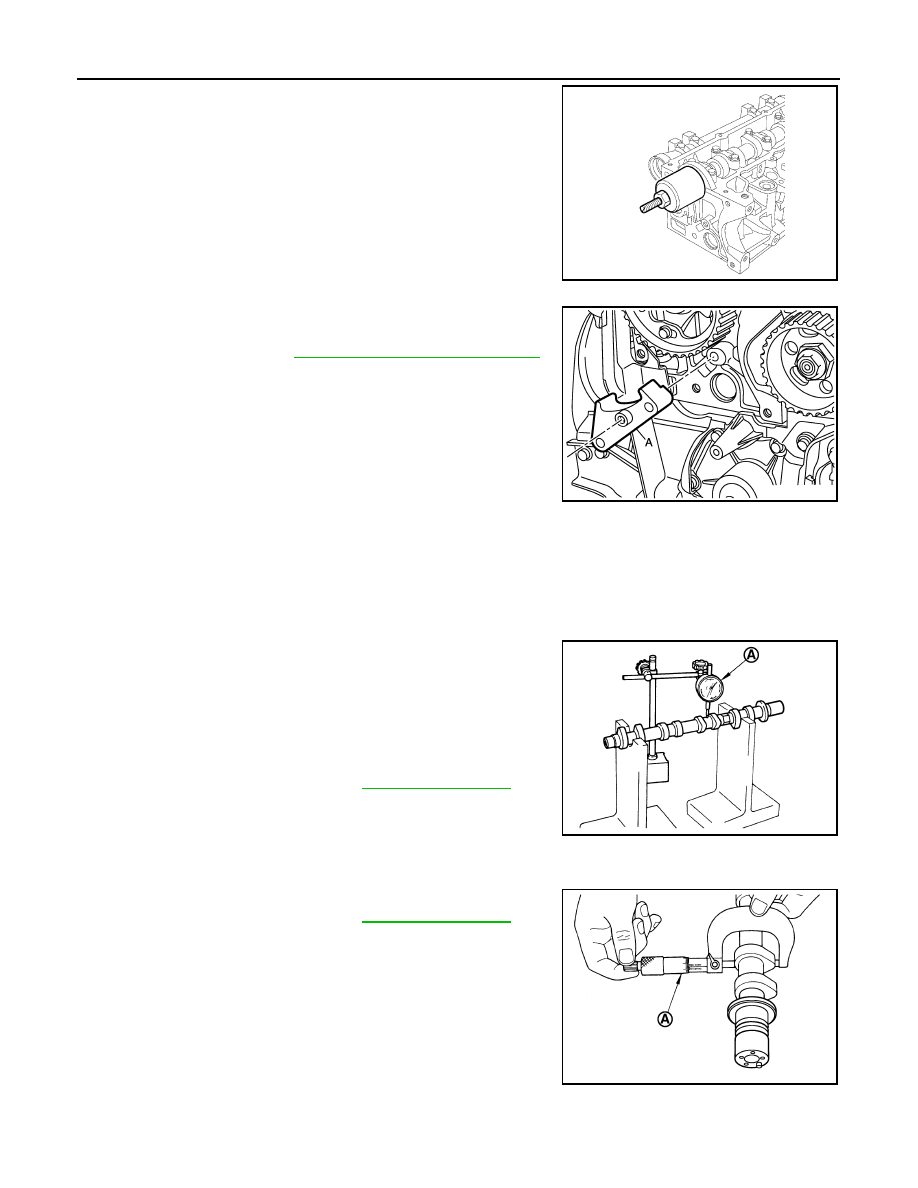

Measure the camshaft cam height with a suitable tool (A).

2.

If it exceeds the limit, replace camshaft.

Camshaft End Play

MBIB0433E

E1BIA0054ZZ

Standard

: Refer to

EM-333, "Camshaft"

.

PBIC3177J

Standard

: Refer to

EM-333, "Camshaft"

.

PBIC3178J

CAMSHAFT

EM-301

< ON-VEHICLE REPAIR >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

1.

Install the camshaft.

2.

Install the camshaft brackets.

3.

Check the end play.

Valve Lifter

1.

Measure outer diameter of valve lifter.

2.

Measure inner diameter of valve lifter hole in cylinder head.

3.

Calculate the valve lifter clearance.
(Valve lifter clearance) = (Valve lifter hole inner diameter) – (Valve lifter diameter)

Standard

: Refer to

EM-333, "Camshaft"

.

MBIB0420E

Intake and exhaust

: Refer to

EM-333, "Camshaft"

Intake and exhaust

: Refer to

EM-333, "Camshaft"

Intake and exhaust

: Refer to

EM-333, "Camshaft"

EM-302

< REMOVAL AND INSTALLATION >

[K9K]

ENGINE ASSEMBLY

REMOVAL AND INSTALLATION

ENGINE ASSEMBLY

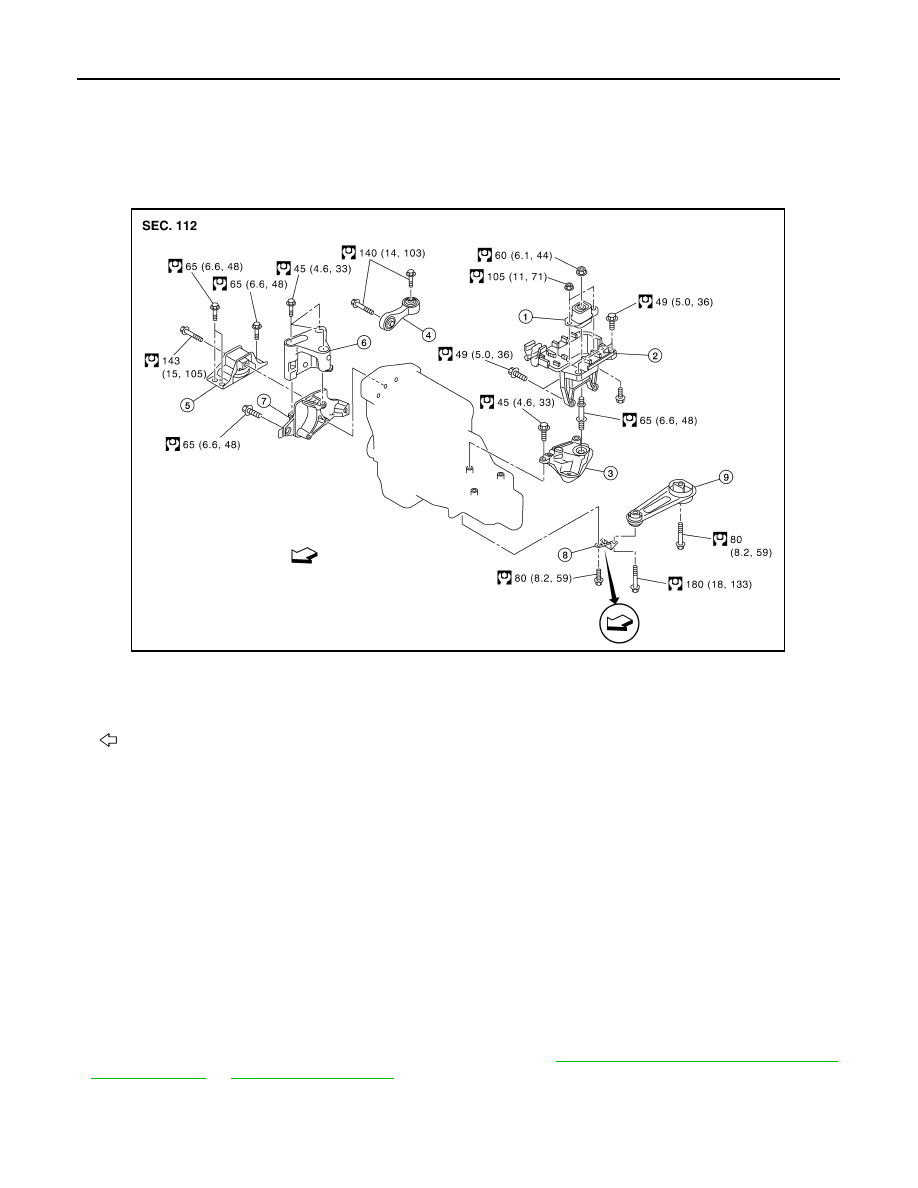

Exploded View

INFOID:0000000001381504

Removal and Installation

INFOID:0000000001381505

WARNING:

• Situate vehicle on a flat and solid surface.
• Place chocks at front and back of rear wheels.
• For engines not equipped with engine slingers, attach proper slingers and bolts described in PARTS

CATALOG.

CAUTION:

• Always be careful to work safely, avoid forceful or uninstructed operations.
• Do not start working until exhaust system and coolant are cool enough.
• If items or work required are not covered by the main engine section, follow the procedures in the

applicable sections.

• Always use the support point specified for lifting.
• Use either 2-pole lift type or separate type lift as best you can. If board-on type is used for unavoid-

able reasons, support at the rear axle jacking point with transmission jack or similar tool before
starting work, in preparation for the backward shift of center of gravity.

• For supporting points for lifting and jacking rear axle, refer to

GI-48, "Garage Jack and Safety Stand

and 2-Pole Lift"

 or

GI-49, "Board-On Lift"

.

REMOVAL

Description of Work

1.

Engine mounting insulator LH

2.

Engine mounting frame support LH

3.

Engine mounting bracket LH

4.

Upper torque rod

5.

Engine mounting insulator RH

6.

Engine mounting bracket RH (upper)

7.

Engine mounting bracket RH (lower)

8.

Lower torque rod bracket

9.

Lower torque rod

 : Vehicle front

AWBIA0162GB

ENGINE ASSEMBLY

EM-303

< REMOVAL AND INSTALLATION >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Remove engine and transaxle assembly from vehicle down ward. Separate engine and transaxle.

Preparation

Remove the following parts.
• Battery ground cable.
• Engine undercover.
• LH and RH front wheels. Refer to

WT-6, "Rotation"

.

• LH and RH fender protectors. Refer to

EXT-22, "Removal and Installation"

.

Engine Room

1.

Drain engine coolant. Refer to

CO-58, "Draining"

.

CAUTION:

Perform when engine is cold.

2.

Remove lower radiator hose. Refer to

CO-62, "Exploded View"

.

3.

Drain transaxle fluid. Refer to

TM-672, "Draining"

.

4.

Disconnect clutch tube at clutch housing and drain clutch fluid.
NOTE:
Cover clutch tube ends to prevent contamination.

5.

Remove hood. Refer to

DLK-214, "Removal and Installation"

.

6.

Remove cowl top cover and cowl top extension assembly. Refer to

EXT-20, "Removal and Installation"

.

7.

Remove battery and battery trap. Refer to

PG-6, "Removal and Installation"

.

8.

Disconnect engine room harness from the engine side and position aside.

9.

Remove the air duct (inlet). Refer to

EM-269, "Exploded View"

.

10. Remove engine cover.

11. Remove blow-by hose.
12. Remove air cleaner case and air duct (suction). Refer to

EM-269, "Removal and Installation"

.

13. Remove reservoir tank and hoses. Refer to

CO-62, "Exploded View"

.

14. Remove charge air cooler hoses and tubes. Refer to

EM-270, "Exploded View"

.

15. Remove vacuum hose. Refer to

EM-280, "Removal and Installation"

.

16. Disconnect fuel feed and return hoses, and plug it to prevent fuel from draining.

17. Remove radiator upper hose. Refer to

CO-62, "Exploded View"

.

18. Disconnect heater hoses.

19. Disconnect transaxle side harness.

20. Disconnect breather hose transaxle side.
21. Disconnect shift cable and select cable. Refer to

TM-674, "Exploded View"

.

22. Remove cooling fan. Refer to

CO-64, "Removal and Installation"

.

23. Remove radiator. Refer to

CO-62, "Exploded View"

.

24. Disconnect all the body-side vacuum hoses and air hoses at engine side.

Vehicle Underbody

1.

Remove drive shaft assembly RH and LH. Refer to Removal and Installation.

2.

Remove exhaust front tube. Refer to

EX-14, "Component"

.

3.

Remove drive belt. Refer to

EM-263, "Removal and Installation"

.

4.

Remove A/C compressor and position aside.
NOTE:
Secure it to body with a rope to avoid putting load on A/C lines.

5.

Remove lower torque rod. Refer to

EM-302, "Exploded View"

.

Removal
