FUEL INJECTOR AND FUEL TUBE

8.

Remove fuel tube.
• Loosen bolts in reverse order as shown.

9.

Remove the fuel tube and fuel injector assembly.

CAUTION:

• When removing, be careful to avoid any interference with fuel injector.
• Use a shop cloth to absorb any fuel leaks from fuel tube.

10. Remove fuel injector from fuel tube with the following procedure:

a.

Open and remove clip.

b.

Remove fuel injector from fuel tube by pulling straight.

CAUTION:

• Be careful with remaining fuel that may go out from fuel tube.
• Be careful not to damage fuel injector nozzle during removal.
• Never bump or drop fuel injector.
• Never disassemble fuel injector.

INSTALLATION

1.

Note the following, and install O-rings to fuel injector.

CAUTION:

• Upper and lower O-rings are different. Be careful not to confuse them.

• Handle O-ring with bare hands. Never wear gloves.
• Lubricate O-ring with new engine oil.
• Never clean O-ring with solvent.
• Make sure that O-ring and its mating part are free of foreign material.
• When installing O-ring, be careful not to scratch it with tool or fingernails. Also be careful not to

twist or stretch O-ring. If O-ring was stretched while it was being attached, never insert it quickly
into fuel tube.

• Insert O-ring straight into fuel tube. Never twist it.

: Engine front

PBIC3154J

Fuel tube side

: Black

Nozzle side

: Green

FUEL INJECTOR AND FUEL TUBE

EM-165

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

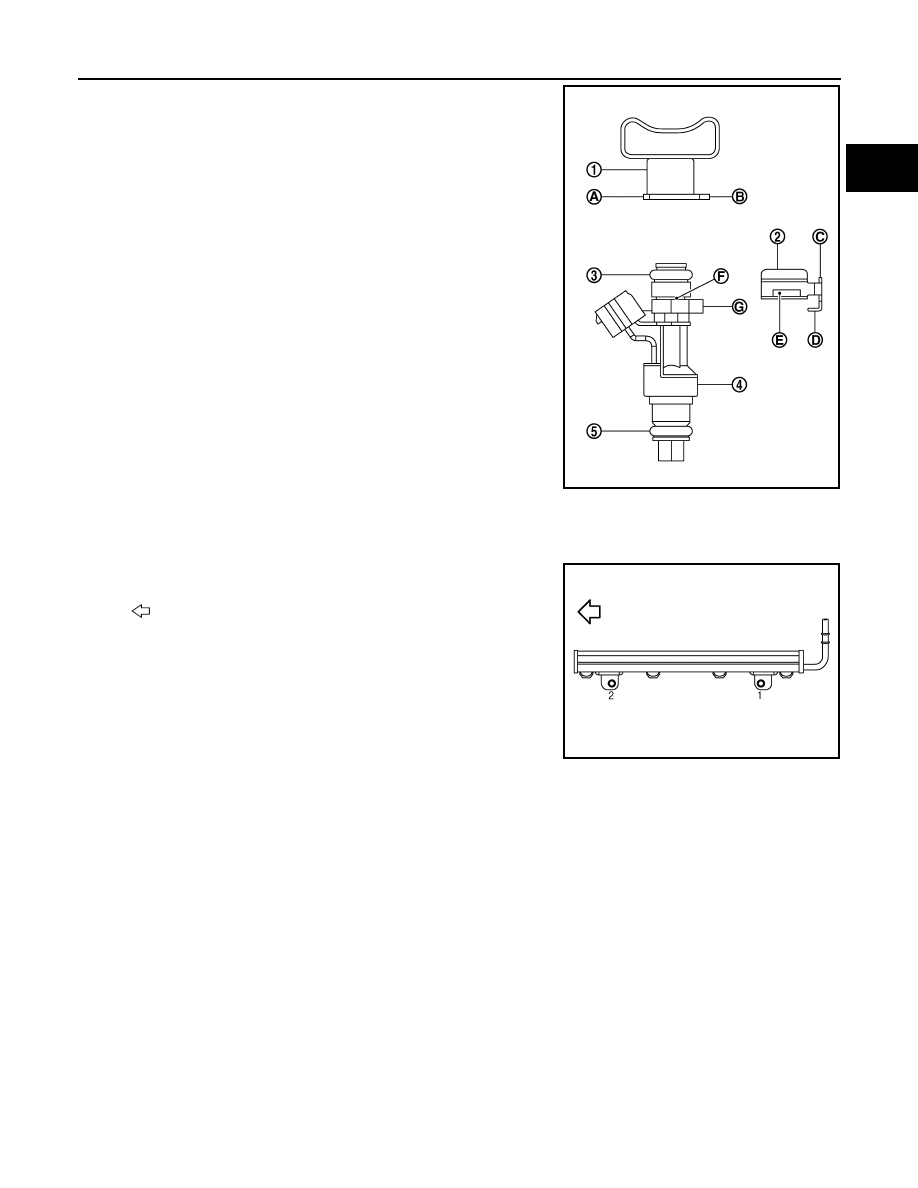

Install fuel injector (4) to fuel tube (1) with the following proce-
dure:

a.

Insert clip (2) into clip groove (F) on fuel injector.
• Insert clip so that protrusion (G) of fuel injector matches cut-

out (D) of clip.

CAUTION:

• Never reuse clip. Replace it with a new one.
• Be careful to keep clip from interfering with O-ring. If

interference occurs, replace O-ring.

b.

Insert fuel injector into fuel tube with clip attached.
• Insert it while matching it to the axial center.
• Insert fuel injector so that protrusion (B) of fuel tube matches

cut-out (C) of clip.

• Make sure that fuel tube flange (A) is securely fixed in flange

fixing groove (E) on clip.

c.

Make sure that installation is complete by making sure that fuel
injector does not rotate or come off.

3.

Set fuel tube and fuel injector assembly at its position for installation on cylinder head.

CAUTION:

For installation, be careful not to interfere with fuel injector nozzle.

4.

Tighten bolts in numerical order as shown.

5.

Installation of the remaining components is in the reverse order of removal.

3

: O–ring (black)

5

: O–ring (green)

PBIC3155J

: Engine front

PBIC3154J

EM-166

< ON-VEHICLE REPAIR >

[MR18DE]

OIL PAN

OIL PAN

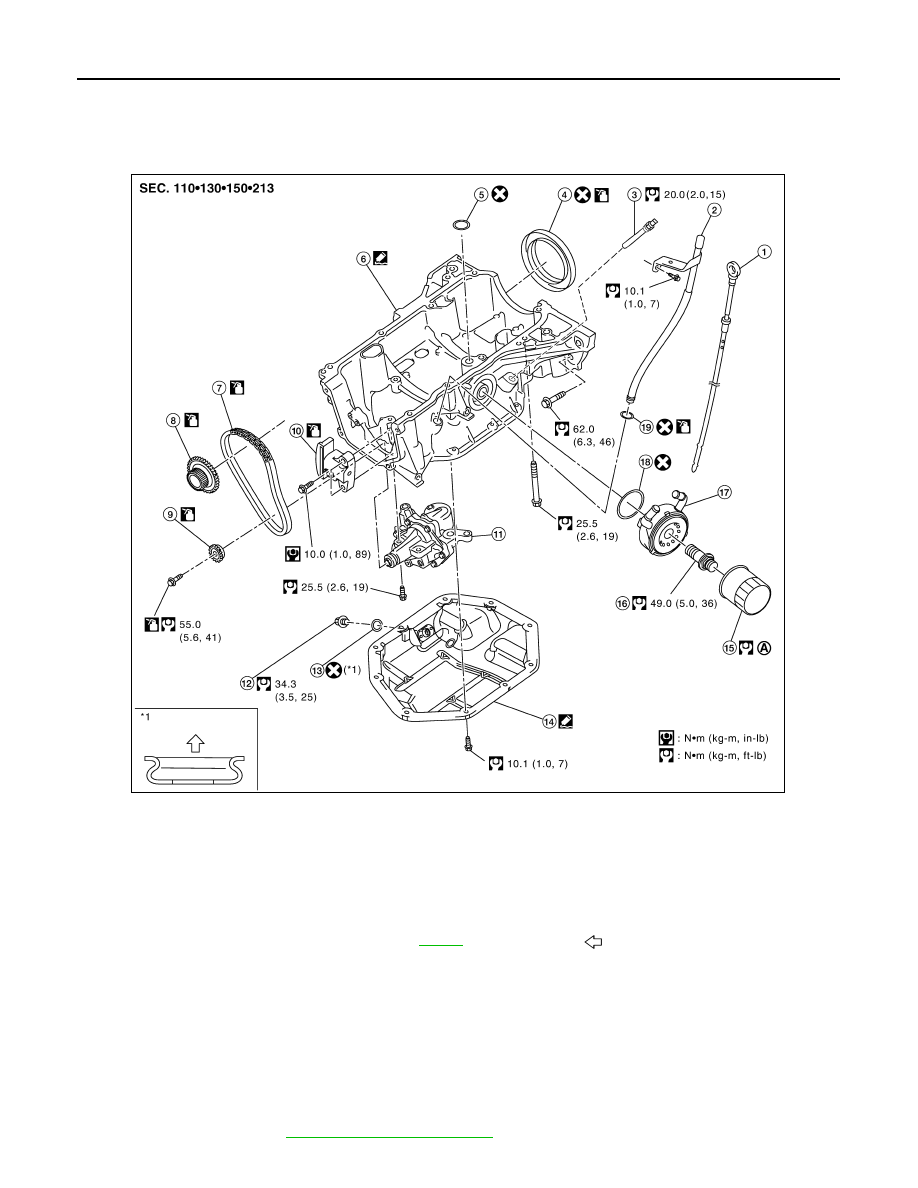

Component

INFOID:0000000001337789

Removal and Installation

INFOID:0000000001337790

REMOVAL

WARNING:

• Be careful not to burn yourself, as the engine oil is hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct skin

contact with used oil. If skin contact is made, wash thoroughly with soap or hand cleaner as soon as
possible.

1.

Drain engine oil. Refer to

LU-16, "Changing Engine Oil"

.

1.

Oil level gauge

2.

Oil level gauge guide

3.

Oil level sensor

4.

Rear oil seal

5.

O-ring

6.

Oil pan (upper)

7.

Oil pump drive chain

8.

Crankshaft sprocket

9.

Oil pump sprocket

10. Timing chain tensioner (for oil pump) 11.

Oil pump

12. Drain plug

13. Drain plug washer

14. Oil pan (lower)

15. Oil filter

16. Connector bolt

17. Oil cooler

18. O-ring

19. O-ring

A.

Refer to

EM-166

:Oil pan side

AWBIA0156GB

OIL PAN

EM-167

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

2.

Remove engine and transaxle assembly. Refer to

EM-207

.

3.

Remove oil filter using Tool.

CAUTION:

When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.

4.

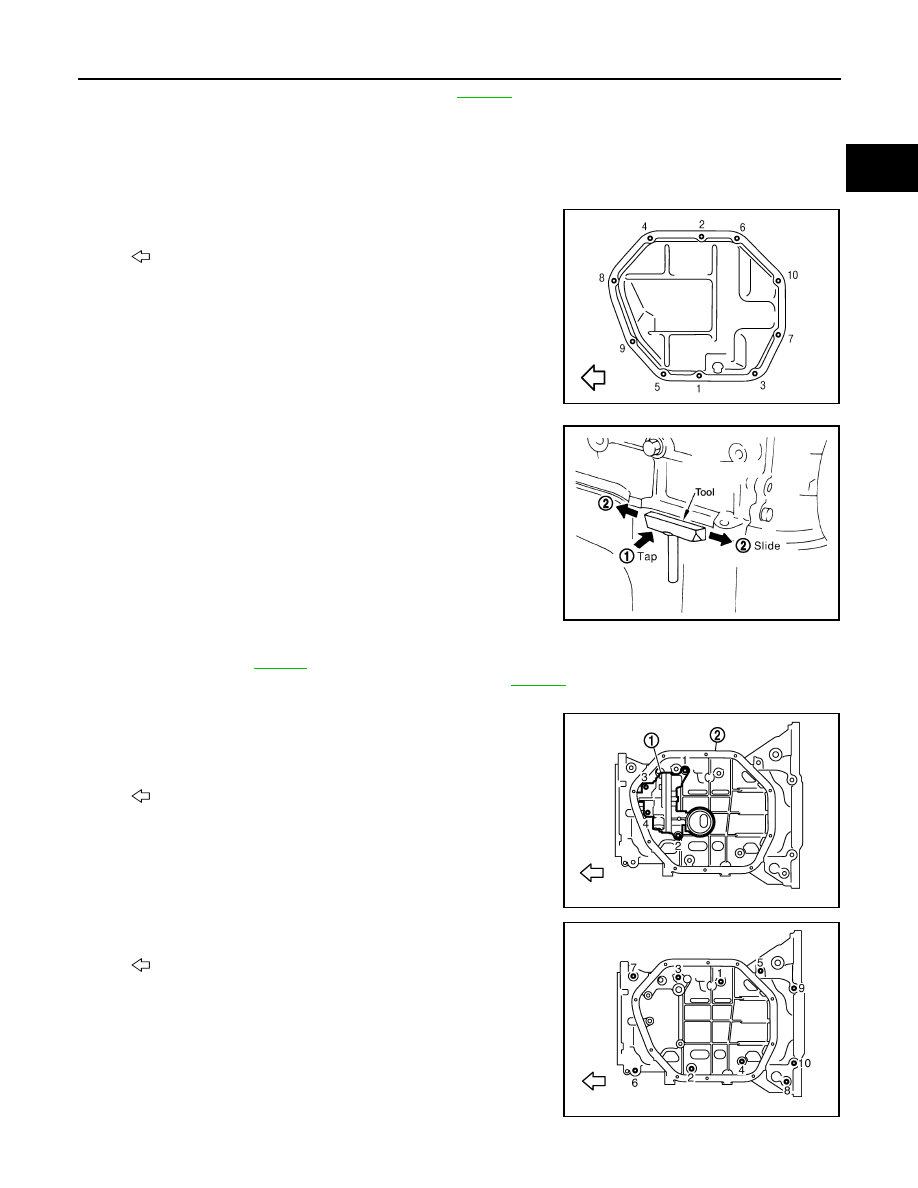

Remove oil pan (lower) bolts in reverse order as shown.

5.

After removing the bolts and nuts, separate the mating surface
and remove the sealant using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

6.

Remove the following parts:
• Flywheel; Refer to

EM-211

.

• Front cover, timing chain, oil pump drive chain; Refer to

EM-176

.

7.

Remove oil pump.
• Loosen bolts in reverse order as shown.

8.

Remove oil pan (lower) bolts in reverse order as shown.

Tool number

: KV10115801 (

—

)

: Engine front

PBIC3146J

Tool number

: KV10111100 (J-37228)

WBIA0566E

1

:  Oil  pump

2

: Oil pan (upper)

: Engine front

PBIC3532J

: Engine front

PBIC3533J
