Nissan Tiida C11. Manual - part 701





EM-156

< ON-VEHICLE REPAIR >

[MR18DE]

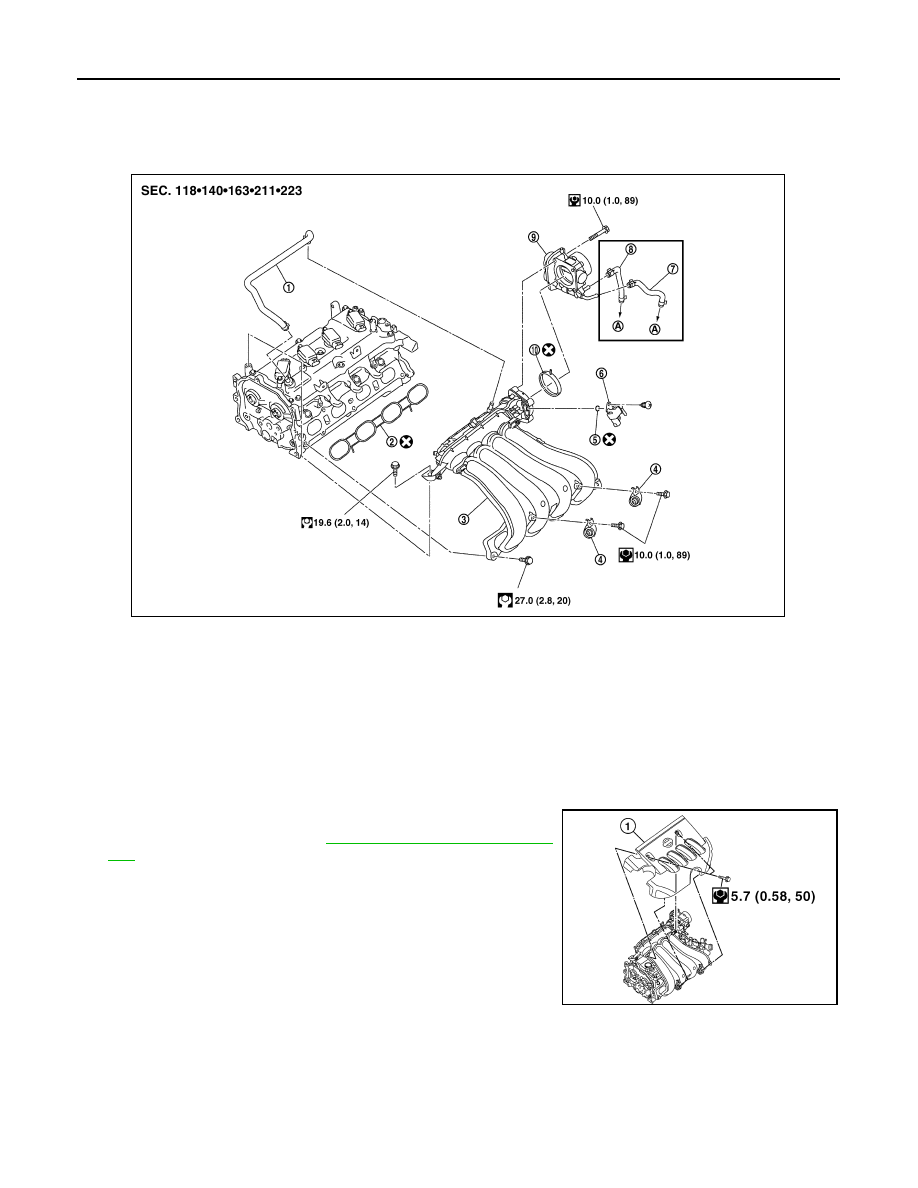

INTAKE MANIFOLD

INTAKE MANIFOLD

Component

INFOID:0000000001337785

Removal and Installation

INFOID:0000000001337786

REMOVAL

1.

Remove engine cover (1).

2.

Drain engine coolant. Refer to

CO-35, "Changing Engine Cool-

ant"

.

CAUTION:

Perform this step when engine is cold.
NOTE:
This step is unnecessary when putting plugs to water hoses (to
electronic throttle control actuator)

a.

Disconnect water hoses from electronic throttle control actuator.

b.

Remove electronic throttle control actuator.

CAUTION:

• Handle carefully to avoid any shock to electronic throttle

control actuator.

• Never disassemble.

3.

Remove oil level gauge.

CAUTION:

Cover the oil level gauge guide openings to avoid entry of foreign materials.

1.

PCV hose

2.

Gasket

3.

Intake manifold

4.

Bracket

5.

O-ring

6.

EVAP canister purge volume control
solenoid valve

7.

Water hose

8.

Water hose

9.

Electronic throttle control actuator

10. Gasket

A.

To water outlet

WBIA0771E

WBIA0845E

INTAKE MANIFOLD

EM-157

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

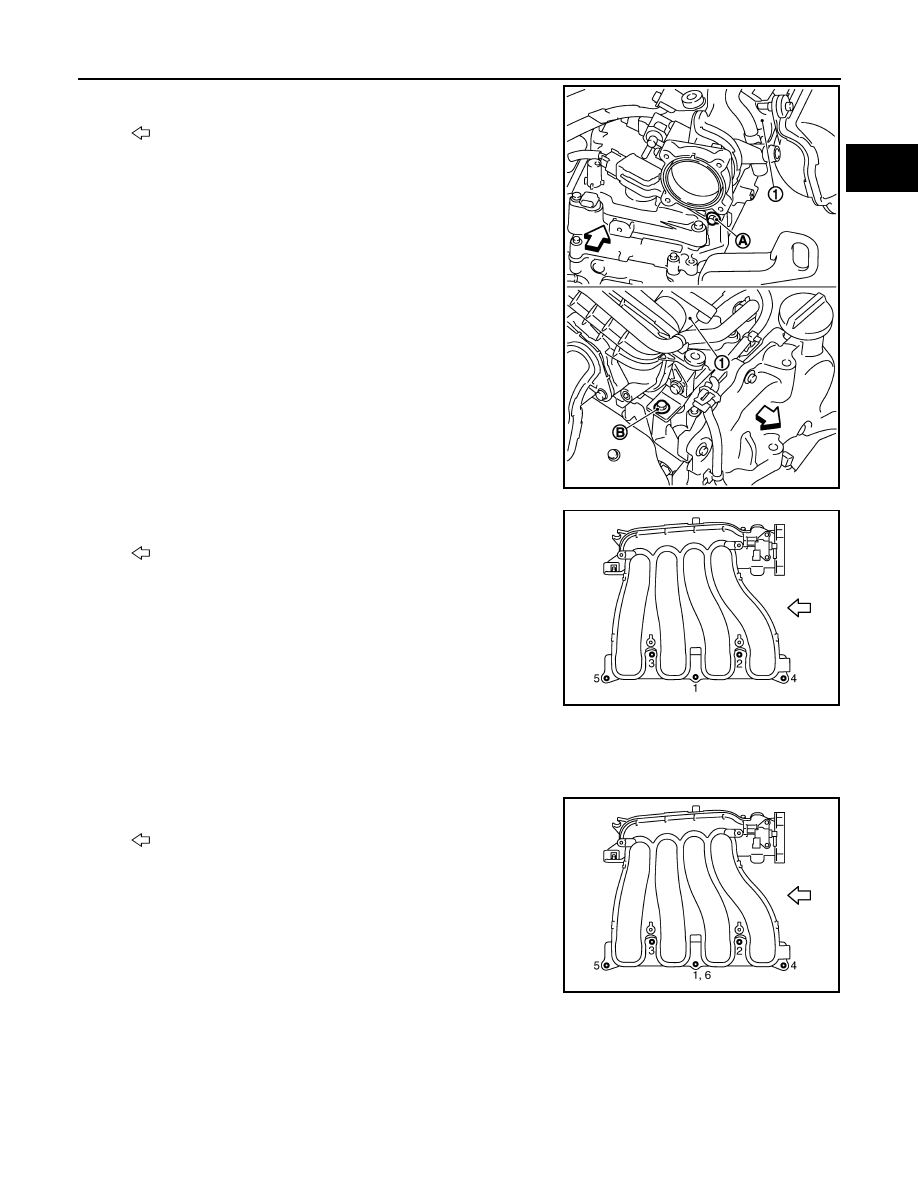

4.

Loosen and remove intake manifold (1) bolts (A) (B).

5.

Loosen bolts in reverse order as shown.

CAUTION:

Cover engine openings to avoid entry of foreign materials.

6.

Remove EVAP canister purge volume control solenoid valve
from intake manifold, if necessary.

CAUTION:

Handle it carefully and avoid impacts.

7.

Remove intake manifold.

INSTALLATION

1.

Install intake manifold.
NOTE:
Be sure the intake manifold gasket is seated correctly in groove of intake manifold.

2.

Tighten bolts in numerical order as shown.

: Engine front

PBIC3939E

: Engine front

PBIC3527J

: Engine front

WBIA0788E

EM-158

< ON-VEHICLE REPAIR >

[MR18DE]

INTAKE MANIFOLD

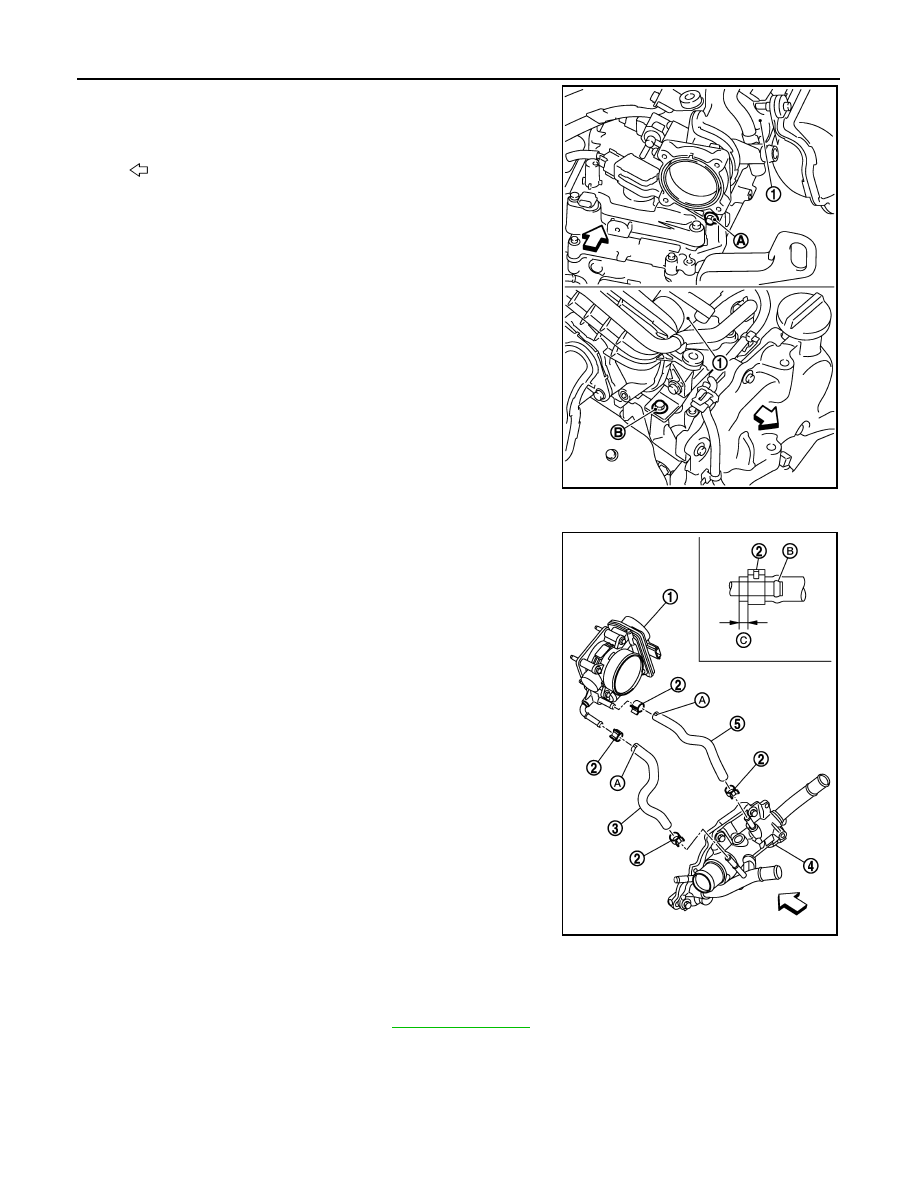

3.

Tighten intake manifold bolt (A). Then tighten intake manifold
bolt (B).

4.

Install electronic throttle control actuator

5.

Install water hoses (3), (5) to electronic throttle control actuator
as shown.

6.

Installation of the remaining components is in the reverse order of removal.

INSPECTION AFTER INSTALLATION

• Check for leaks of engine coolant. Refer to

CO-35, "Inspection"

.

• Start and warm up the engine. Visually check for engine coolant leaks.

1

: Intake manifold

: Engine front

PBIC3939E

1

: Electronic throttle control actuator

2

:  Clamp

4

: Water outlet

A

:  Paint  Mark

B

: The clamp shall not interfere with the bulged section.

C

: 3 - 7 mm (0.12 - 0.28 in)

AWBIA0115GB

EXHAUST MANIFOLD

EM-159

< ON-VEHICLE REPAIR >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

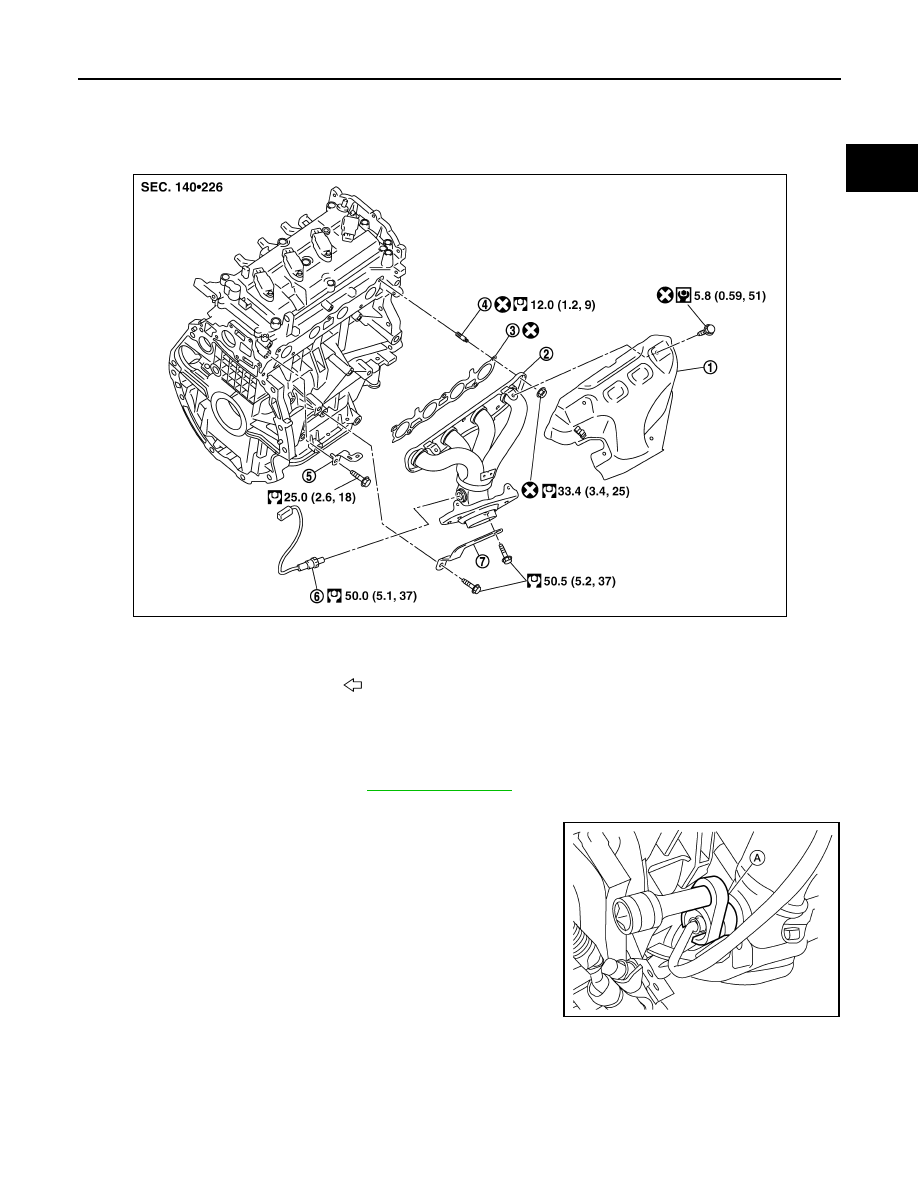

EXHAUST MANIFOLD

Component

INFOID:0000000001337787

Removal and Installation

INFOID:0000000001337788

REMOVAL

1.

Remove exhaust front tube. Refer to

EX-10, "Component"

.

2.

Remove exhaust manifold cover.

3.

Remove the heated oxygen sensor 1, using Tool (A).

CAUTION:

Handle it carefully and avoid impacts.

4.

Remove exhaust manifold side bolt of exhaust manifold stay.

1.

Exhaust manifold cover

2.

Exhaust manifold

3.

Gasket

4.

Stud bolt

5.

Bracket

6.

Heated oxygen sensor 1

7.

Exhaust manifold stay

Engine front

WBIA0778E

Tool number

:KV991J0050 (J-44626)

WBIA0772E
