AIR CLEANER FILTER

AIR CLEANER FILTER

Removal and Installation

INFOID:0000000001528960

REMOVAL

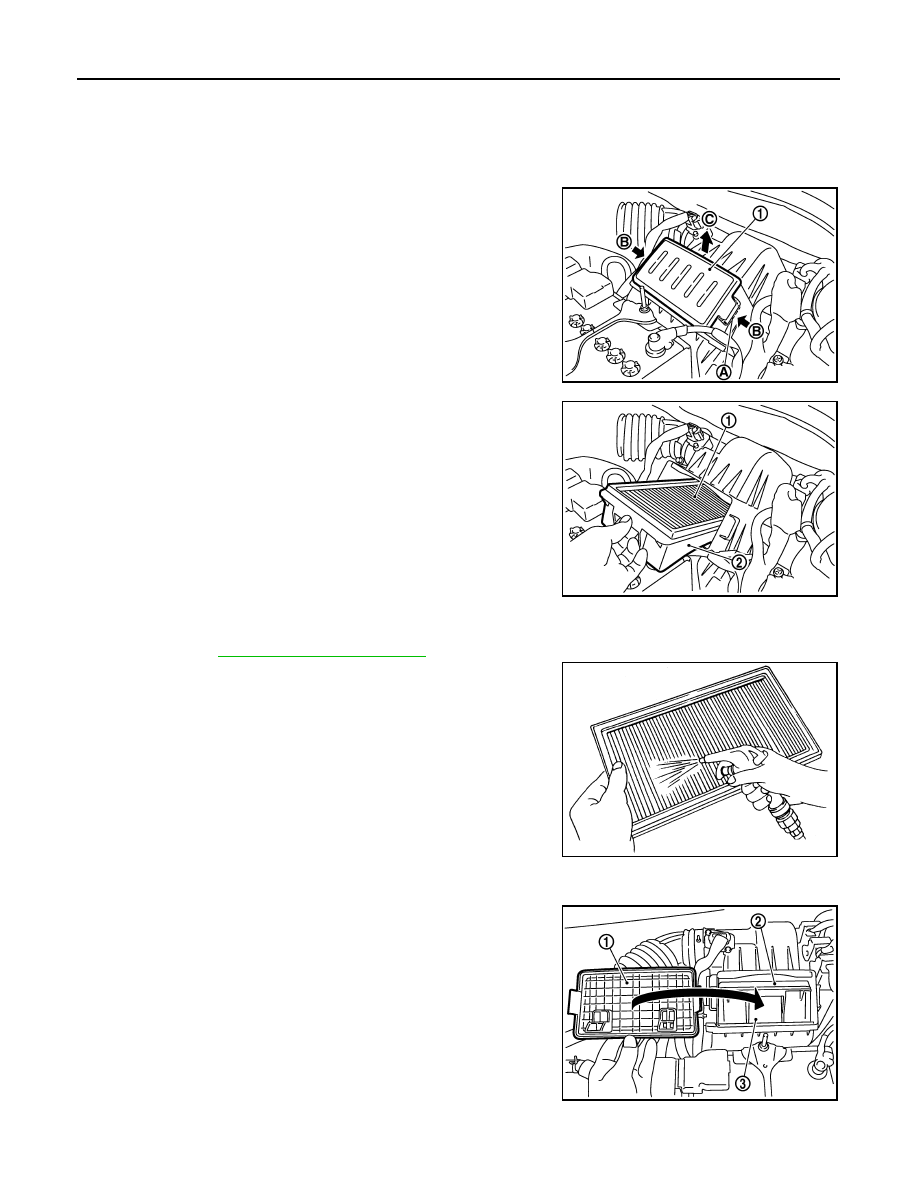

1.

Push the tabs (A) of both ends of the air cleaner cover (1) into
the inside (B).

2.

Pull up the air cleaner cover (1) and remove it (C).

3.

Remove air cleaner filter (1) and holder (2) assembly from the
air cleaner case.

4.

Remove the air cleaner filter (1) from the holder (2).

INSPECTION AFTER REMOVAL

It is necessary to clean air cleaner filter or replace it at the recommended intervals, more often under dusty
conditions. Refer to

MA-7, "Periodic Maintenance"

.

• Blow air into the back side of air cleaner filter until no objects spray

out.

INSTALLATION

Installation is in the reverse order of removal.
• Install the air cleaner cover (1) in the direction shown.

PBIC3557J

PBIC3558J

SMA384C

2

: Air cleaner filter

3

: Holder

PBIC3559J

SPARK PLUG

EM-145

< ON-VEHICLE MAINTENANCE >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

SPARK PLUG

Component

INFOID:0000000001346458

Removal and Installation

INFOID:0000000001346459

REMOVAL

1.

Remove intake manifold. Refer to

EM-156, "Removal and Installation"

.

2.

Remove ignition coil.

CAUTION:

• Handle it carefully and avoid impacts.
• Never disassemble.

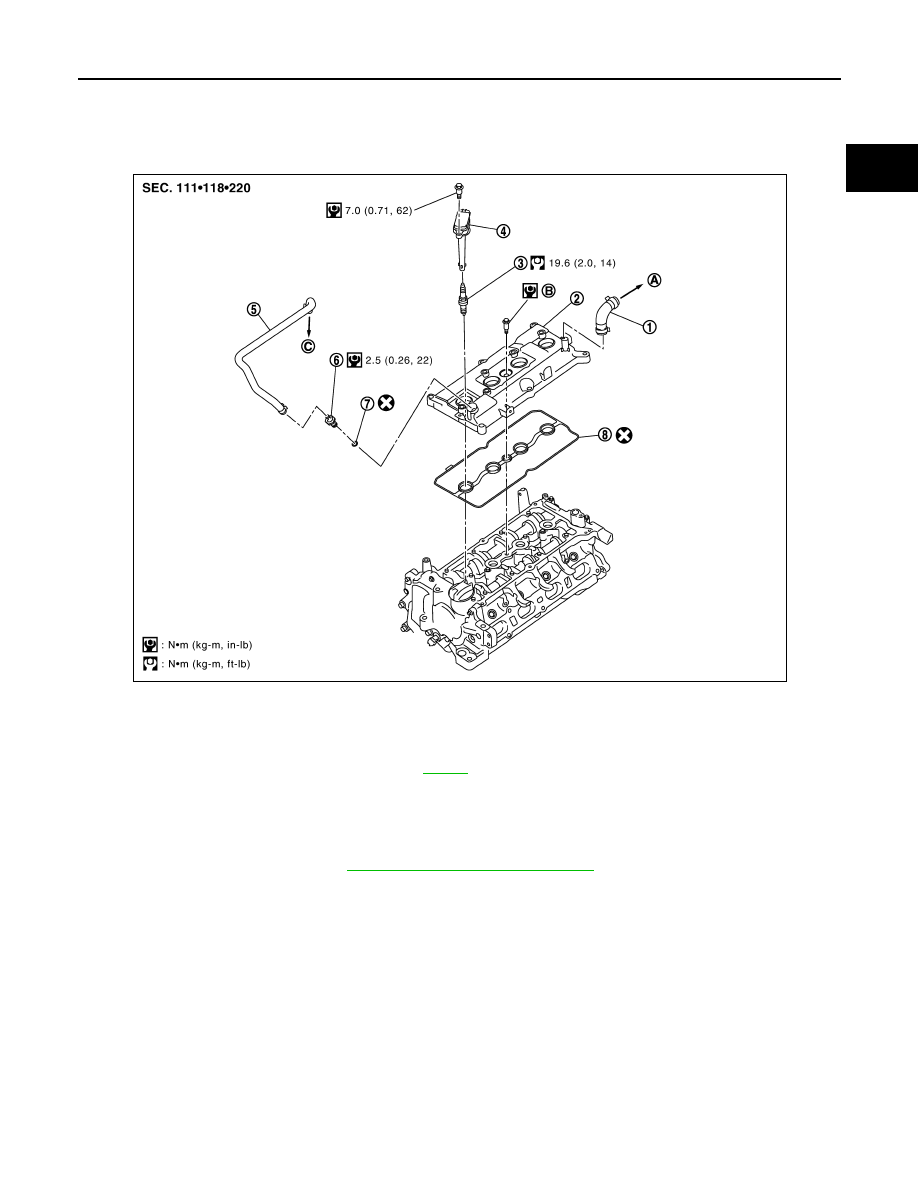

1.

PCV hose

2.

Rocker cover

3.

Spark plug

4.

Ignition coil

5.

PCV hose

6.

PCV valve

7.

O-ring

8.

Gasket

A.

To air duct

B.

Refer to

EM-145

.

C.

To intake manifold

PBIC3536J

EM-146

< ON-VEHICLE MAINTENANCE >

[MR18DE]

SPARK PLUG

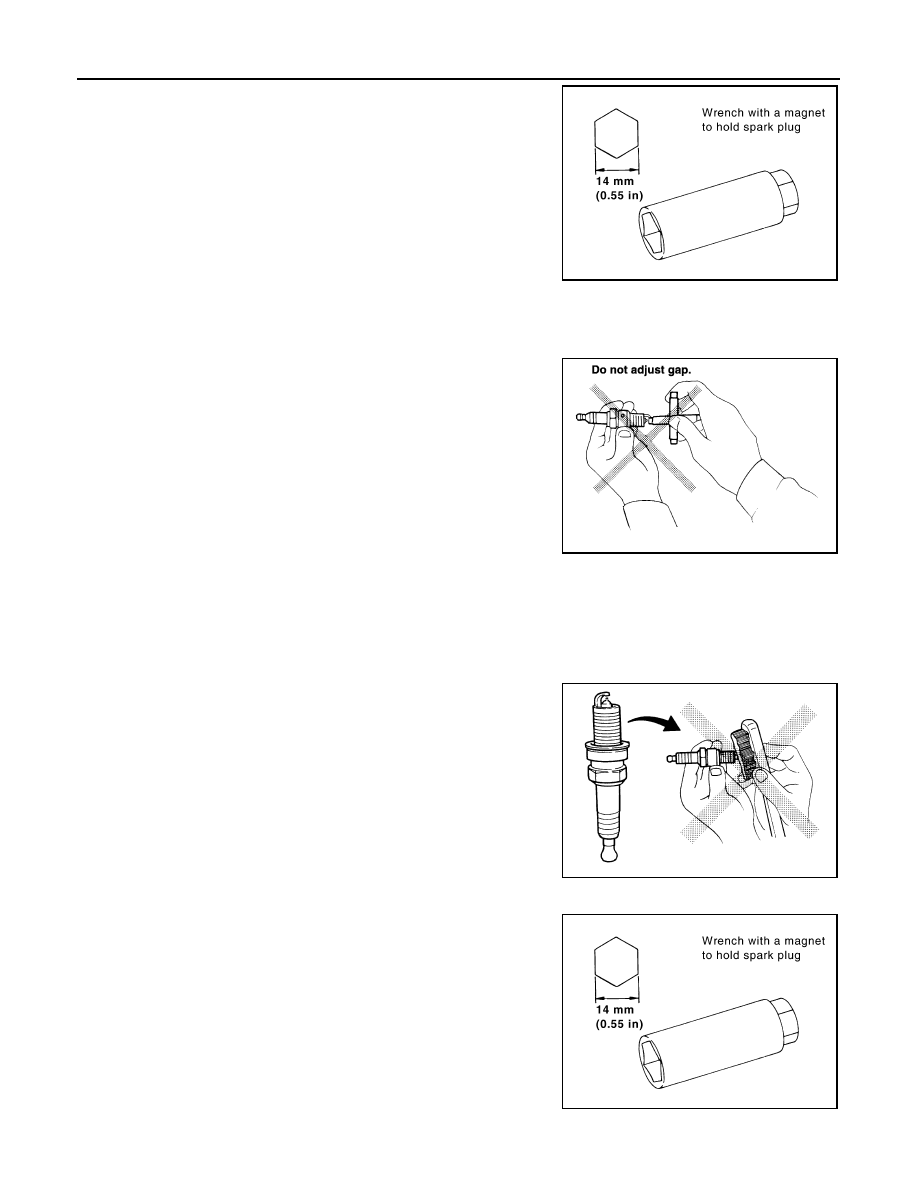

3.

Remove spark plug using suitable tool.

CAUTION:

Never drop or shock it.

INSPECTION AFTER REMOVAL

CAUTION:

• Never drop or shock spark plug.
• Checking and adjusting spark plug gap is not required

between change intervals.

• If spark plug tip is covered with carbon, a spark plug cleaner may be used.

• Never use wire brush for cleaning spark plug.

INSTALLATION

1.

Install spark plug using suitable tool.

CAUTION:

Never drop or shock it.

2.

Install ignition coil.

PBIC3871E

SMA806CA

Cleaner air pressure

: Less than 588 kPa (5.88 bar, 6 kg/cm

2

, 85 psi)

Cleaning time

: Less than 20 seconds

SMA773C

Plug type

: Platinum tipped

Make

: NGK

Part number

: PLZKAR6A-11

Gap (nominal)

: 1.1 mm (0.043 in)

PBIC3871E

SPARK PLUG
