Nissan Tiida C11. Manual - part 696





EM-136

< PRECAUTION >

[MR18DE]

PRECAUTIONS

• The torque value for these parts are for a preliminary step.
• Ensure thread and seat surfaces are clean and coated with engine oil.

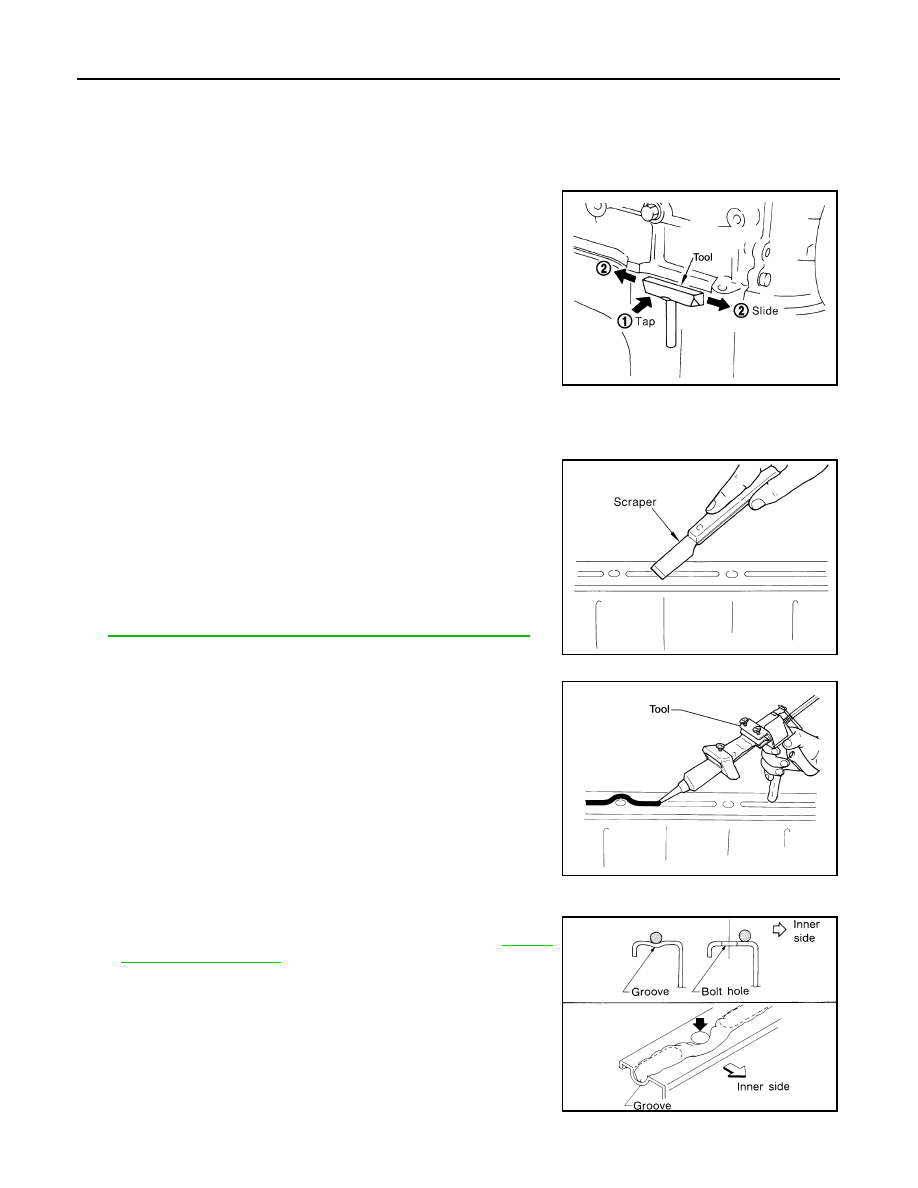

Precaution for Liquid Gasket

INFOID:0000000001337771

REMOVAL OF LIQUID GASKET SEALING

• After removing the bolts and nuts, separate the mating surface and

remove the sealant using Tool.

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap (1) the cutter where the RTV Silicone Sealant is applied.
Use a plastic hammer to slide the cutter (2) by tapping on the side.

CAUTION:

If for some unavoidable reason a tool such as a flat-bladed
screwdriver is used, be careful not to damage the mating sur-
faces.

LIQUID GASKET APPLICATION PROCEDURE

1.

Using a scraper, remove the old Silicone RTV Sealant adhering
to the gasket application surface and the mating surface.
• Remove the sealant completely from the groove of the gasket

application surface, bolts, and bolt holes.

2.

Thoroughly clean the gasket application surface and the mating
surface and remove adhering moisture, grease and foreign
materials.

3.

Attach the sealant tube to the tube presser.
Use Genuine Silicone RTV Sealant or equivalent. Refer to

GI-27, "Recommended Chemical Products and Sealants"

.

4.

Apply the sealant without breaks to the specified location using
Tool.

• If there is a groove for the sealant application, apply the seal-

ant to the groove.

• As for the bolt holes, normally apply the sealant inside the

holes. If specified, it should be applied outside the holes. Make
sure to read the text of this manual.

• Within five minutes of the sealant application, install the mat-

ing component.

• If the sealant protrudes, wipe it off immediately.
• Do not retighten after the installation.
• After 30 minutes or more have passed from the installation, fill

the engine with the specified oil and coolant. Refer to

MA-19,

"Fluids and Lubricants"

.

CAUTION:

Tool number

: KV10111100 (J-37228)

WBIA0566E

PBIC0003E

Tool number

WS39930000 (

)

WBIA0567E

SEM159F

PRECAUTIONS

EM-137

< PRECAUTION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Follow all specific instructions in this manual.

EM-138

< PREPARATION >

[MR18DE]

PREPARATION

PREPARATION

PREPARATION

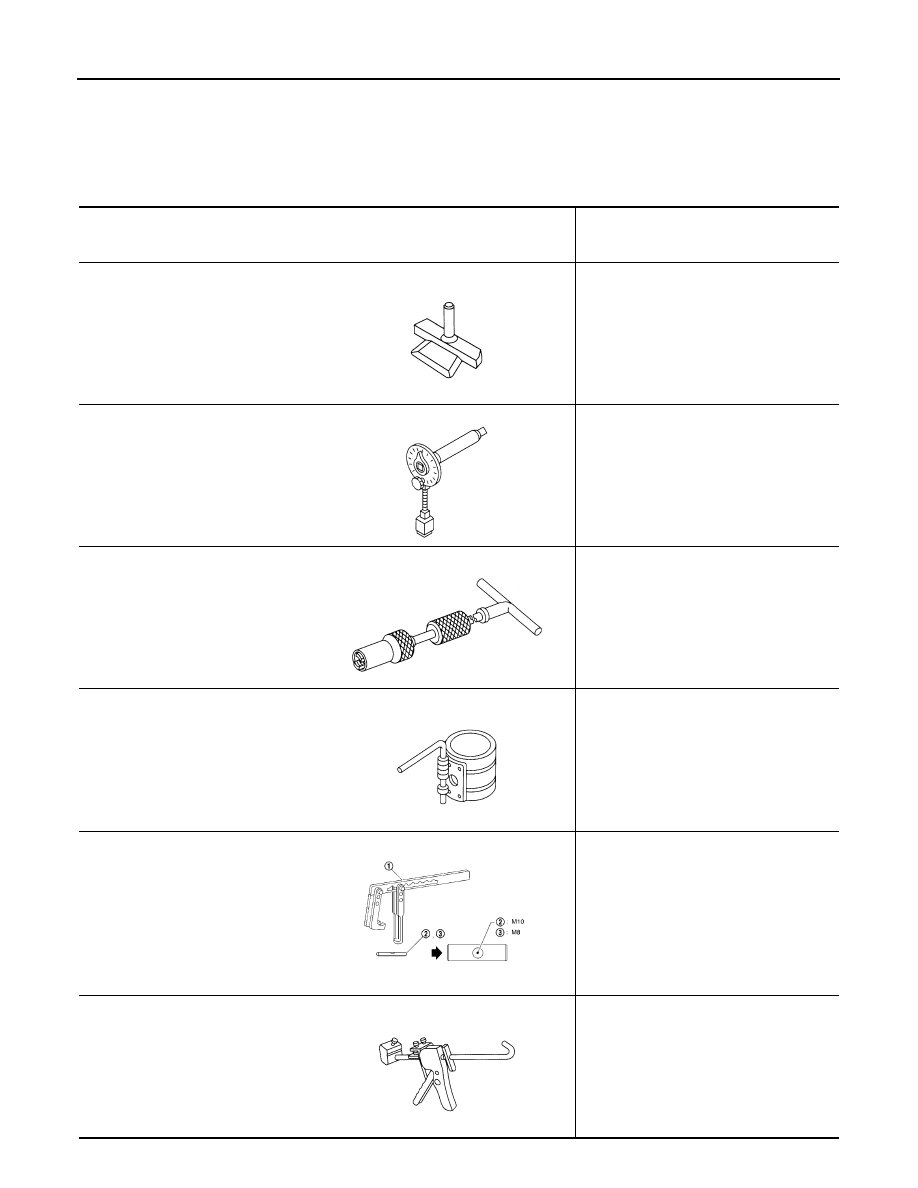

Special Service Tool

INFOID:0000000001337772

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing
chain case

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc.

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder
bore

KV101092S0
(J-26336-B)
Valve spring compressor
1 KV10109210
(J-26336-20)
Attachment
2 KV10109220
(

)

3. KV10109230
Adapter (M8)

Disassembling and assembling valve
mechanism

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

NT046

NT014

S-NT011

NT044

NT718

NT052

PREPARATION

EM-139

< PREPARATION >

[MR18DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

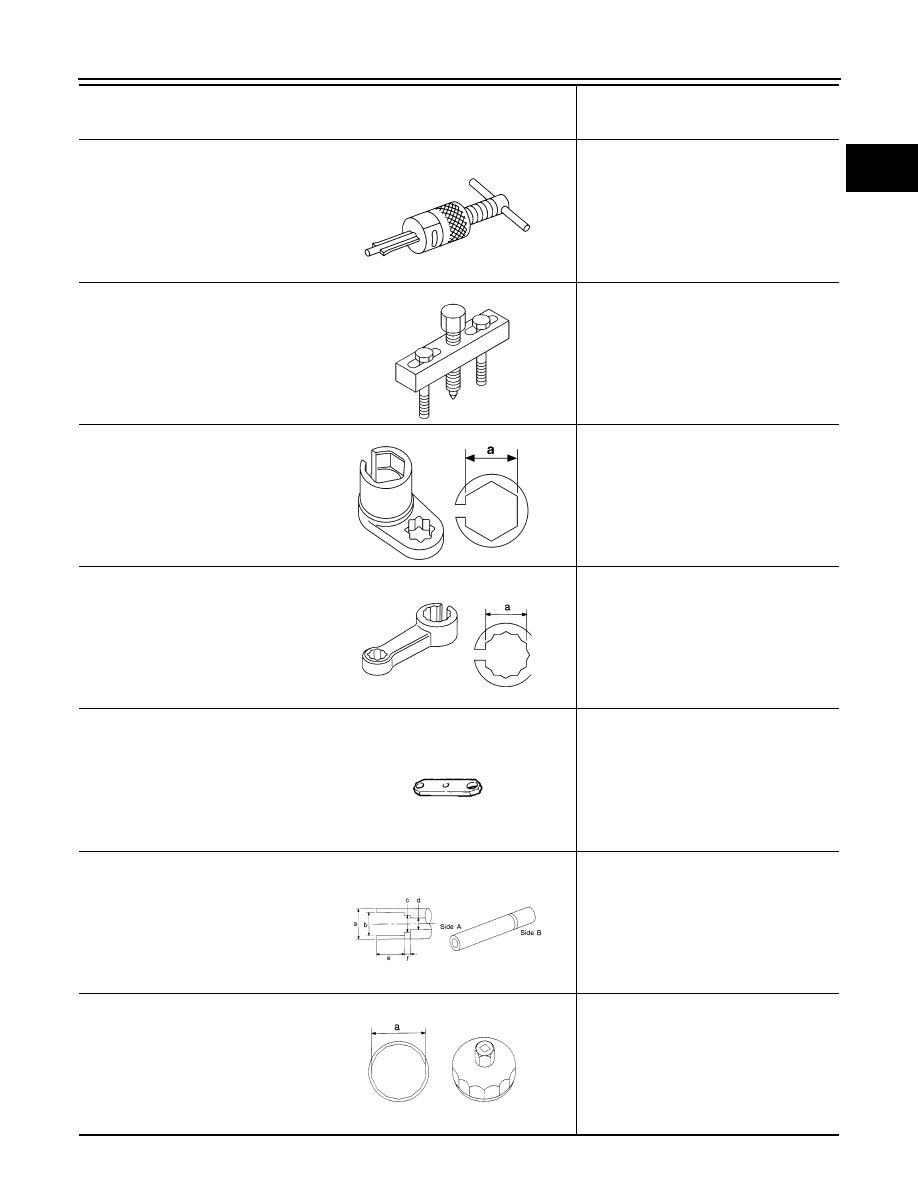

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot bushing

KV11103000
(—)
Pulley puller

Removing crankshaft pulley

KV991J0050
(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F
sensor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening rear heated oxy-
gen sensor
a: 22 mm (0.87 in)

KV11105210
(J-44716)
Stopper plate

Securing driveplate and flywheel

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
a: 20 (0.79) dia
.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia
.
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)

KV10115801
(

)

Oil filter wrench

Removing and installing oil filter
a: 64.3 mm (2.531 in)

Tool number
(Kent-Moore No.)
Tool name

Description

NT045

NT676

LBIA0444E

NT636

ZZA0009D

S-NT603

S-NT375
