P0335 CKP SENSOR

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace crankshaft position sensor.

5.

CHECK GEAR TOOTH

Visually check for chipping flywheel gear tooth.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Replace signal plate.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001162614

1.

CHECK CKP SENSOR

1.

Turn ignition switch OFF.

2.

Disconnect CKP sensor harness connector.

3.

Check resistance between CKP sensor terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace CKP sensor.

Terminals

Resistance

1 and 2

612 - 748

Ω

P0340 CMP SENSOR

EC-1151

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0340 CMP SENSOR

DTC Logic

INFOID:0000000001162615

DTC DETECTION LOGIC

NOTE:
• Conditions for applying the diagnostic procedure to the stored DTCs:

The DTC is declared present after the engine is started or following a load test.

• Special note:

Longer starting time, requires several attempts to start the vehicle.

Diagnosis Procedure

INFOID:0000000001162616

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

 Check ground connection E15. Refer to Ground inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK CMP SENSOR POWER SUPPLY CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect camshaft position (CMP) sensor harness connector.

3.

Turn ignition switch ON.

4.

Check the voltage between CMP sensor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E8, F8
• Harness for open or short between ECM and CMP sensor
• Harness for open or short between IPDM E/R and CMP sensor

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between CMP sensor harness connector and ECM harness connector.

DTC No.

Trouble diagnosis name

Possible cause

P0340

CAMSHAFT POSITION SENSOR CIRCUIT
• 1.DEF: Signal incoherence
• 2.DEF: No signal
• 3.DEF: Value out side level
• 4.DEF: Configuration/ initialisation

• Harness or connectors

(The sensor circuit is open or shorted.)

• Camshaft position sensor
• Timing  belt
• Signal plate

CMP sensor

Ground

Voltage

Connector

Terminal

F21

3

Ground

Battery voltage

EC-1152

< COMPONENT DIAGNOSIS >

[K9K]

P0340 CMP SENSOR

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

5.

CHECK CMP SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between CMP sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK CMP SENSOR

Refer to

EC-1152, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Replace camshaft position sensor.

7.

CHECK SPROCKET

Visually check for chipping signal plate gear tooth.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace sprocket.

8.

CHECK TIMING BELT

Refer to

EM-291, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace timing belt.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001162617

1.

CHECK CMP SENSOR

1.

Reconnect all harness connectors disconnected.

2.

Start engine and warm it up to normal operating temperature.

3.

Measure the voltage signal between ECM harness connector and ground under the following conditions.

CMP sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F21

1

F11

65

Existed

CMP sensor

ECM

Continuity

Connector

Terminal

Connector

Terminal

F21

2

F11

75

Existed

P0340 CMP SENSOR

EC-1153

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace CMP sensor.

+

-

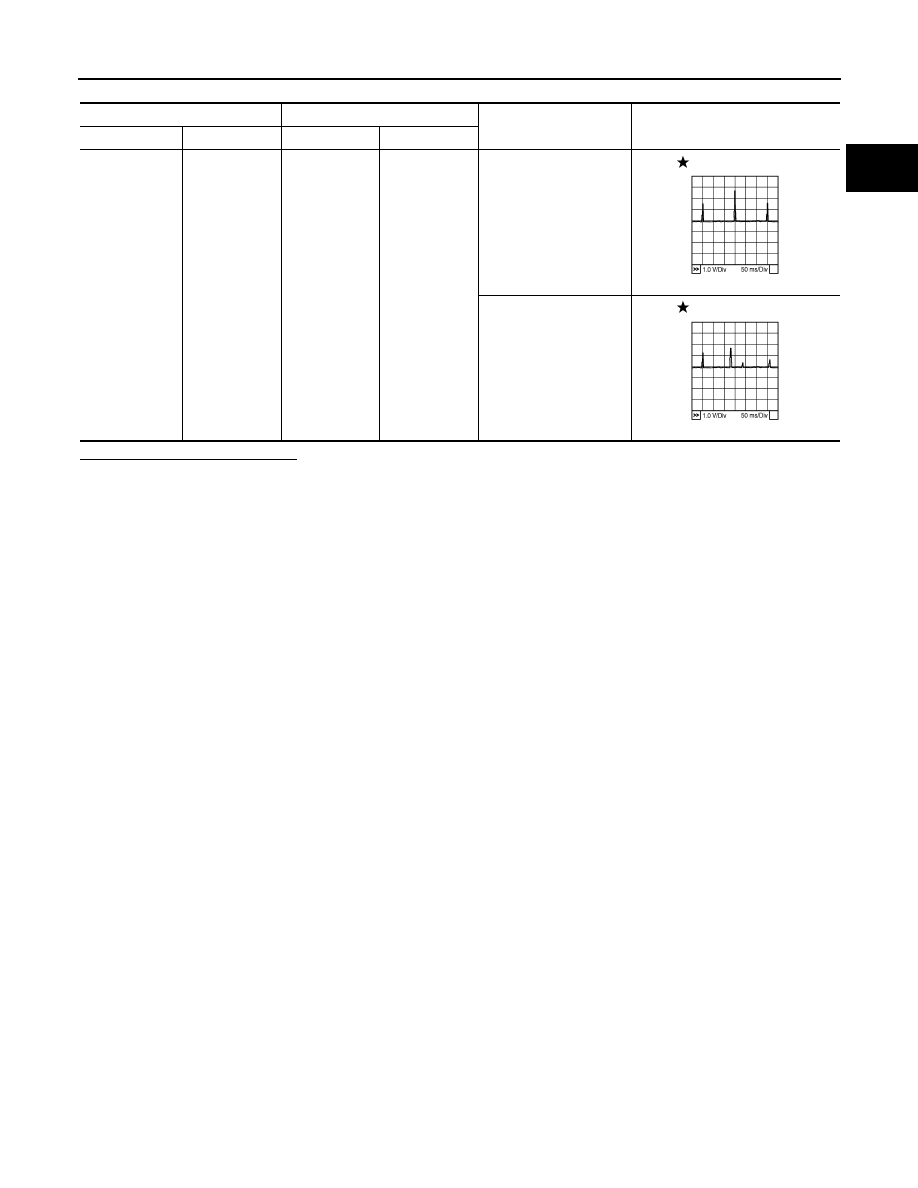

Condition

Voltage

Connector

Terminal

Connector

Terminal

F11

75

(CMP sensor

signal)

E16

128

[Engine is running]
• Warm-up condition
• Idle speed

NOTE:
The pulse cycle
changes depending on
rpm at idle.

0 - 1V

[Engine is running]
• Warm-up condition
• Engine speed: 2,000

rpm

0 - 1V

MBIB1510E

MBIB1511E
