Nissan Tiida C11. Manual - part 623





EC-1142

< COMPONENT DIAGNOSIS >

[K9K]

P0201, P0202, P0203, P0204 FUEL INJECTOR

P0201, P0202, P0203, P0204 FUEL INJECTOR

DTC Logic

INFOID:0000000001162599

DTC DETECTION LOGIC

NOTE:
• Conditions for applying the diagnostic procedure to the stored DTCs:

The DTC is declared present after the engine has been started.

• If the DTC is present:
Malfunction indicator (Red) lights up.
Malfunction indicator (Yellow) lights up.

Diagnosis Procedure

INFOID:0000000001162600

1.

CHECK FUEL INJECTOR POWER SUPPLY CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Disconnect fuel injector harness connector.

4.

Check the continuity between fuel injector harness connector and ECM harness connector.

5.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

2.

CHECK FUEL INJECTOR OUTPUT CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between fuel injector harness connector and ECM harness connector.

DTC No.

Trouble diagnosis name

Possible cause

P0201

NO. 1 CYLINDER FUEL INJECTOR CIRCUIT
• CO: Open circuit
• CC: Short circuit
• 1.DEF: Line in open circuit
• 2.DEF: Open circuit or internal electronic malfunction

• Harness or connectors

(The fuel injector circuit is open or
shorted.)

• Fuel injector

P0202

NO. 2 CYLINDER FUEL INJECTOR CIRCUIT
• CO: Open circuit
• CC: Short circuit
• 1.DEF: Line in open circuit
• 2.DEF: Open circuit or internal electronic malfunction

P0203

NO. 3 CYLINDER FUEL INJECTOR CIRCUIT
• CO: Open circuit
• CC: Short circuit
• 1.DEF: Line in open circuit
• 2.DEF: Open circuit or internal electronic malfunction

P0204

NO. 4 CYLINDER FUEL INJECTOR CIRCUIT
• CO: Open circuit
• CC: Short circuit
• 1.DEF: Line in open circuit
• 2.DEF: Open circuit or internal electronic malfunction

Fuel injector

ECM

Continuity

Cylinder

Connector

Terminal

Connector

Terminal

1

F17

1

F10

8

Existed

2

F18

1

F10

7

3

F19

1

F10

6

4

F20

1

F10

5

P0201, P0202, P0203, P0204 FUEL INJECTOR

EC-1143

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

3.

CHECK FUEL INJECTOR

Refer to

EC-1143, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Replace malfunctioning fuel injector.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-55, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000001162601

1.

CHECK FUEL INJECTOR

1.

Turn ignition switch OFF.

2.

Disconnect fuel injector harness connector.

3.

Check resistance between fuel injector terminals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace malfunctioning fuel injector.

Fuel injector

ECM

Continuity

Cylinder

Connector

Terminal

Connector

Terminal

1

F17

2

F10

4

Existed

2

F18

2

F10

3

3

F19

2

F10

2

4

F20

2

F10

1

Terminals

Resistance

1 and 2

150 - 250

 [at 20

°

C (68

°

F)]

EC-1144

< COMPONENT DIAGNOSIS >

[K9K]

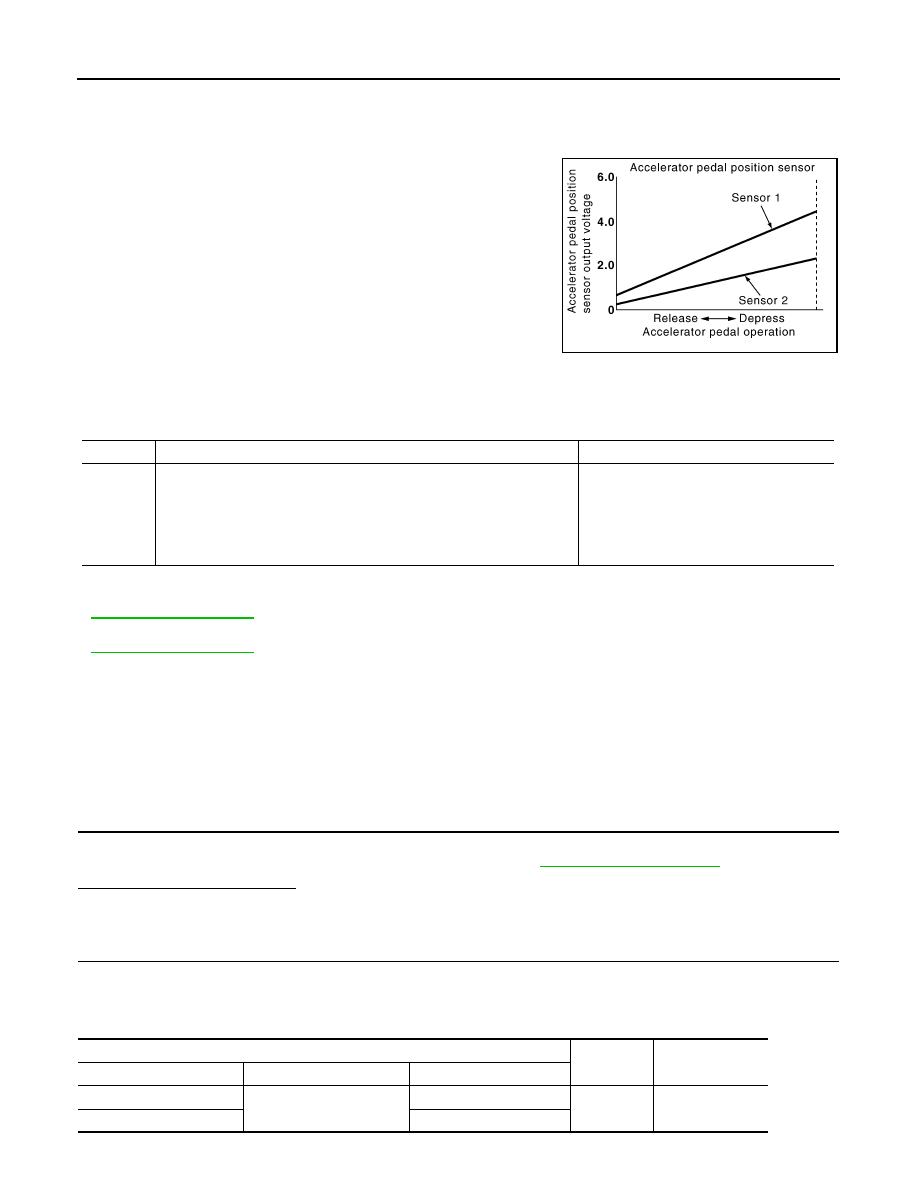

P0225 APP SENSOR

P0225 APP SENSOR

Description

INFOID:0000000001162604

The accelerator pedal position sensor is installed on the upper end
of the accelerator pedal assembly. The sensors detect the accelera-
tor pedal position and sends a signal to the ECM. The ECM uses the
signal to determine the amount of fuel to be injected.

DTC Logic

INFOID:0000000001162605

DTC DETECTION LOGIC

NOTE:
• If DTC P0225 is displayed with DTC P0641, first perform trouble diagnosis for DTC P0641. Refer to

EC-1180, "DTC Logic"

.

• If DTC P0225 is displayed with DTC P0651, first perform trouble diagnosis for DTC P0651. Refer to

EC-1182, "DTC Logic"

.

• If DTC P2120 is present at the same time, check that the APP sensor connector is connected cor-

rectly.

• Conditions for applying the diagnostic procedure to the stored DTCs:
- The DTC is declared present after a series of full load/no load action on the accelerator.
• If the DTC is present:
Malfunction indicator (Red) lights up.

Diagnosis Procedure

INFOID:0000000001162606

1.

CHECK GROUND CONNECTIONS

1.

Turn ignition switch OFF.

2.

 Check ground connection E15. Refer to Ground inspection in

GI-58, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK ACCELERATOR PEDAL POSITION SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect accelerator pedal position sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between accelerator pedal position sensor connector and ground.

PBIB1741E

DTC No.

Trouble diagnosis name

Possible cause

P0225

ACCELERATOR PEDAL POSITION SENSOR 1 AND ACCELERATOR
PEDAL POSITION SENSOR 2 CIRCUIT
• CC.1: Short circuit to +12V
• 1.DEF: Signal incoherence
• 2.DEF: No signal
• CO.0: Open circuit or short circuit to ground

• Harness or connectors

(APP sensor 1 and 2 circuit is open or
shorted.)

• Accelerator pedal position sensor

(APP sensor 1 and 2.)

Accelerator pedal position sensor

Ground

Voltage

Sensor

Connector

Terminal

1

E12 (LHD models)

M204 (RHD models)

4

Ground

Approx. 5V

2

5

P0225 APP SENSOR

EC-1145

< COMPONENT DIAGNOSIS >

[K9K]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING PART

• Harness connectors E7, M69 (RHD models)
• Harness connectors M25, M201 (RHD models)
• Harness for open or short between ECM and accelerator pedal position sensor

>> Repair open circuit or short to ground or short to power in harness or connector.

4.

CHECK ACCELERATOR PEDAL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between accelerator pedal position sensor harness connector and ECM harness
connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

• Harness connectors E7, M69 (RHD models)
• Harness connectors M25, M201 (RHD models)
• Harness for open or short between ECM and accelerator pedal position sensor

>> Repair open circuit or short to ground or short to power in harness or connector.

6.

CHECK ACCELERATOR PEDAL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between accelerator pedal position sensor harness connector and ECM harness
connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

DETECT MALFUNCTIONING PART

• Harness connectors E7, M69 (RHD models)
• Harness connectors M25, M201 (RHD models)
• Harness for open or short between ECM and accelerator pedal position sensor

>> Repair open circuit or short to ground or short to power in harness or connector.

8.

CHECK ACCELERATOR PEDAL POSITION SENSOR

Refer to

EC-1146, "Component Inspection"

.

Accelerator pedal position sensor

ECM

Continuity

Sensor

Connector

Terminal

Connector

Terminal

1

E12 (LHD models)

M204 (RHD models)

2

E16

127

Existed

2

1

120

Accelerator pedal position sensor

ECM

Continuity

Sensor

Connector

Terminal

Connector

Terminal

1

E12 (LHD models)

M204 (RHD models)

3

E16

126

Existed

2

6

119
