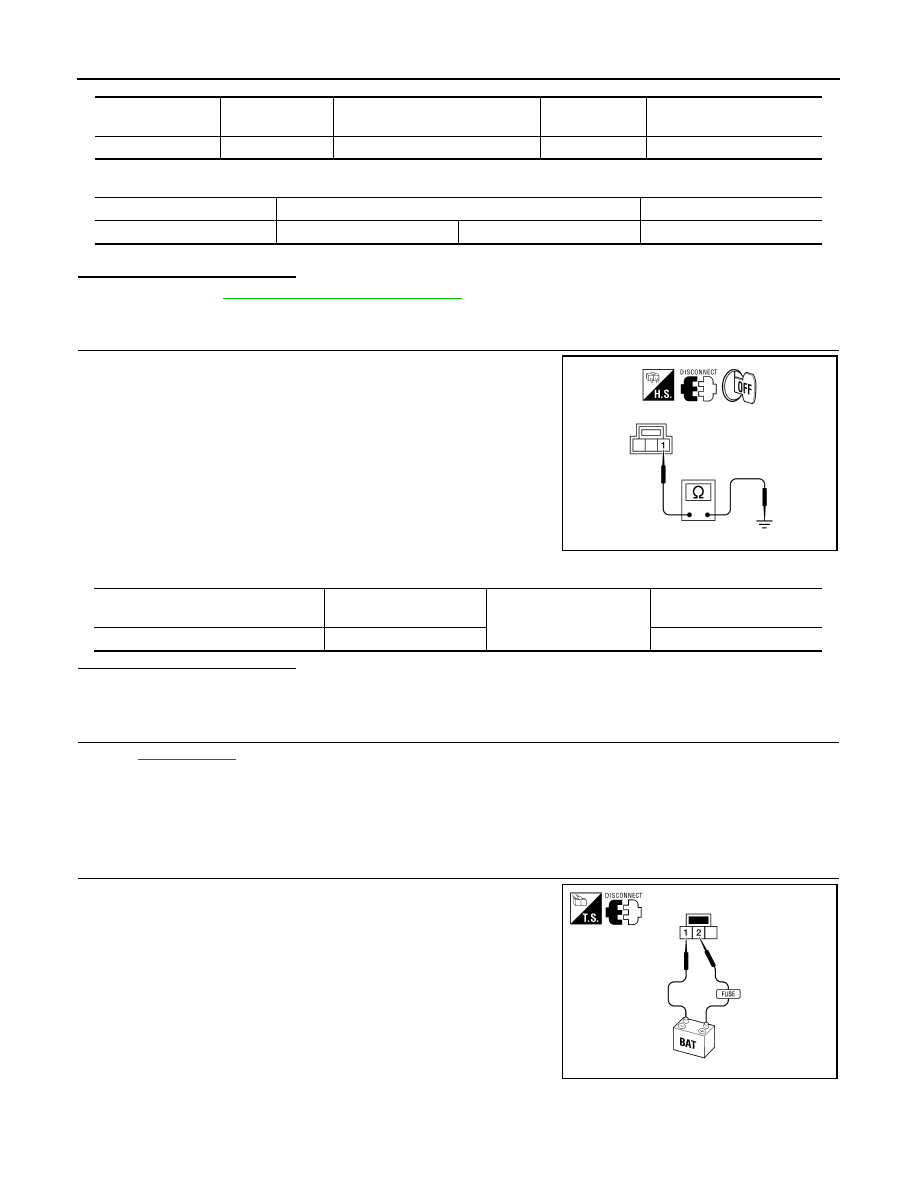

DLK-686

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

TRUNK LID OPENER ACTUATOR

3.

Check continuity between BCM connector (A) M20 terminal 68 and ground.

Is the inspection result normal?

YES

>> Refer to

DLK-686, "Component Inspection"

.

NO

>> Repair or replace harness.

3.

CHECK TRUNK LID OPENER ACTUATOR GROUND CIRCUIT

Check continuity between trunk lamp switch and trunk release sole-
noid connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace trunk lamp switch and trunk release solenoid ground circuit.

4.

CHECK INTERMITTENT INCIDENT

Refer to

XX-XX, "*****"

.

>> INSPECTION END.

Component Inspection

INFOID:0000000001530816

1.

CHECK TRUNK LAMP SWITCH

Momentarilly, connect battery power supply to trunk lamp switch and
trunk release solenoid terminals and check for solenoid operation.

BCM connector

Terminal

trunk lamp switch and trunk re-

lease solenoid connector

Terminal

Continuity

M20

68

B66

2

Yes

BCM connector

Terminal

Continuity

M20

68

Ground

No

ALKIA0763ZZ

Trunk lamp switch and trunk release

solenoid connector

Terminal

Ground

Continuity

B66

1

Yes

ALKIA0767ZZ

TRUNK LID OPENER ACTUATOR

DLK-687

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Is the inspection result normal?

YES

>> INSPECTION END.

NO

>> Replace trunk lamp switch and trunk release solenoid.

Terminal

Trunk condition

Trunk lamp switch and trunk release solenoid

1 BAT (-)

2 BAT (+)

Solenoid operates

DLK-688

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BUZZER (COMBINATION METER)

BUZZER (COMBINATION METER)

Description

INFOID:0000000001397313

Performs operation method guide and warning with buzzer.

Component Function Check

INFOID:0000000001397314

1.

CHECK FUNCTION

 With CONSULT-III

Check the operation with “INSIDE BUZZER” in “Active Test”.

Is the inspection result normal?

Yes

>> Warning buzzer in combination meter is OK.

No

>> Refer to

DLK-688, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001397315

1.

CHECK BUZZER (COMBINATION METER) CIRCUIT

Refer to

XX-XX, "*****"

.

Is the inspection result normal?

Yes

>> GO TO 2.

No

>> Repair or replace buzzer (combination meter) circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

Test item

Condition

INSIDE BUZZER

:TAKE OUT

Take away warning chime sounds

:KNOB

Ignition knob switch warning chime sounds

:KEY

Key warning chime sounds

HAZARD WARNING LAMPS

DLK-689

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD WARNING LAMPS

Description

INFOID:0000000001397316

Performs answer-back for each operation with the number of blinks.

Component Function Check

INFOID:0000000001397317

1.

CHECK FUNCTION

With CONSULT-III

Check hazard warning lamp “FLASHER” in “Active Test” mode.

Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-689, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001397318

1.

CHECK HAZARD SWITCH CIRCUIT

Check hazard switch circuit.
Refer to

XX-XX, "*****"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace hazard warning switch circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END
