Nissan Tiida C11. Manual - part 320

DLK-690

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

VEHICLE SPEED SIGNAL CIRCUIT

VEHICLE SPEED SIGNAL CIRCUIT

Description

INFOID:0000000001397319

Displays the vehicle speed signal received from combination meter as a numerical value (km/h).

Component Function Check

INFOID:0000000001397320

1.

CHECK FUNCTION

Check that all doors are automatically locked at the vehicle speed of more than 12 km/h (7 MPH).

Is the inspection result normal?

YES

>> Vehicle speed signal circuit is OK.

NO

>> Refer to

DLK-690, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001397321

1.

CHECK VEHICLE SPEED SIGNAL CIRCUIT

Check vehicle speed signal “VEHICLE SPEED” in “Data Monitor” mode.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace vehicle speed signal circuit.

2.

CHECK INTERMITTENT INCIDENT

Refer to @@@.

>> INSPECTION END

KEYFOB BATTERY AND FUNCTION

DLK-691

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEYFOB BATTERY AND FUNCTION

Description

INFOID:0000000001530829

The following functions are available when having and carrying the keyfob.
• Door lock/unlock
• Back door unlock (hatchback)
• Trunk lid unlock (sedan)
Remote control entry function is available when operating the remote buttons.

Component Function Check

INFOID:0000000001530830

1.

CHECK FUNCTION

With CONSULT-III

Check BCM "RKE OPE COUN1" in DATA MONITOR mode with CONSULT-III.

Is the inspection result normal?

YES

>> Keyfob is OK.

NO

>> Refer to

DLK-691, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530831

1.

CHECK KEYFOB FUNCTION

Do doors lock and unlock when using the keyfob buttons?

YES or NO?

YES

>> Keyfob is OK.

NO

>> GO TO 2.

2.

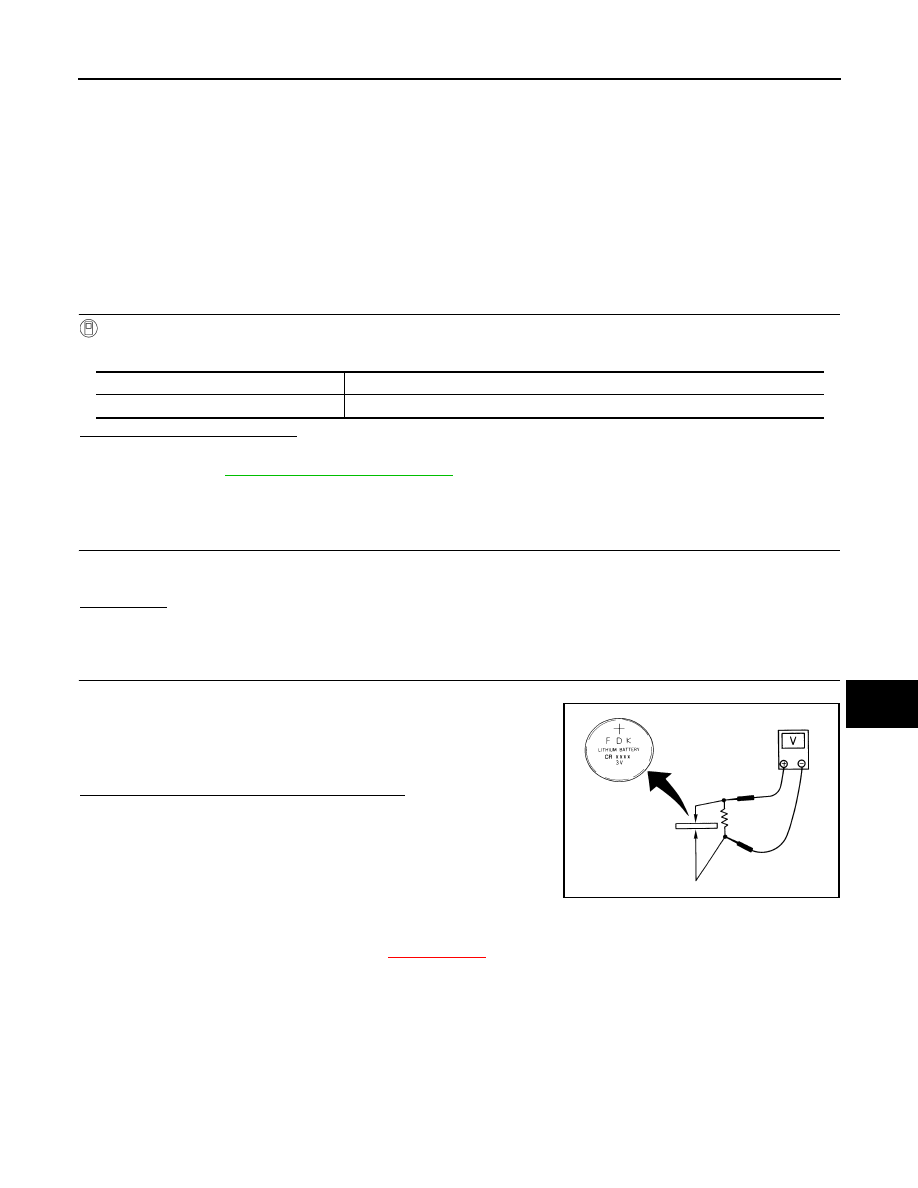

CHECK KEYFOB BATTERY

Check by connecting a resistance (approximately 300

Ω

) so that the

current value becomes about 10 mA.

Is the measurement value within specification?

YES

>> Key fob battery is OK.

NO

>> Replace keyfob battery.

Component Inspection

INFOID:0000000001530832

For battery removal and installation, refer to

XX-XX, "*****"

.

Special Repair Requirement

INFOID:0000000001530833

Refer to CONSULT-III Operation Manual.

Monitor item

Condition

RKE OPE COUN1

Check that the numerical value is changing while operating the keyfob.

Standard

: Approx. 2.5 - 3.0V

OCC0607D

DLK-692

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000001397325

Refer to

BCS-35, "Reference Value"

.

BCM (BODY CONTROL MODULE)

DLK-693

< ECU DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

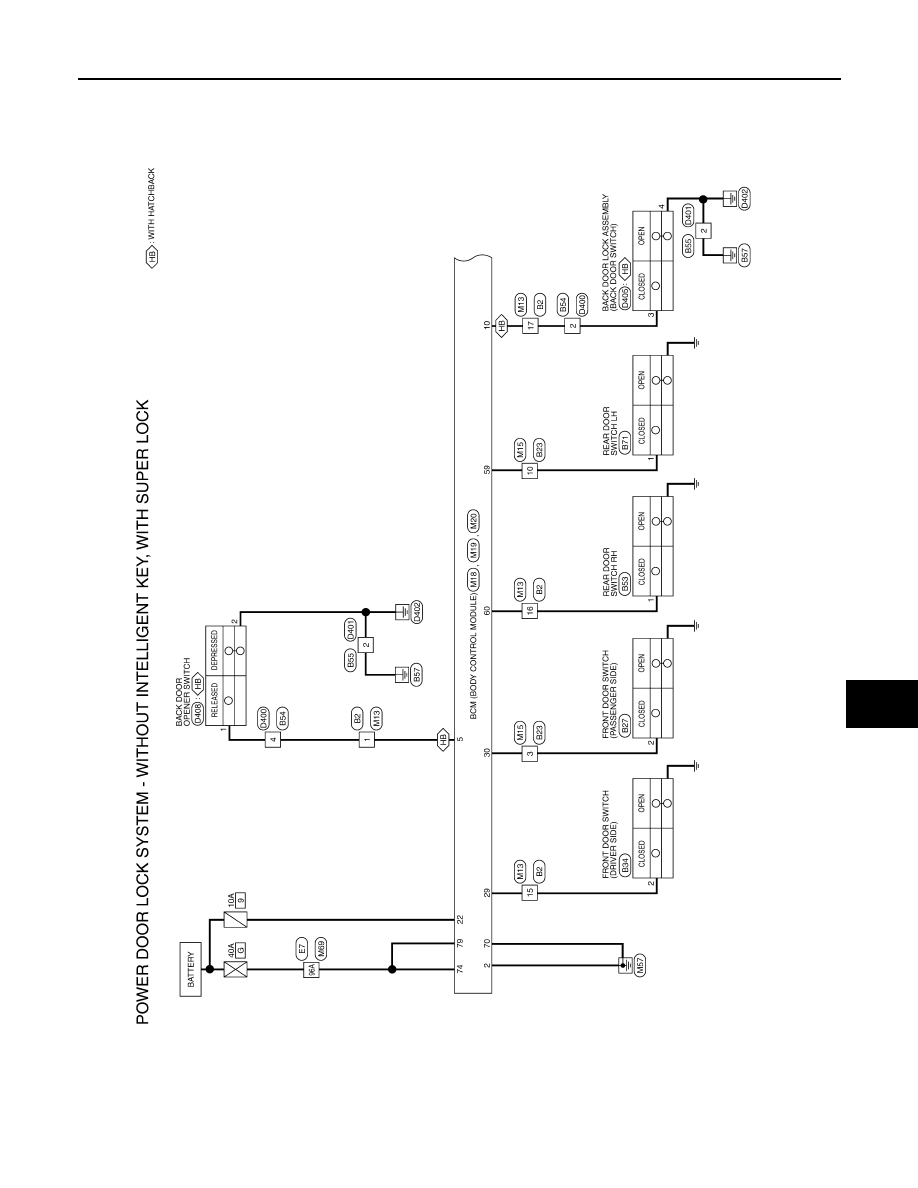

Wiring Diagram - POWER DOOR LOCK SYSTEM -

INFOID:0000000001397326

ALKWA0107GB
