DLK-682

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

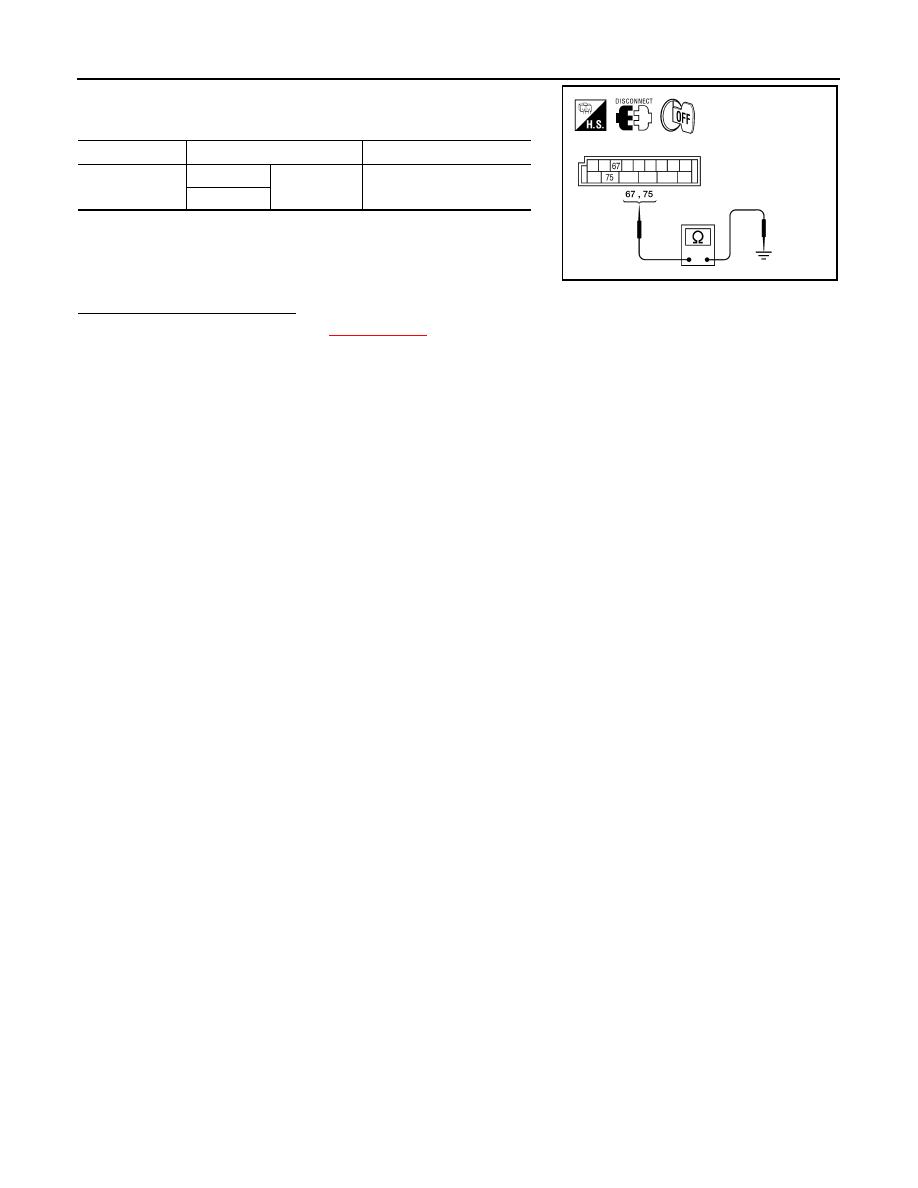

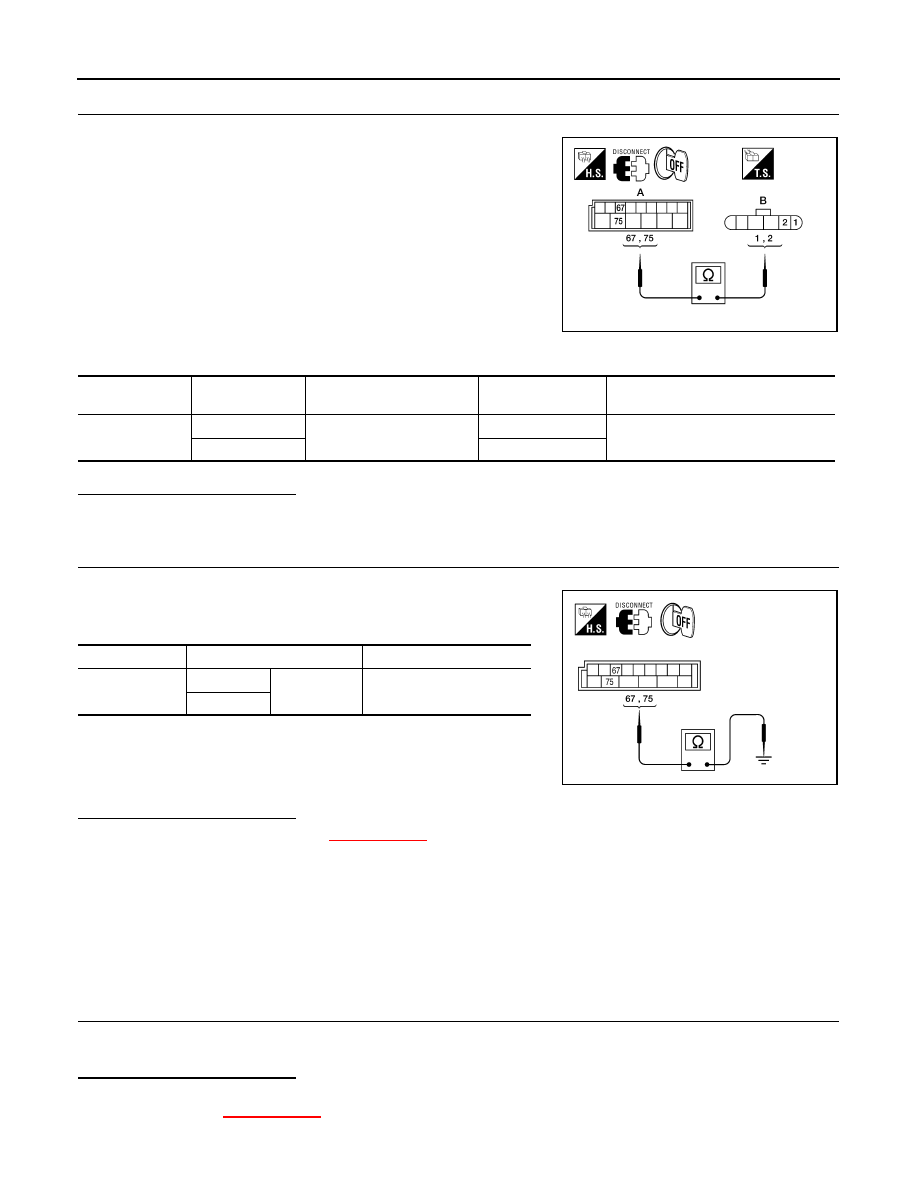

SUPER LOCK ACTUATOR

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator LH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and rear door lock actuator LH connector (B) D205 terminals
1, 2.

Is the inspection result normal?

YES

>> Replace rear super lock actuator LH.

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and each door lock actuator.

2.

Check continuity between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR RH

REAR RH : Description

INFOID:0000000001530826

Locks/unlocks the door with the signal from BCM.

REAR RH : Component Function Check

INFOID:0000000001530827

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Rear super lock actuator RH is OK.

NO

>> Refer to

XX-XX, "*****"

.

ALKIA0828ZZ

BCM connector

Terminal

Rear door lock actuator LH

connector

Terminal

Continuity

M20

67

D205

2

Yes

75

1

BCM connector

Terminals

Continuity

M20

67

Ground

No

75

ALKIA0827ZZ

SUPER LOCK ACTUATOR

DLK-683

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

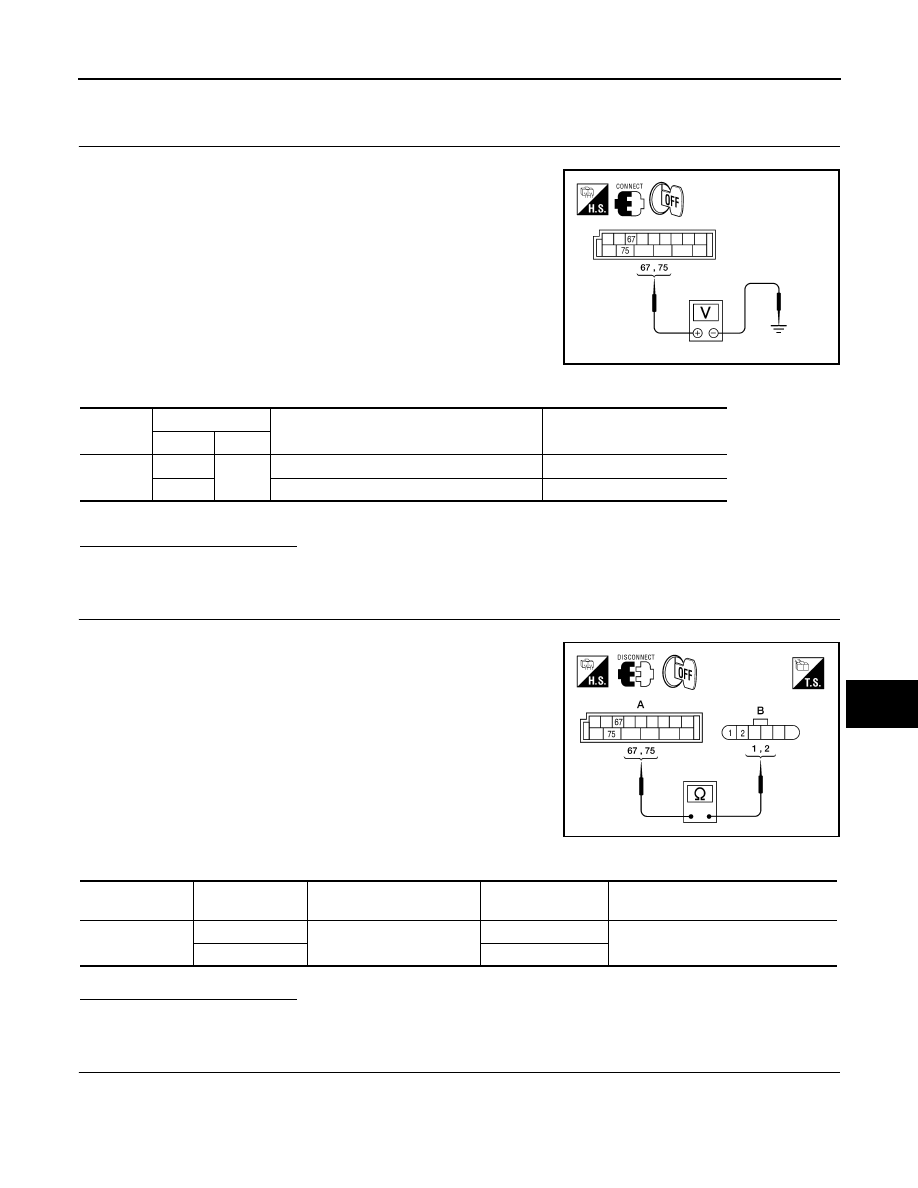

REAR RH : Diagnosis Procedure

INFOID:0000000001530828

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

Check voltage between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and rear door lock actuator RH connector (B) D305 terminals
2, 1.

Is the inspection result normal?

YES

>> Replace rear super lock actuator RH.

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and rear door lock actuator RH.

ALKIA0825ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0826ZZ

BCM connector

Terminal

Rear door lock actuator RH

connector

Terminal

Continuity

M20

67

D305

2

Yes

75

1

DLK-684

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

SUPER LOCK ACTUATOR

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

BCM connector

Terminals

Continuity

M20

67

Ground

No

75

ALKIA0827ZZ

TRUNK LID OPENER ACTUATOR

DLK-685

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

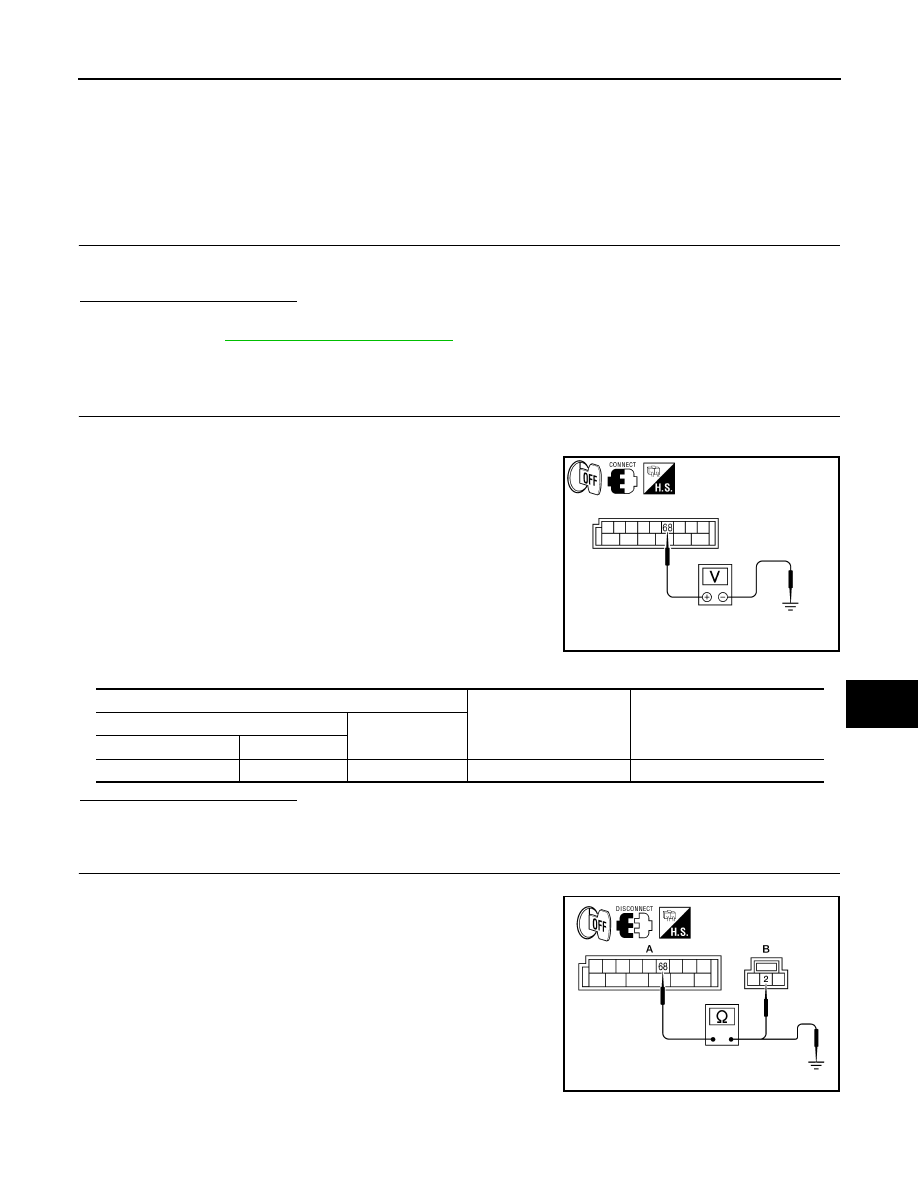

TRUNK LID OPENER ACTUATOR

Description

INFOID:0000000001530813

Performs trunk lid open with signal from BCM.

Component Function Check

INFOID:0000000001530814

1.

CHECK FUNCTION

1.

Perform Active Test TRUNK/GLASS HATCH with CONSULT-III.

2.

Touch “OPEN” and check that trunk lid opens.

Is the inspection result normal?

YES

>> Trunk lid opener actuator is OK.

NO

>> Refer to

DLK-685, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001530815

1.

CHECK OUTPUT SIGNAL

1.

Turn ignition switch OFF.

2.

Ensure door lock system is unlocked.

3.

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> GO TO 2

2.

CHECK TRUNK LID OPENER ACTUATOR CIRCUIT

1.

Disconnect BCM and trunk lamp switch and trunk release solenoid connectors.

2.

Check continuity between BCM connector (A) M20 terminal 68
and trunk lamp switch and trunk release solenoid connector (B)
B66 terminal 2.

ALKIA0765ZZ

Terminals

Condition of trunk lid open-

er switch

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M20

68

Ground

ON

0

→

 Battery voltage

→

 0

ALKIA0766ZZ
