SUPER LOCK ACTUATOR

SUPER LOCK ACTUATOR

DRIVER SIDE

DRIVER SIDE : Description

INFOID:0000000001530817

The super lock system is controlled by the BCM.

DRIVER SIDE : Component Function Check

INFOID:0000000001530818

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "SUPER LOCK".

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Front super lock actuator (driver side) is OK.

NO

>> Refer to

DLK-678, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000001530819

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

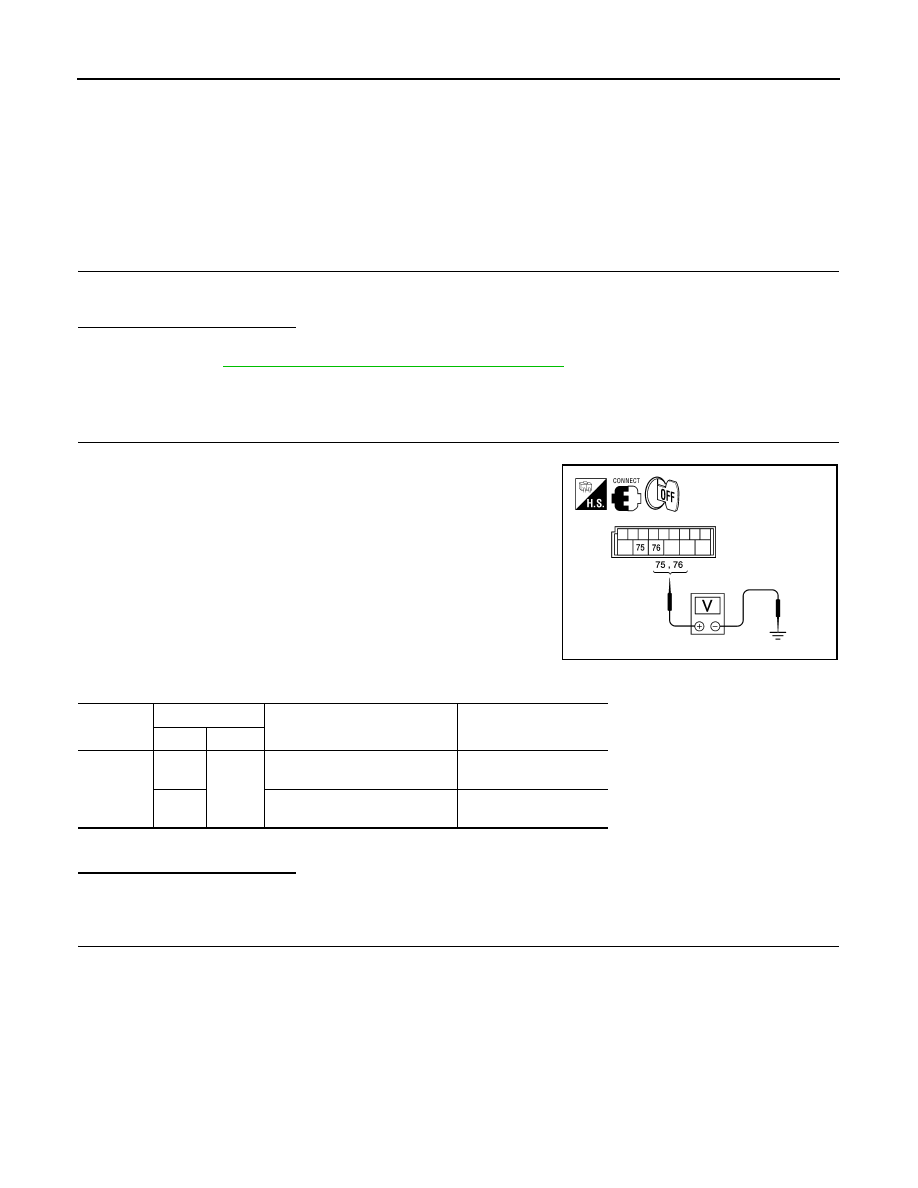

Check voltage between BCM connector M20 terminals 75, 76
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

ALKIA0822ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Driver door lock/unlock switch is
turned to LOCK

0

→

 Battery voltage

→

 0

76

Driver door lock/unlock switch is
turned to UNLOCK

0

→

 Battery voltage

→

 0

SUPER LOCK ACTUATOR

DLK-679

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

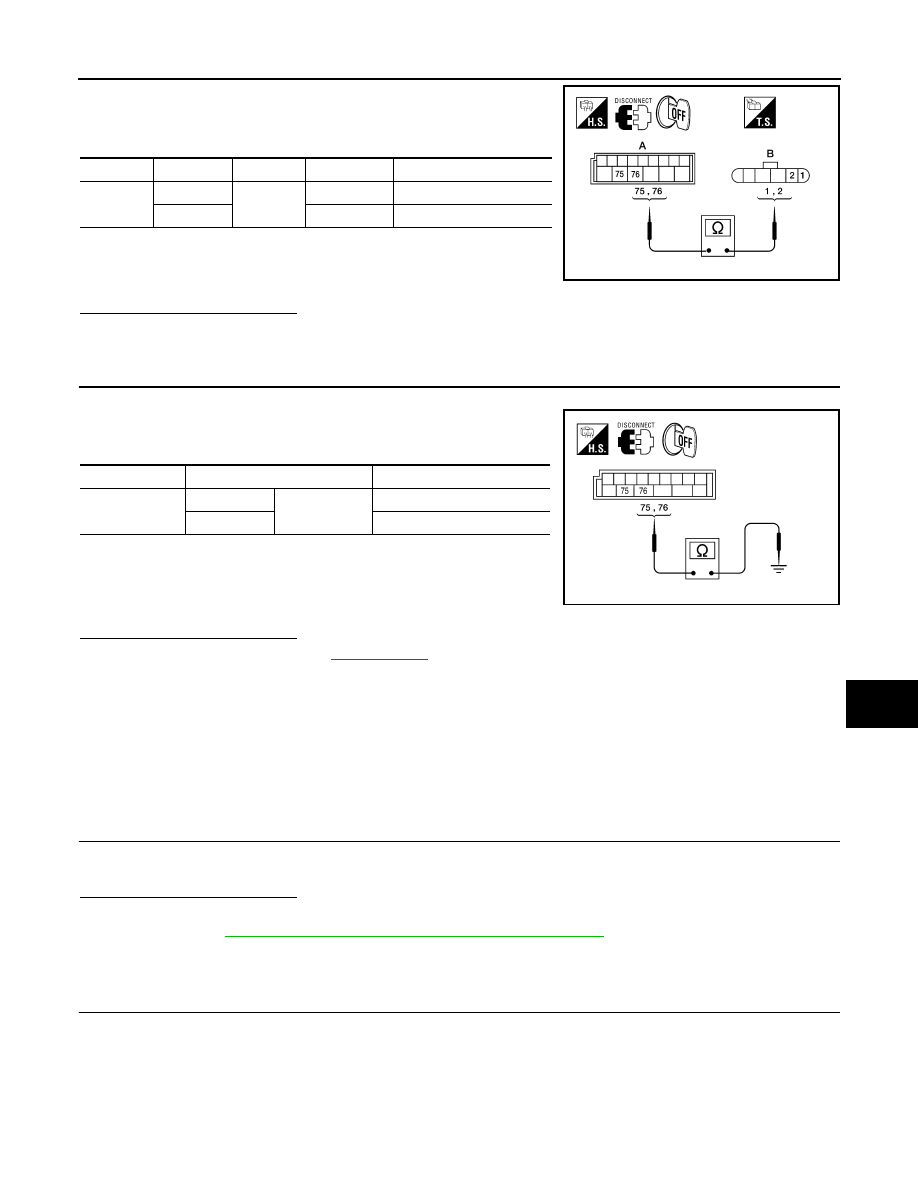

2.

Check continuity between BCM connector (A) M20 terminals 75,
76 and front door lock actuator (driver side) connector (B) D14
terminals 1, 2.

Is the inspection result normal?

YES

>> Replace super lock actuator (driver side).

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (driver side).

2.

Check continuity between BCM connector M20 terminals 75, 76
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

PASSENGER SIDE

PASSENGER SIDE : Description

INFOID:0000000001530820

The super lock system is controlled by the BCM.

PASSENGER SIDE : Component Function Check

INFOID:0000000001530821

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test DOOR LOCK.

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Front super lock actuator (passenger side) is OK.

NO

>> Refer to

DLK-679, "PASSENGER SIDE : Diagnosis Procedure"

.

PASSENGER SIDE : Diagnosis Procedure

INFOID:0000000001530822

1.

CHECK FRONT DOOR LOCK ACTUATOR (PASSENGER SIDE) SIGNAL

1.

Turn ignition switch OFF.

Connector

Terminals

Connector

Terminals

Continuity

M20

75

D14

1

Yes

76

2

Yes

ALKIA0823ZZ

Connector

Terminals

Continuity

M20

75

Ground

No

76

No

ALKIA0824ZZ

DLK-680

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

SUPER LOCK ACTUATOR

2.

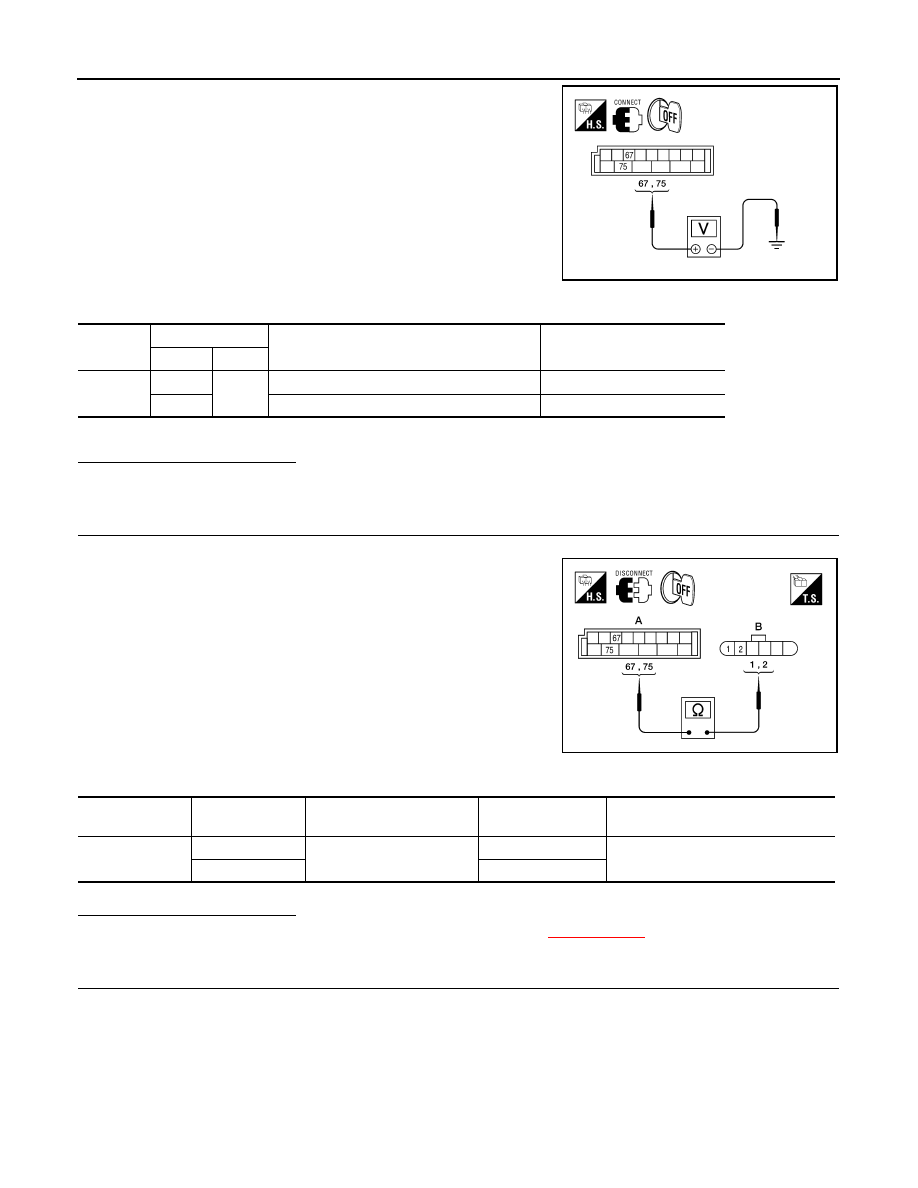

Check voltage between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

2.

Check continuity between BCM connector (A) M20 terminals 67,
75 and front door lock actuator (passenger side) (B) D114 termi-
nals 1, 2.

Is the inspection result normal?

YES

>> Replace super lock actuator (passenger side). Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

3.

CHECK SUPER LOCK ACTUATOR HARNESS

1.

Disconnect BCM and front door lock actuator (passenger side).

ALKIA0825ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0

ALKIA0826ZZ

BCM connector

Terminal

Front door lock actuator

(passenger side) connector

Terminal

Continuity

M20

67

D114

2

Yes

75

1

SUPER LOCK ACTUATOR

DLK-681

< COMPONENT DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2.

Check continuity between BCM connector M19 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> Replace BCM. Refer to

XX-XX, "*****"

.

NO

>> Repair or replace harness.

REAR LH

REAR LH : Description

INFOID:0000000001530823

Locks/unlocks the door with the signal from BCM.

REAR LH : Component Function Check

INFOID:0000000001530824

1.

CHECK FUNCTION

1.

Use CONSULT-III to perform Active Test "DOOR LOCK".

2.

Touch “LOCK” or “UNLOCK” to check that it works normally.

Is the inspection result normal?

YES

>> Rear super lock actuator LH is OK.

NO

>> Refer to

DLK-681, "REAR LH : Diagnosis Procedure"

.

REAR LH : Diagnosis Procedure

INFOID:0000000001530825

1.

CHECK DOOR LOCK ACTUATOR SIGNAL

1.

Turn ignition switch OFF.

2.

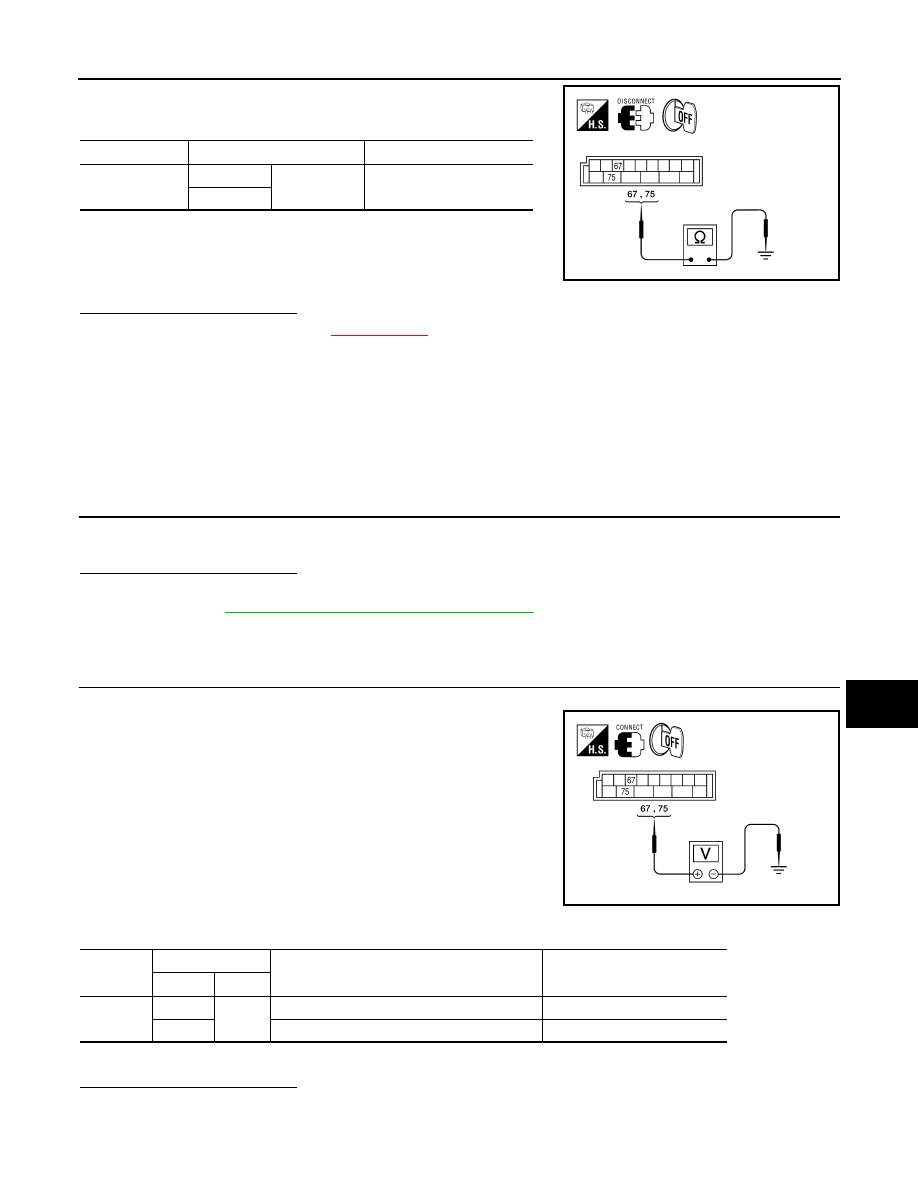

Check voltage between BCM connector M20 terminals 67, 75
and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> GO TO 3.

BCM connector

Terminals

Continuity

M20

67

Ground

No

75

ALKIA0827ZZ

ALKIA0825ZZ

Connector

Terminals

Condition

Voltage (V)

(Approx.)

(+)

(-)

M20

75

Ground

Door lock/unlock switch is turned to LOCK

0

→

 Battery voltage

→

 0

67

Door lock/unlock switch is turned to UNLOCK

0

→

 Battery voltage

→

 0
