Nissan Tiida C11. Manual - part 303





DLK-622

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

TRUNK LID OPENER

TRUNK LID OPENER SWITCH : Component Description

INFOID:0000000001534732

Item

Function

BCM

Controls the trunk lid opener switch function.

Trunk lid opener switch

Transmits trunk lid opener switch operation signal to BCM.

Trunk release solenoid

Opens the trunk with the trunk release solenoid signal from BCM.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

WARNING FUNCTION

DLK-623

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

WARNING FUNCTION

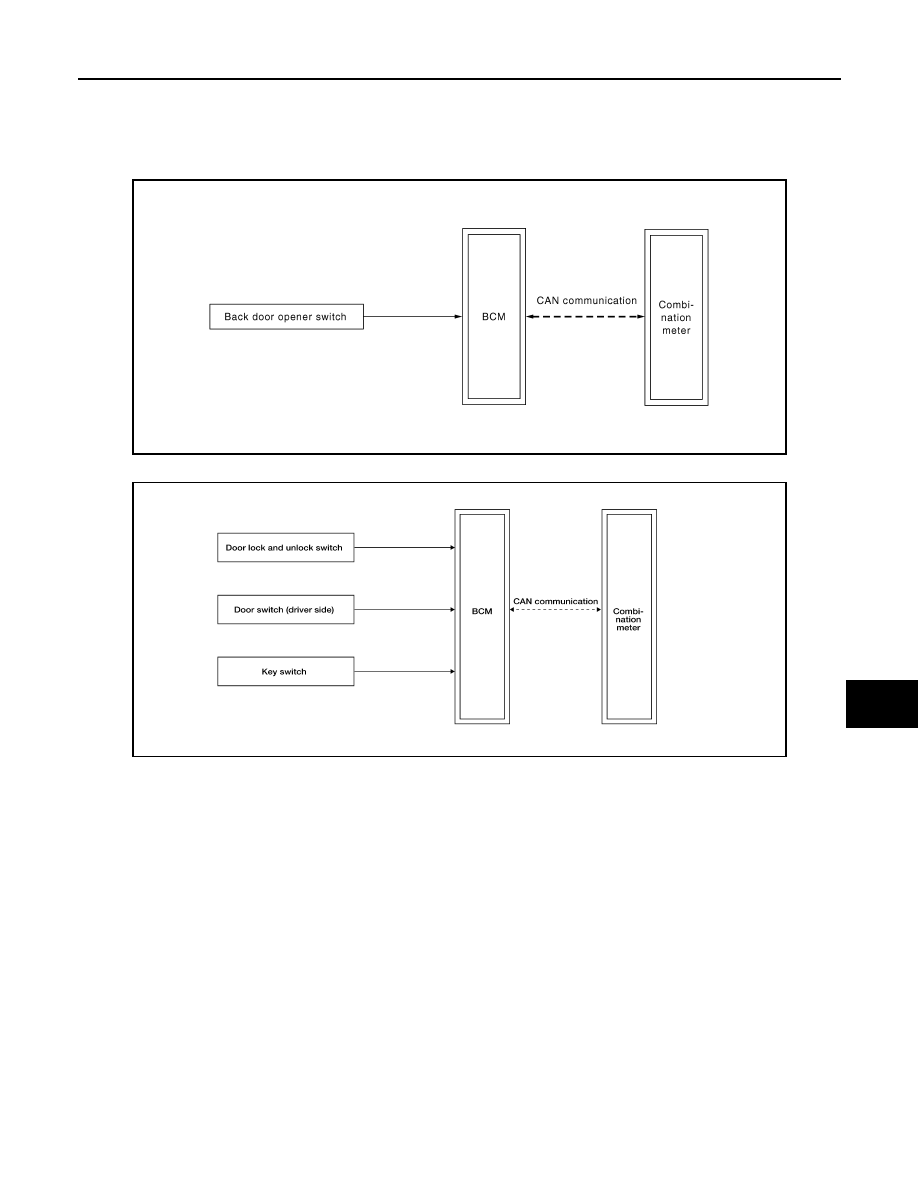

System Diagram

INFOID:0000000001397217

BACK DOOR OPEN WARNING

KEY REMINDER OPERATION

System Description

INFOID:0000000001397218

BACK DOOR OPEN WARNING OPERATION

Back door opener switch is operated, when door is locked with door lock and unlock switch, by speed sensing
lock or when only the driver side is unlocked by the anti-hijack function, the buzzer (built in combination meter)
will sound.

KEY REMINDER OPERATION

• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is

pressed while the driver door is open and mechanical key is inserted ignition key cylinder.

• The buzzer (combination meter) will sound and the doors will not lock if the door lock and unlock switch is

pressed while any door other than the driver door is open.

JMKIA0410GB

ALKIA0837GB

DLK-624

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

WARNING FUNCTION

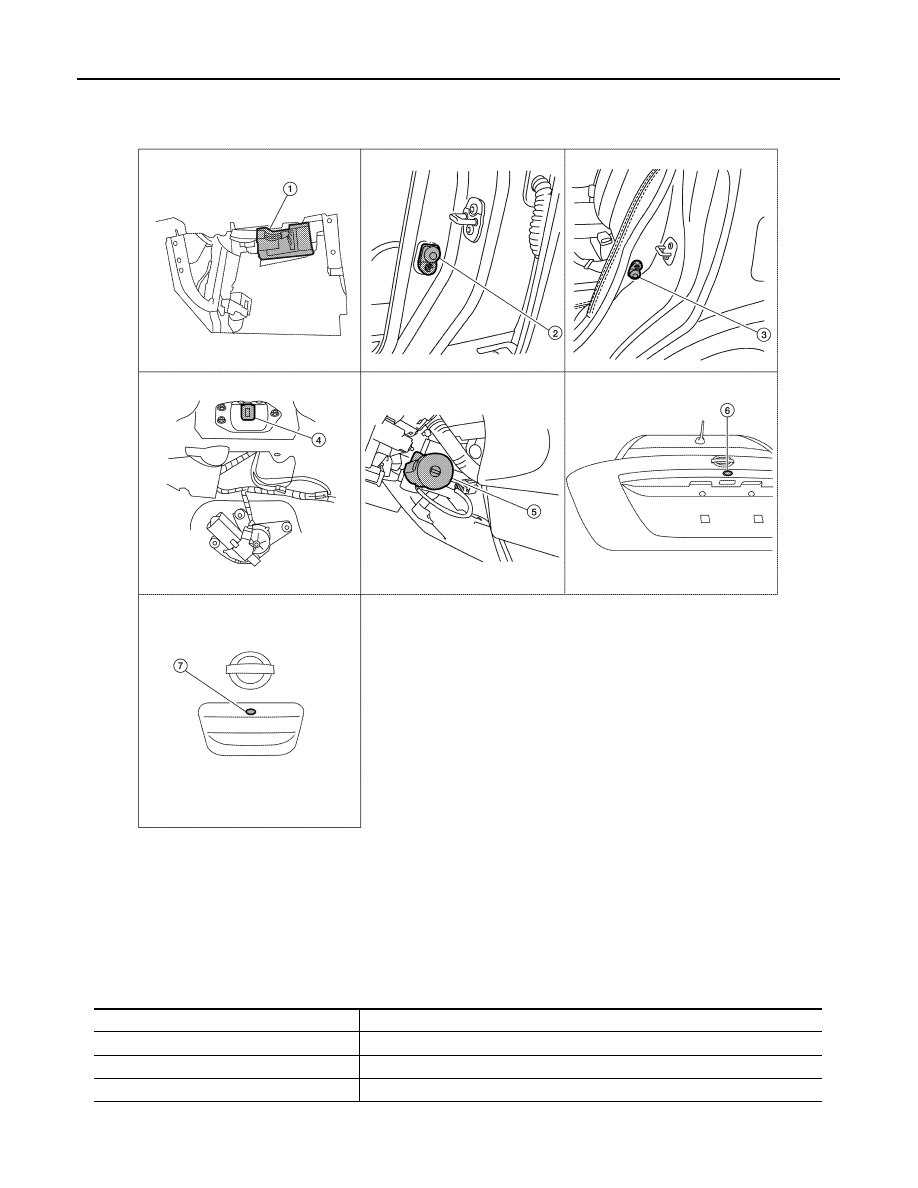

Component Parts Location

INFOID:0000000001397219

Component Description

INFOID:0000000001397220

ALKIA0817ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Rear door switch LH B71
RH B53

4.

Back door lock assembly (back door switch)
D405 (hatchback view with back door open)

5.

Key switch and key lock solenoid
M27

6.

Trunk lid opener switch (sedan) B61

7.

Back door opener switch (hatchback) D408

Item

Function

BCM

Controls the warning function.

Combination meter

Sounds the buzzer by the request signal from BCM via CAN communication.

Back door opener switch

Transmit back door open signal to BCM

HAZARD REMINDER FUNCTION

DLK-625

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD REMINDER FUNCTION

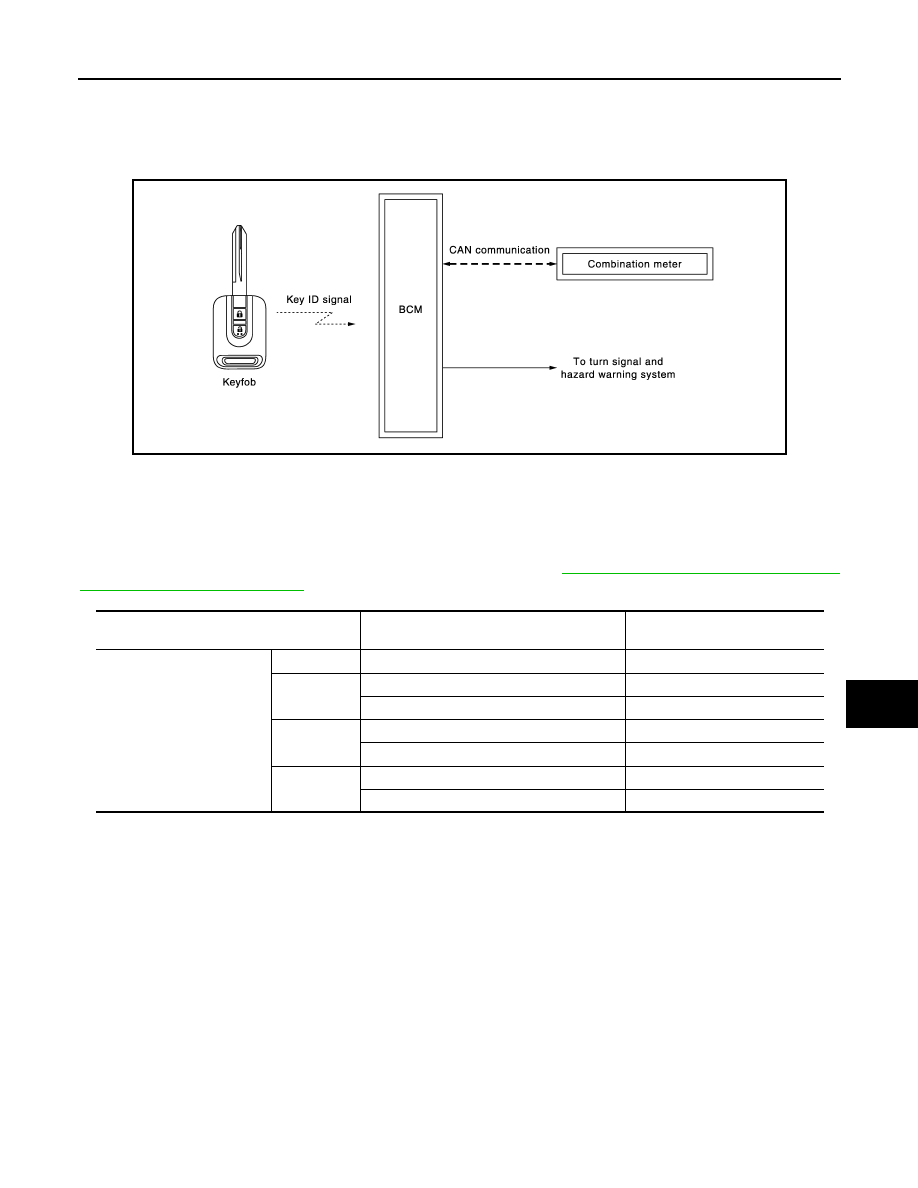

System Diagram

INFOID:0000000001397221

HAZARD REMINDER FUNCTION

System Description

INFOID:0000000001397222

HAZARD REMINDER OPERATION

When door is locked or unlocked by keyfob, then BCM flashes hazard warning lamp as a reminder.
NOTE:
Hazard reminder mode can be changed with CONSULT-III. Refer to

DLK-627, "DOOR LOCK : CONSULT-III

Function (BCM - DOOR LOCK)"

.

JMKIA0510GB

Hazard reminder setting

(With CONSULT-III)

Door lock operation

(with keyfob)

Hazard warning lamp flash

HAZARD LAMP SET

MODE 1

MODE 2

Lock

Once

Unlock

MODE 3

Lock

Unlock

Twice

MODE 4

Lock

Once

Unlock

Twice
