DLK-618

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

Anti-hijack mode can be set to ON or OFF with CONSULT-III. For the setting information, refer to

DLK-490,

"MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)"

.

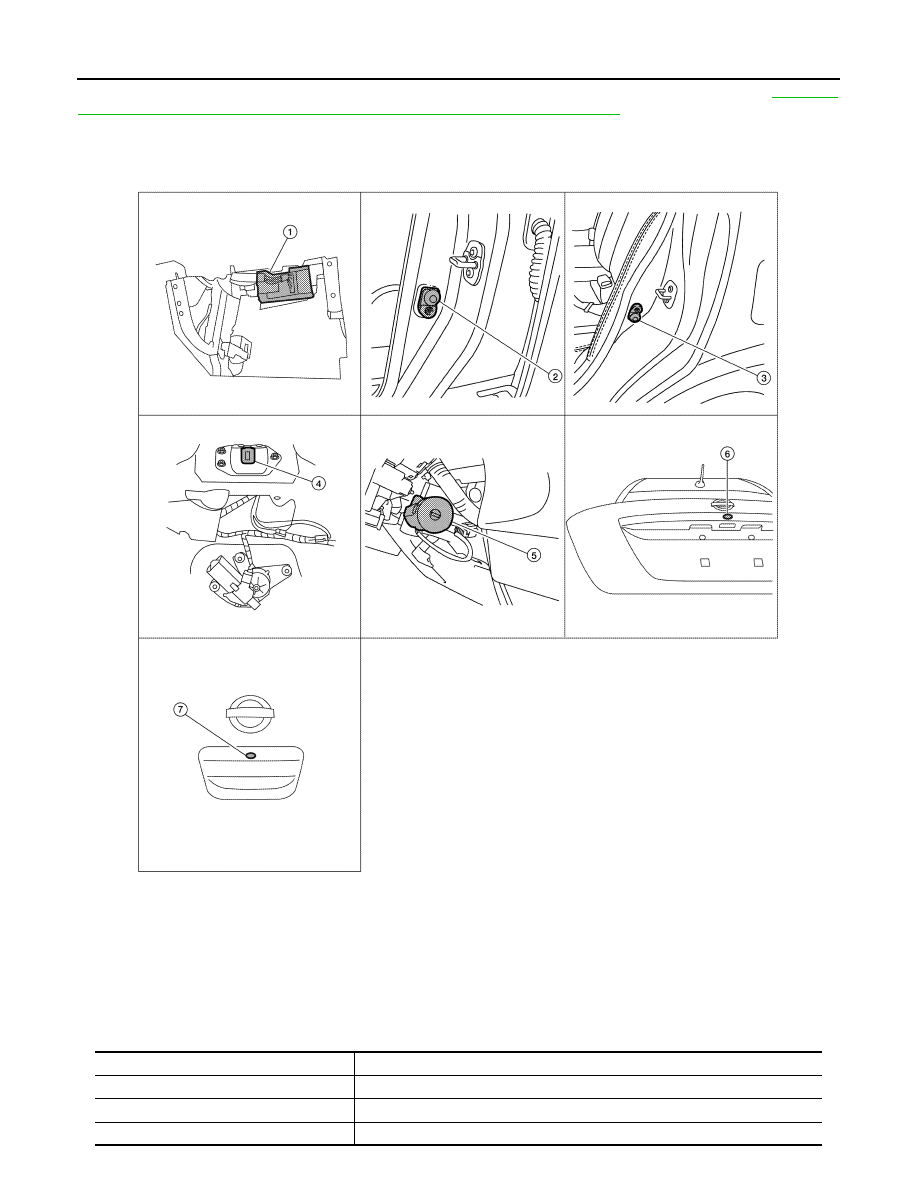

REMOTE KEYLESS ENTRY : Component Parts Location

INFOID:0000000001397199

REMOTE KEYLESS ENTRY : Component Description

INFOID:0000000001397200

ALKIA0817ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Rear door switch LH B71
RH B53

4.

Back door lock assembly (back door switch)
D405 (hatchback view with back door open)

5.

Key switch and key lock solenoid
M27

6.

Trunk lid opener switch (sedan) B61

7.

Back door opener switch (hatchback) D408

Item

Function

BCM

Controls the door lock function.

Key switch

Detect that ignition key is inserted into ignition key cylinder.

Door lock actuator

Receives lock and unlock signal from BCM and locks and unlocks each door.

BACK DOOR OPENER FUNCTION

DLK-619

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

BACK DOOR OPENER FUNCTION

BACK DOOR OPENER SWITCH

BACK DOOR OPENER SWITCH : System Diagram

INFOID:0000000001397213

BACK DOOR OPENER OPERATION

BACK DOOR OPENER SWITCH : System Description

INFOID:0000000001397214

BACK DOOR OPENER OPERATION

When back door opener switch is pressed, BCM opens back door opener actuator.
NOTE:
Back door opener actuator is not for locking the back door. The function is only to open the back door.

OPERATION CONDITION

If the following conditions are not satisfied, back door opener operation is not performed.

JMKIA0402GB

Back door opener switch operation

Operation condition

Back door open

• Vehicle speed is less than 5 km/h (3 MPH).
• All doors are unlocked.

DLK-620

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

BACK DOOR OPENER FUNCTION

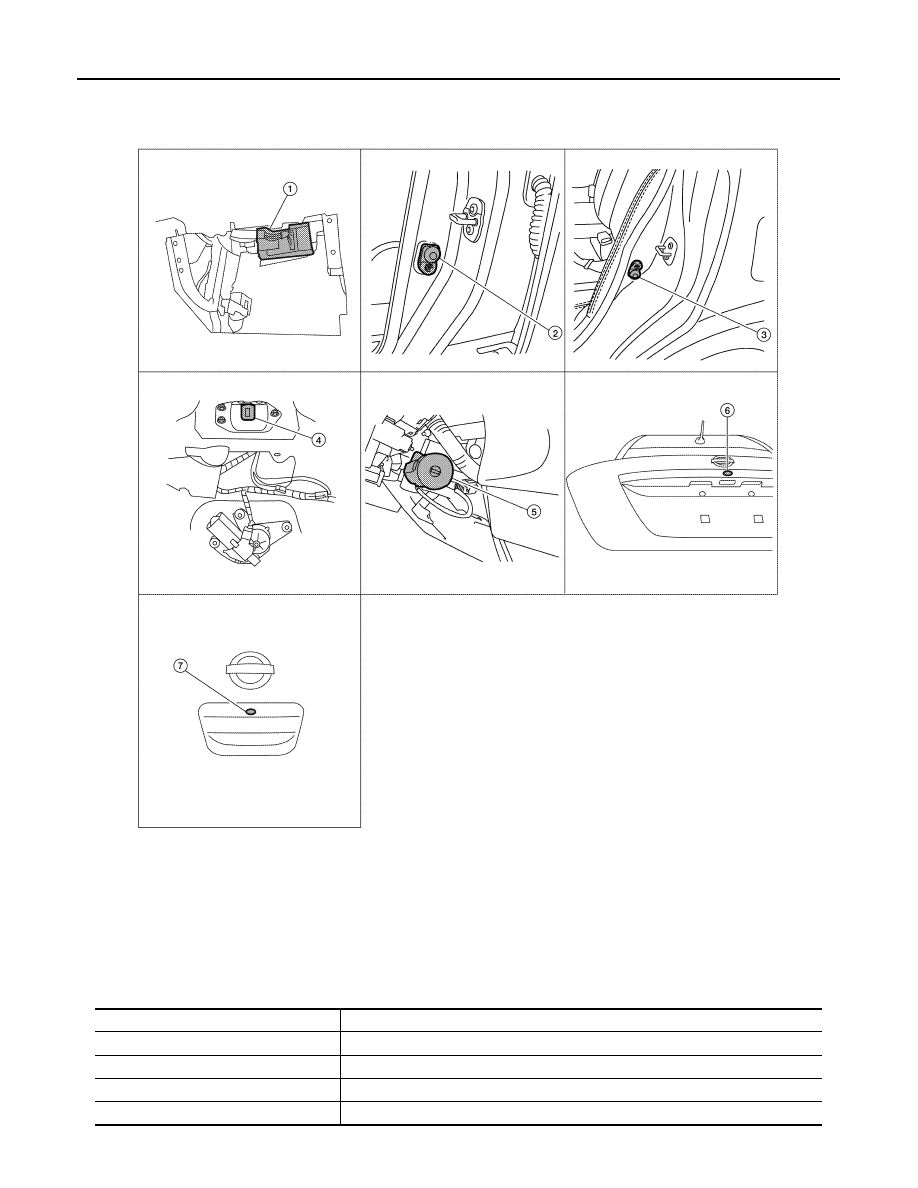

BACK DOOR OPENER SWITCH : Component Parts Location

INFOID:0000000001397215

BACK DOOR OPENER SWITCH : Component Description

INFOID:0000000001397216

ALKIA0817ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Rear door switch LH B71
RH B53

4.

Back door lock assembly (back door switch)
D405 (hatchback view with back door open)

5.

Key switch and key lock solenoid
M27

6.

Trunk lid opener switch (sedan) B61

7.

Back door opener switch (hatchback) D408

Item

Function

BCM

Controls the back door opener function.

Back door opener switch

Transmits back door opener switch operation signal to BCM.

Back door opener actuator

Opens the back door with the back door open signal from BCM.

Combination meter

Transmits vehicle speed signal to BCM via CAN communication.

TRUNK LID OPENER

DLK-621

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER

TRUNK LID OPENER SWITCH

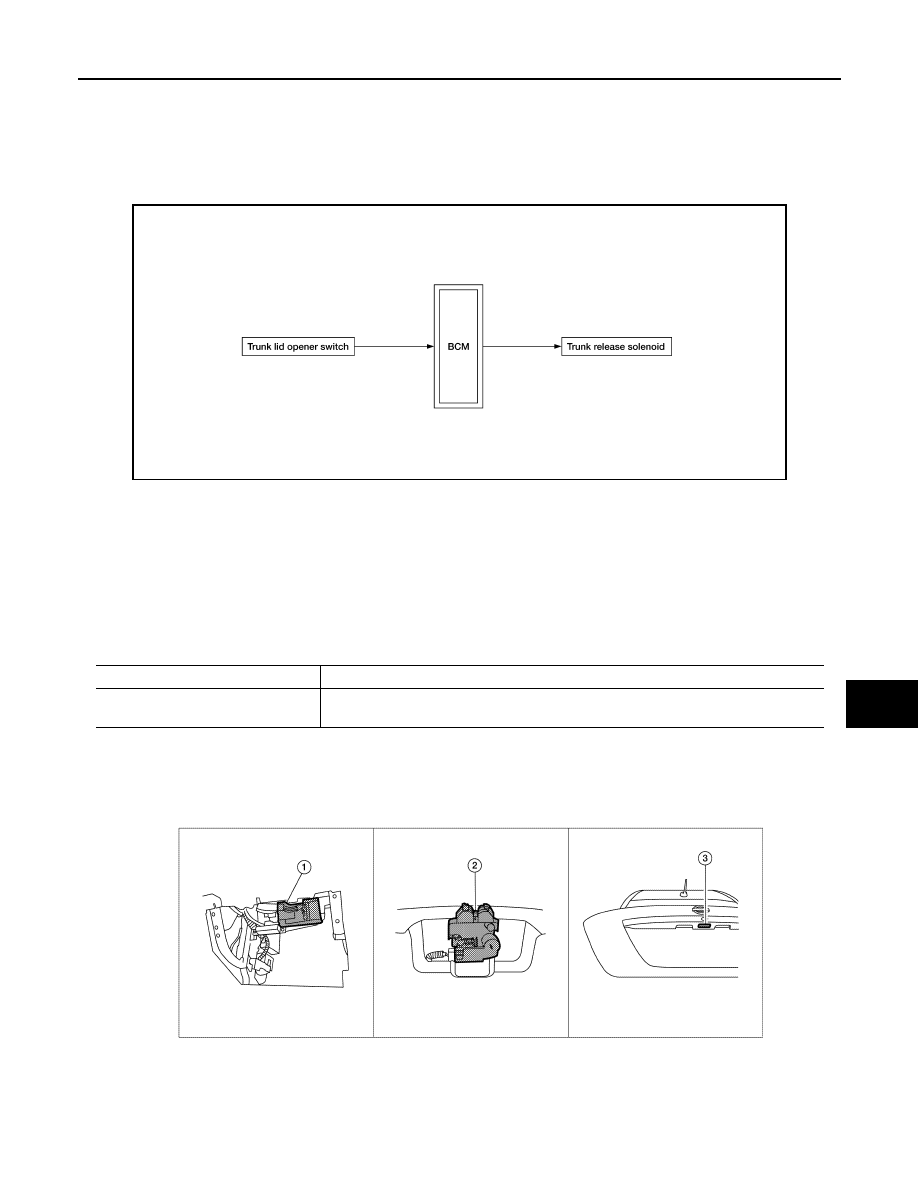

TRUNK LID OPENER SWITCH : System Diagram

INFOID:0000000001534729

TRUNK LID OPENER OPERATION

TRUNK LID OPENER SWITCH : System Description

INFOID:0000000001534730

TRUNK LID OPENER OPERATION

When trunk lid opener switch is pressed, BCM opens trunk release solenoid.
NOTE:
Trunk release solenoid is not for locking the back door. The function is only to open the trunk.

OPERATION CONDITION

If the following conditions are not satisfied, trunk release operation is not performed.

TRUNK LID OPENER SWITCH : Component Parts Location

INFOID:0000000001534731

ALKIA0717GB

Trunk lid opener switch operation

Operation condition

Trunk release solenoid

• Vehicle speed is less than 5 km/h (3 MPH).
• All doors are unlocked.

ALKIA0819ZZ

1.

BCM
M18, M20

2.

Trunk lamp switch and trunk release solenoid
B66

3.

Trunk lid opener switch B61
