DLK-614

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

FUNCTION DIAGNOSIS

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

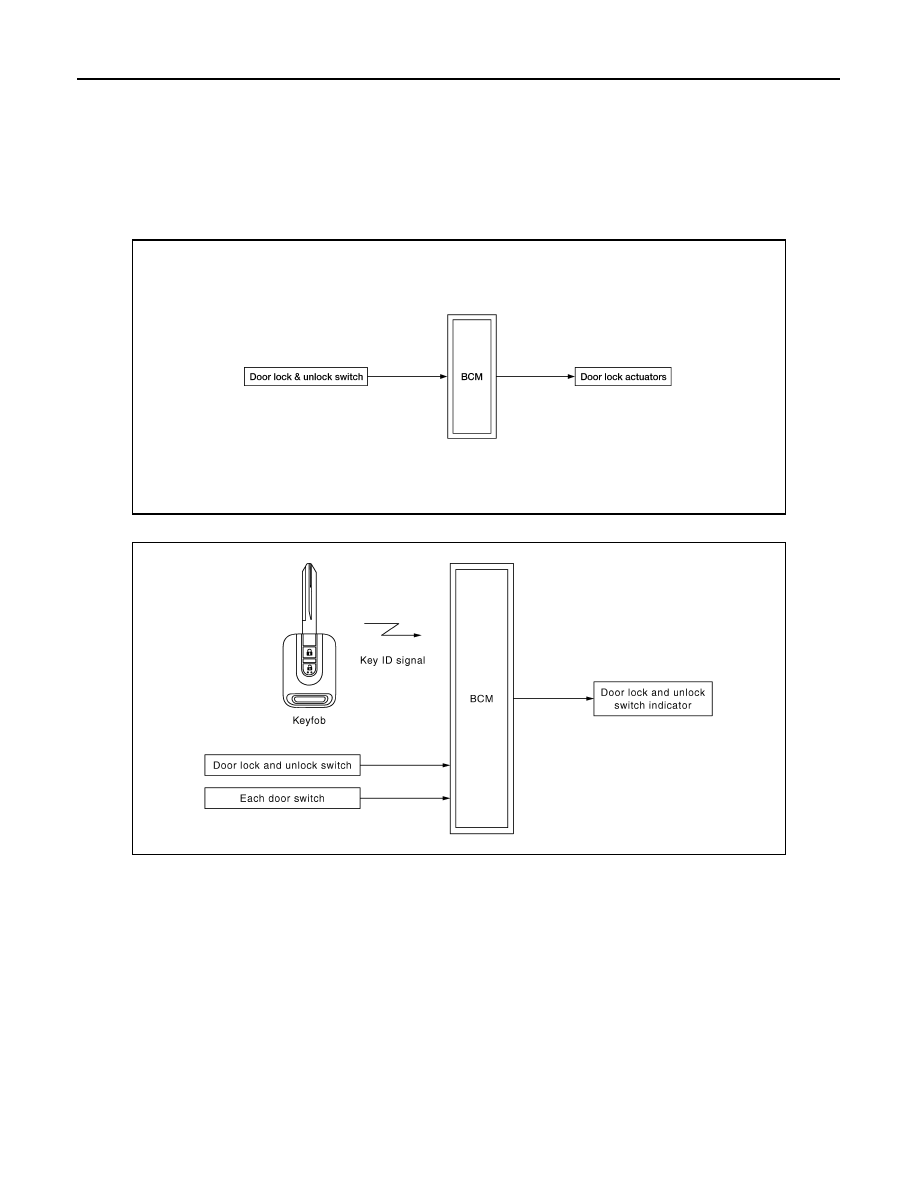

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000001397193

DOOR LOCK AND UNLOCK SWITCH OPERATION

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000001397194

DOOR LOCK AND UNLOCK SWITCH OPERATION

Functions are available by operating the door lock and unlock switch on center console. Interlocked with the
lock/unlock operation of door lock and unlock switch, door lock actuators of all doors are locked/unlocked.

OPERATION CONDITION

If the following conditions are not satisfied, door lock/unlock operation is not performed even if the door lock
and unlock switch is operated.

ALKIA0710GB

JMKIA0503GB

DOOR LOCK FUNCTION

DLK-615

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NOTE:
When the door is locked with keyfob, door lock and unlock switch operation will be invalid until either of the fol-
lowing conditions is satisfied.
• Turn ignition switch ON.
• Unlock operation by keyfob.

DOOR LOCK AND UNLOCK SWITCH INDICATOR OPERATION

Door lock and unlock switch indicator indicates door lock status. The indicator turn ON while ignition switch is
ON and door is locked. If any door is opened, the indicator will turn OFF.
Door lock and unlock switch indicator have the following 2 functions.

1 Minute Timer

A timer must be running to turn OFF the indicator. The timer will run for 1 minute after locking with keyfob or
auto door lock.

30 Minutes Timer

A timer must be running to turn OFF the indicator. The timer will run for 30 minutes after locking with door lock
and unlock switch.
NOTE:
1 minute timer condition is satisfied while 30 minutes timer is active, however 30 minutes timer does not
change when 1 minutes timer is active.

Door lock and unlock switch

Operation condition

Lock operation

All the following conditions are satisfied.
• Except driver side, doors are closed.
• Doors are not locked with keyfob.

Unlock operation

All the following all conditions are satisfied.
• Doors are not locked with keyfob.

DLK-616

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DOOR LOCK FUNCTION

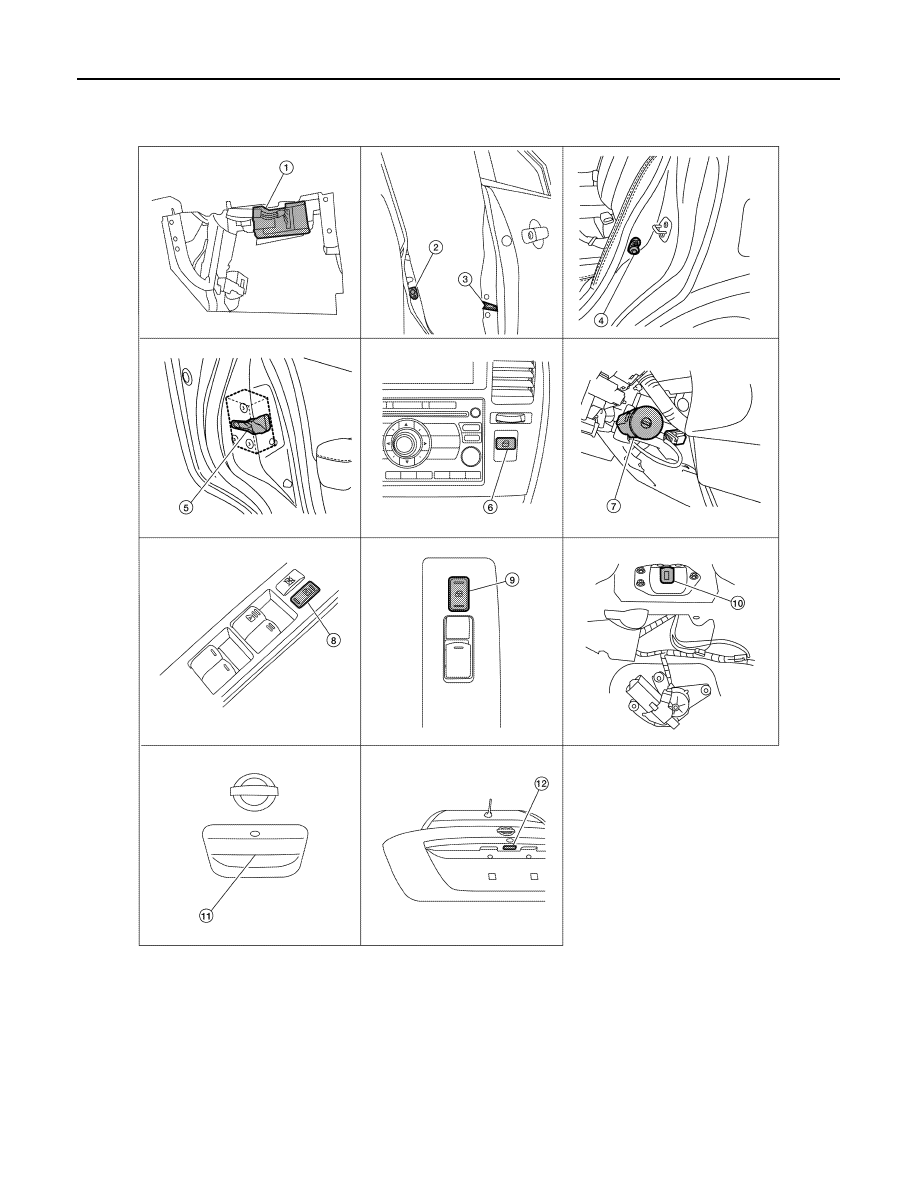

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000001397195

ALKIA0813ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Front door lock actuator (driver side)
D14
(Passenger side) D114

4.

Rear door switch LH B71
RH B53

5.

Rear door lock actuator LH D205
RH D305

6.

Instrument panel warning lamp as-
sembly M37

7.

Key switch and key lock solenoid M27

8.

Main power window and door lock/
unlock switch D7, D8

9.

Power window and door lock/unlock
switch (passenger side) D105

10. Back door lock assembly (back door switch)

D405 (hatchback view with back door open)

11. Back door opener switch (hatch-

back) D408

12. Trunk lid opener switch (sedan) B61

DOOR LOCK FUNCTION

DLK-617

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK AND UNLOCK SWITCH : Component Description

INFOID:0000000001397196

REMOTE KEYLESS ENTRY

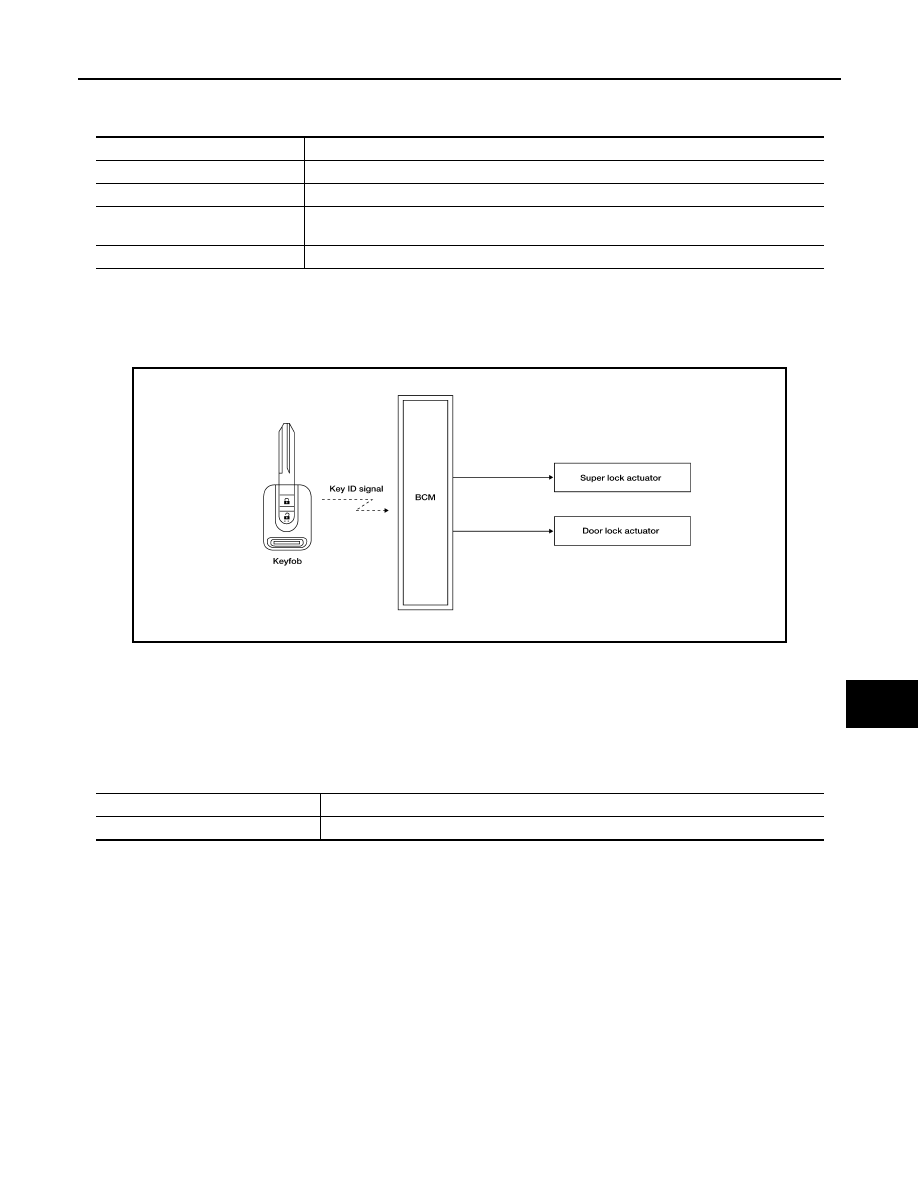

REMOTE KEYLESS ENTRY : System Diagram

INFOID:0000000001397197

KEYFOB OPERATION

REMOTE KEYLESS ENTRY : System Description

INFOID:0000000001397198

KEYFOB OPERATION

The the multi remote control system can be locked and unlocked pressing door lock and unlock button of key-
fob.

OPERATION CONDITION

OPERATION AREA

To ensure that the keyfob works effectively, use within 10 m (33 ft) range of each door, however the operable
range may differ according to surroundings.

DOOR LOCK AND UNLOCK CONTROL

When door lock and unlock button of keyfob is pressed, door lock and unlock signal transmits from keyfob to
BCM. When BCM receives the door lock and unlock signal, it operates door lock actuator.

SUPER LOCK OPERATION

Super lock provides a higher anti-theft performance than a conventional power door lock system. The super
lock system is controlled by BCM.
When super lock is set, all doors cannot be opened from inside.

ANTI-HIJACK MODE

When door lock is unlocked, pressing LOCK button on keyfob will lock all doors. When door lock is locked,
pressing UNLOCK button on keyfob will unlock all doors and back door (hatchback) can be opened with back
door opener switch or the trunk can be opened with trunk lid opener switch.
NOTE:

Item

Function

BCM

Controls the door lock and unlock function.

Door switch

Detects door state (open or closed).

Door lock and unlock switch

Transmits door lock and unlock signal to BCM. Door lock and unlock switch indicator is built
in door lock and unlock switch.

Door lock actuator

Receives door lock and unlock signal from BCM and locks and unlocks each door.

ALKIA0841GB

Remote controller operation

Operation condition

Lock/unlock

Key switch is OFF (key is removed from ignition key cylinder).
