HAZARD REMINDER FUNCTION

Component Parts Location

INFOID:0000000001397223

Component Description

INFOID:0000000001397224

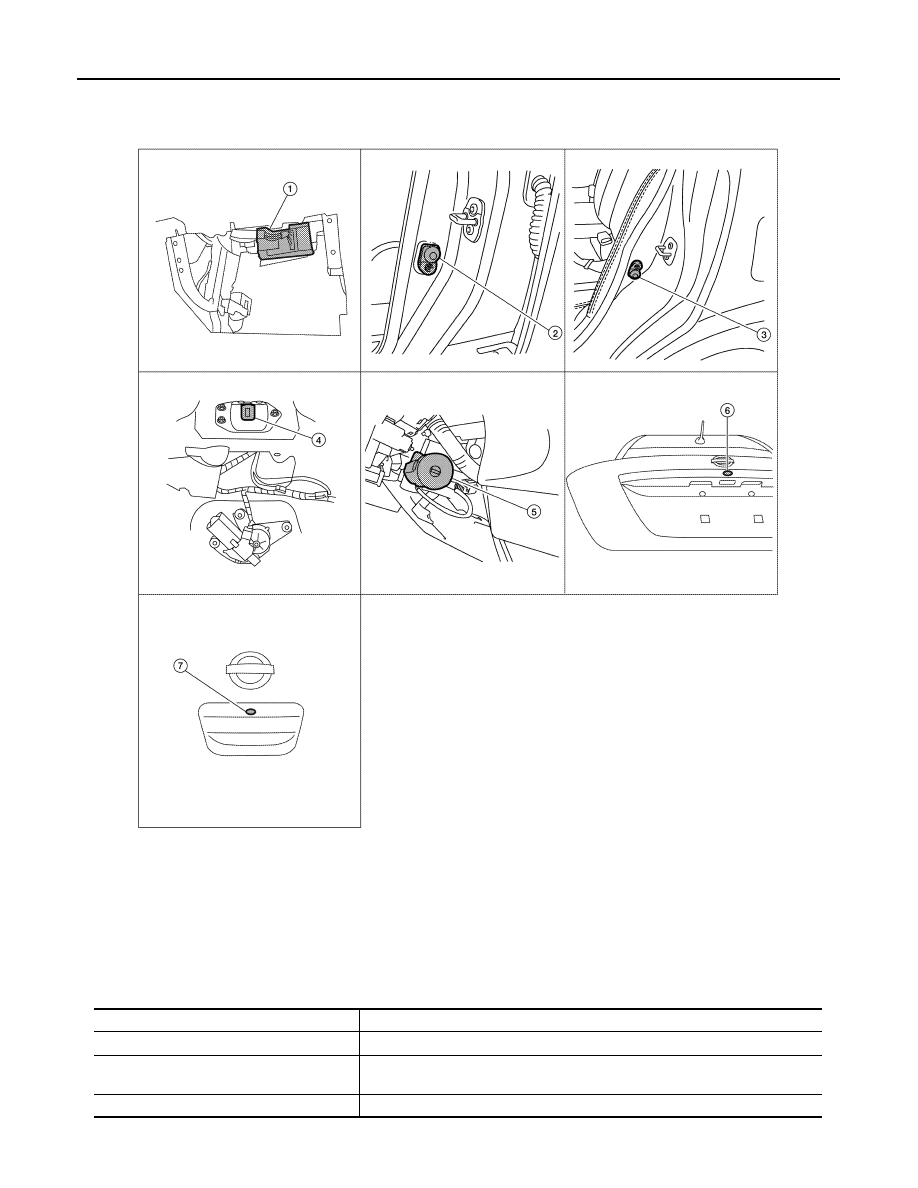

ALKIA0817ZZ

1.

BCM M18, M19, M20
(view with glove box removed)

2.

Front door switch (driver side) B34
(Passenger side) B27

3.

Rear door switch LH B71
RH B53

4.

Back door lock assembly (back door switch)
D405 (hatchback view with back door open)

5.

Key switch and key lock solenoid
M27

6.

Trunk lid opener switch (sedan) B61

7.

Back door opener switch (hatchback) D408

Item

Function

BCM

Controls the hazard reminder system.

Combination meter

Turns ON the turn signal indicator (built in combination meter) by the request from
BCM via CAN communication.

Keyfob

Transmits key ID to BCM when lock and unlock button is pressed.

DIAGNOSIS SYSTEM (BCM)

DLK-627

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001397225

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

DOOR LOCK

DOOR LOCK : CONSULT-III Function (BCM - DOOR LOCK)

INFOID:0000000001397226

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

XX-XX, "*****"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

—

BCM

×

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

Air conditioner

AIR CONDITONER

×

Intelligent Key system

INTELLIGENT KEY

×

Combination switch

COMB SW

×

Immobilizer

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Trunk open

TRUNK

×

Vehicle security system

THEFT ALM

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

PTC heater system

PTC HEATER

×

×

DLK-628

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

DIAGNOSIS SYSTEM (BCM)

DATA MONITOR

ACTIVE TEST

:

WORK SUPPORT

MULTIREMOTE ENT

MULTIREMOTE ENT : CONSULT-III Function (BCM - MULTIREMOTE ENT)

INFOID:0000000001397227

BCM CONSULT-III FUNCTION

CONSULT-III performs the following functions via CAN communication with BCM.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

Monitor Item

Condition

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

CDL LOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

KEYLESS LOCK

Indicates [ON/OFF] condition of lock signal from key fob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from key fob.

UNLOCK WITH DR

This item is indicated, but not monitored.

VEHICLE SPEED

Displays the vehicle speed signal received from combination meter by numerical value
[km/h].

Test item

Description

SUPER LOCK

This test is able to check super lock operation [LOCK (SET)/UNLOCK (RELEASE)].

DOOR LOCK IND

This test is able to check door lock indicator (built in door lock and unlock switch on center
console) operation [ON/OFF].

DOOR LOCK

This test is able to check door lock operation [ALL LOCK/ALL UNLOCK/DR UNLOCK/
OTHER UNLOCK].

Test item

Description

SECURITY DOOR LOCK SET

Anti hijack function mode can be changed in this mode.
• ON: Anti hijack mode is active.
• OFF: Anti hijack mode is inactive.

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

DIAGNOSIS SYSTEM (BCM)

DLK-629

< FUNCTION DIAGNOSIS >

[WITHOUT I-KEY, WITH SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

TRUNK

TRUNK : CONSULT-III Function (BCM - TRUNK)

INFOID:0000000001397228

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

DATA MONITOR

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

Diagnosis mode

Function Description

Monitor Item

Condition

IGN ON SW

Indicates [ON/OFF] condition of ignition switch in ON position.

ACC ON SW

Indicates [ON/OFF] condition of ignition switch in ACC position.

KEY ON SW

Indicates [ON/OFF] condition of key switch.

KEYKESS LOCK

Indicates [ON/OFF] condition of lock signal from key fob.

KEYLESS UNLOCK

Indicates [ON/OFF] condition of unlock signal from key fob.

DOOR SW-DR

Indicates [ON/OFF] condition of front door switch (driver side).

DOOR SW-AS

Indicates [ON/OFF] condition of front door switch (passenger side).

DOOR SW-RR

Indicates [ON/OFF] condition of rear door switch RH.

DOOR SW-RL

Indicates [ON/OFF] condition of rear door switch LH.

BACK DOOR SW

Indicates [ON/OFF] condition of back door switch.

CDL LOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

CDL UNLOCK SW

Indicates [ON/OFF] condition of door lock and unlock switch.

RKE LOCK AND UNLOCK

This item is indicated, but not monitored.

Test item

Description

DOOR LOCK

This test is able to check warning chime in combination meter operation. [ALL LOCK/ALL UN-
LOCK/DR UNLOCK/OTHER UNLOCK]

INT LAMP

This test is able to check interior lamp operation [ON/OFF].

FLASHER

This test is able to check flasher operation [LH/RH/OFF].

Test item

Description

HAZARD LAMP SET

Answer back function (hazard) mode can be changed in this mode.
For the detail of the setting, refer to

DLK-625, "System Description"

.

AUTO LOCK SET

Auto relock time can be changed in this mode.
• MODE 1: 1 minute
• MODE 2: 2 minutes
• MODE 3: 3 minutes
• MODE 4: 4 minutes
• MODE 5: 5 minutes

Diagnosis mode

Function Description

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from Intelligent Key unit.
