Nissan Tiida C11. Manual - part 206

DLK-234

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

REAR DOOR LOCK

5.

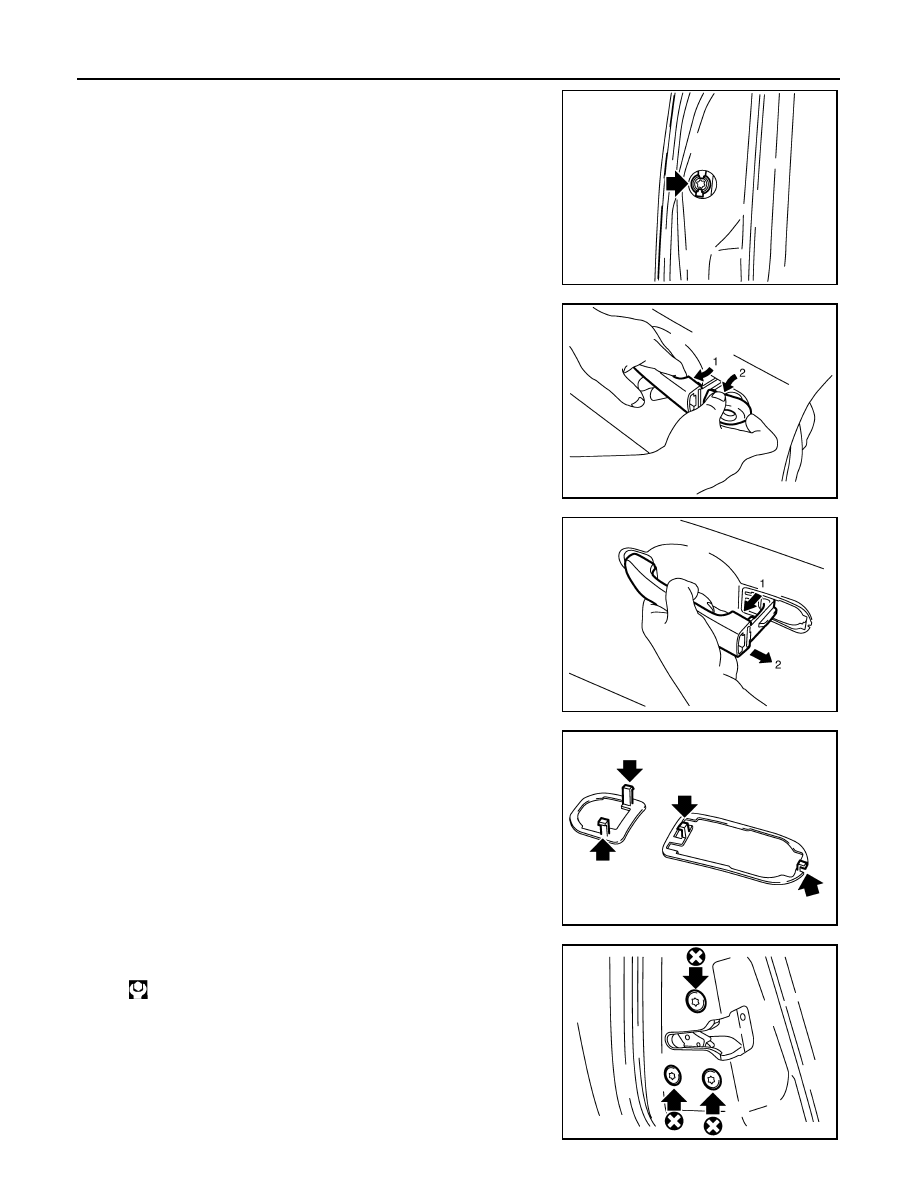

Remove the door side grommet, and the outside handle
escutcheon screw.

6.

Pull the outside handle forward (1), while removing outside han-
dle escutcheon (2).

7.

Pull outside door handle forward (1), and slide it toward the rear
of the vehicle to remove (2).

8.

Remove the front and rear gaskets.

9.

Remove the door lock assembly screws.

PIIB5808E

PIIB5809E

PIIB5810E

PIIB6526E

 : 5.8 N·m (0.6 kg-m, 51.4 in-lb)

PIIB6527E

REAR DOOR LOCK

DLK-235

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

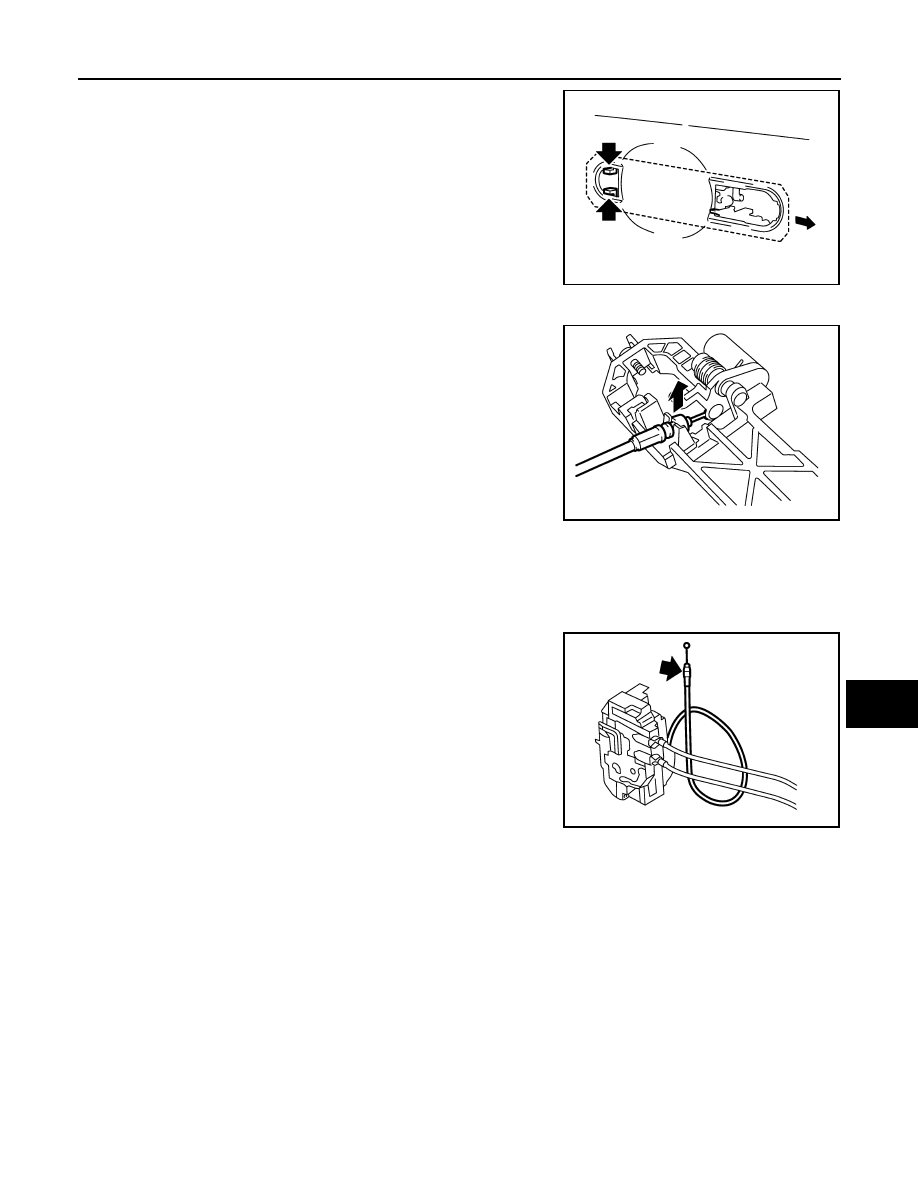

10. Slide the outside handle bracket toward the rear of vehicle,

remove the outside handle bracket and the door lock assembly.

11. If equipped, disconnect the door lock assembly electrical connector.
12. Disconnect the outside handle cable from the outside handle

bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• To install each rod, be sure to rotate the rod holder until a click is felt.
• When installing door lock assembly, be careful when rotating the outside handle cable as shown.
- Place the outside handle bracket cable on the inside of door

lock assembly before installing.

PIIB6528E

PIIB5815E

PIIB6529E

DLK-236

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

BACK DOOR LOCK

BACK DOOR LOCK

Removal and Installation

INFOID:0000000001315857

BACK DOOR LOCK

Removal

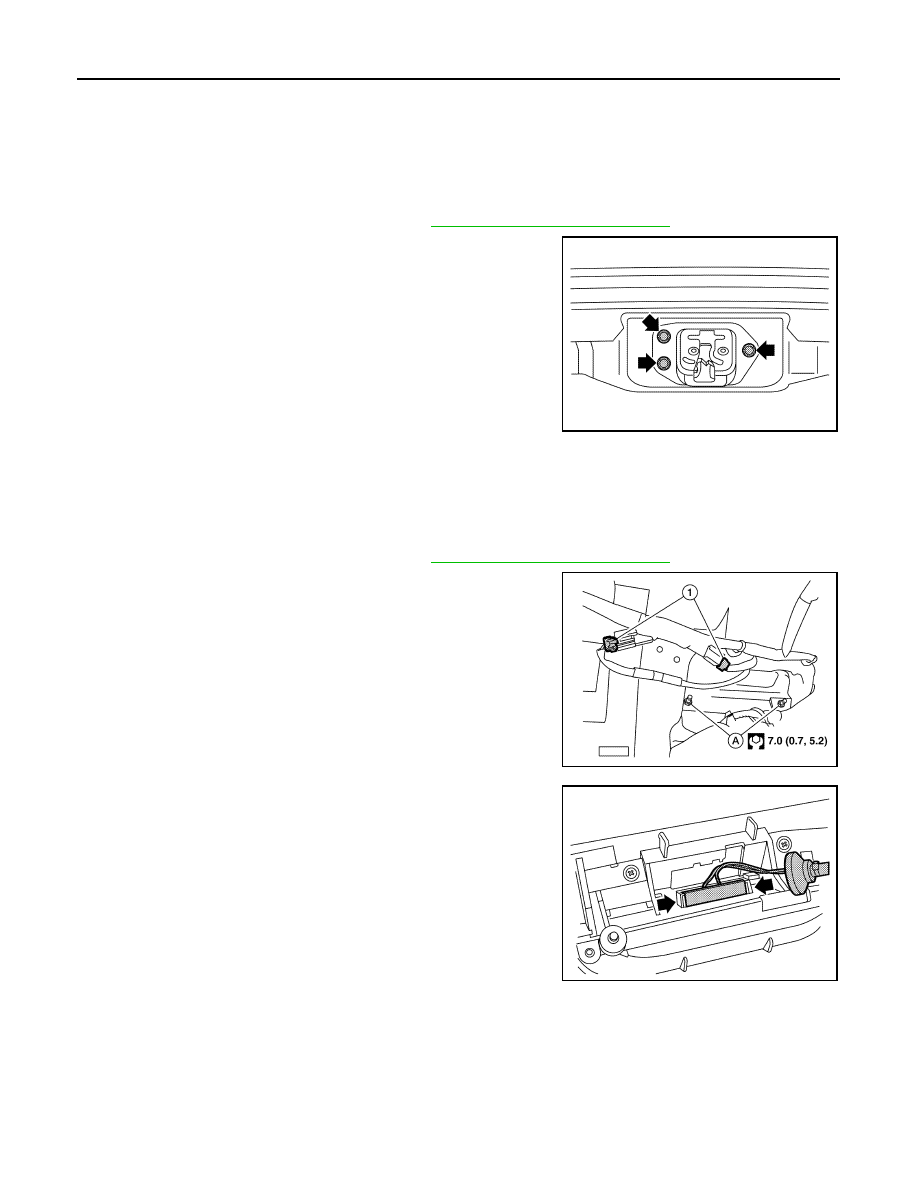

1.

Remove the back door finisher lower. Refer to

INT-18, "Removal and Installation"

.

2.

Remove the bolts, disconnect the electrical connector and sepa-
rate the lock from the door.

Installation

Installation is in the reverse order of removal.

BACK DOOR HANDLE

Removal

1.

Remove the back door finisher lower. Refer to

INT-18, "Removal and Installation"

.

2.

Disconnect the harness connectors (1), remove the nuts and the
back door handle (A).

3.

Release the clips and remove the switch from the housing.

Installation

Installation is in the reverse order of removal.

LIIA2607E

LIIA2669E

LIIA2609E

TRUNK LID

DLK-237

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID

Fitting Adjustment

INFOID:0000000001315840

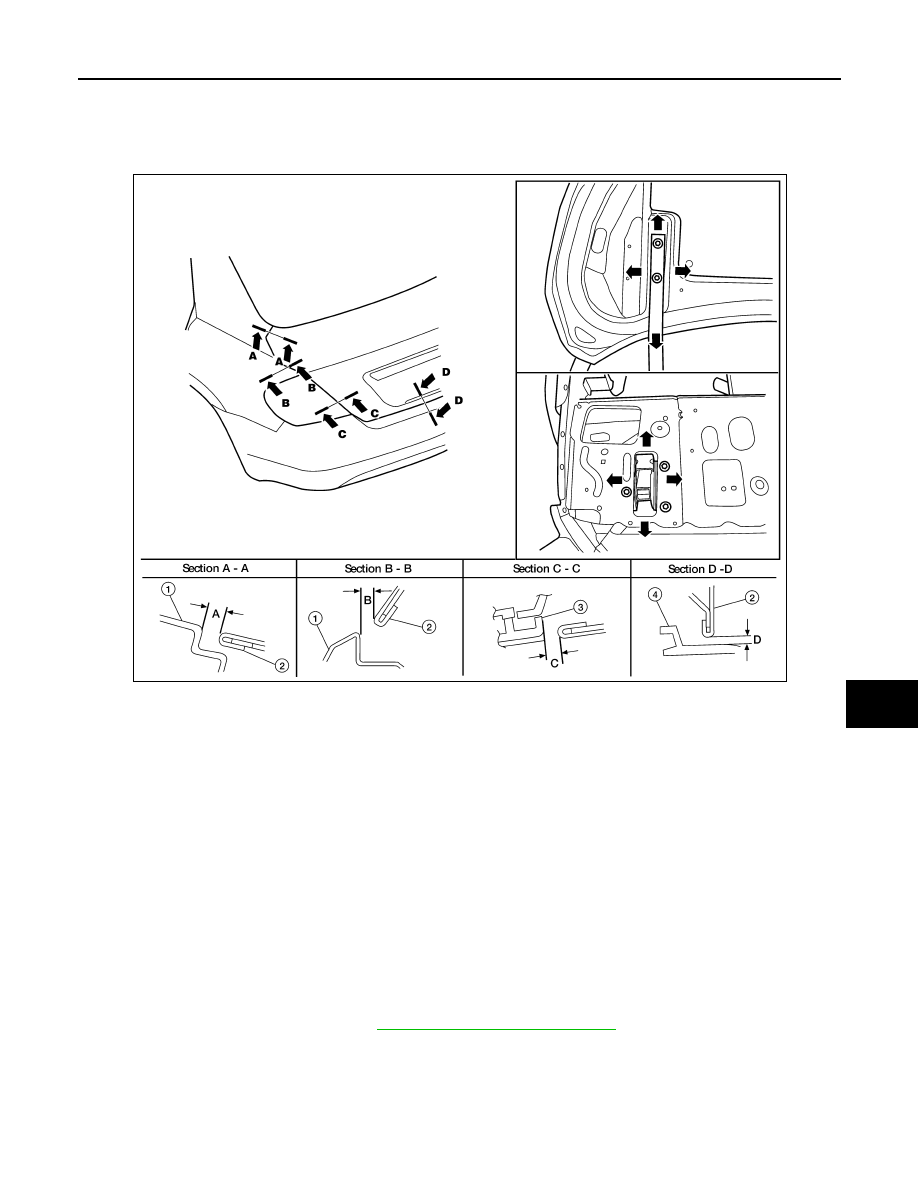

Longitudinal and lateral clearance adjustment

1.

With the striker released, loosen the trunk lid hinge nuts and close the trunk lid.

2.

Make the lateral clearance and the clearance to the rear window glass equal. Then open the trunk lid to
tighten the nuts.

Surface height adjustment

1.

Loosen the striker bolts. Raise the striker to the top position, and temporarily tighten the upper bolt.

2.

Close the trunk lid lightly and adjust the surface height. Then open the trunk lid and tighten the striker
bolts.

Trunk Lid Assembly

INFOID:0000000001315841

REMOVAL

1.

Remove the trunk lid finisher. Refer to

INT-17, "Removal and Installation"

 .

2.

Remove the trunk lid wire harness.

1.

Rear fender

2.

Trunk lid

3.

Rear combination lamp

4.

Rear bumper fascia

a.

4.0

±

 1.0 mm (0.16

±

 0.04 in)

b.

3.5

±

 1.0 mm (0.14

±

  0.04 in)

c.

4.5

±

 1.7 mm (0.03

±

 0.06 in)

d.

7.0

±

 2.2 mm (0.28

±

 0.09 in)

LIIA2932E
