DLK-238

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

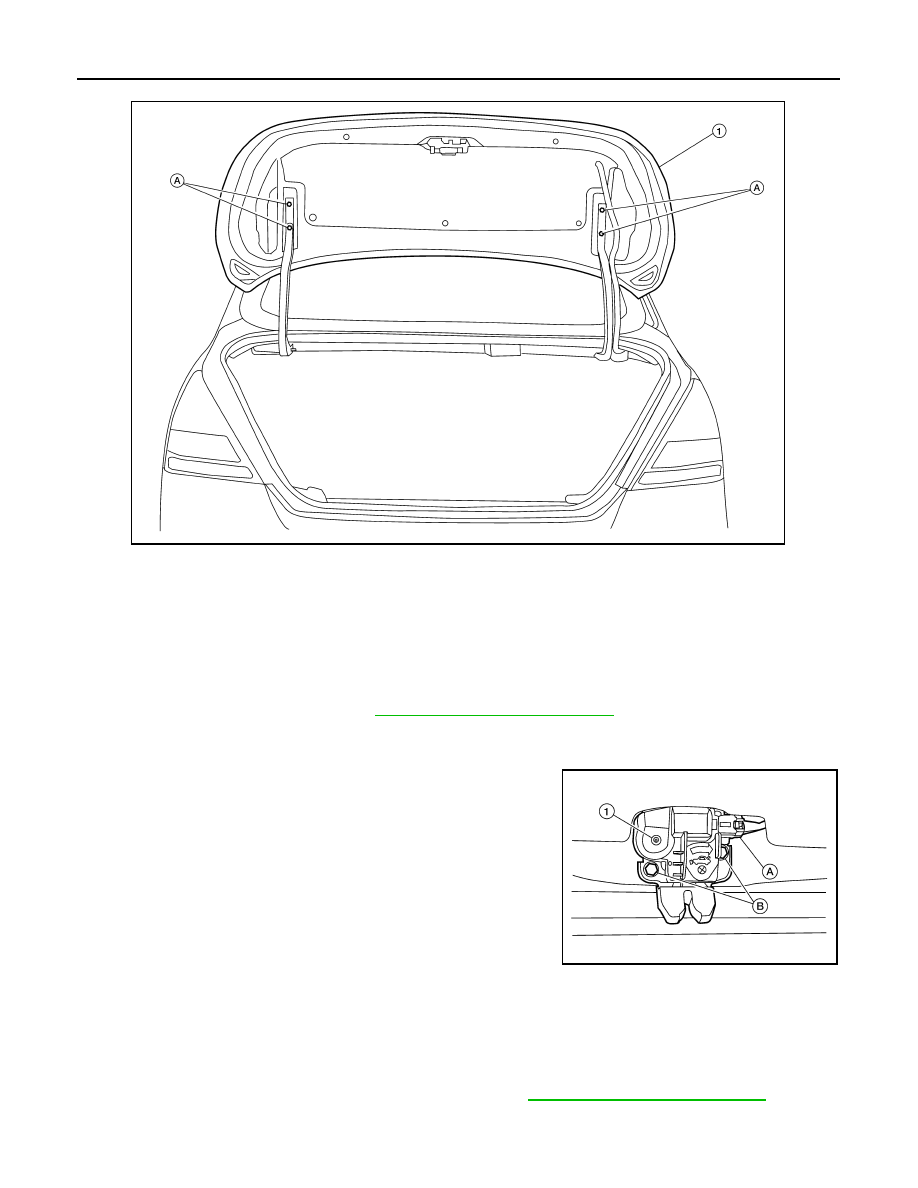

TRUNK LID

3.

Remove the nuts (a) and the trunk lid assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing, apply touch-up paint (body color) to the head of the hinge nuts.

Trunk Lid Lock

INFOID:0000000001315842

REMOVAL

1.

Remove the trunk lid finisher. Refer to

INT-17, "Removal and Installation"

.

2.

If equipped, disconnect the trunk lid lock cylinder rod.

3.

Remove the release cable.

4.

Disconnect the electrical connector (a), remove the bolts (b) and
the trunk lid lock (1).

INSTALLATION

Installation is in the reverse order of removal.

Trunk Lid Striker

INFOID:0000000001315843

REMOVAL

1.

Remove the trunk rear plate and trunk rear finisher. Refer to

INT-35, "Removal and Installation"

.

2.

Remove the bolts, disconnect the electrical connector and remove the trunk lock actuator.

3.

Remove the bolt and disconnect the trunk lid release cable.

LIIA2933E

LIIA2935E

TRUNK LID

DLK-239

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4.

Remove the bolts (a) and the trunk lid striker (1).

INSTALLATION

Installation is in the reverse order of removal.

LIIA2934E

DLK-240

< BASIC INSPECTION >

[WITH I-KEY & SUPER LOCK]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000001396667

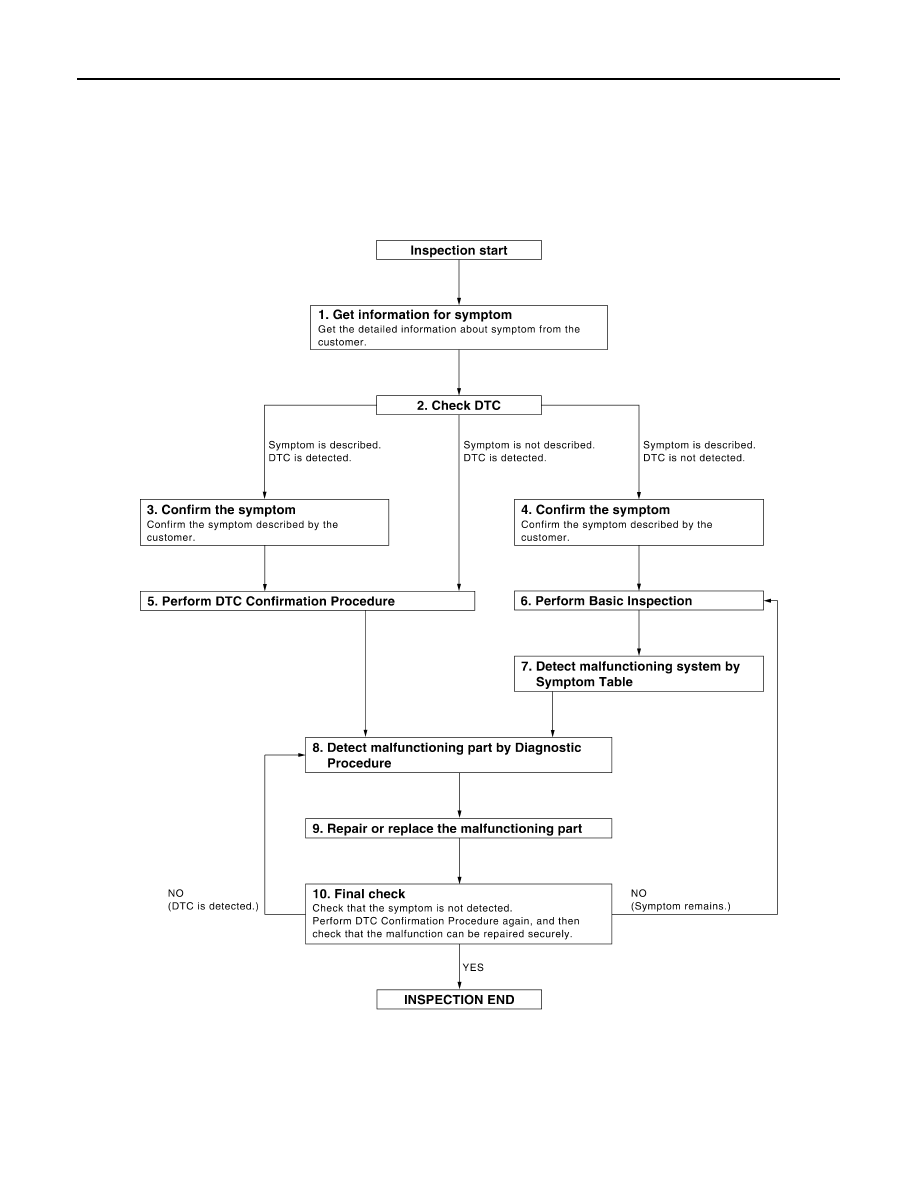

OVERALL SEQUENCE

DETAILED FLOW

ALKIA0246GB

DIAGNOSIS AND REPAIR WORKFLOW

DLK-241

< BASIC INSPECTION >

[WITH I-KEY & SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

GET INFORMATION FOR SYMPTOM

Get the detailed information from the customer about the symptom (the condition and the environment when
the incident/malfunction occurred).

>> GO TO 2.

2.

CHECK DTC

1.

Check DTC for Intelligent Key unit and BCM.

2.

Perform the following procedure if DTC is displayed.

-

Erase DTC.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3.

Check related service bulletins for information.

Is any symptom described and any DTC detected?

Symptom is described, DTC is displayed>>GO TO 3.
Symptom is described, DTC is not displayed>>GO TO 4.
Symptom is not described, DTC is displayed>>GO TO 5.

3.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 5.

4.

CONFIRM THE SYMPTOM

Confirm the symptom described by the customer.
Connect CONSULT-III to the vehicle in “DATA MONITOR ” mode and check real time diagnosis results.
Verify relation between the symptom and the condition when the symptom is detected.

>> GO TO 6.

5.

PERFORM DTC CONFIRMATION PROCEDURE

Perform DTC Confirmation Procedure for the displayed DTC, and then check that DTC is detected again.
If two or more DTCs are detected, refer to

XX-XX, "*****"

 (Intelligent Key unit),

XX-XX, "*****"

 (BCM) and

determine trouble diagnosis order.

Is DTC detected?

YES

>> GO TO 8.

NO

>> Refer to

XX-XX, "*****"

.

6.

PERFORM BASIC INSPECTION

Perform Basic Inspection. Refer to

DLK-440, "Basic Inspection"

.

>> GO TO 7.

7.

DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE

Detect malfunctioning system according to Symptom Table based on the confirmed symptom in step 4.

>> GO TO 8.

8.

DETECT MALFUNCTIONING PART BY DIAGNOSTIC PROCEDURE

Inspect according to Diagnostic Procedure of the system.
NOTE:
The Diagnostic Procedure described based on open circuit inspection. A short circuit inspection is also
required for the circuit check in the Diagnostic Procedure.

>> GO TO 9.
