Nissan Tiida C11. Manual - part 205

DLK-230

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

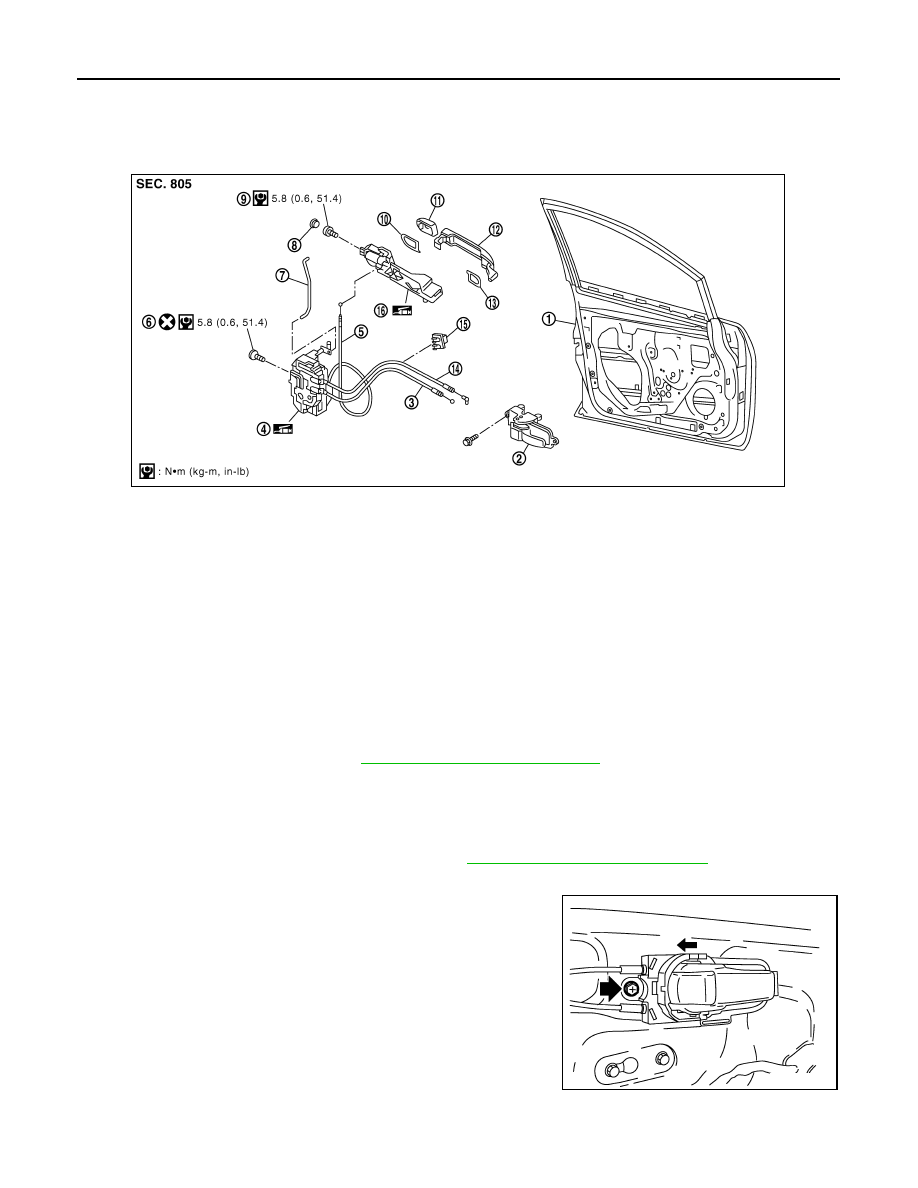

FRONT DOOR LOCK

FRONT DOOR LOCK

Component Parts Location

INFOID:0000000001315860

Removal and Installation

INFOID:0000000001315861

REMOVAL

1.

Remove front door finisher. Refer to

INT-13, "Removal and Installation"

 .

2.

Fully close front door window.

3.

Remove the front door sealing screen.
NOTE:
If sealing screen is reused, cut butyl tape in a way that leaves it on the sealing screen.

4.

Remove front door rear glass run channel. Refer to

GW-14, "Removal and Installation"

 .

5.

Remove the cables from the holder.

6.

Remove inside handle bolt, and slide the handle toward the rear
of the vehicle. disengage the handle from the door panel, and
remove the inside handle.

7.

Disengage the handle from the door panel, and remove the inside handle.

1.

Front door

2.

Inside handle

3.

Inside handle cable

4.

Door lock assembly

5.

Outside handle cable

6.

TORX bolt (T30)

7.

Key cylinder connecting rod

8.

Grommet

9.

TORX bolt (T30)

10. Rear gasket

11. Door key cylinder assembly

(Driver's side)
Outside handle escutcheon
(passenger's side)

12. Outside handle

13. Front gasket

14. Lock knob cable

15. Holder

16. Outside handle bracket

PIIB6523E

PIIB6524E

FRONT DOOR LOCK

DLK-231

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

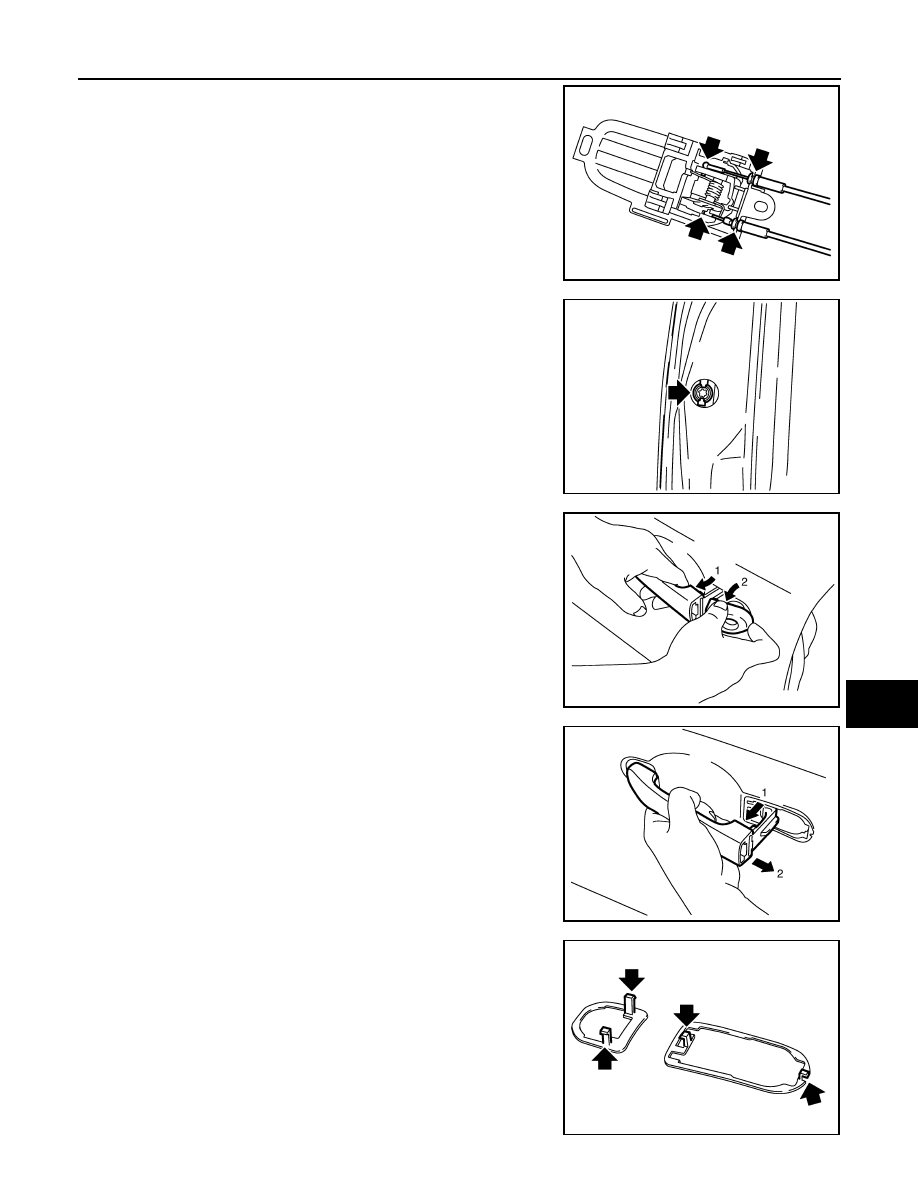

8.

Disconnect the inside handle cable and lock knob cable from the
inside handle.

CAUTION:

During removal and installation, work so as not to bend the
ends of the lock knob cable and inside handle cable.

9.

Remove the door side grommet, and the door key cylinder
assembly (escutcheon) bolt.

10. Remove the key cylinder connecting rod (key cylinder side).

11. If equipped, disconnect the door antenna, the door request

switch connector and remove the harness clamp. (Vehicle with
intelligent key systems only).

12. Remove the door cylinder assembly while pulling the outside

handle forward.

13. Pull the outside door handle forward and then slide it toward the

rear of the vehicle to remove.

14. Remove the front and rear gaskets.

PIIB6525E

PIIB5808E

PIIB5809E

PIIB5810E

PIIB6526E

DLK-232

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

FRONT DOOR LOCK

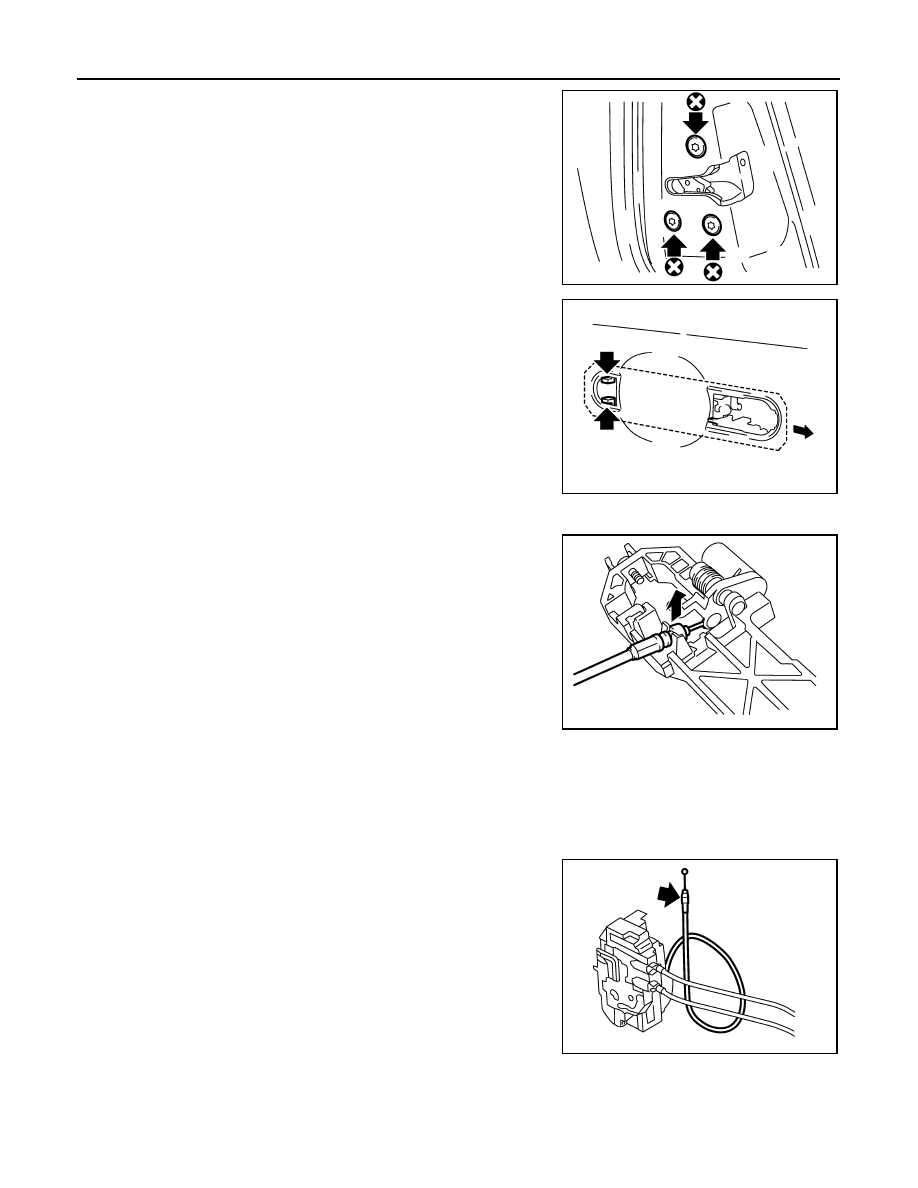

15. Remove the door lock assembly bolts.

16. Slide the outside handle bracket toward the rear of the vehicle,

and remove the assembly.

17. If equipped, disconnect the door lock assembly electrical connector.

18. Separate the outside handle cable from the outside handle

bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• To install each rod, be sure to rotate the rod holder until a click is felt.
• When installing door lock assembly, be careful when rotating the outside handle cable as shown in

the figure.

- Place the outside handle bracket cable on the inside of door

lock assembly before installing.

  5.8 N·m (0.6 kg-m, 51.4 in-lb)

PIIB6527E

PIIB6528E

PIIB5815E

PIIB6529E

REAR DOOR LOCK

DLK-233

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

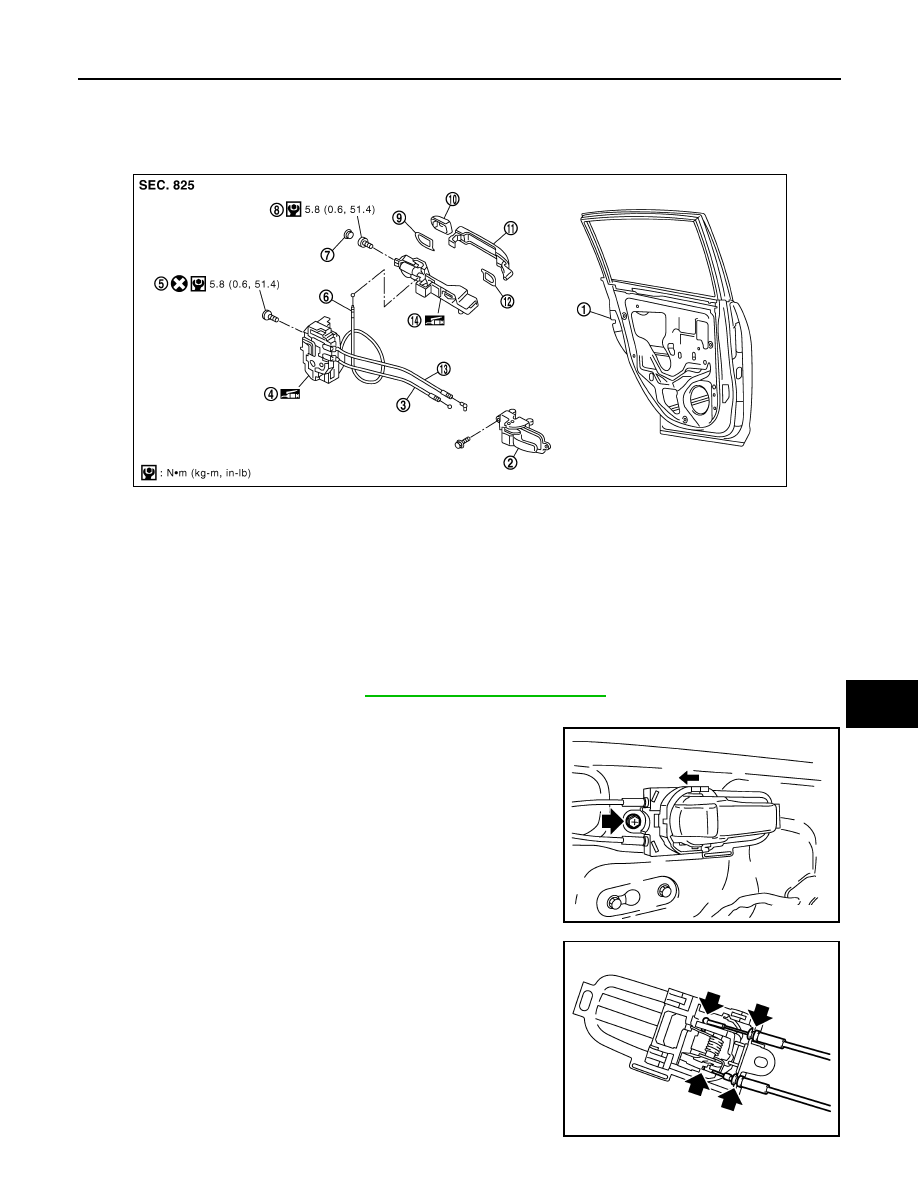

REAR DOOR LOCK

Component Parts Location

INFOID:0000000001315858

Removal and Installation

INFOID:0000000001315859

REMOVAL

1.

Remove the partition glass. Refer to

GW-18, "Removal and Installation"

.

2.

Support door glass while lifting it up to the door window completely closed position.

3.

Remove inside handle bolt, slide handle toward rear of vehicle,
disconnect it from the door panel, and remove the inside handle.

4.

Disconnect the inside handle and lock knob cables from the
inside handle.

CAUTION:

During removal and installation, do not to bend the ends of
the lock knob cable and inside handle cable.

1.

Rear door

2.

Inside handle

3.

Inside handle cable

4.

Door lock assembly

5.

TORX bolt (T30)

6.

Outside handle cable

7.

Grommet

8.

TORX bolt (T30)

9.

Rear gasket

10. Outside handle escutcheon

11. Outside handle

12. Front gasket

13. Lock knob cable

14. Outside handle bracket

PIIB6530E

PIIB6524E

PIIB6525E
