Nissan Tiida C11. Manual - part 203

DLK-222

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR

DOOR

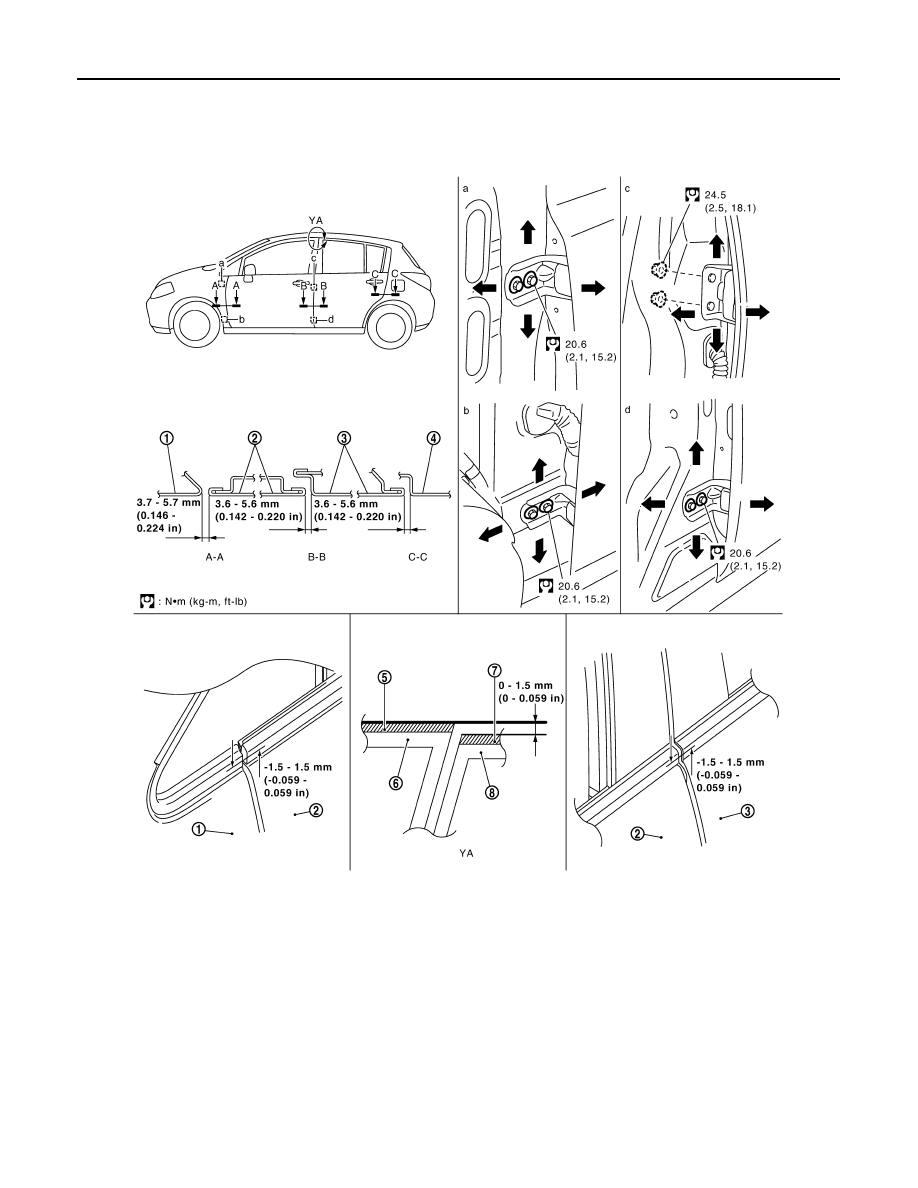

Fitting Adjustment

INFOID:0000000001315837

FRONT DOOR

Longitudinal Clearance and Surface Height Adjustment at Front End

Access from inside the fender  to loosen the hinge bolts. Raise the front door at rear end to adjust.

Surface Height Adjustment

Loosen the front door bolts, and adjust the surface height difference of fender and front door according to the
fitting standard dimension.

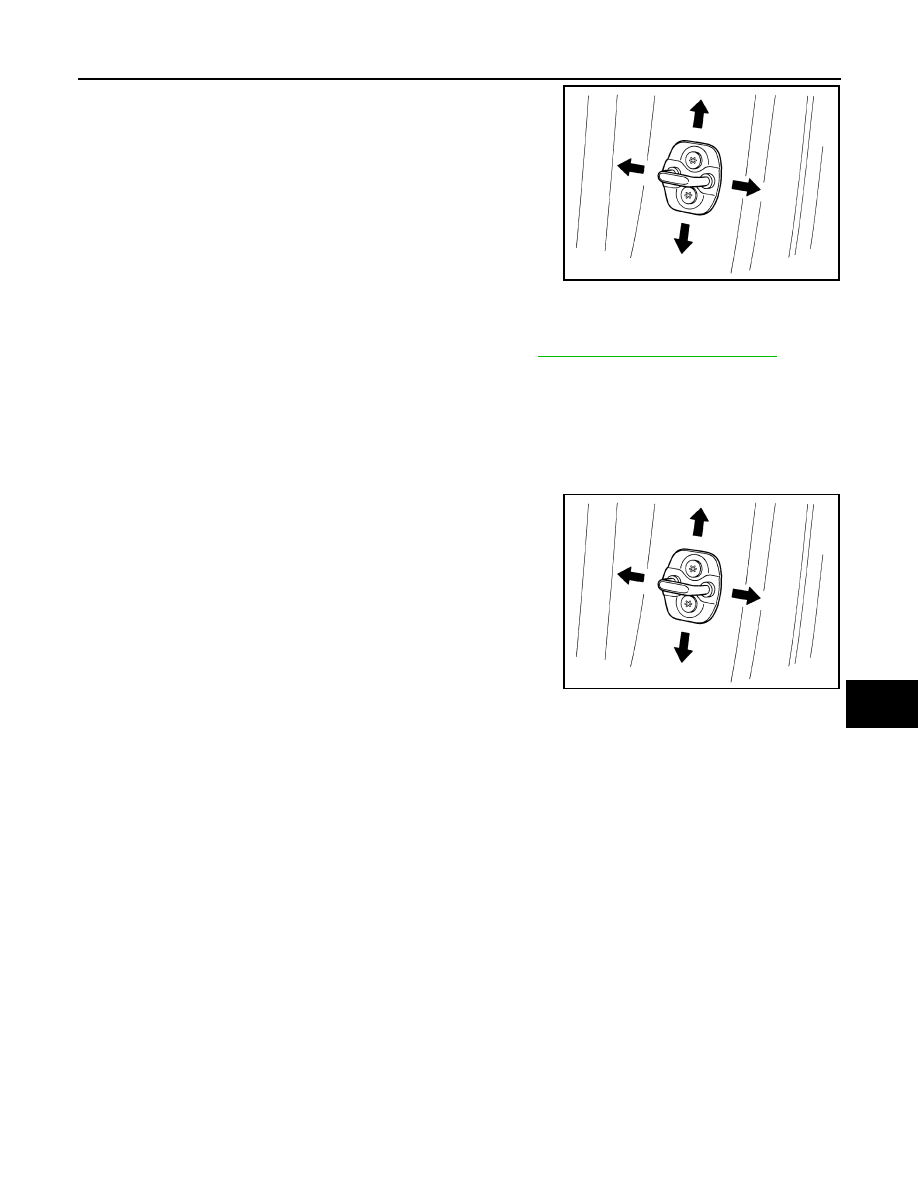

Striker Adjustment

1.

Front fender

2.

Front door outer

3.

Rear door outer

4.

Rear fender

5.

Front door weatherstrip

6.

Front door sash

7.

Rear door weatherstrip

8.

Rear door sash

PIIB6516E

DOOR

DLK-223

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

REAR DOOR

Longitudinal Clearance and Surface Height Adjustment at Front End

1.

Remove the center pillar upper and lower garnishes. Refer to

INT-20, "Removal and Installation"

.

2.

Access from inside the vehicle to loosen the hinge nuts. Open the rear door, and raise the rear door at
rear end to adjust.

Surface Height Adjustment

Loosen the front door striker bolts and rear door hinge nuts, and adjust the surface height difference of front
and rear doors according to the fitting standard dimension.

Striker Adjustment

1.

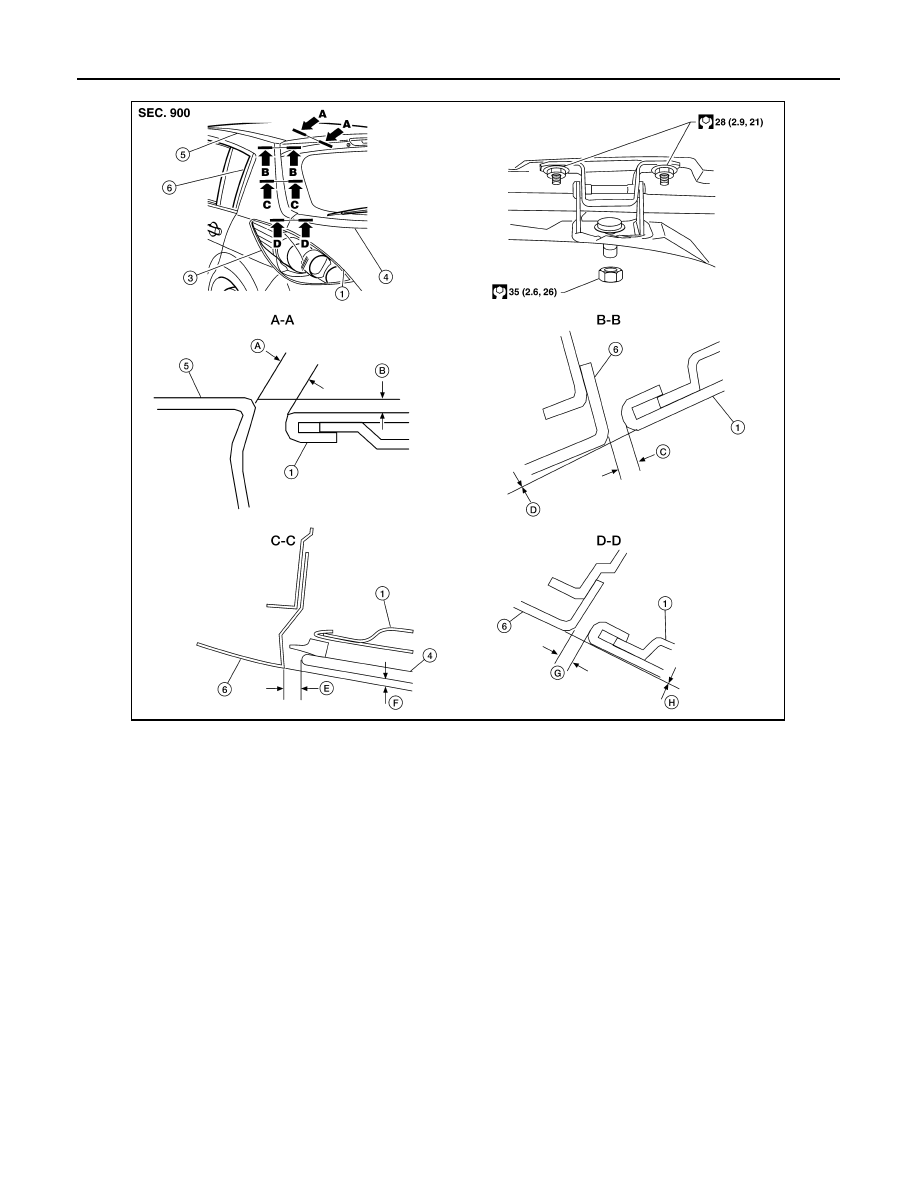

BACK DOOR

Longitudinal Clearance and Surface Height Adjustment

16.7 N·m (1.7 kg-m, 12 ft-lb)

PIIB2804J

16.7 N·m (1.7 kg-m, 12 ft-lb)

PIIB2804J

DLK-224

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

DOOR

1.

Open and support the back door.

2.

Slightly loosen the hinge nuts.

3.

Reposition the door as necessary and tighten the nuts.

4.

Confirm the adjustment. Repeat as necessary to obtain the desired fit.

Striker Adjustment

1.

Back door assembly

2.

Back door hinge

3.

Tail lamp assembly

4.

Back window glass

5.

Roof

6.

Rear pillar

A.

6.0

±

 1.0 mm (0.24

±

 0.04 in)

B.

-0.5

±

 1.0 mm (-0.02

±

 0.04 in)

C. 5.0

±

  1.2 mm (0.20

±

 0.05 in)

D.

0.0

±

 1.5 mm (0.0

±

 0.06 in)

E.

5.0

±

 2.3 mm ( 0.20

±

 0.9 in)

F.

2.7 +1.6 -2.1 mm (0.11 + 0.06 - 0.08 in)

G.

5.0

±

 1.2 mm ( 0.20

±

 0.05 in)

H. 0.0

±

 1.5 mm (0.0

±

 0.06 in)

LIIA2668E

DOOR

DLK-225

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

1.

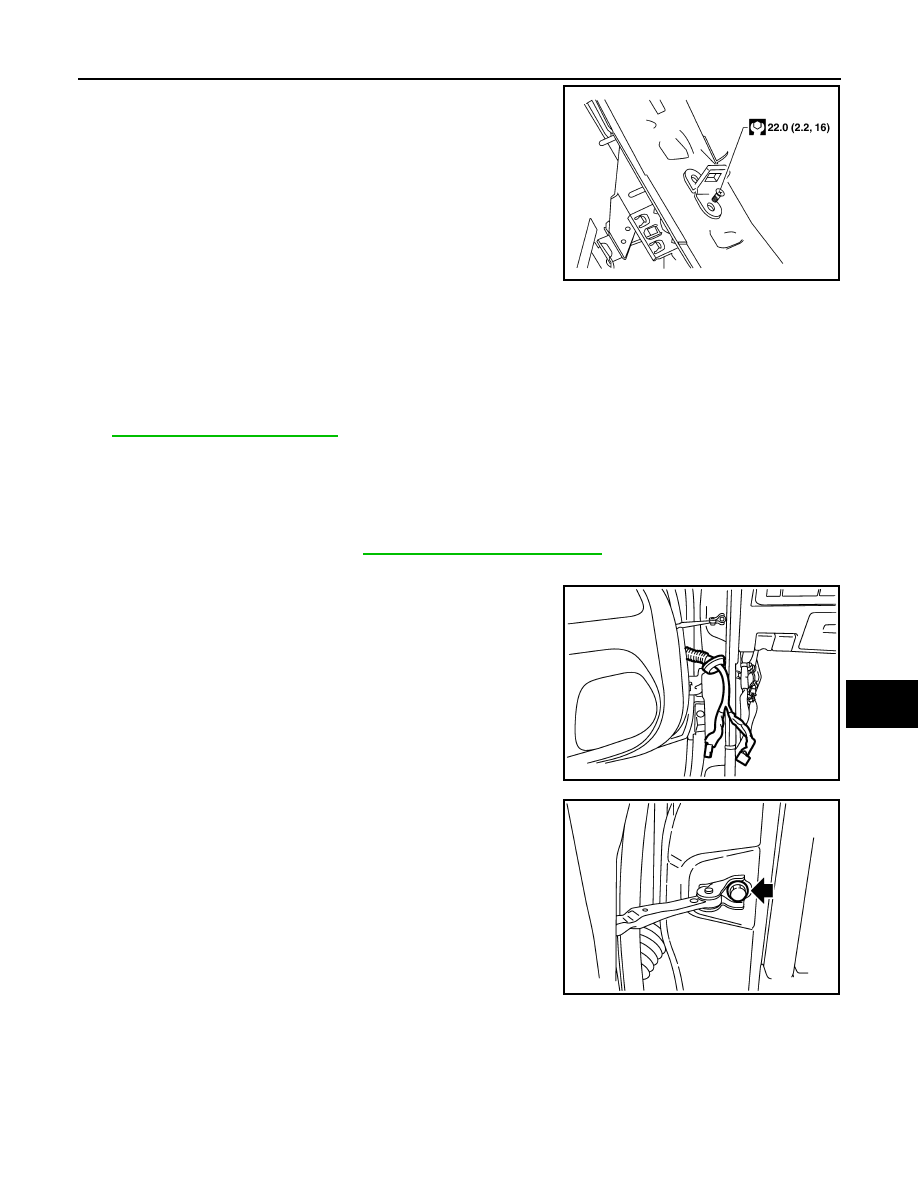

Removal and Installation

INFOID:0000000001315838

FRONT DOOR

CAUTION:

• When removing and installing the front door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing front door assembly, be sure to carry out the fitting adjustment. Refer

to

DLK-222, "Fitting Adjustment"

.

• After installing, apply touch-up paint onto the head of the hinge nuts.
• Check the hinge rotating part for lubrication. If necessary, apply “body grease”.
• Operate with two workers, because of its heavy weight.
• Check front door open/close operation after installation.

Removal

1.

Remove dash side finisher. Refer to

INT-20, "Removal and Installation"

.

2.

Disconnect the front door harness connectors.

3.

Remove the front door harness grommet, and then remove the
harness from the vehicle.

4.

Remove the check link bolt.

Striker bolts

20 N·m (2.2 kg-m, 16 ft-lb)

LIIA2641E

PIIB6518E

 14.7 N·m (1.5 kg-m, 11 ft-lb)

PIIB6543E
