DOOR

5.

Remove the hinge nuts and then the door assembly.

Installation

Installation is in the reverse order of removal.

REAR DOOR

CAUTION:

• When removing and installing the rear door assembly, support the door with a jack and cloth to pro-

tect the door and body.

• When removing and installing rear door assembly, be sure to carry out the fitting adjustment. Refer

to

DLK-222, "Fitting Adjustment"

.

• After installing, apply touch-up paint onto the head of the hinge nuts.
• Check the hinge rotating part for poor lubrication. If necessary, apply “body grease”.
• Operate with two workers, because of its heavy weight.
• Check rear door open/close operation after installation.

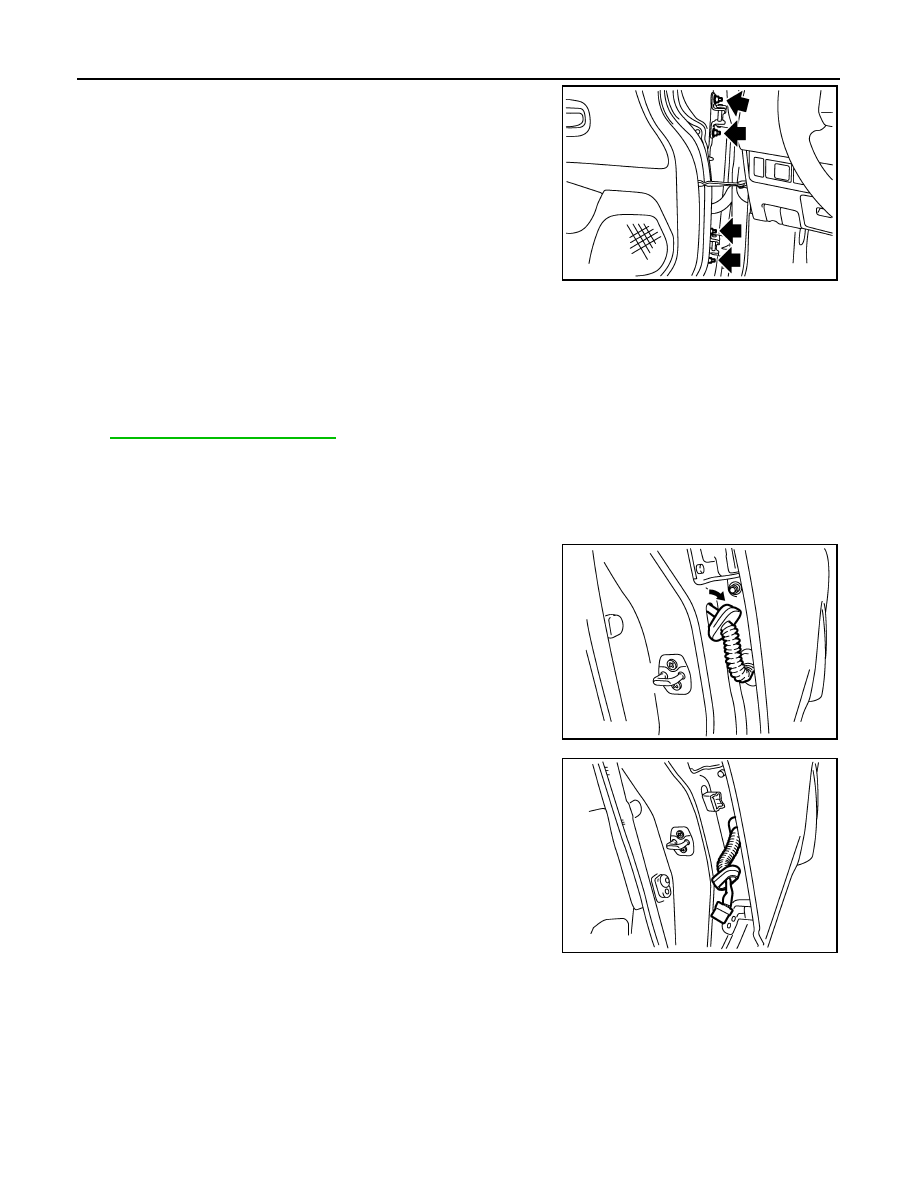

Removal

1.

Remove the rear door harness grommet.

2.

Disconnect the rear door harness connector.

  24.5 N·m (2.5 kg-m, 18 ft-lb)

PIIB6519E

PIIB6520E

PIIB6521E

DOOR

DLK-227

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

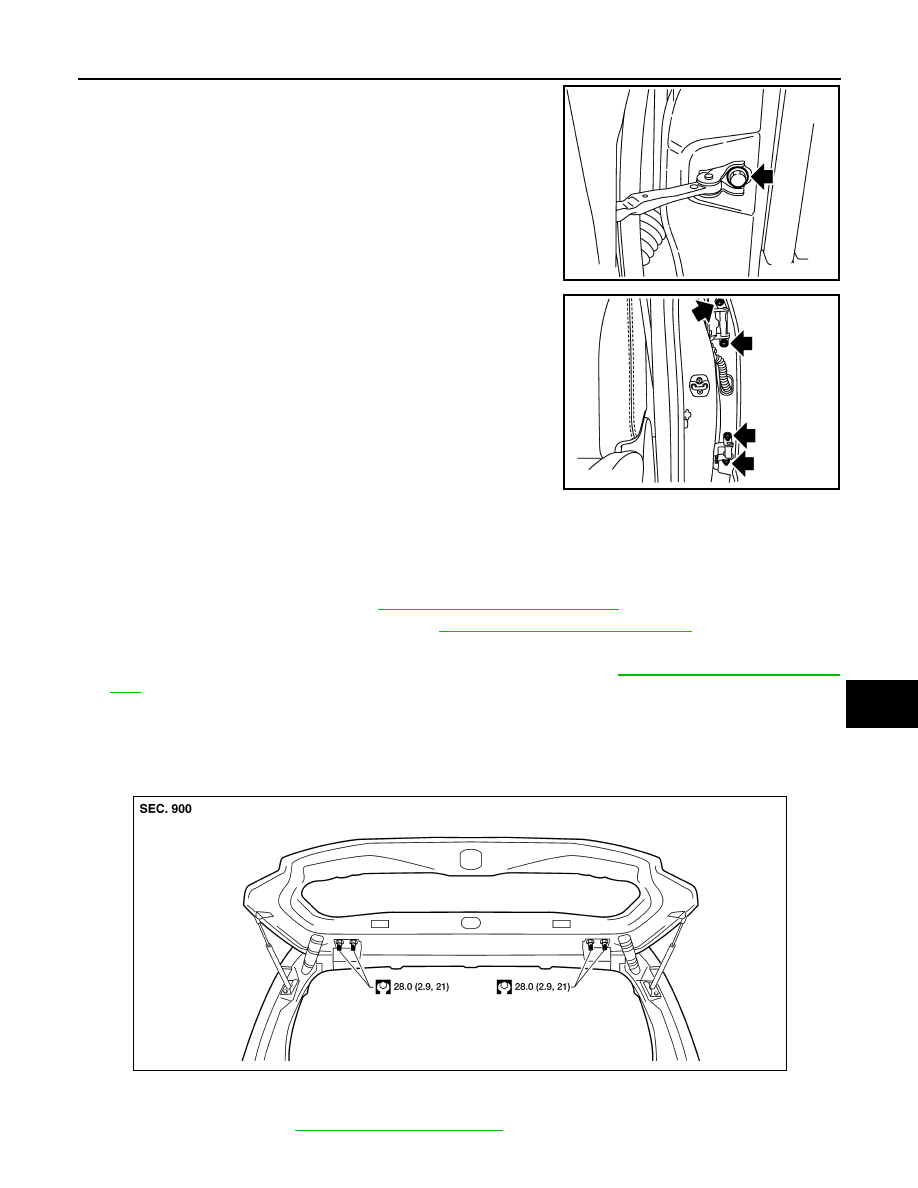

3.

Remove the check link bolt.

4.

Remove the hinge nuts and the door assembly.

Installation

Installation is in the reverse order of removal.

BACK DOOR

Removal

1.

Remove the back door glass. Refer to

GW-18, "Removal and Installation"

.

2.

Remove the back door lock assembly. Refer to

DLK-236, "Removal and Installation"

.

3.

Remove the back door wire harness.

4.

Remove the rear washer nozzle and hose from the back door. Refer to

WW-80, "Removal and Installa-

tion"

.

5.

Support the back door.

CAUTION:

Two technicians should be used to avoid damaging the back door during removal.

6.

Remove the back door stays.

7.

Remove the door side nuts and the back door assembly.

Installation

Installation is in the reverse order of removal.
• Align the back door. Refer to

DLK-222, "Fitting Adjustment"

.

 14.7 N·m (1.5 kg-m, 11 ft-lb)

PIIB6543E

 24.5 N·m (2.5 kg-m, 18 ft-lb)

PIIB6522E

LIIA2639E

DLK-228

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

FUEL FILLER LID OPENER

FUEL FILLER LID OPENER

Removal and Installation of Fuel Filler Lid Opener

INFOID:0000000001315839

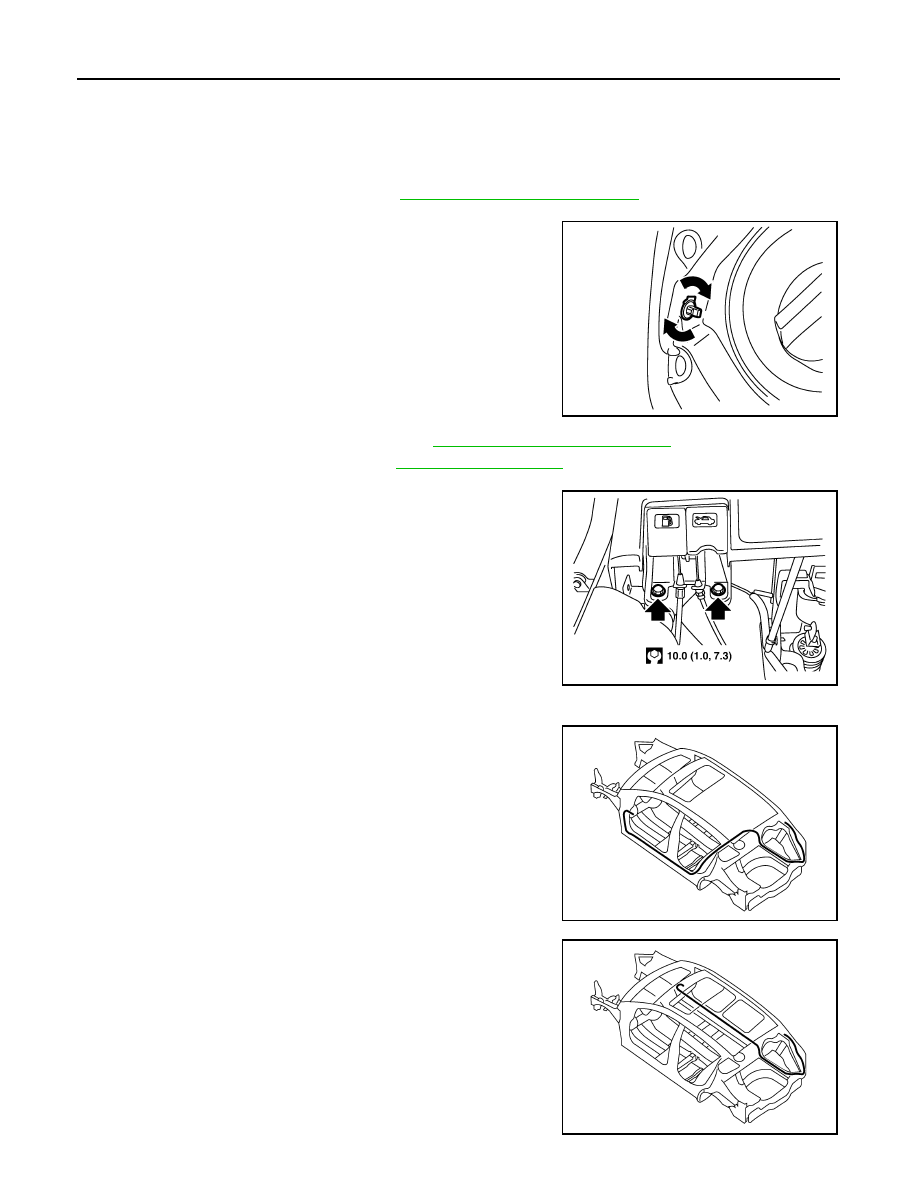

REMOVAL

1.

Remove trunk side finisher (RH). Refer to

INT-35, "Removal and Installation"

.

2.

Remove fuel filler lid opener cable lock ring.

3.

Remove front and rear kicking plates. Refer to

INT-20, "Removal and Installation"

.

4.

Remove rear cushion assembly. Refer to

SE-16, "Exploded View"

.

5.

Remove the bolts and the fuel filler lid opener handle.

6.

Remove fuel filler lid opener cable clips from the vehicle.

7.

Remove the fuel filler lid opener cable (LH drive).

8.

Remove the fuel filler lid opener cable (RH drive).

PIIB3831J

LIIA2670E

LIIA2629E

ALKIA0651GB

FUEL FILLER LID OPENER

DLK-229

< REMOVAL AND INSTALLATION >

[WITH I-KEY, WITHOUT SUPER LOCK]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INSTALLATION

Installation is in the reverse order of removal.
