Nissan Tiida C11. Manual - part 1469





FRONT WIPER ARM

WW-71

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

4.

Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” and “L2” (LHD) or "L3" and
"L4" (RHD) immediately before temporarily tightening the wiper
arm nuts.

5.

Spray washer fluid. Turn on wiper switch to operate wiper motor
and then turn it off.

6.

Make sure that wiper blades stop are within specifications. Refer
to

WW-73, "Adjustment"

.

7.

Tighten wiper arm nuts to specification.

8.

Attach wiper arm caps.

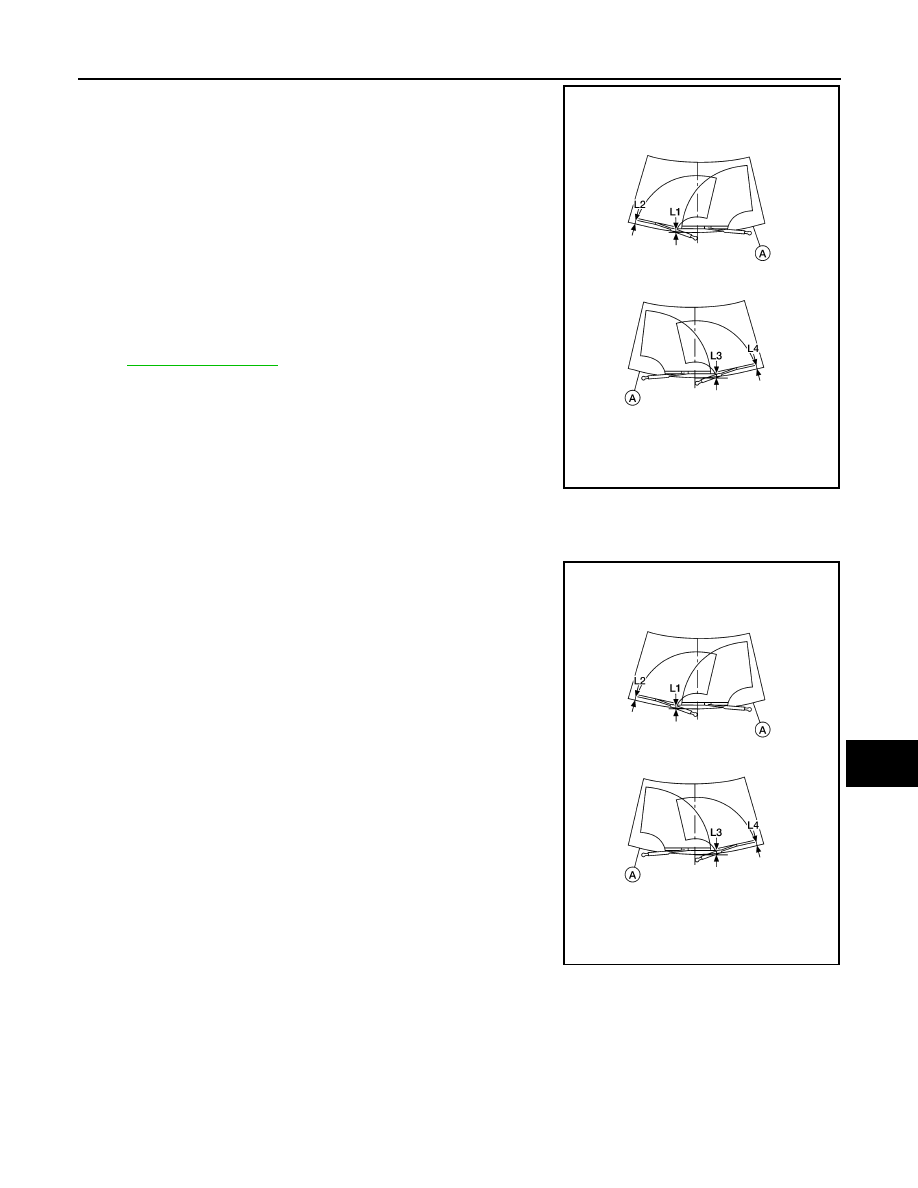

Adjustment

INFOID:0000000001366663

WIPER BLADE POSITION ADJUSTMENT

To adjust the wiper arm stop location, the wiper arm must be
removed and installed.
Clearance between the top edge of cowl top cover and the tip of the
front wiper blade as shown.

L1 (LHD)

: 37.5

±

7.5 mm (1.48

±

 0.295 in)

L2 (LHD)

: 42.7

±

7.5 mm (1.68

±

 0.295 in)

L3 (RHD)

: 38.0

±

7.5 mm (1.50

±

 0.295 in)

L4 (RHD)

: 39.0

±

7.5 mm (1.54

±

 0.295 in)

A

Cowl top cover top edge

AWLIA0020ZZ

L1 (LHD)

: 37.5

±

7.5 mm (1.48

±

 0.295 in)

L2 (LHD)

: 42.7

±

7.5 mm (1.68

±

 0.295 in)

L3 (RHD)

: 38.0

±

7.5 mm (1.50

±

 0.295 in)

L4 (RHD)

: 39.0

±

7.5 mm (1.54

±

 0.295 in)

A

Cowl top cover top edge

AWLIA0020ZZ

WW-72

< ON-VEHICLE REPAIR >

FRONT WIPER DRIVE ASSEMBLY

FRONT WIPER DRIVE ASSEMBLY

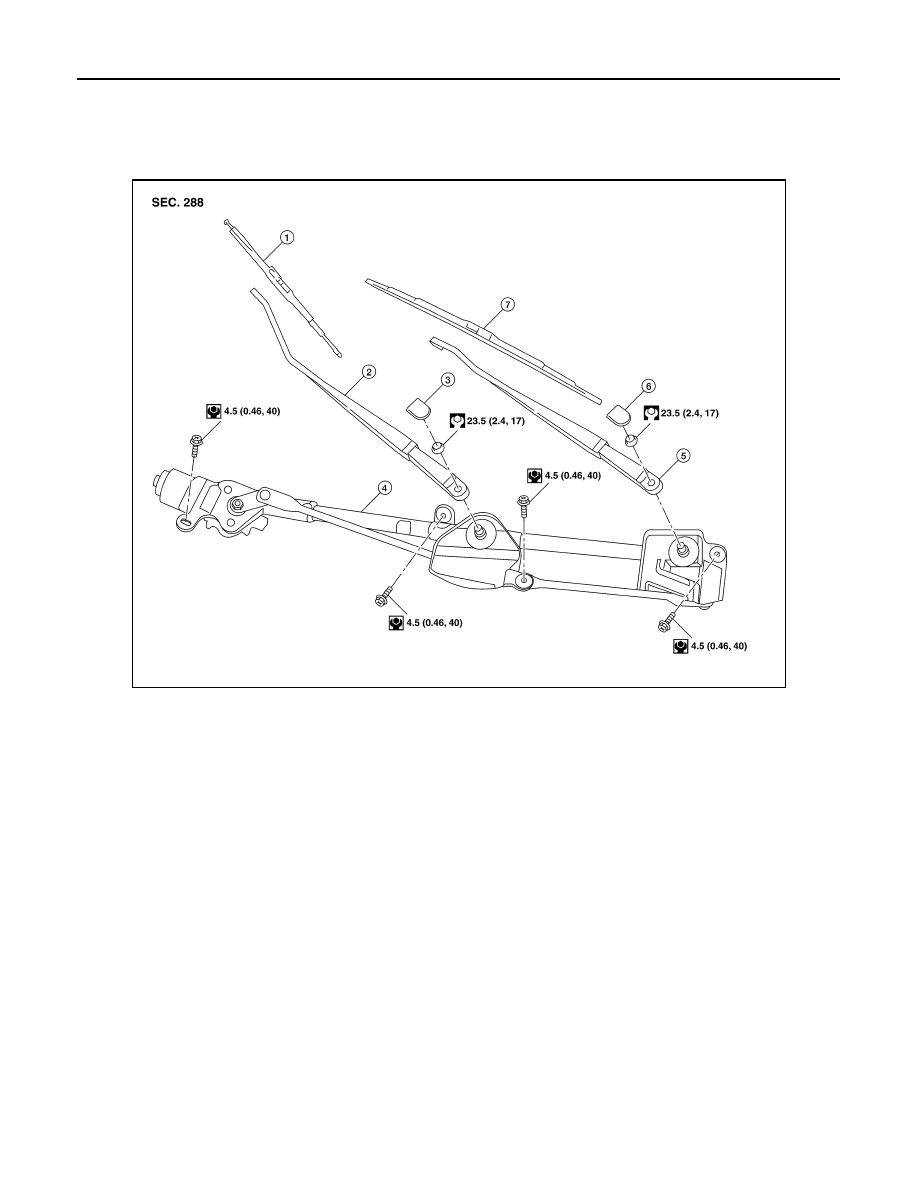

Exploded View

INFOID:0000000001450763

LHD Models

LKIA0786E

1.

Front RH wiper blade

2.

Front RH wiper arm

3.

Wiper arm cap

4.

Front wiper drive assembly

5.

Front LH wiper arm

6.

Wiper arm cap

7.

Front LH wiper blade

FRONT WIPER DRIVE ASSEMBLY

WW-73

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

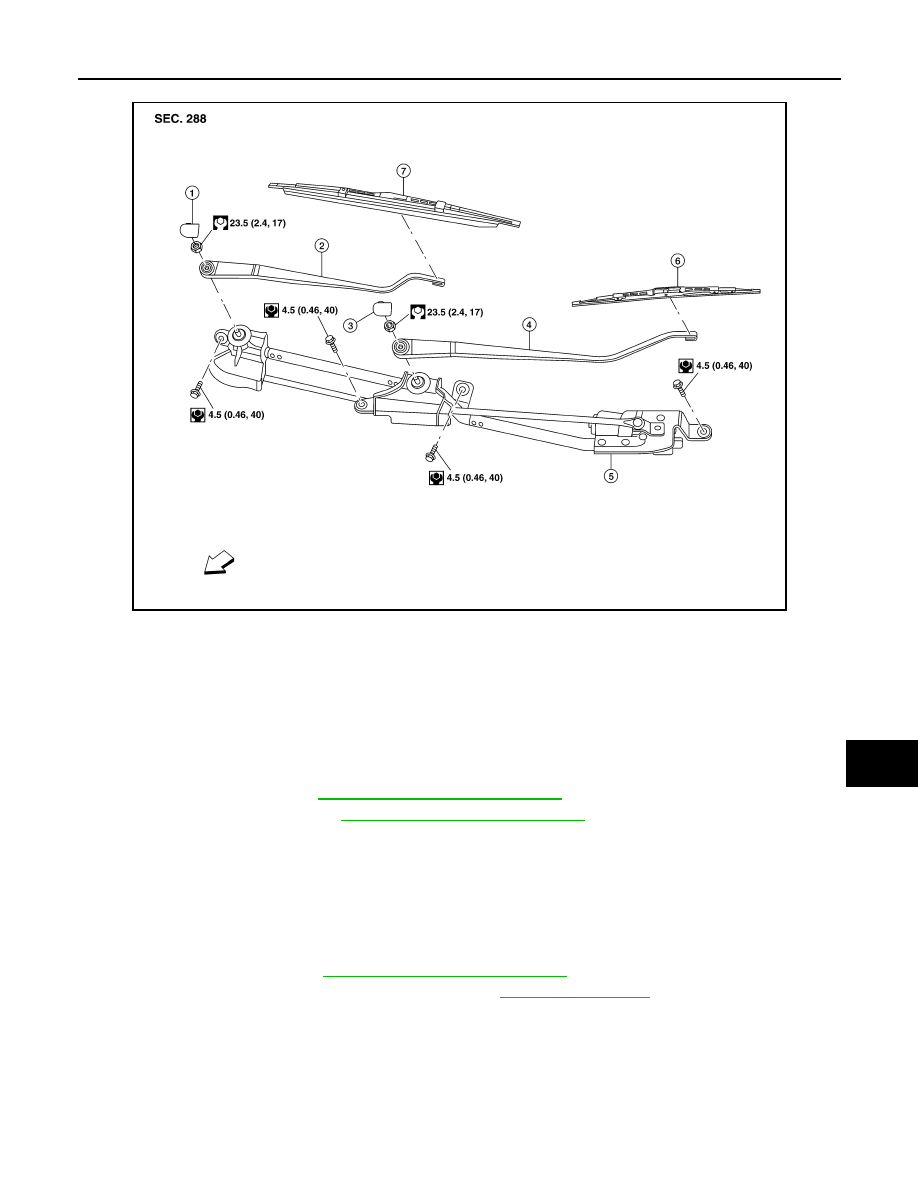

RHD Models

Removal and Installation

INFOID:0000000001450837

REMOVAL

1.

Operate the front wiper motor, and then turn off (auto stop).

2.

Remove wiper arms. Refer to

WW-70, "Removal and Installation"

.

3.

Remove cowl top cover. Refer to

EXT-20, "Removal and Installation"

.

4.

Disconnect wiper motor connector.

5.

Remove front wiper drive assembly bolts, and remove front wiper drive assembly.

INSTALLATION

1.

Install front wiper drive assembly.

2.

Connect wiper motor connector. Turn wiper switch on to operate wiper motor, then turn wiper switch off
(auto stop).

3.

Install cowl top cover. Refer to

EXT-20, "Removal and Installation"

.

4.

Install the wiper arms and adjust as necessary. Refer to

WW-71, "Adjustment"

.

Adjustment

INFOID:0000000001450764

WIPER BLADE POSITION ADJUSTMENT

ALLIA0278ZZ

1.

Wiper arm cap

2.

Front RH wiper arm

3.

Wiper arm cap

4.

Front LH wiper arm

5.

Front wiper drive assembly

6.

Front LH wiper blade

7.

Front RH wiper blade

WW-74

< ON-VEHICLE REPAIR >

FRONT WIPER DRIVE ASSEMBLY

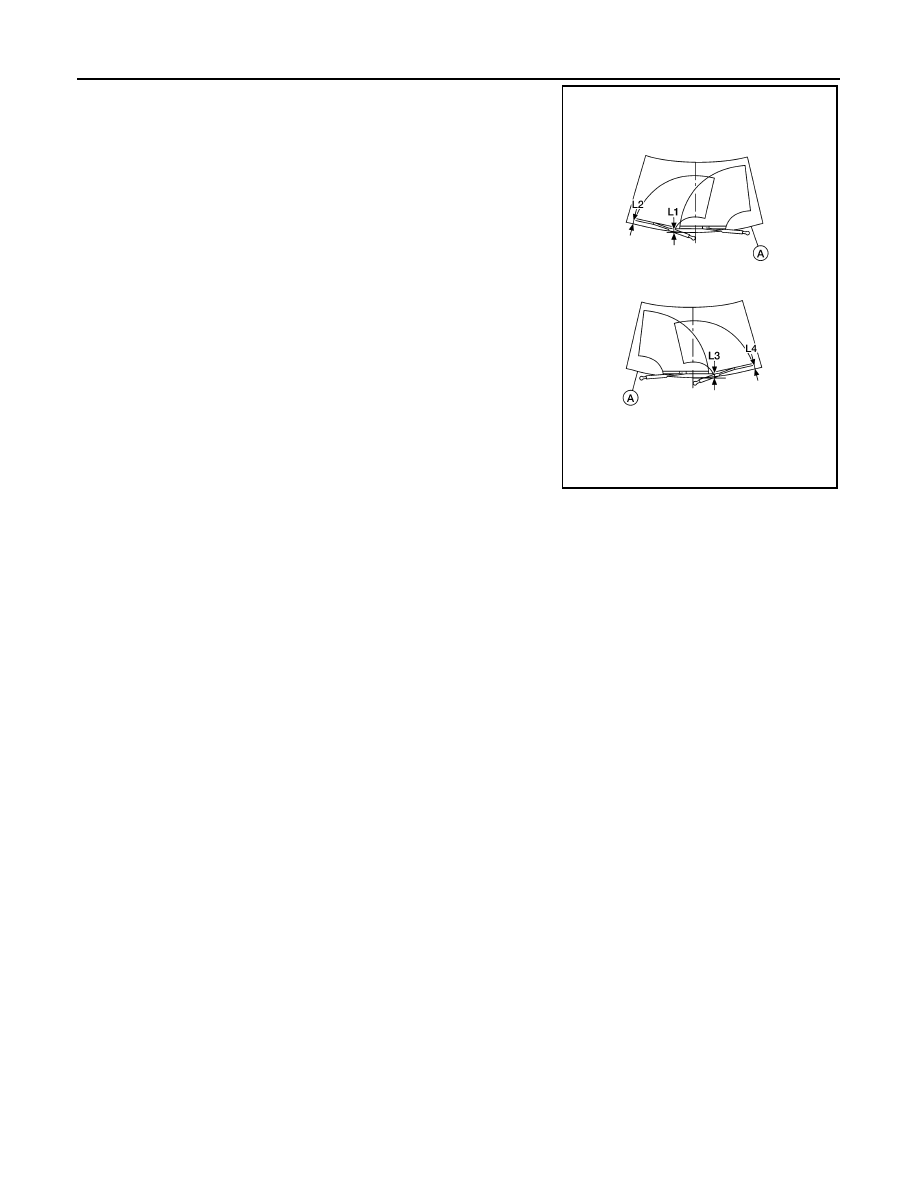

To adjust the wiper arm stop location, the wiper arm must be
removed and installed.
Clearance between the top edge of the cowl top cover and the tip of
the front wiper blade as shown.

L1 (LHD)

: 37.5

±

7.5 mm (1.48

±

 0.295 in)

L2 (LHD)

: 42.7

±

7.5 mm (1.68

±

 0.295 in)

L3 (RHD)

: 38.0

±

7.5 mm (1.50

±

 0.295 in)

L4 (RHD)

: 39.0

±

7.5 mm (1.54

±

 0.295 in)

A

Cowl top cover top edge

AWLIA0020ZZ
