RAIN SENSOR

WW-75

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

RAIN SENSOR

Exploded View

INFOID:0000000001366670

Refer to

XX-XX, "*****"

.

Removal and Installation

INFOID:0000000001366671

Refer to

XX-XX, "*****"

.

WW-76

< ON-VEHICLE REPAIR >

WIPER AND WASHER SWITCH

WIPER AND WASHER SWITCH

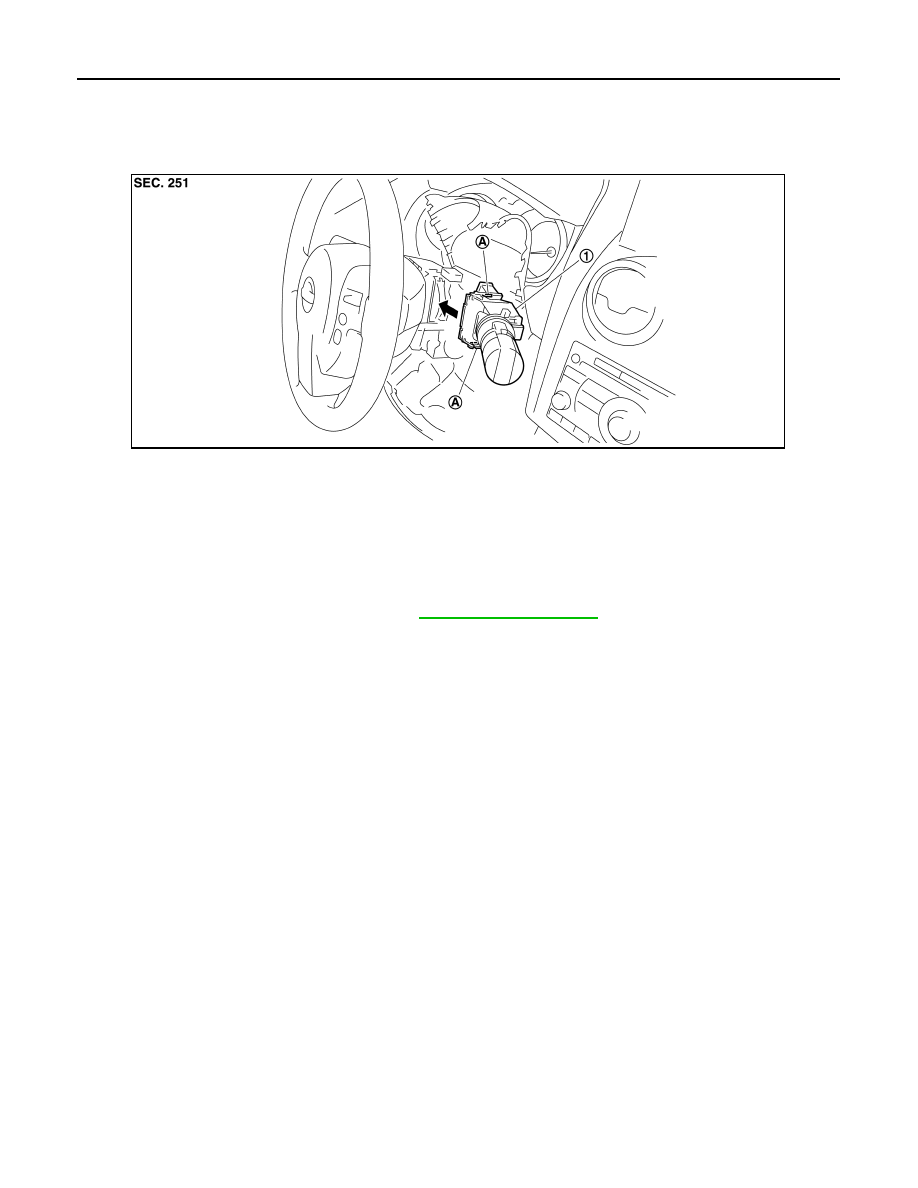

Exploded View

INFOID:0000000001366672

NOTE:
The LHD model shown, RHD model similar.

Removal and Installation

INFOID:0000000001366673

REMOVAL

1.

Remove the steering column cover. Refer to

IP-10, "Component Parts"

.

2.

While pressing in on the pawls, pull the wiper and washer switch straight out to disconnect it from the
switch base.

INSTALLATION

Installation is in the reverse order of removal.

1.

Wiper & washer switch

A.

Pawl

JPLIA0311ZZ

REAR WIPER MOTOR

WW-77

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REAR WIPER MOTOR

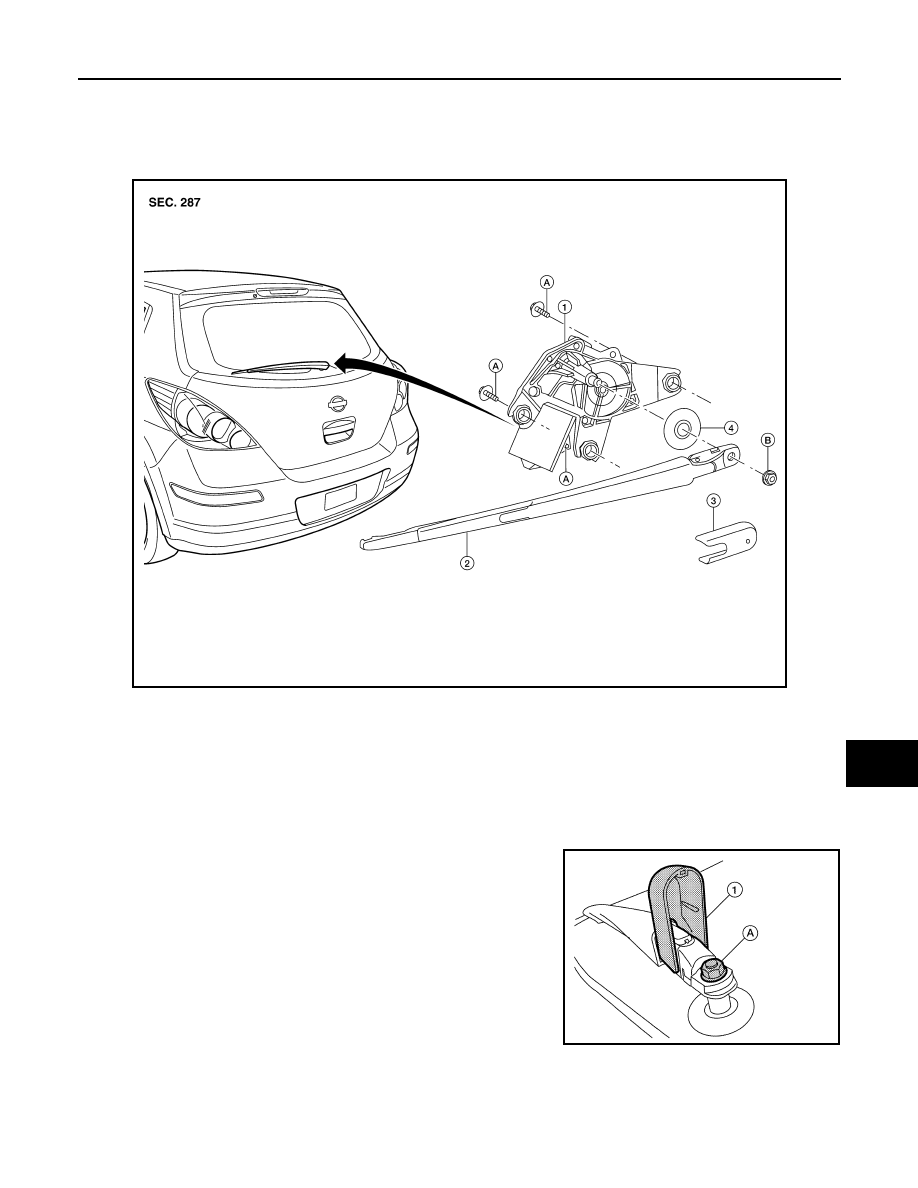

Exploded View

INFOID:0000000001366674

Rear Wiper Motor, Arm and Blade

Removal and Installation

INFOID:0000000001538675

REAR WIPER ARM

Removal

1.

Raise wiper arm cover (1), and remove the rear wiper arm nut
(A).

2.

Remove the wiper arm.

3.

Remove wiper blade.

Installation

1.

Operate rear wiper motor one full cycle, then turn off (auto stop).

LKIA0788E

1.

Rear wiper motor

2.

Rear wiper arm and blade

3.

Wiper arm cover

4.

Pivot cap

A.

Wiper motor bolts

B.

Rear wiper motor nut

LKIA0787E

WW-78

< ON-VEHICLE REPAIR >

REAR WIPER MOTOR

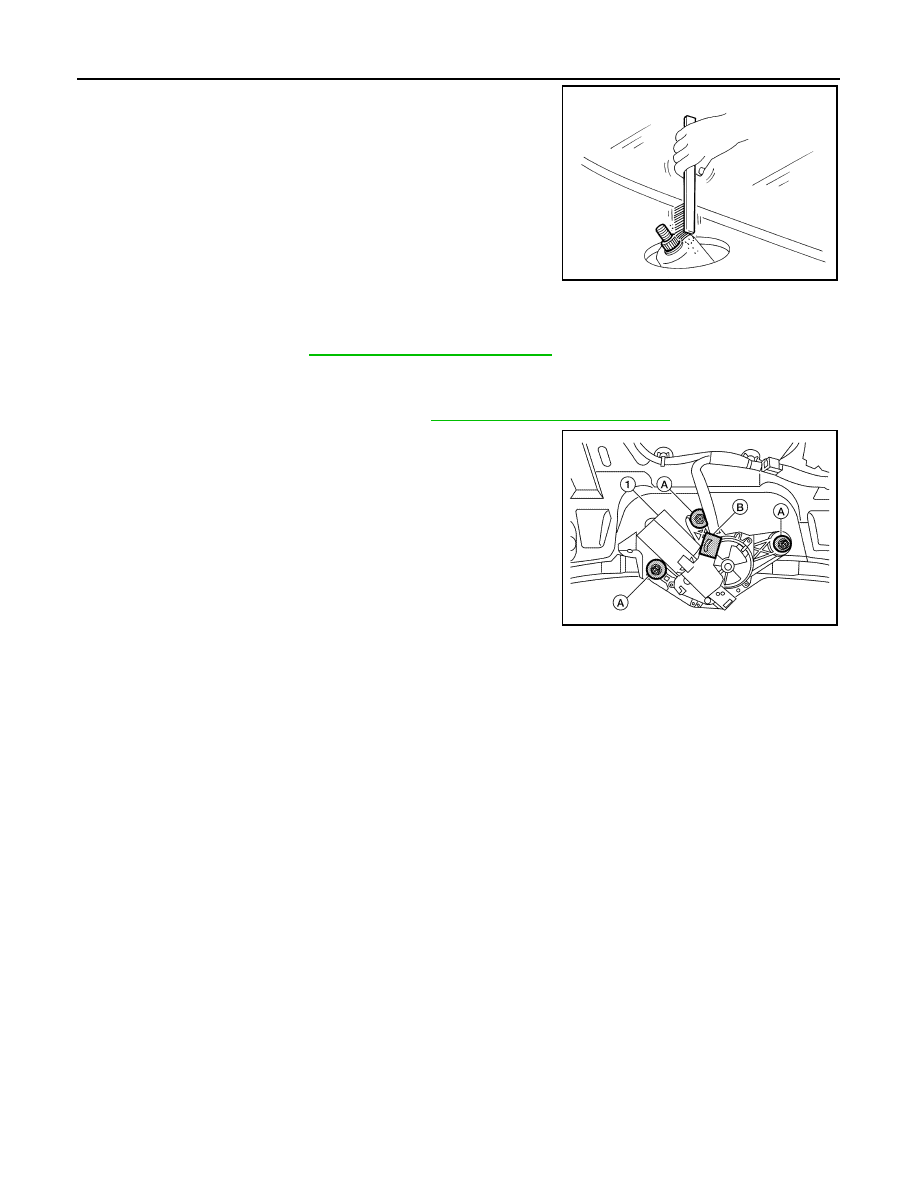

2.

Clean pivot area as shown. This will reduce the possibility of
wiper arm looseness.

3.

Install wiper blade.

4.

Install wiper arm so that the arm rests in the stopper and tighten
rear wiper arm nut.

5.

Install wiper arm cover.

REAR WIPER MOTOR

Removal

1.

Remove wiper arm. Refer to

WW-77, "Removal and Installation"

.

2.

Raise arm cap.

3.

Remove the rear wiper motor nut, remove the rear wiper arm and blade.

4.

Remove the back door lower finisher. Refer to

INT-18, "Removal and Installation"

.

5.

Disconnect the rear wiper motor connector (B).

6.

Remove the bolts (A) and remove the rear wiper motor (1).

Installation

Installation is in the reverse order of removal.

CAUTION:

Do not drop the wiper motor or allow it to contact other parts.

Adjustment

INFOID:0000000001366676

REAR WIPER BLADE POSITION ADJUSTMENT

SEL024J

LKIA0789E
