HEADLAMP WASHER NOZZLE AND TUBE

WW-63

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

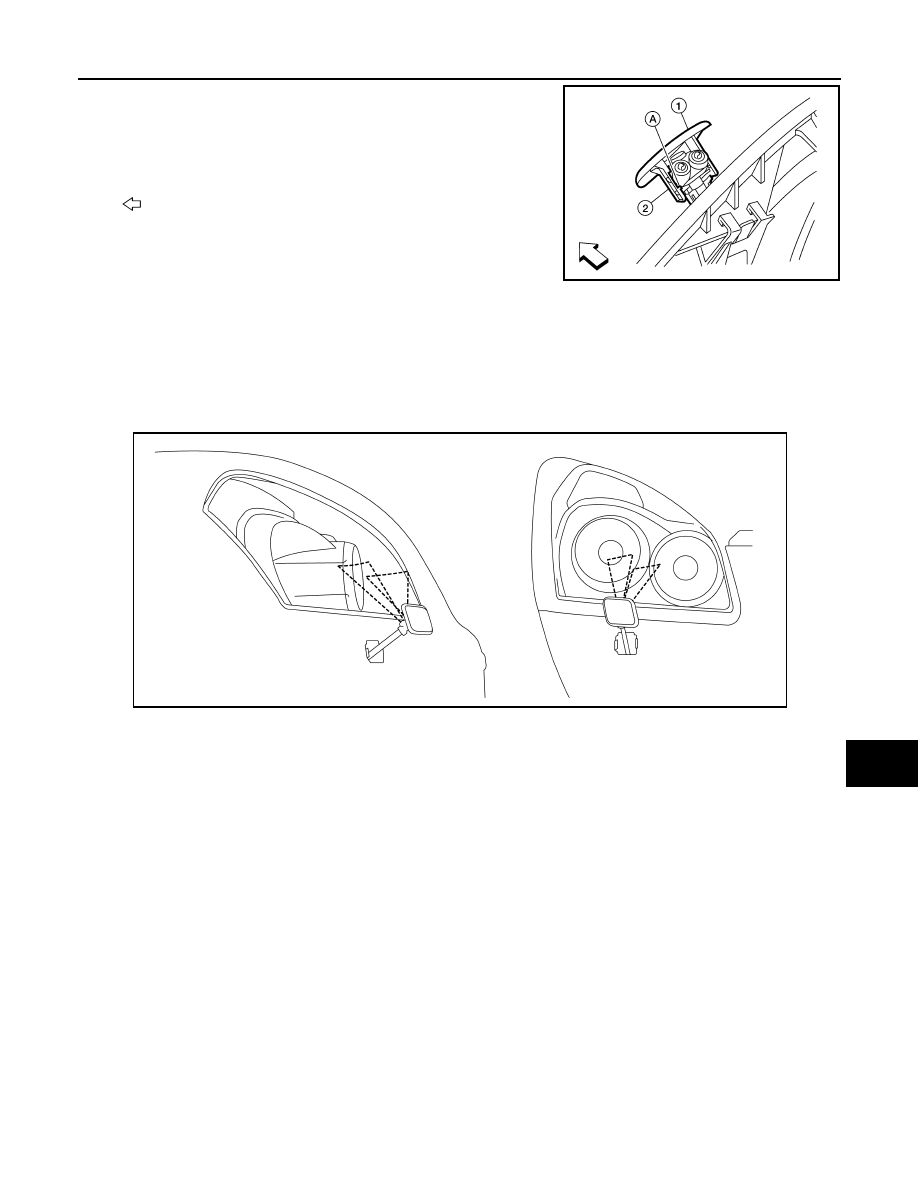

2.

Remove headlamp washer tube from headlamp washer nozzle
assembly (2).

3.

Detach headlamp washer nozzle cover pawl (A), and remove
headlamp washer nozzle cover (1).

4.

Push pawl, and remove headlamp washer nozzle assembly (2)
from the front bumper fascia.
•

 :Front

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INFOID:0000000001366651

HEADLAMP WASHER NOZZLE SPRAY POSITION INSPECTION

Check that the headlamp washer injection is centered on the headlamp (LO) illuminating area. If the injection
is out of the area, check the headlamp washer tube and headlamp washer nozzle for leaks or damage.

ALLIA0267ZZ

JPLIA0295ZZ

WW-64

< ON-VEHICLE REPAIR >

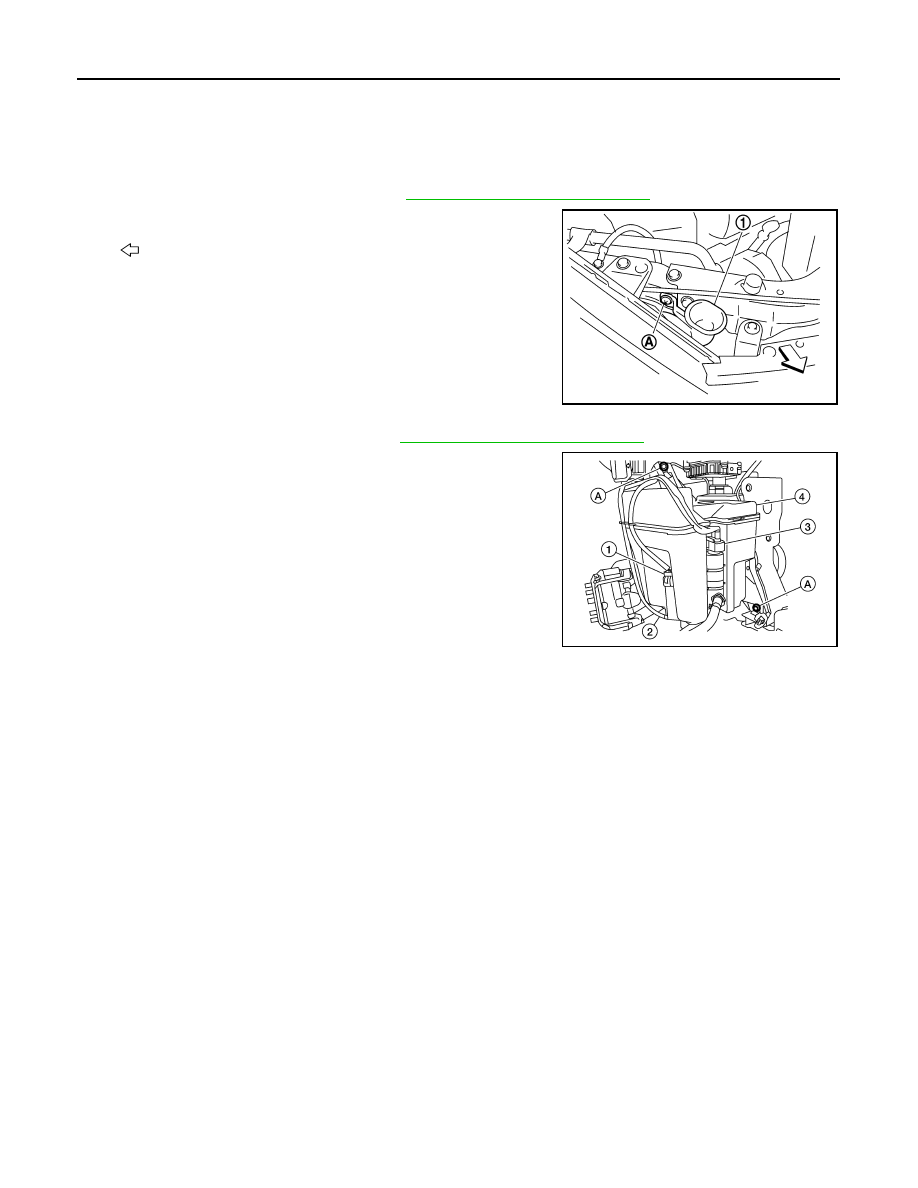

WASHER TANK

WASHER TANK

Removal and Installation

INFOID:0000000001366653

REMOVAL

1.

Remove the upper radiator cover. Refer to

EXT-19, "Removal and Installation"

.

2.

Remove the clip (A), then pull the washer tank inlet (1) out of the
washer tank.
•

:Front

3.

Remove the front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

4.

Disconnect the washer pump connector (1).

5.

Disconnect the washer tube (2) from the washer pump.

6.

Disconnect the headlamp washer pump connector (3).

7.

Remove the washer tank bolts (A).

8.

Remove the washer tank (4).

INSTALLATION

Installation is in the reverse order of removal.
• Add the specified washer fluid up to the top of the washer tank inlet after installation. Check that there are no

leaks.

SKIB5667E

ALLIA0275ZZ

WASHER PUMP

WW-65

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

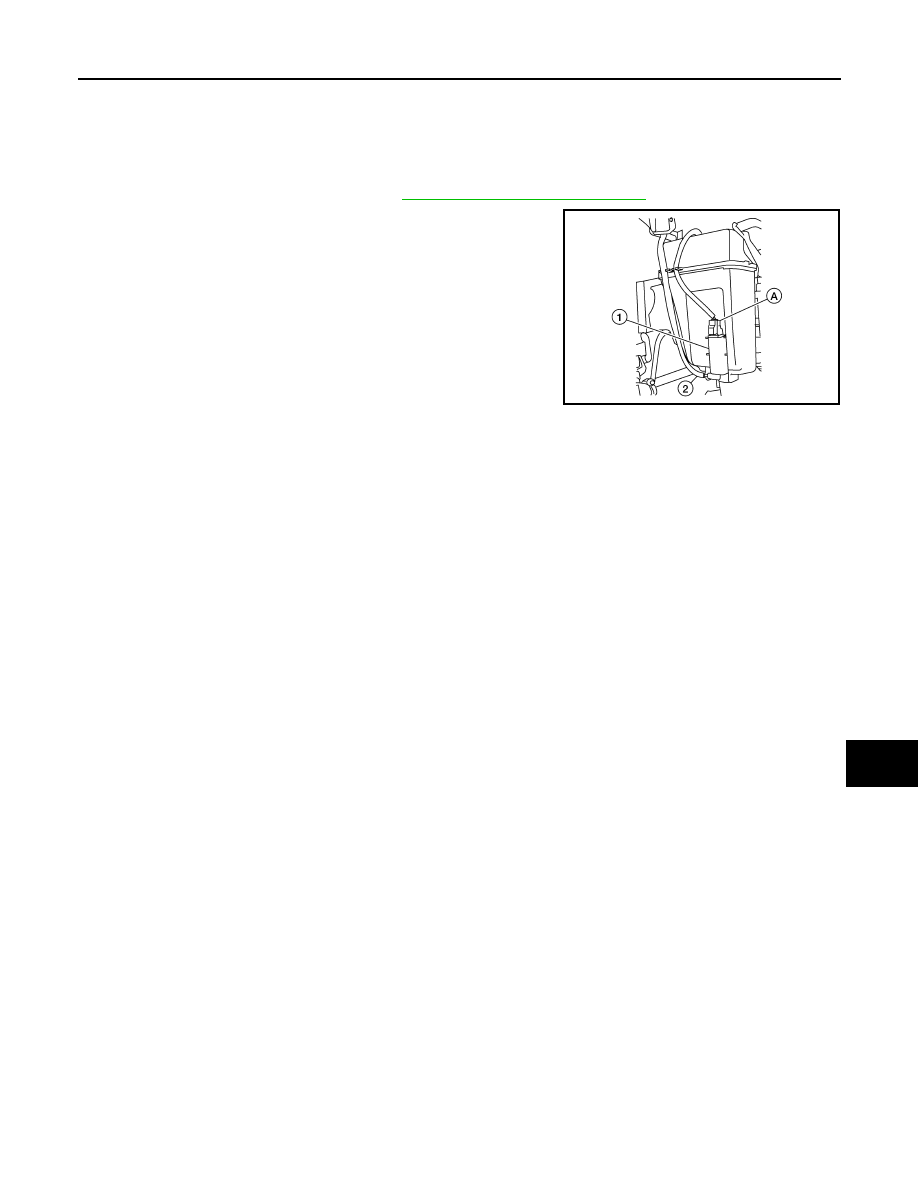

WASHER PUMP

Removal and Installation

INFOID:0000000001366655

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

2.

Disconnect the washer pump connector (A).

3.

Disconnect the washer tube (2) from the washer pump.

4.

Remove the washer pump (1) from the washer tank.

INSTALLATION

Installation is in the reverse order of removal.
• Add the specified washer fluid up to the top of the washer tank inlet after installation. Check that there are no

leaks.

CAUTION:

Never twist the grommet when installing the washer pump.

ALLIA0276ZZ

WW-66

< ON-VEHICLE REPAIR >

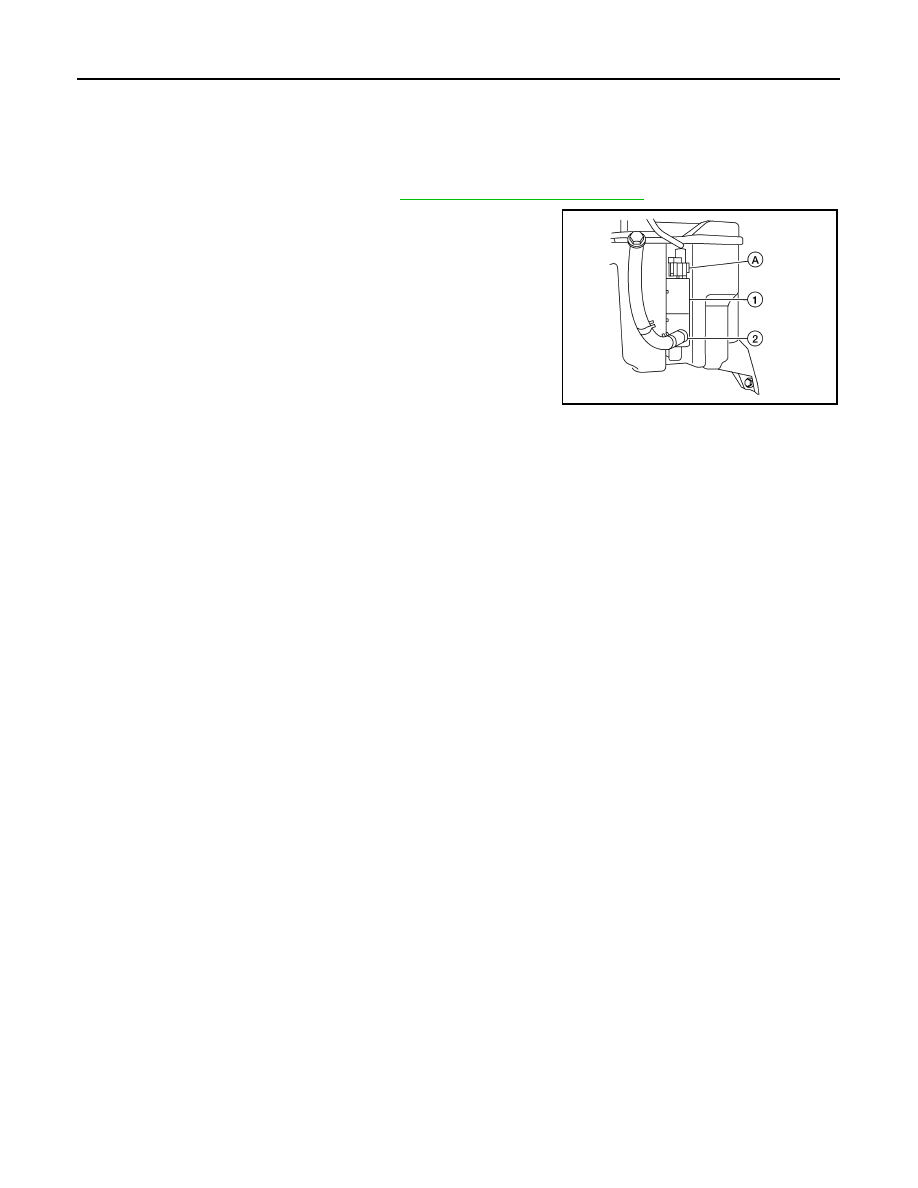

HEADLAMP WASHER PUMP

HEADLAMP WASHER PUMP

Removal and Installation

INFOID:0000000001366657

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

2.

Disconnect the headlamp washer pump connector (A).

3.

Disconnect the headlamp washer pump hose (2) from the head-
lamp washer pump.

4.

Remove the headlamp washer pump (1).

INSTALLATION

Installation is in the reverse order of removal.
• Add the specified washer fluid up to the top of the washer tank inlet after installation. Check that there are no

leaks.

CAUTION:

Never twist the grommet when installing the washer pump.

ALLIA0277ZZ
