FRONT WIPER DOES NOT OPERATE

WW-59

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

1.

Disconnect front wiper motor.

2.

Turn the ignition switch ON.

3.

Select "FRONT WIPER" of IPDM E/R active test item.

4.

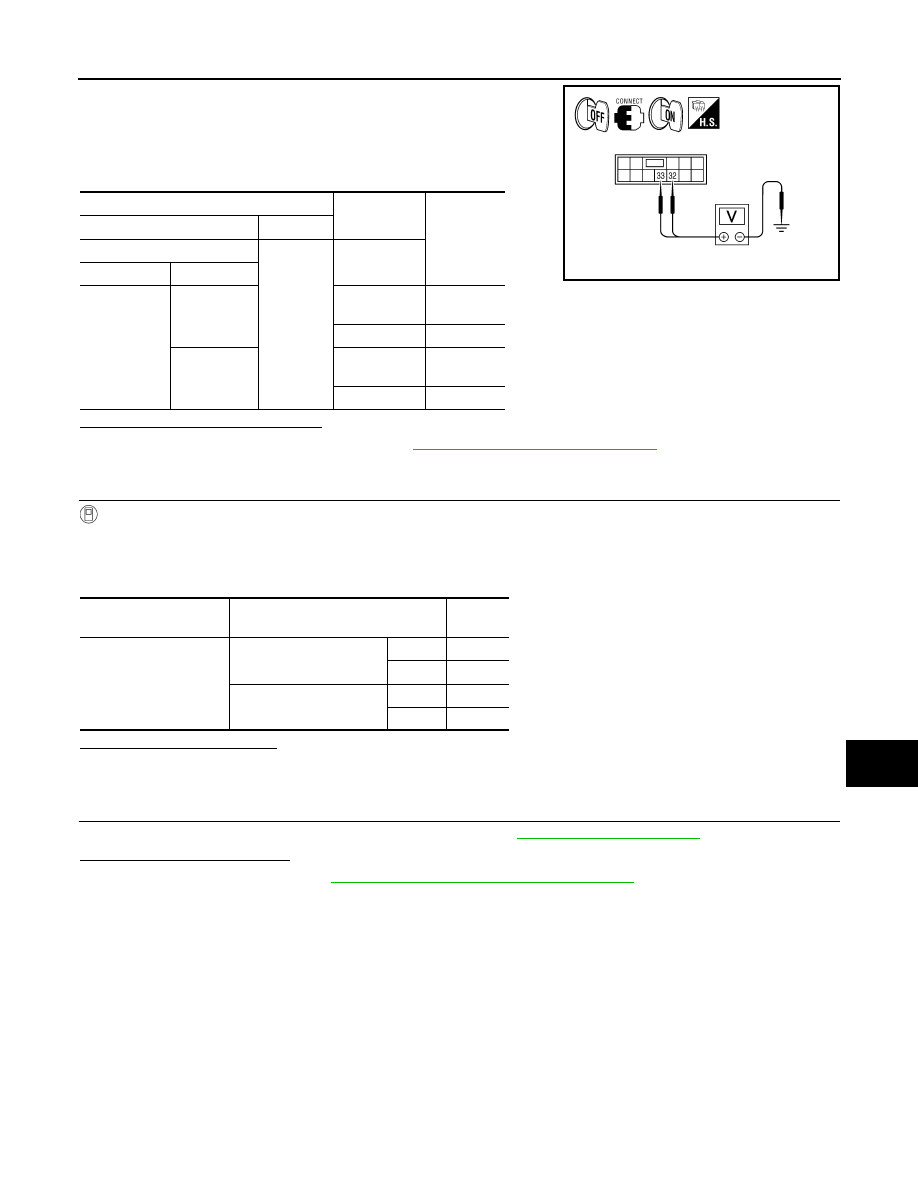

With operating the test item, check voltage between IPDM E/R
harness connector and ground.

Is the measurement value normal?

YES

>> Replace front wiper motor. Refer to

WW-73, "Removal and Installation"

.

NO

>> Replace IPDM E/R. Refer to xxx.

5.

 CHECK FRONT WIPER REQUEST SIGNAL INPUT

CONSULT-III DATA MONITOR

1.

Select "FR WIP REQ" of IPDM E/R data monitor item.

2.

Switch the front wiper switch to HI and LO.

3.

With operating the front wiper switch, check the status of "FR WIP REQ".

Is the status of item normal?

YES

>> Replace IPDM E/R. Refer to xxx.

NO

>> GO TO 6

6.

 CHECK COMBINATION SWITCH

1.

Perform the inspection of the combination switch. Refer to

BCS-55, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-57, "Removal and Installation of BCM"

.

NO

>> Repair or replace the applicable parts.

Terminals

Test item

Voltage

(Approx.)

(+)

(

−

)

IPDM E/R

Ground

FRONT WIP-

ER

Connector

Terminal

E45

32

LO

Battery
voltage

OFF

0 V

33

HI

Battery
voltage

OFF

0 V

ALLIA0368ZZ

Monitor item

Condition

Monitor

status

FR WIP REQ

Front wiper switch HI

ON

HI

OFF

STOP

Front wiper switch LO

ON

1LOW

OFF

STOP

WW-60

< SYMPTOM DIAGNOSIS >

HEADLAMP WASHER DOES NOT OPERATE

HEADLAMP WASHER DOES NOT OPERATE

Description

INFOID:0000000001366644

Headlamp washer does not operate linked to front washer operation.

Diagnosis Procedure

INFOID:0000000001366645

1.

 CHECK IPDM E/R

CONSULT-III DATA MONITOR

1.

Turn the lighting switch to the 2ND position.

2.

Select "HL WASHER REQ" of IPDM E/R data monitor item.

3.

Operate the headlamp washer.

4.

Check the status of "HL WASHER REQ".

Is the status of item normal?

YES

>> Refer to

WW-33, "Component Function Check"

.

NO

>> GO TO 2

2.

 CHECK COMBINATION SWITCH

1.

Perform the inspection of the combination switch. Refer to

BCS-55, "Symptom Table"

.

Is combination switch normal?

YES

>> Replace BCM. Refer to

BCS-57, "Removal and Installation of BCM"

.

NO

>> Repair or replace the applicable parts.

Monitor item

 Condition

Monitor status

HL WASHER REQ

Headlamp washer

Operating

ON

Stopped

OFF

PRECAUTIONS

WW-61

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001538893

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

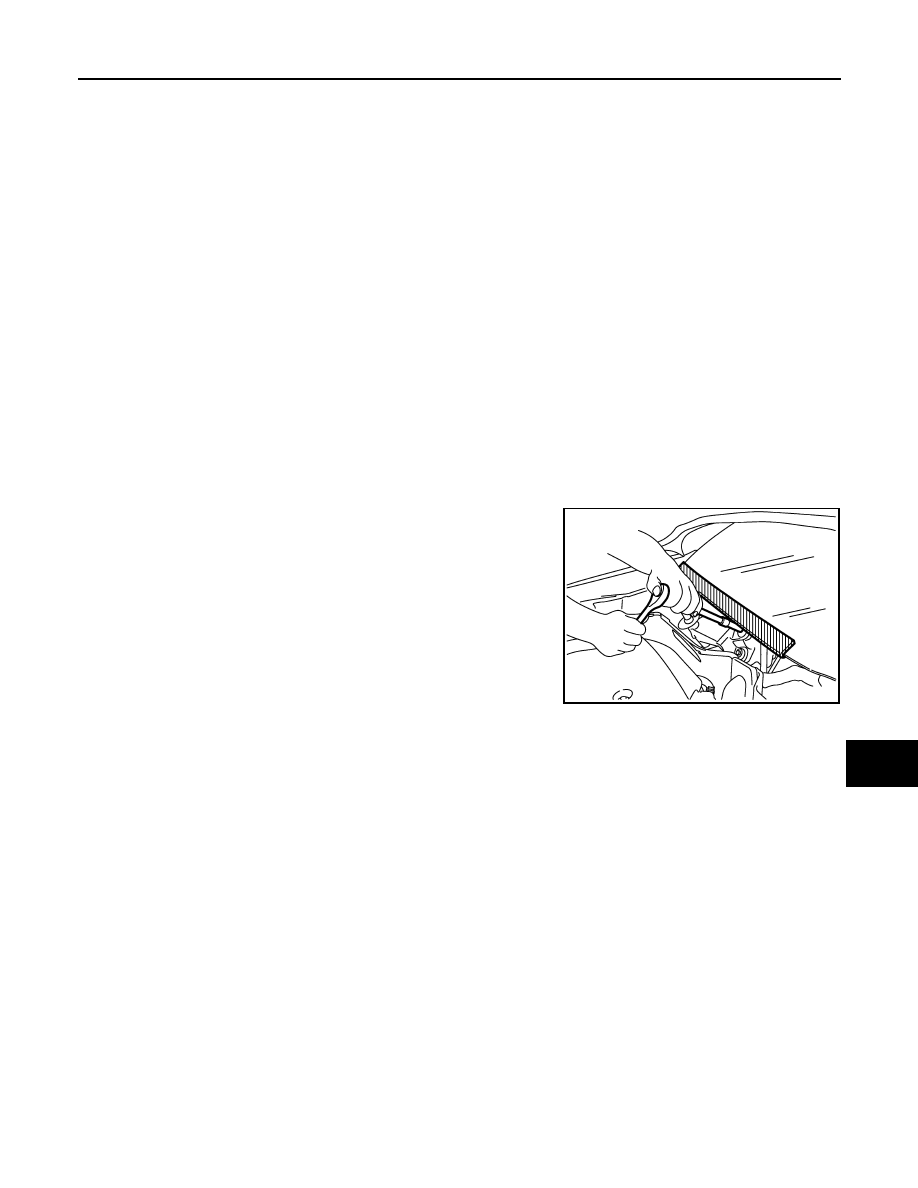

Precaution for Procedure without Cowl Top Cover

INFOID:0000000001366647

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

PIIB3706J

WW-62

< ON-VEHICLE REPAIR >

HEADLAMP WASHER NOZZLE AND TUBE

ON-VEHICLE REPAIR

HEADLAMP WASHER NOZZLE AND TUBE

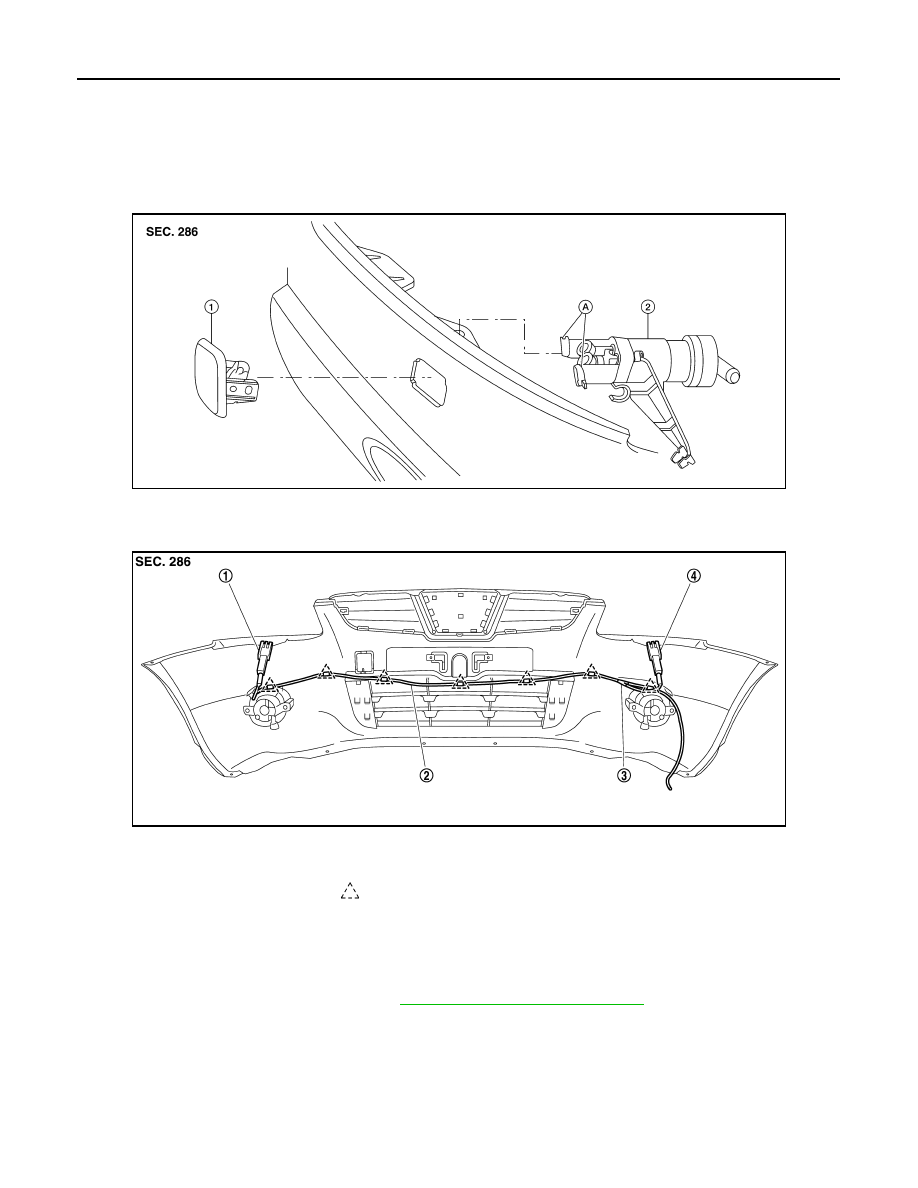

Exploded View

INFOID:0000000001366648

Headlamp Washer

Headlamp Washer Hoses and Nozzles

Removal and Installation

INFOID:0000000001366650

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-13, "Removal and Installation"

.

ALLIA0268ZZ

1.

Headlamp washer nozzle cover

2.

Headlamp washer nozzle assembly

A.

Pawl

JPLIA0292ZZ

1.

 Headlamp washer nozzle assembly
(LH)

2.

Headlamp washer tube

3.

Headlamp washer tube joint

4.

Headlamp washer nozzle assembly
(RH)

: Clip
