Nissan Tiida C11. Manual - part 1456





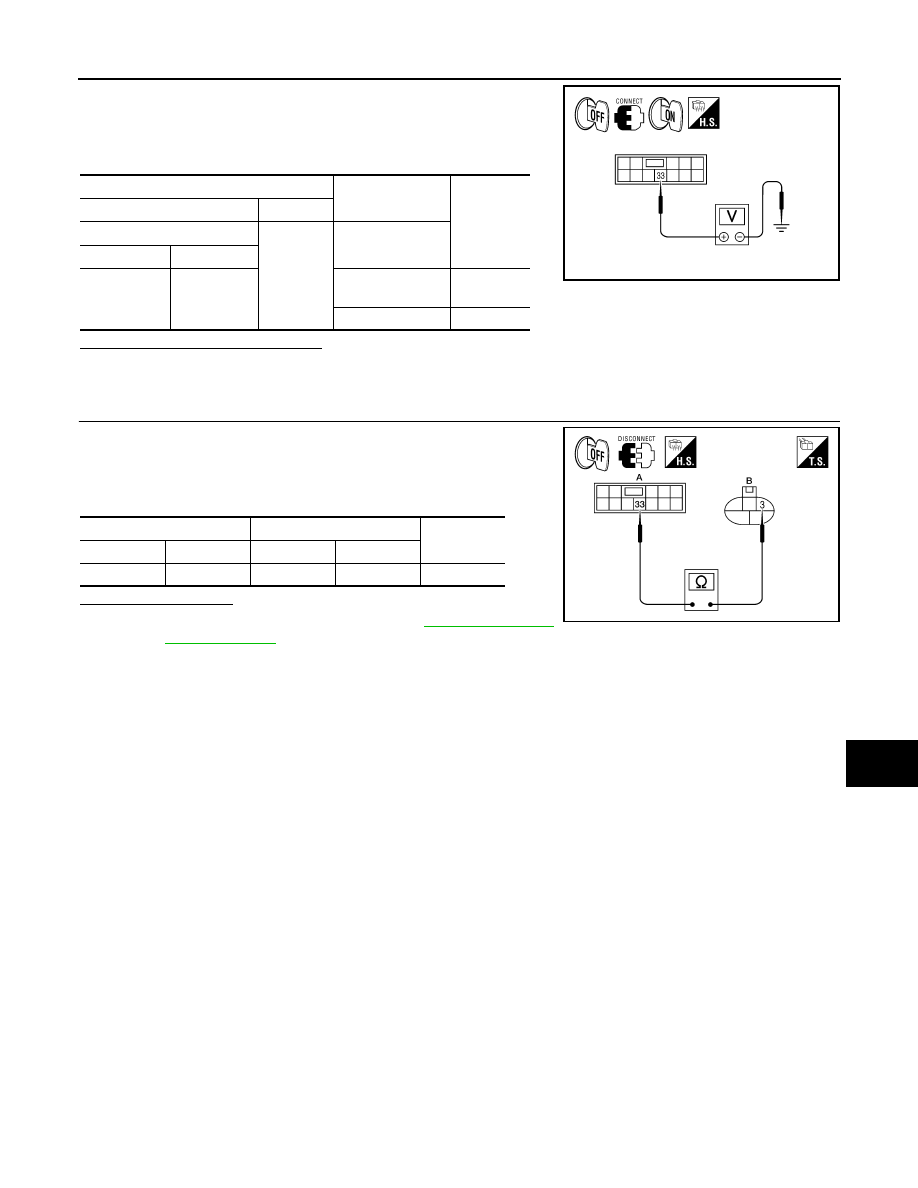

FRONT WIPER MOTOR LO CIRCUIT

WW-19

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

1.

Turn the ignition switch ON.

2.

Select "FRONT WIPER" of IPDM E/R active test item.

3.

While operating the test item, check voltage between IPDM E/R
harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 4

NO

>> Replace IPDM E/R. Refer to xxx.

4.

 CHECK FRONT WIPER MOTOR (LO) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R and front wiper motor.

3.

Check continuity between IPDM E/R harness connector and
front wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-73, "Removal

and Installation"

.

NO

>> Repair or replace harness.

Terminals

Test item

Voltage

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIPER

Connector

Terminal

E45

33

LO

Battery
voltage

OFF

0V

ALLIA0343ZZ

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E45 (A)

10

E1 (B)

3

Yes

ALLIA0344ZZ

WW-20

< COMPONENT DIAGNOSIS >

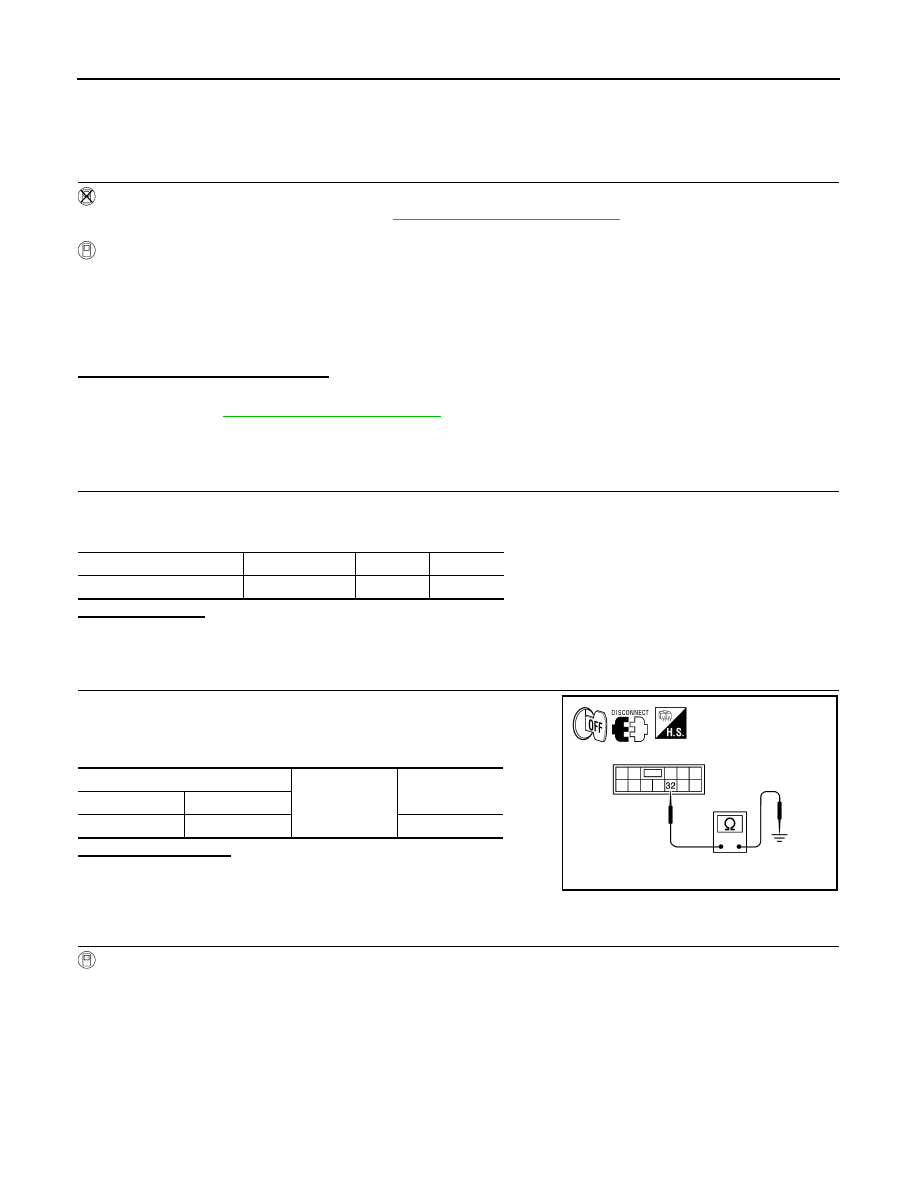

FRONT WIPER MOTOR HI CIRCUIT

FRONT WIPER MOTOR HI CIRCUIT

Component Function Check

INFOID:0000000001366612

1.

 CHECK FRONT WIPER HI OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the front wiper operates at the HI operation.

CONSULT-III ACTIVE TEST

1.

Select "FRONT WIPER" of IPDM E/R active test item.

2.

While operating the test item, check front wiper operation.

Is front wiper (HI) operation normal?

YES

>> Front wiper motor HI circuit is normal.

NO

>> Refer to

WW-20, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001366613

1.

 CHECK FRONT WIPER MOTOR FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuse is not blown.

Is the fuse blown?

YES

>> GO TO 2

NO

>> GO TO 3

2.

 CHECK FRONT WIPER MOTOR (HI) SHORT CIRCUIT

1.

Disconnect IPDM E/R and front wiper motor.

2.

Check continuity between IPDM E/R harness connector and
ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is

blown again.)

3.

 CHECK FRONT WIPER MOTOR (HI) OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

HI

: Front wiper (HI) operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

IPDM E/R

Ground

Continuity

Connector

Terminal

E45

32

No

ALLIA0345ZZ

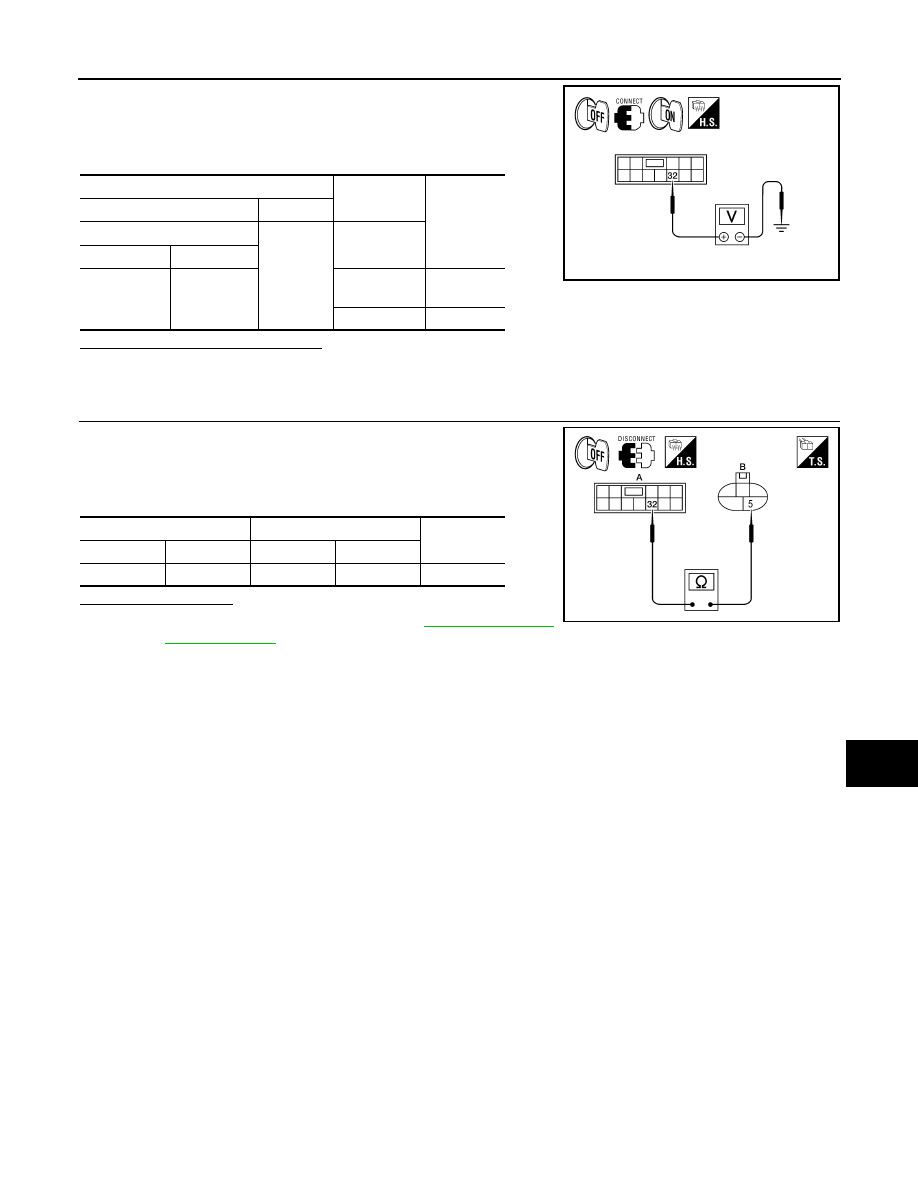

FRONT WIPER MOTOR HI CIRCUIT

WW-21

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

1.

Turn the ignition switch ON.

2.

Select "FRONT WIPER" of IPDM E/R active test item.

3.

While operating the test item, check voltage between IPDM E/R
harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 4

NO

>> Replace IPDM E/R. Refer to xxx.

4.

 CHECK FRONT WIPER MOTOR (HI) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R and front wiper motor.

3.

Check continuity between IPDM E/R harness connector and
front wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-73, "Removal

and Installation"

.

NO

>> Repair or replace harness.

Terminals

Test item

Voltage

(Approx.)

(+)

(-)

IPDM E/R

Ground

FRONT WIP-

ER

Connector

Terminal

E45

32

HI

Battery
voltage

OFF

0 V

ALLIA0346ZZ

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E45 (A)

32

E1 (B)

5

Yes

ALLIA0347ZZ

WW-22

< COMPONENT DIAGNOSIS >

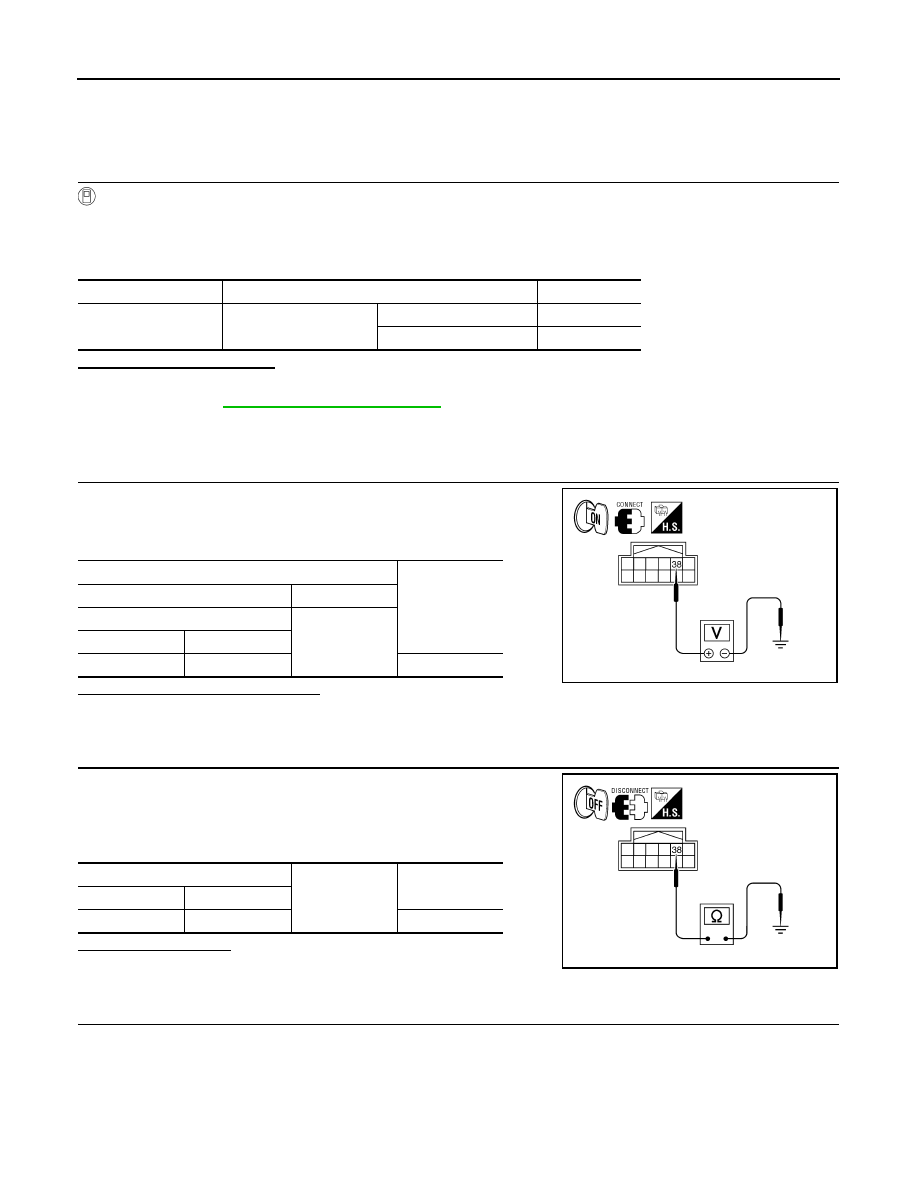

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

FRONT WIPER AUTO STOP SIGNAL CIRCUIT

Component Function Check

INFOID:0000000001366614

1.

 CHECK FRONT WIPER (AUTO STOP) SIGNAL CHECK

CONSULT-III DATA MONITOR

1.

Select "FRONT WIPER STOP" of IPDM E/R data monitor item.

2.

Operate the front wiper.

3.

Check that "FR WIPER STOP" changes to "STOP P" and "ACT P" linked with the wiper operation.

Is the status of item normal?

YES

>> Front wiper auto stop signal circuit is normal.

NO

>> Refer to

WW-22, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001366615

1.

 CHECK FRONT WIPER MOTOR (AUTO STOP) OUTPUT VOLTAGE

1.

Turn the ignition switch ON.

2.

Check voltage between IPDM E/R harness connector and
ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> GO TO 2

2.

 CHECK FRONT WIPER MOTOR (AUTO STOP) SHORT CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect IPDM E/R and front wiper motor.

3.

Check continuity between IPDM E/R harness connector and
ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> Replace IPDM E/R. Refer to xxxx.

3.

 CHECK FRONT WIPER MOTOR (AUTO STOP) CIRCUIT CONTINUITY

Monitor item

Condition

Monitor status

FR WIPER STOP

Front wiper motor

Stop position

STOP P

Except stop position

ACT P

Terminals

Voltage

(Approx.)

(+)

(-)

IPDM E/R

Ground

Connector

Terminal

E46

38

Battery voltage

WKIA5491E

IPDM E/R

Ground

Continuity

Connector

Terminal

E46

38

No

ALLIA0348ZZ
