FRONT WIPER AUTO STOP SIGNAL CIRCUIT

WW-23

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

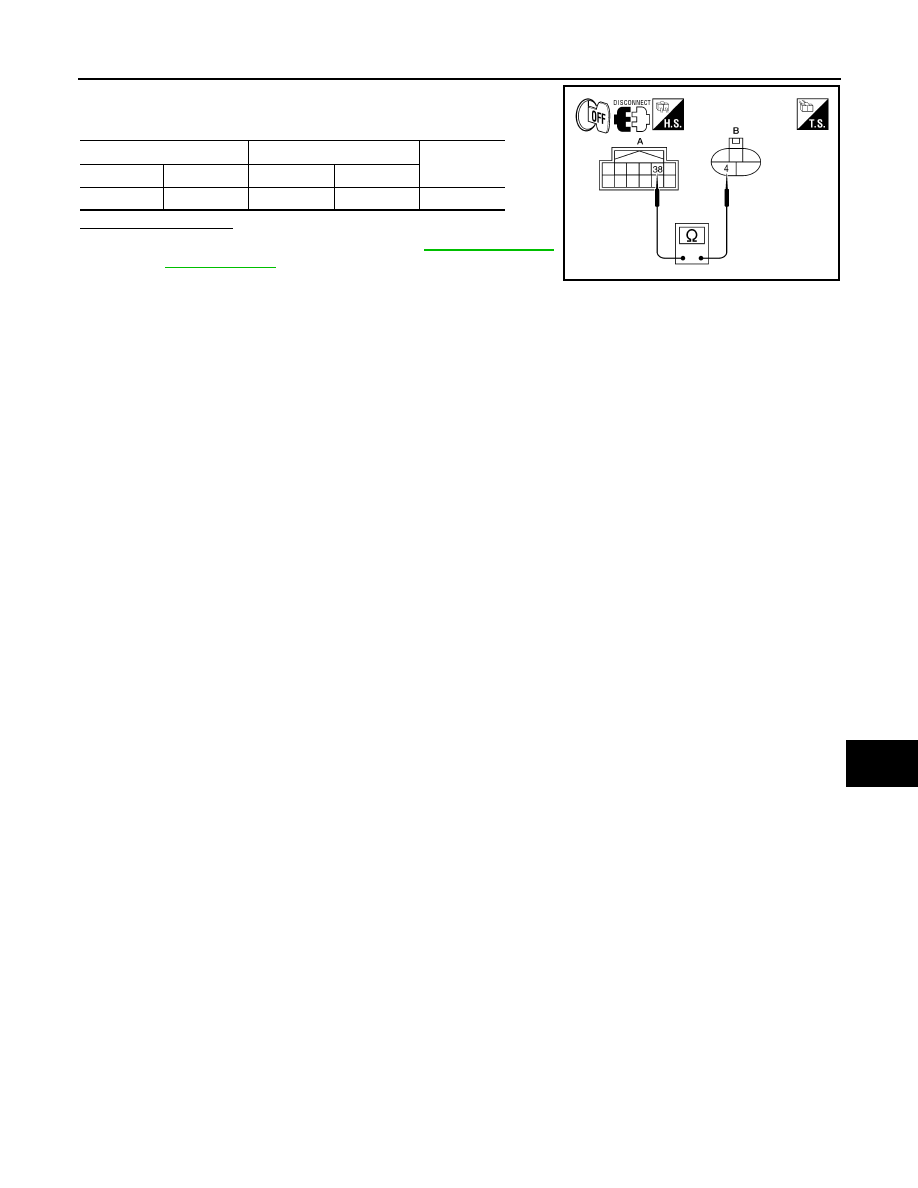

Check continuity between IPDM E/R harness connector and front
wiper motor harness connector.

Does continuity exist?

YES

>> Replace front wiper motor. Refer to

WW-73, "Removal

and Installation"

.

NO

>> Repair or replace harness.

IPDM E/R

Front wiper motor

Continuity

Connector

Terminal

Connector

Terminal

E46 (A)

38

E1 (B)

4

Yes

ALLIA0349ZZ

WW-24

< COMPONENT DIAGNOSIS >

FRONT WIPER MOTOR GROUND CIRCUIT

FRONT WIPER MOTOR GROUND CIRCUIT

Diagnosis Procedure

INFOID:0000000001366616

1.

 CHECK FRONT WIPER MOTOR (GROUND) OPEN CIRCUIT

1.

Turn the ignition switch OFF.

2.

Disconnect front wiper motor.

3.

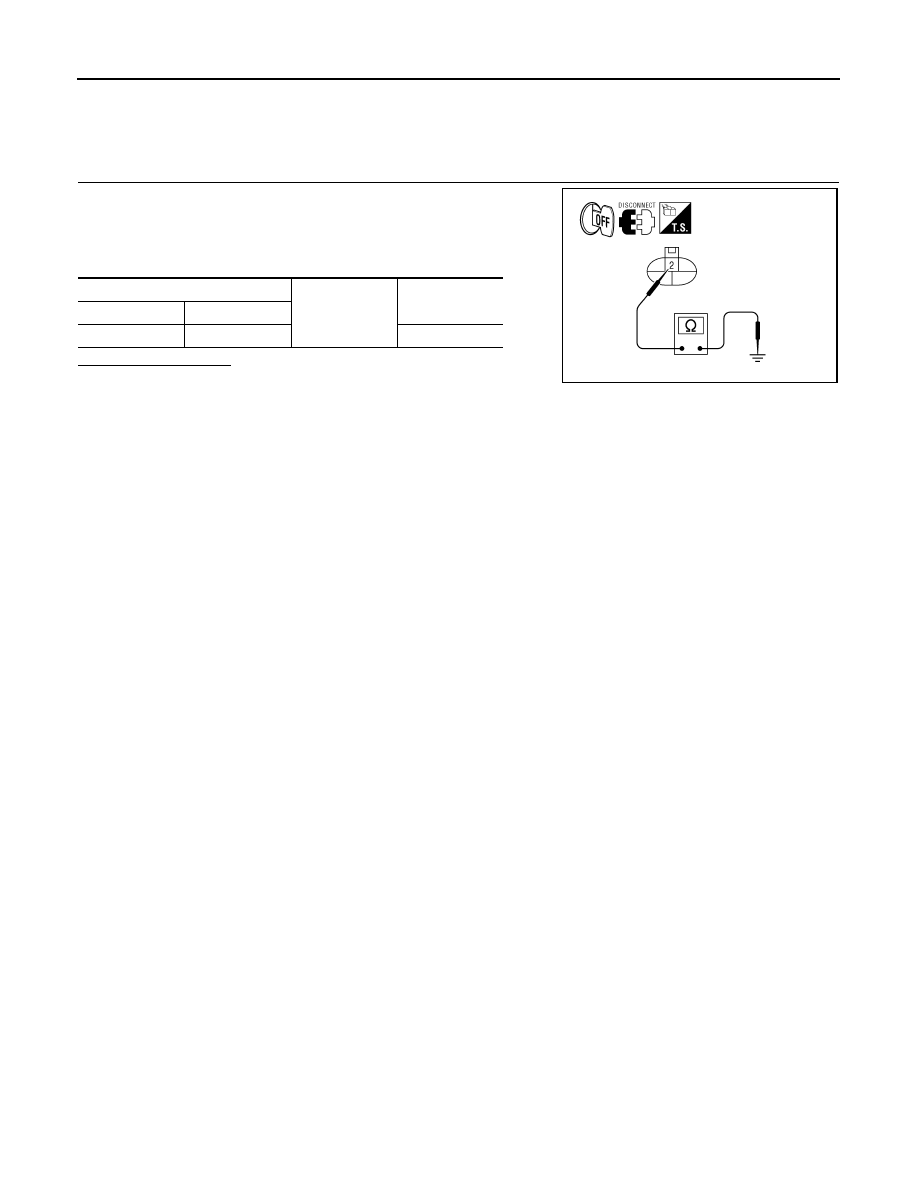

Check continuity between front wiper motor harness connector
and ground.

Does continuity exist?

YES

>> Front wiper motor ground circuit is normal.

NO

>> Repair or replace harness.

Front wiper motor

Ground

Continuity

Connector

Terminal

E1

2

Yes

WKIA5488E

WASHER SWITCH

WW-25

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER SWITCH

Description

INFOID:0000000001366617

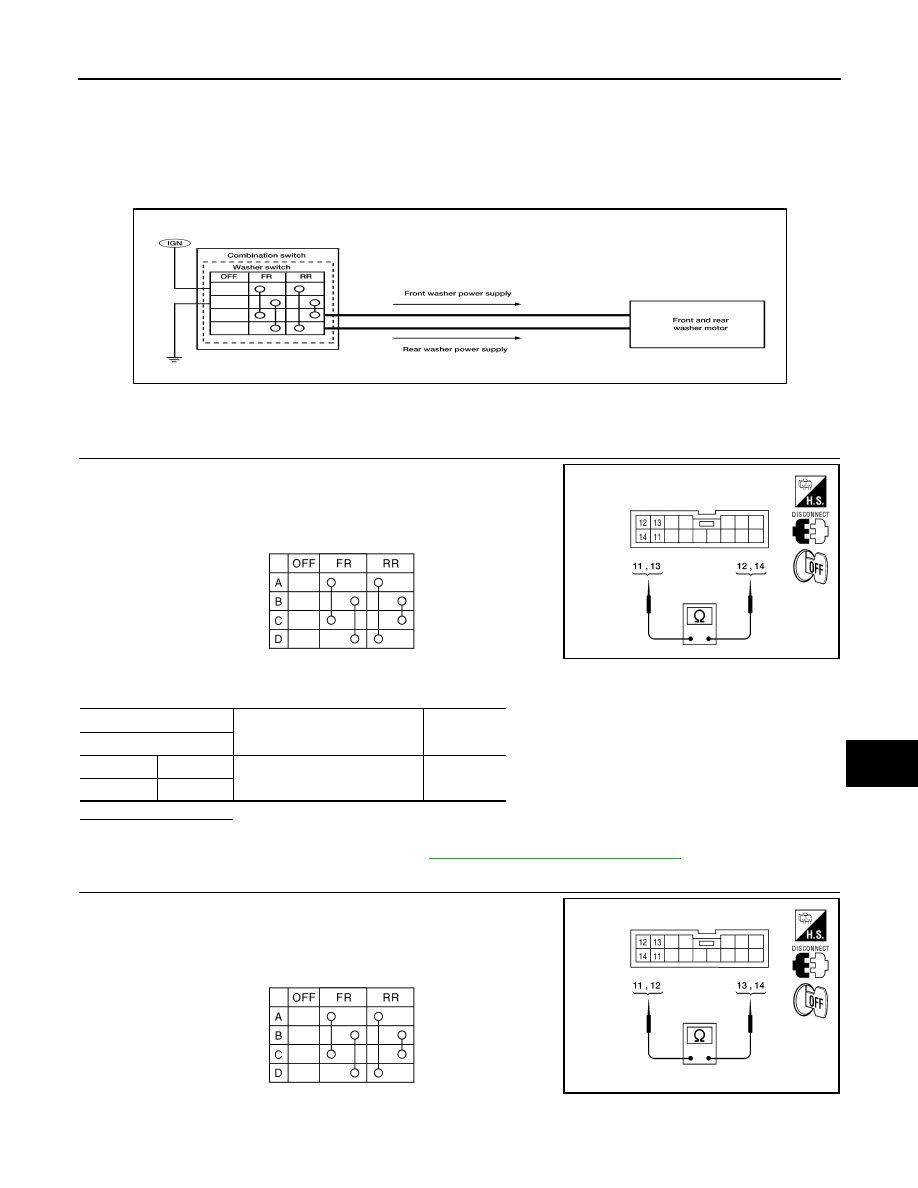

• Washer switch is integrated with combination switch.
• Combination switch switches polarity between front washer operating and rear washer operating to supply

power to the front and rear washer motor on ground.

Component Inspection

INFOID:0000000001366618

1.

 CHECK FRONT WASHER SWITCH

1.

Turn the ignition switch OFF.

2.

Disconnect combination switch.

3.

Check continuity between the combination switch terminals.

Does continuity exist?

YES

>> Wiper and washer switch is normal.

NO

>> Replace combination switch. Refer to

EXL-101, "Removal and Installation"

.

2.

 CHECK REAR WASHER SWITCH

1.

Turn the ignition switch OFF.

2.

Disconnect combination switch.

3.

Check continuity between the combination switch terminals.

ALLIA0350GB

A: Terminal 14

B: Terminal 12

C: Terminal 13

D: Terminal 11

ALLIA0351ZZ

JPLIA0164GB

Combination switch

Condition

Continuity

Terminal

11

12

Front washer switch ON

Yes

13

14

A: Terminal 14

B: Terminal 12

C: Terminal 13

D: Terminal 11

ALLIA0352ZZ

JPLIA0164GB

WW-26

< COMPONENT DIAGNOSIS >

WASHER SWITCH

Does continuity exist?

YES

>> Wiper and washer switch is normal.

NO

>> Replace combination switch. Refer to

EXL-101, "Removal and Installation"

.

Combination switch

Condition

Continuity

Terminal

11

14

Rear washer switch ON

Yes

12

13
