Nissan Tiida C11. Manual - part 1455





DIAGNOSIS SYSTEM (BCM)

WW-15

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

ACTIVE TEST

FR WIPER HI
[OFF/ON]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER LOW
[OFF/ON]

FR WIPER INT
[OFF/ON]

FR WASHER SW
[OFF/ON]

H/L WASH SW
[OFF/ON]

NOTE:
The item is indicated, but not monitored.

INT VOLUME
[1

 7]

Each switch status that BCM judges from the combination switch reading function.

FR WIPER STOP
[OFF/ON]

Front wiper motor (stop position) status received from IPDM E/R with CAN communica-
tion.

VEHICLE SPEED
[km/h]

The value of the vehicle speed signal received from combination meter with CAN com-
munication.

RR WIPER ON
[OFF/ON]

Each switch status that BCM judges from the combination switch reading function.

RR WIPER INT
[OFF/ON]

RR WASHER SW
[OFF/ON]

RR WIPER STOP
[OFF/ON]

Rear wiper motor (stop position) status input from the rear wiper motor.

Monitor Item

[Unit]

Description

Test item

Operation

Description

FR WIPER

HI

Transmits the front wiper request signal (HI) to IPDM E/R with CAN communication to op-
erate the front wiper HI operation.

LO

Transmits the front wiper request signal (LO) to IPDM E/R with CAN communication to
operate the front wiper LO operation.

INT

Transmits the front wiper request signal (INT) to IPDM E/R with CAN communication to
operate the front wiper INT operation.

OFF

Stops transmitting the front wiper request signal to stop the front wiper operation.

RR WIPER

ON

Outputs the voltage to operate the rear wiper motor.

OFF

Stops the voltage to stop rear wiper motor operation.

HEADLAMP WASH-
ER

ON

Transmits the headlamp washer request signal to IPDM E/R with CAN communication to
operate the headlamp washer operation.

WW-16

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (IPDM E/R)

DIAGNOSIS SYSTEM (IPDM E/R)

Diagnosis Description

INFOID:0000000001366606

AUTO ACTIVE TEST

Refer to PCS IPDM E/R AUTO ACTIVE TEST.

CONSULT - III Function (IPDM E/R)

INFOID:0000000001366607

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with IPDM E/R.

SELF DIAGNOSTIC

Refer to

PCS-28, "DTC Index"

.

DATA MONITOR

Monitor item

ACTIVE TEST

Test item

Diagnosis mode

Description

ECU Identification

Allows confirmation of IPDM E/R part number.

Self Diagnostic Result

Displays the diagnosis results judged by IPDM E/R.

Data Monitor

Displays the real-time input/output data from IPDM E/R input/output data.

Active Test

IPDM E/R can provide a drive signal to electronic components to check their operations.

CAN Diag Support Monitor

The results of transmit/receive diagnosis of CAN communication can be read.

Monitor Item

[Unit]

MAIN

SIGNALS

Description

HL WASHER REQ
[Off/On]

Displays the status of the headlamp washer request signal received from BCM via CAN
communication.

FR WIP REQ
[Stop/1LOW/Low/Hi]

×

Displays the status of the front wiper request signal received from BCM via CAN com-
munication.

WIP AUTO STOP
[STOP P/ACT P]

×

Displays the status of the front wiper auto stop signal judged by IPDM E/R.

WIP PROT
[Off/BLOCK]

×

Displays the status of the front wiper fail-safe operation judged by IPDM E/R.

IGN RLY
[Off/On]

×

Displays the status of the ignition relay judged by IPDM E/R.

IGN ON SW
[Off/On]

Displays the status of the ignition switch judged by IPDM E/R.

Test item

Operation

Description

FRONT WIPER

Off

OFF

Lo

Operates the front wiper relay.

Hi

Operates the front wiper relay and front wiper high relay.

HEAD LAMP WASHER

On

Operates the headlamp washer relay for 1 second.

EXTERNAL LAMPS

Off

OFF

TAIL

Operates the tail lamp relay.

Lo

Operates the headlamp low relay.

Hi

Operates the headlamp low relay and ON/OFF the headlamp high relay at 1 sec-
ond intervals.

Fog

Operates the front fog lamp relay.

WIPER AND WASHER FUSE, FUSIBLE LINK

WW-17

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

COMPONENT DIAGNOSIS

WIPER AND WASHER FUSE, FUSIBLE LINK

Description

INFOID:0000000001366608

Fuse, fusible link list

Diagnosis Procedure

INFOID:0000000001366609

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse or fusible link blown?

YES

>> Replace the fuse or fusible link after repairing the applicable circuit.

NO

>> The fuse or fusible link is normal.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Front and rear washer motor

Fuse block (J/B)

4

15 A

Headlamp washer motor

Fuse and fusible link box

L

30 A

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

Front and rear washer motor

Fuse block (J/B)

4

15 A

Headlamp washer motor

Fuse and fusible link box

L

30 A

WW-18

< COMPONENT DIAGNOSIS >

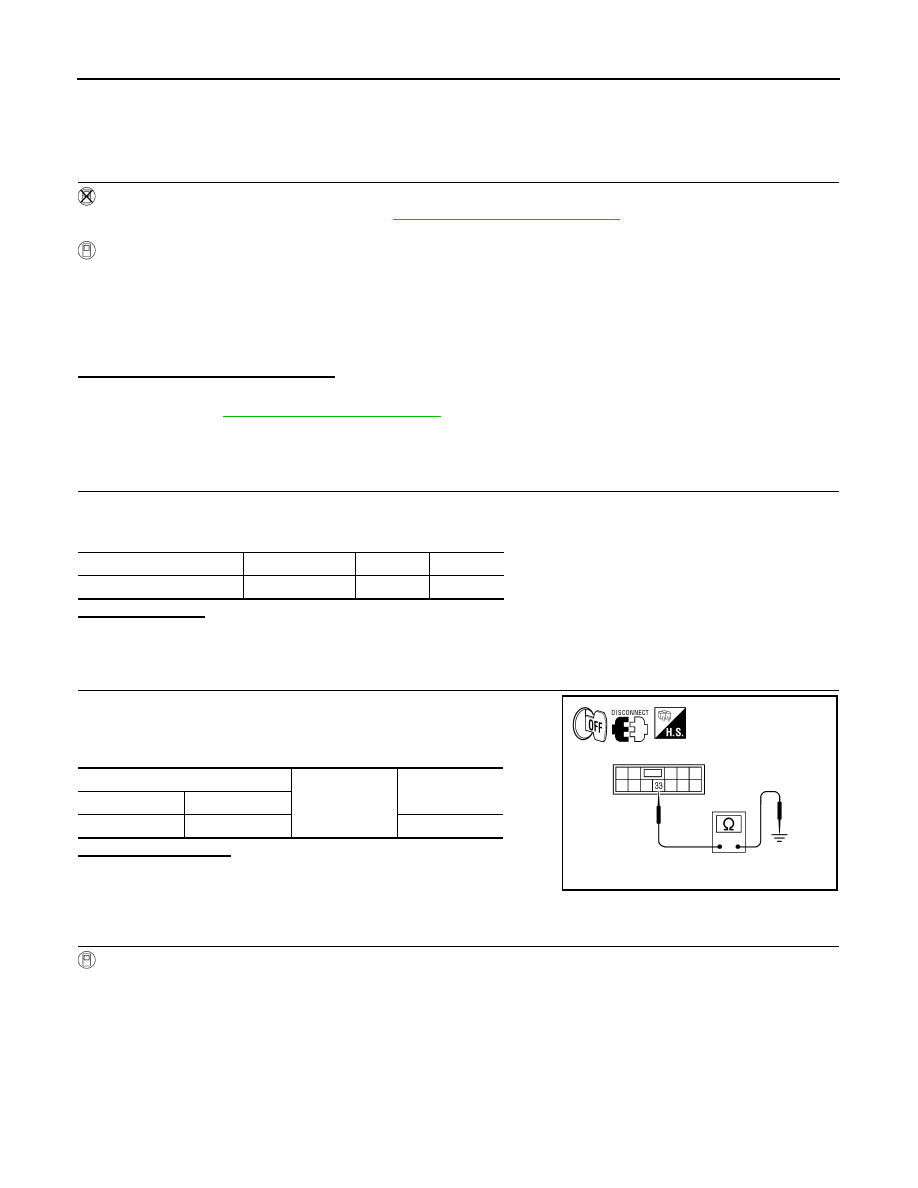

FRONT WIPER MOTOR LO CIRCUIT

FRONT WIPER MOTOR LO CIRCUIT

Component Function Check

INFOID:0000000001366610

1.

 CHECK FRONT WIPER LO OPERATION

IPDM E/R AUTO ACTIVE TEST

1.

Start IPDM E/R auto active test. Refer to

PCS-10, "Diagnosis Description"

.

2.

Check that the front wiper operates at the LO operation.

CONSULT-III ACTIVE TEST

1.

Select "FRONT WIPER" of IPDM E/R active test item.

2.

While operating the test item, check front wiper operation.

Is front wiper (LO) operation normal?

YES

>> Front wiper motor LO circuit is normal.

NO

>> Refer to

WW-18, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001366611

1.

 CHECK FRONT WIPER MOTOR FUSE

1.

Turn the ignition switch OFF.

2.

Check that the following fuse is not blown.

Is the fuse blown?

YES

>> GO TO 2

NO

>> GO TO 3

2.

 CHECK FRONT WIPER MOTOR (LO) SHORT CIRCUIT

1.

Disconnect IPDM E/R and front wiper motor.

2.

Check continuity between IPDM E/R harness connector and
ground.

Does continuity exist?

YES

>> Repair or replace harness.

NO

>> Replace the fuse. (Replace IPDM E/R if the fuse is

blown again.)

3.

 CHECK FRONT WIPER MOTOR (LO) OUTPUT VOLTAGE

CONSULT-III ACTIVE TEST

LO

: Front wiper (LO) operation

OFF

: Stop the front wiper.

Unit

Location

Fuse No.

Capacity

Front wiper motor

IPDM E/R

39

30 A

IPDM E/R

Ground

Continuity

Connector

Terminal

E45

33

No

ALLIA0342ZZ
