Nissan Tiida C11. Manual - part 1454





REAR WIPER AND WASHER SYSTEM

WW-11

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

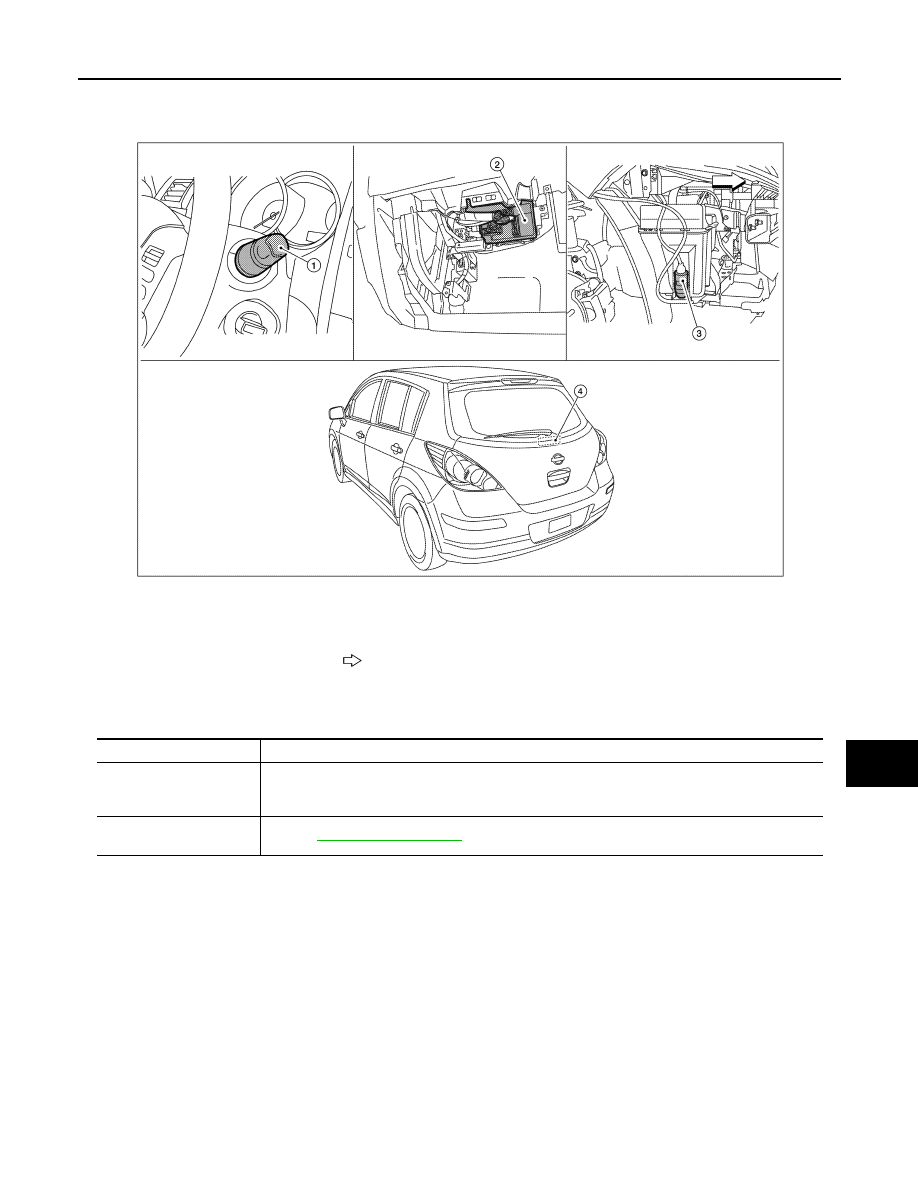

Component Parts Location

INFOID:0000000001366598

Component Description

INFOID:0000000001366599

1.

Combination switch (wiper and wash-
er switch) M28

2.

BCM M18, M20 (view with glove box
removed)

3.

Front and rear washer motor E2
(view with front bumper fascia re-
moved)

4.

Rear wiper motor D404

Front

ALLIA0272ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Supplies power to the rear wiper motor.
• Performs the auto stop control of the rear wiper.

Combination switch
(Wiper and washer switch)

Refer to

WW-9, "System Diagram"

.

WW-12

< FUNCTION DIAGNOSIS >

HEADLAMP WASHER SYSTEM

HEADLAMP WASHER SYSTEM

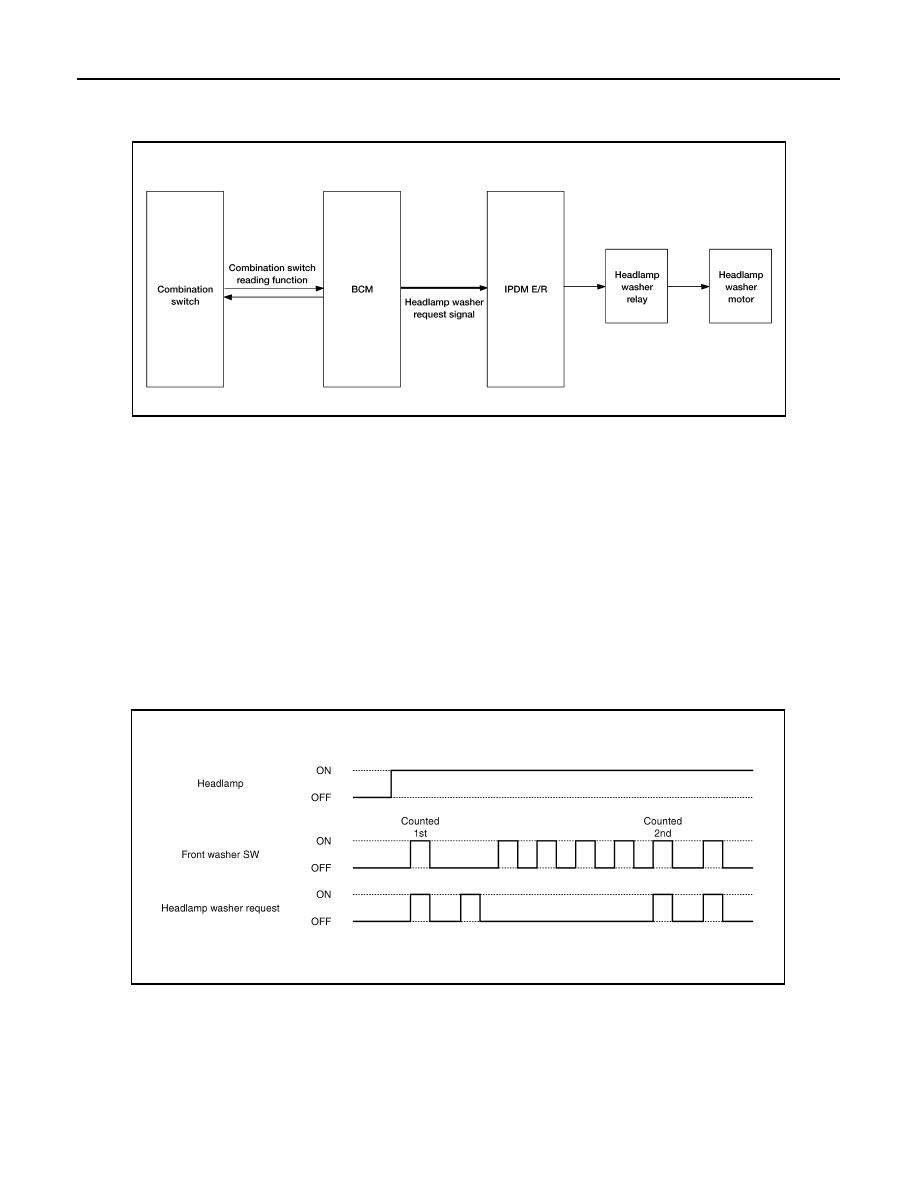

System Diagram

INFOID:0000000001366600

System Description

INFOID:0000000001366601

OUTLINE

The headlamp washer is controlled by each function of BCM and IPDM E/R.

Control by BCM

• Combination switch reading function
• Headlamp washer control function

Control by IPDM E/R

• Relay control function

HEADLAMP WASHER BASIC OPERATION

• BCM detects the combination switch condition by the combination switch reading function.
• BCM transmits the headlamp washer request signal to IPDM E/R with CAN communication depending on

each operating condition of the headlamp washer.

Operating conditions (The first time)

- Ignition switch ON
- Headlamps ON (PASS excluded)
- Front washer switch ON at first time.

Operating conditions (From the second time)

- Ignition switch ON
- Headlamps ON (PASS excluded)
- Front washer switch ON at fifth time after the first time.

ALLIA0274GB

JPLIA0177GB

HEADLAMP WASHER SYSTEM

WW-13

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• IPDM E/R turns ON/OFF the headlamp washer relay by receiving the headlamp washer request signal, and

controls the headlamp washer twice.

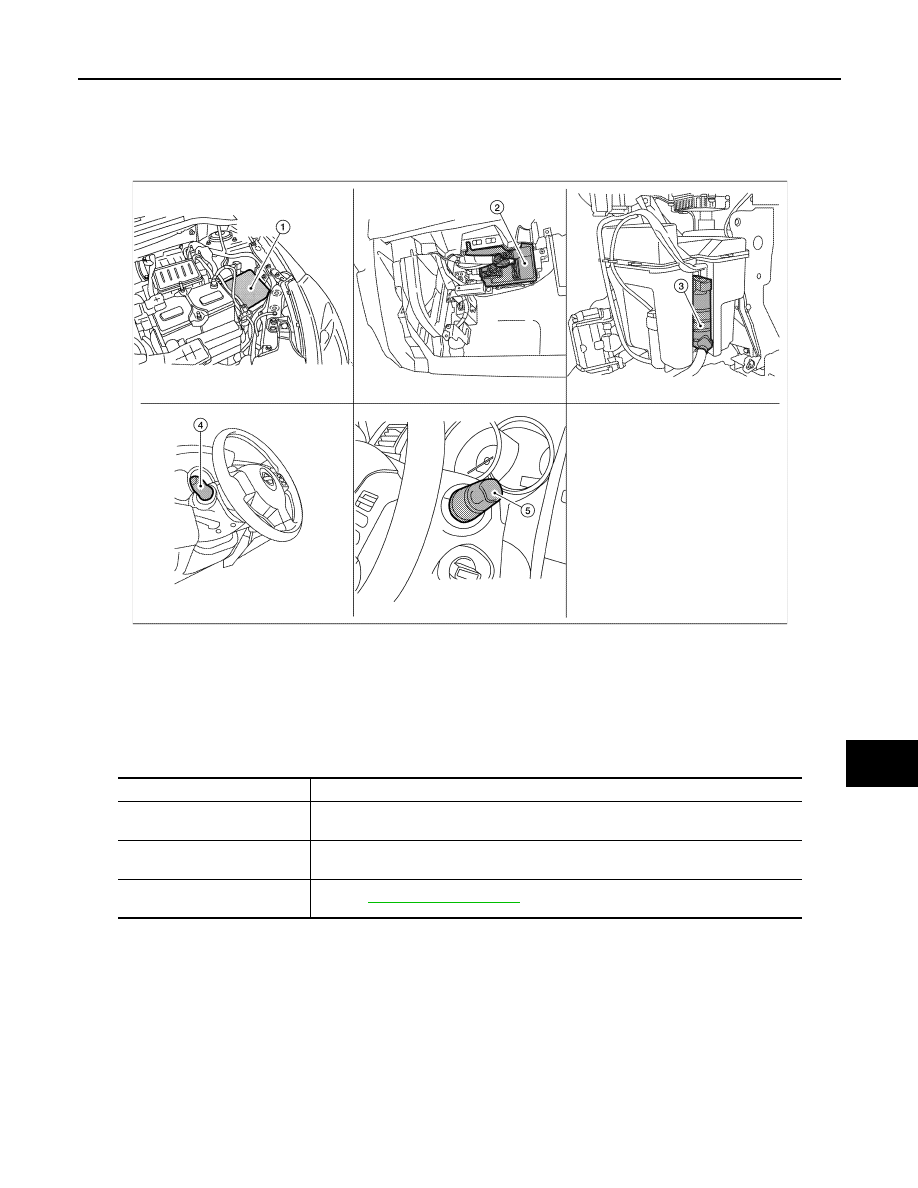

Component Parts Location

INFOID:0000000001366602

Component Description

INFOID:0000000001366603

1.

IPDM E/R E45, E46, E48

2.

BCM M18, M20 (view with glove box
removed)

3.

Headlamp washer motor E35 (view
with front bumper fascia removed)

4.

Combination switch (headlamp
switch) M28

5.

Combination switch (wiper and wash-
er switch) M28

ALLIA0273ZZ

Part

Description

BCM

• Judges each switch status by the combination switch reading function.
• Requests (with CAN communication) the headlamp washer relay ON to IPDM E/R.

IPDM E/R

Controls the headlamp washer relay according to the request (with CAN communica-
tion) from BCM.

Combination switch
(Wiper and washer switch)

Refer to

WW-12, "System Diagram"

.

WW-14

< FUNCTION DIAGNOSIS >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000001366604

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

WIPER

WIPER : CONSULT-III Function (BCM - WIPER)

INFOID:0000000001366605

WORK SUPPORT

*:Factory setting

DATA MONITOR

Diagnosis mode

Function Description

WORK SUPPORT

Changes the setting for each system function.

SELF-DIAG RESULTS

Displays the diagnosis results judged by BCM. Refer to

BCS-54, "DTC Index"

.

CAN DIAG SUPPORT MNTR

Monitors the reception status of CAN communication viewed from BCM.

DATA MONITOR

The BCM input/output signals are displayed.

ACTIVE TEST

The signals used to activate each device are forcibly supplied from BCM.

ECU IDENTIFICATION

The BCM part number is displayed.

CONFIGURATION

• Enables to read and save the vehicle specification.
• Enables to write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

WORK SUPPORT

DATA MONITOR

ACTIVE TEST

BCM

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Combination switch

COMB SW

×

Back door switch

DOOR LOCK

×

×

Service item

Setting

item

Description

WIPER SPEED
SETTING

ON*

With vehicle speed
(Front wiper intermittent time linked with the vehicle speed and wiper intermittent dial position)

OFF

Without vehicle speed
(Front wiper intermittent time linked with the wiper intermittent dial position)

Monitor Item

[Unit]

Description

IGN ON SW

Ignition switch ON status judged from ignition power supply.

IGN SW CAN

Ignition switch ON status received from IPDM E/R with CAN communication.
