DISASSEMBLY

TM-519

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

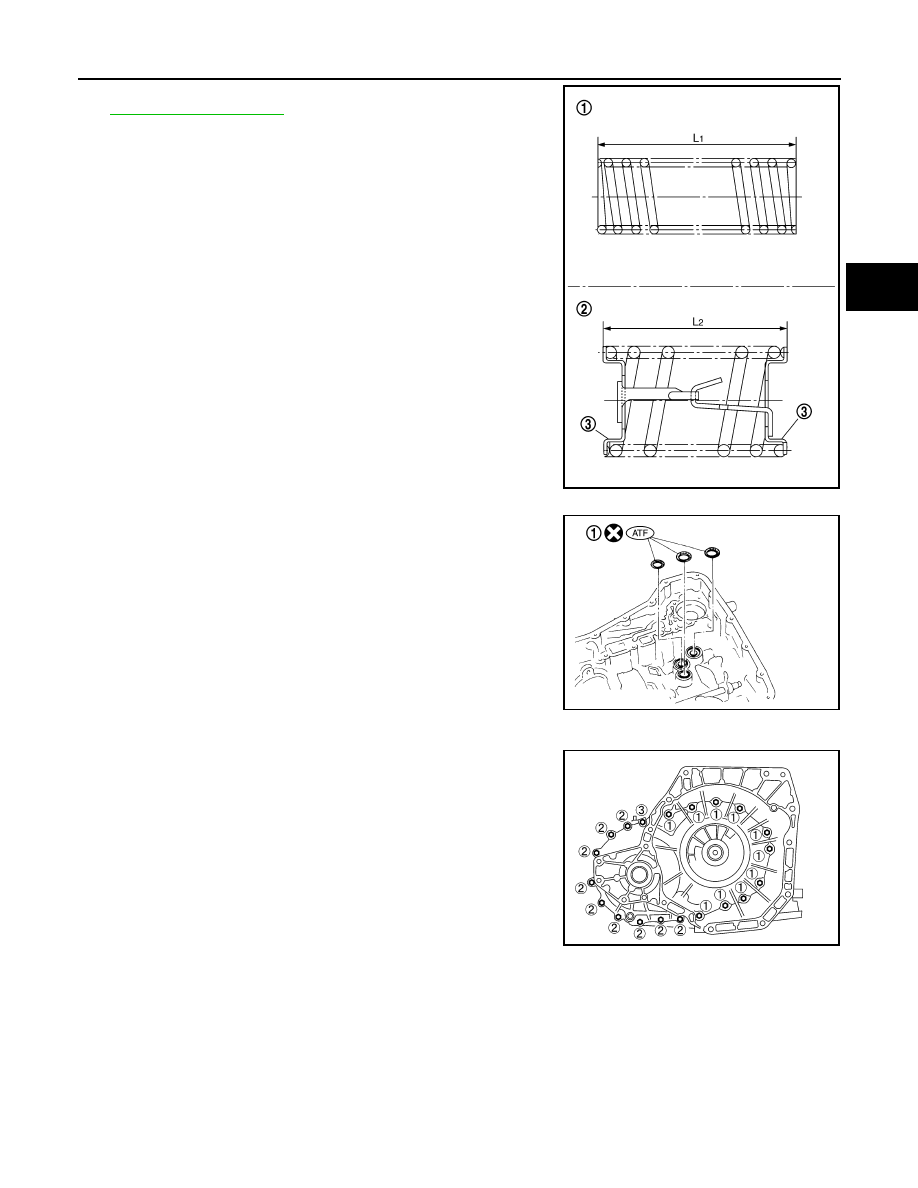

• Inspect each return spring, and replace if deformed or worn. Refer

to

TM-321, "Accumulator"

 for free length (L

1

) and length (L

2

).

(1): Return spring (Servo release accumulator)
(2): Return spring (N-D accumulator)

CAUTION:

Do not remove spring retainer (3).

21. Remove lip seals (1) from transaxle case.

22. Remove converter housing according to the following procedures.
a.

Remove converter housing fitting bolts (1), (2) and (3) using a
power tool.

b.

Remove bracket from converter housing

c.

Remove converter housing by tapping it lightly.

SCIA6955E

SCIA5895J

SCIA6956E

TM-520

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

DISASSEMBLY

d.

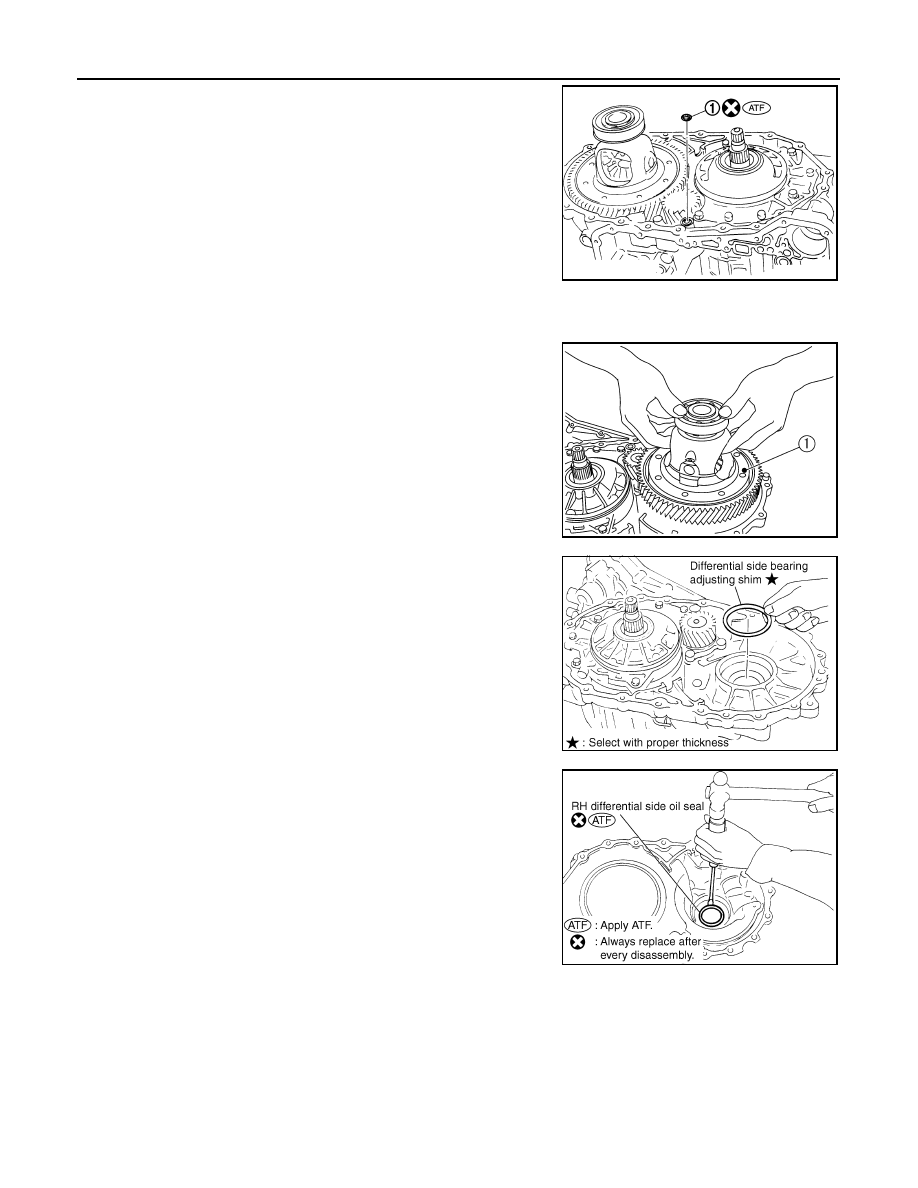

Remove O-ring (1) from differential lubricant hole.

23. Remove plug from converter housing.
24. Remove O-ring from plug.

25. Remove final drive assembly (1) from transaxle case.

26. Remove differential side bearing adjusting shim from transaxle

case.

27. Remove RH differential side oil seal from converter housing

using suitable tool.

CAUTION:

Do not scratch converter housing.

SCIA5918J

SCIA6034J

SCIA4938E

SCIA3283E

DISASSEMBLY

TM-521

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

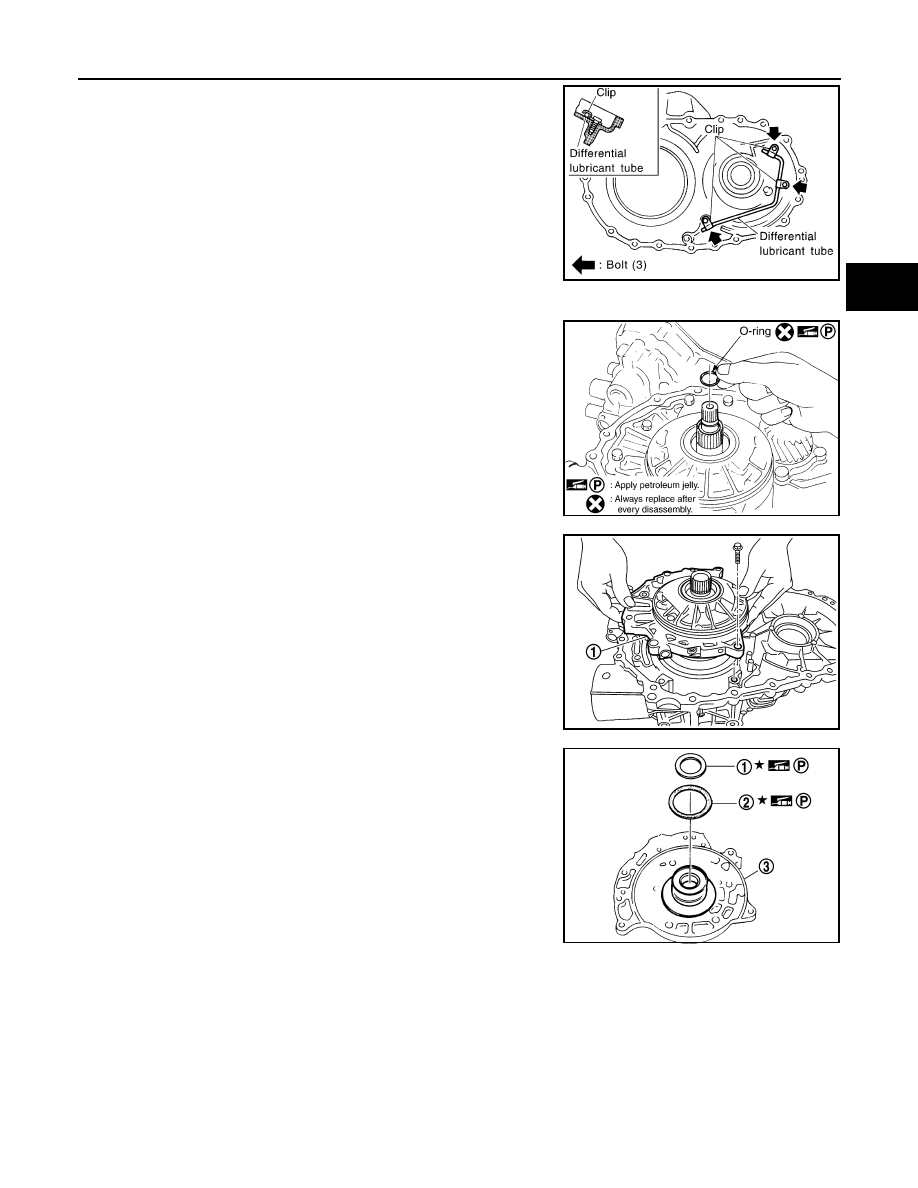

28. Remove differential lubricant tube and clips from converter

housing.

29. Remove oil pump assembly according to the following procedures.
a.

Remove O-ring from input shaft assembly (high clutch drum).

b.

Remove oil pump assembly fitting bolts, and then remove oil
pump assembly (1) from transaxle case.

c.

Remove O-ring from oil pump assembly (1).

d.

Remove bearing race (1) and thrust washer (2) from oil pump
assembly (3).

SCIA3284E

SCIA5634E

SCIA6036J

SCIA6957E

TM-522

< DISASSEMBLY AND ASSEMBLY >

[TYPE 2 (4AT: RE4F03B)]

DISASSEMBLY

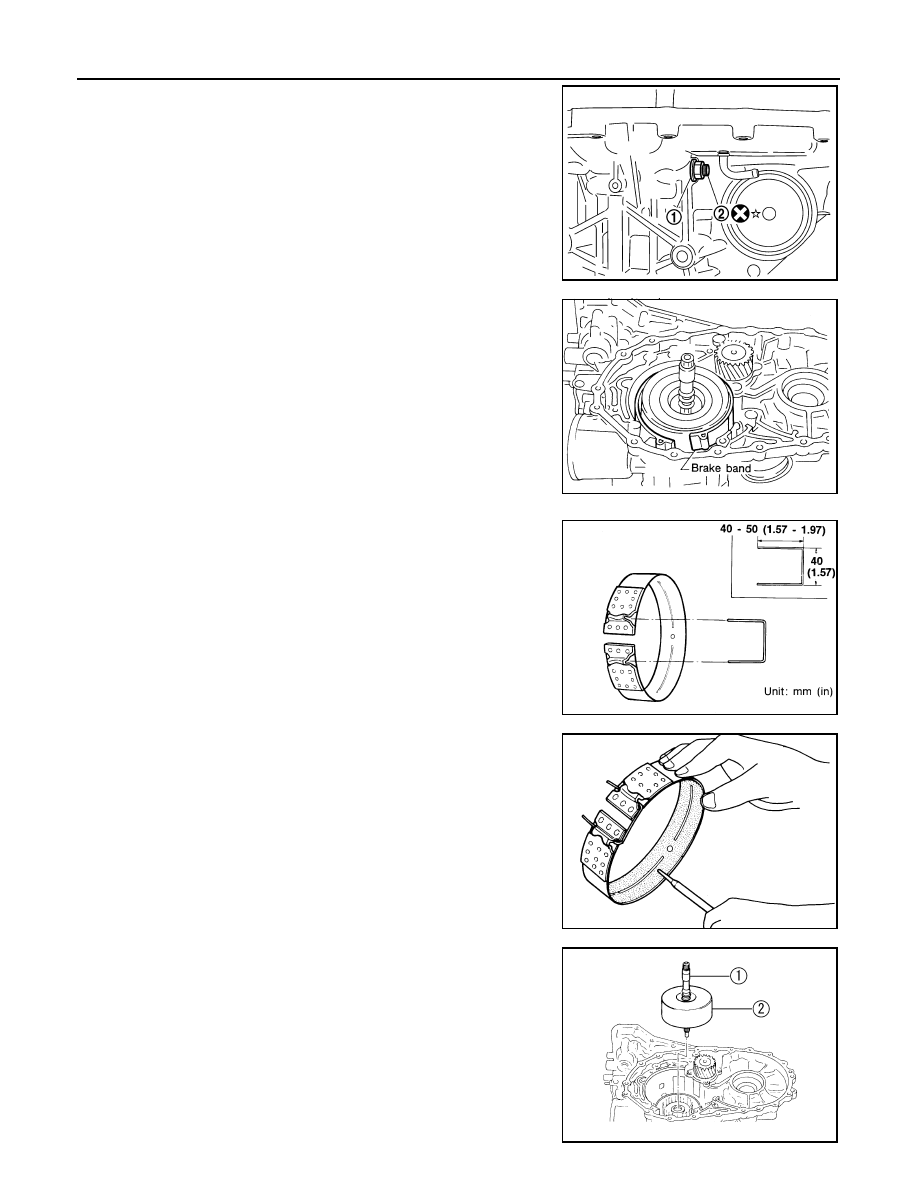

30. Remove brake band according to the following procedures.

a.

Loosen lock nut (1), and then remove anchor end pin (2) and
lock nut (1) as a set from transaxle case.

b.

Remove brake band from transaxle case.

• To prevent brake linings from cracking or peeling, do not

stretch the flexible band unnecessarily. When removing
brake band, always secure it with a clip as shown.
Leave the clip in position after removing brake band.

c.

Check brake band facing for damage, cracks, wear or burns.

31. Remove input shaft assembly (high clutch assembly) and

reverse clutch assembly according to the following procedures.

a.

Remove input shaft assembly (high clutch assembly) (1) with
reverse clutch assembly (2).

SCIA6037J

SAT038D

SAT039D

SAT040D

SCIA6038J
