OVERHAUL
TM-511
< DISASSEMBLY AND ASSEMBLY >
[TYPE 2 (4AT: RE4F03B)]
C
E
F
G
H
I
J
K
L
M
A
B
TM
N
O
P

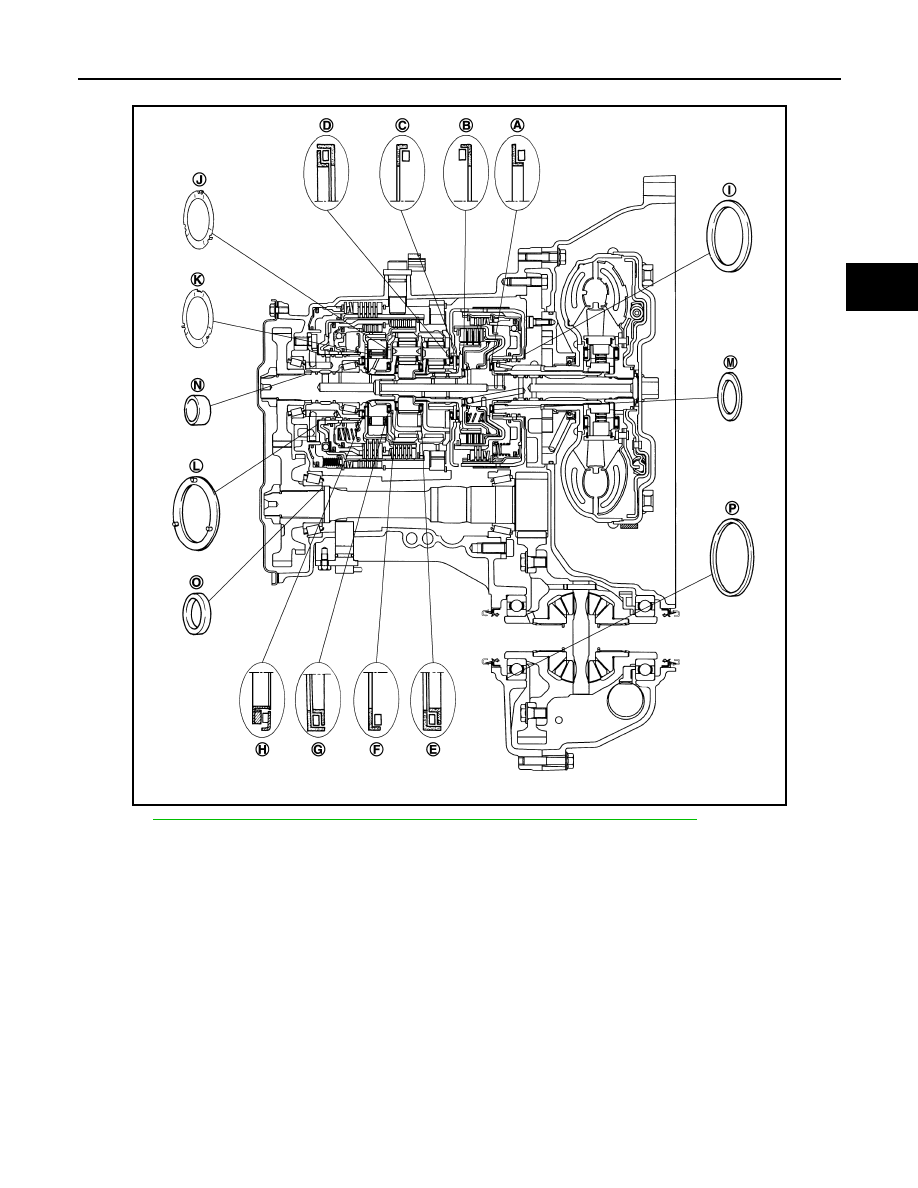

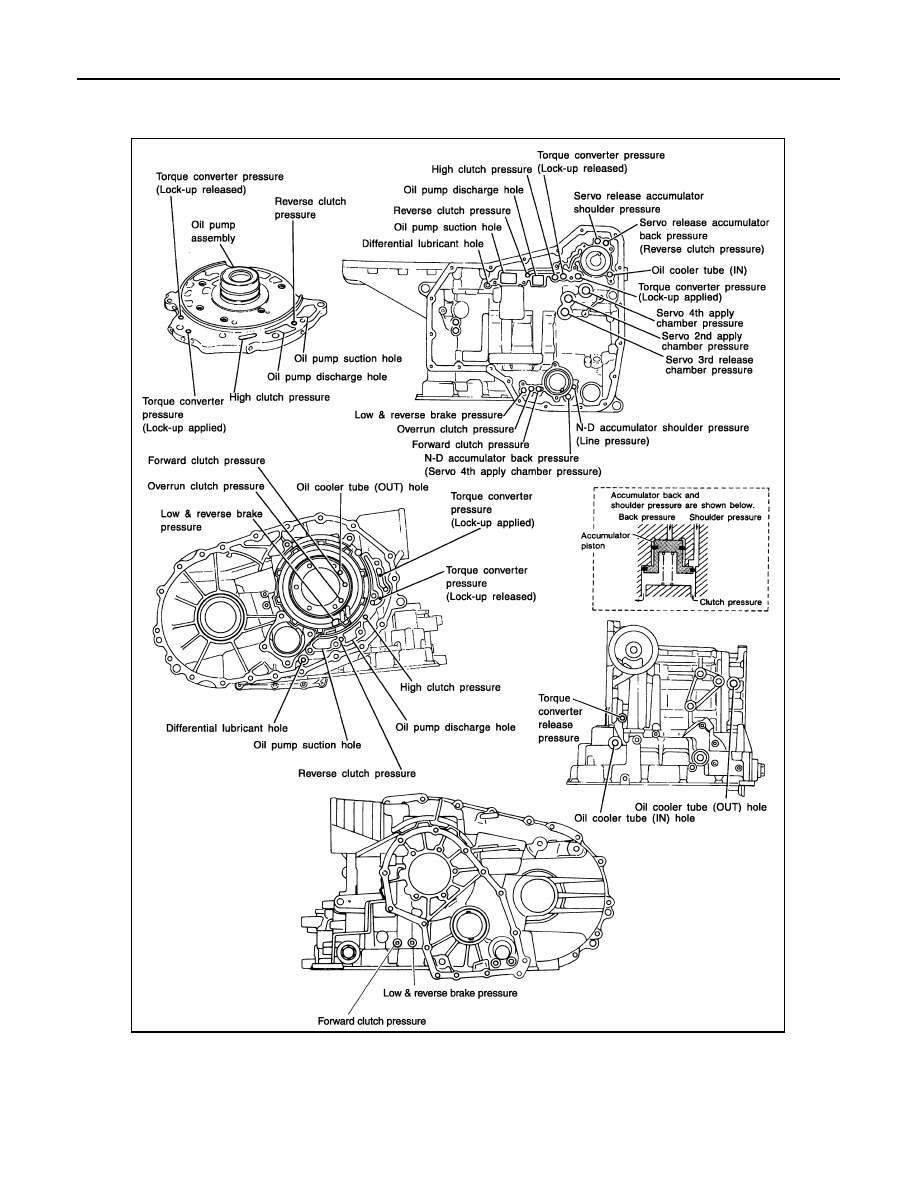

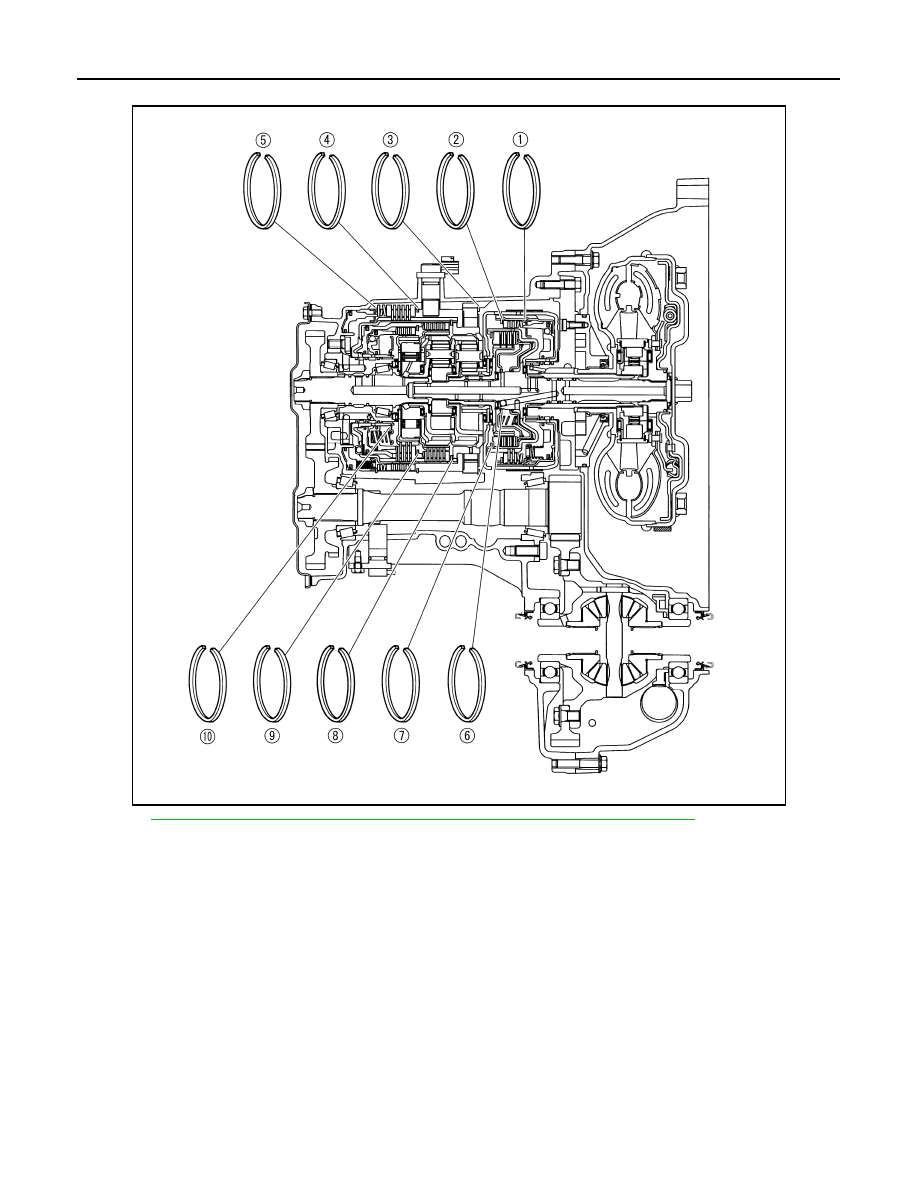

19. Oil pan gasket
20. Oil pan
21. Drain plug gasket
22. Drain plug
23. Magnet
24. Oil pan fitting bolt
25. Snap ring
26. O-ring
27. O-ring
28. N-D accumulator piston
29. Return spring
30. O-ring
31. Lip seal
32. Turbine revolution sensor (power
train revolution sensor)
33. O-ring
34. Retaining pin
35. Detent spring
36. Retaining pin
37. Manual shaft
38. Manual shaft oil seal
39. Manual plate
40. Parking rod plate
41. Parking rod
42. OD servo piston retainer
43. Snap ring
44. O-ring
45. OD servo piston
46. D-ring
47. Servo piston retainer
48. O-ring
49. E-ring
50. Spring retainer
51. OD servo return spring
52. D-ring
53. Band servo piston
54. Band servo thrust washer
55. Band servo piston stem
56. 2nd servo return spring
57. PNP switch
58. Parking shaft
59. Return spring
60. Output gear adjusting spacer
61. Output gear bearing
62. Output gear
63. Side cover gasket
64. Side cover
65. Side cover fitting bolt
66. Lock nut
67. Idler gear
68. Idler gear bearing
69. Reduction pinion gear adjusting
shim
70. Parking actuator support
71. Parking pawl
72. LH differential side oil seal
73. Revolution sensor
: Apply locking sealant (Loctite #518).
