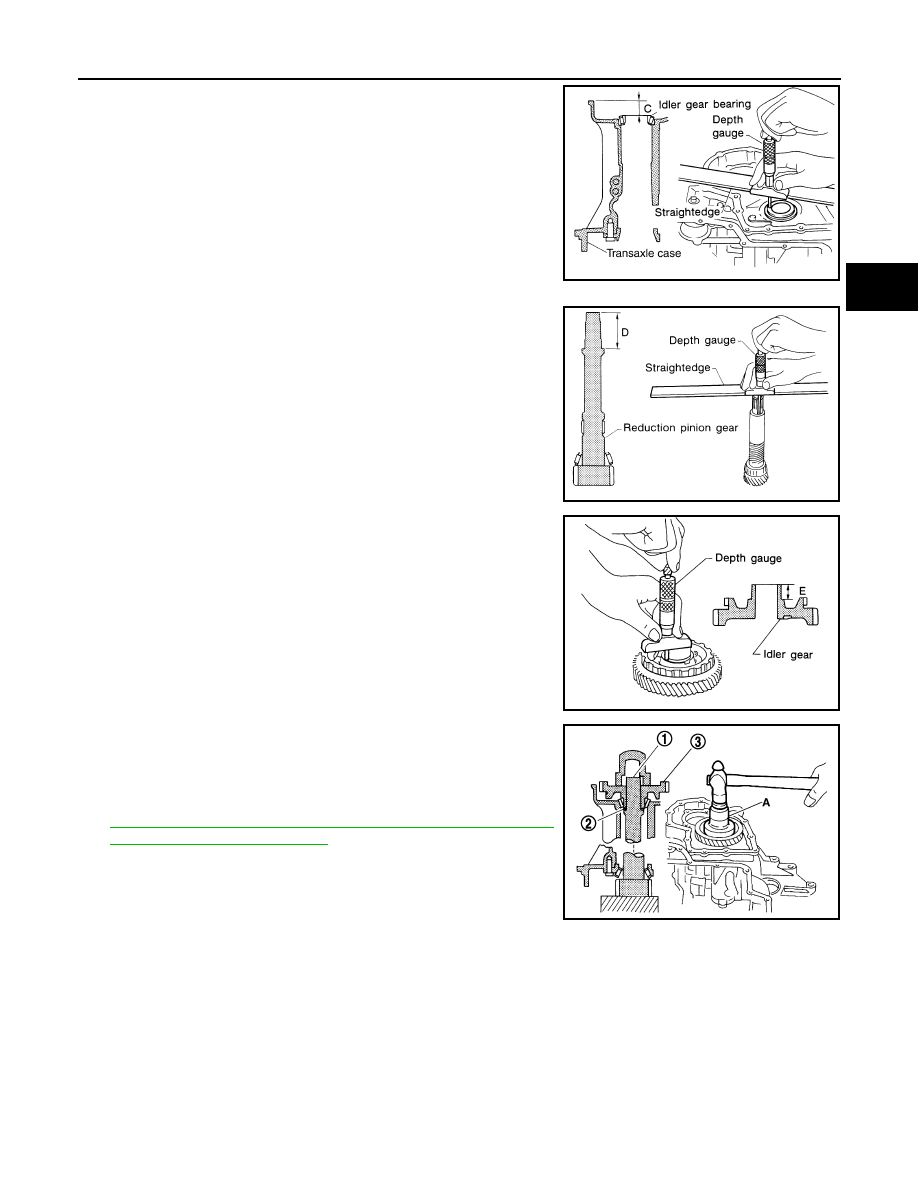

• Measure dimension “C” between the surface of idler gear

bearing inner race and the surface of transaxle case.

• Measure dimension “C” in at least two places, and take

the average.

• Remove reduction pinion gear from transaxle case.
• Measure dimension “D” between the end of reduction pinion

gear and the adjusting shim mating surface of reduction pinion
gear.

• Measure dimension “D” in at least two places, and take

the average.

• Calculate dimension “A”.

e.

Measure dimension “E” between the end of idler gear and idler
gear bearing inner race mating surface of idler gear.
• Measure dimension “E” in at least two places, and take

the average.

f.

Select proper thickness of reduction pinion gear adjusting shim.

2.

Install reduction pinion gear (1) and reduction pinion gear adjust-
ing shim (2) selected in step 2-e on transaxle case.

CAUTION:

Apply ATF to reduction pinion gear bearing.

3.

Press idler gear bearing inner race on idler gear (3). Refer to

TM-281, "Output Shaft, Output Gear, Idler Gear, Reduction Pin-
ion Gear and Bearing Retainer"

.

4.

Set Tool (A) on idler gear (3), and press idler gear (3) on reduc-
tion pinion gear (1).

CAUTION:

• Apply ATF to idler gear bearing.
• Press idler gear (3) until idler gear (3) fully contacts reduc-

tion pinion gear bearing adjusting shim (2).

5.

Set manual shaft in “P” position to secure idler gear (3).

6.

Tighten lock nut of idler gear to the specified torque.

CAUTION:

Lock idler gear with parking pawl when tightening lock nut.

SCIA3626E

A = D

−

 (B + C)

SAT336DA

Proper shim thickness = A

−

 E

−

 0.05 mm (0.0020 in)*

(*: Bearing preload)

SAT337D

Tool number:

ST35271000

SCIA7110E

TM-300

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

ASSEMBLY

7.

Measure turning torque of reduction pinion gear.

• When measuring turning torque, turn reduction pinion

gear in both directions several times to seat bearing roll-
ers correctly.

• If turning torque is out of specification, decrease or

increase thickness of reduction pinion gear adjusting
shim.

OUTPUT SHAFT BEARING PRELOAD

1.

Select proper thickness of output gear adjusting spacer using the following procedures.

a.

Remove paper rolled around output shaft.

b.

Install output gear bearing outer race on bearing retainer.

c.

Place bearing retainer on output shaft.

d.

Place output gear bearing inner race on bearing retainer.

e.

Measure dimensions “G” and “H”, and calculate dimension “F”.

• Measure dimension “G” between end of output shaft and sur-

face of output gear bearing inner race.

• Measure dimension “G” in at least two places, and take

the average.

Turning torque of reduction pinion gear:

Refer to

TM-323, "Reduction Pinion Gear"

.

SAT190FB

SAT682D

“F”:

Distance between the surface of output gear
bearing inner race and adjusting spacer mating
surface of output shaft.

F = H

−

 G

SAT683D

SAT684D

ASSEMBLY

TM-301

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

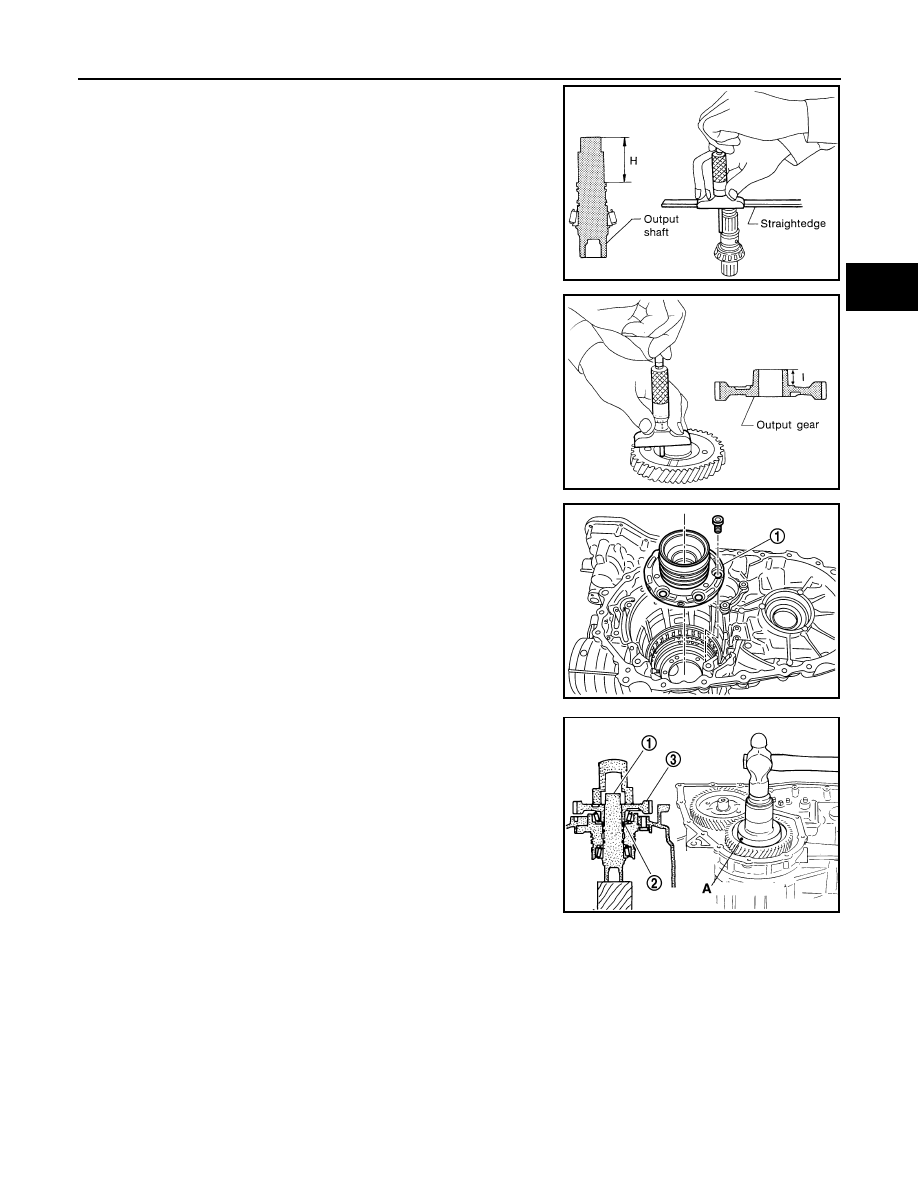

• Measure dimension “H” between end of output shaft and

adjusting spacer mating surface of output shaft.

• Measure dimension “H” in at least two places, and take

the average.

• Calculate dimension “F”.

f.

Measure dimension “I” between end of output gear (adjusting
spacer mating surface) and output gear bearing inner race fitting
surface.
• Measure dimension “I” in at least two places, and take the

average.

g.

Select proper thickness of output gear adjusting spacer.

2.

Install bearing retainer (1) in transaxle case.

3.

Tighten bearing retainer bolts to the specified torque.

4.

Install output shaft (1) and output gear adjusting spacer (2)
selected in step 1-f on transaxle case.

CAUTION:

• Apply ATF to output shaft bearing.
• Do not force output shaft to install or seal ring may be

damaged.

5.

Press output gear bearing inner race on output gear (3).

6.

Set Tool (A) on output gear (3), and press output gear (3) on out-
put shaft (1).

CAUTION:

• Apply ATF to output gear bearing.
• Do not pinch seal ring when output shaft is pressed in.
• Press output gear (3) until output gear (3) fully contacts output gear adjusting space (2).

7.

Set manual shaft in “P” position to secure idler gear.

8.

Tighten lock nut of output gear to the specified torque.

CAUTION:

• Do not reuse lock nut.
• Lock idler gear with parking pawl when tightening lock nut.

F = H

−

 G

SAT685D

Proper spacer thickness

= F

−

 I

−

 [0.03

−

 0.08 mm (0.0012

−

 0.0031 in)]*

(*: Bearing preload)

SAT686D

SCIA5909J

Tool number:

ST35271000

SCIA7080E

TM-302

< DISASSEMBLY AND ASSEMBLY >

[TYPE 1 (4AT: RE4F03B)]

ASSEMBLY

9.

Remove idler gear (1) using Tool (A) to measure output shaft
bearing preload.

10. Measure turning torque of output shaft.

• When measuring turning torque, turn output shaft in both

directions several times to seat bearing rollers correctly.

• If turning torque is out of specification, decrease or

increase thickness of output gear adjusting spacer.

11. Press idler gear on reduction pinion gear.

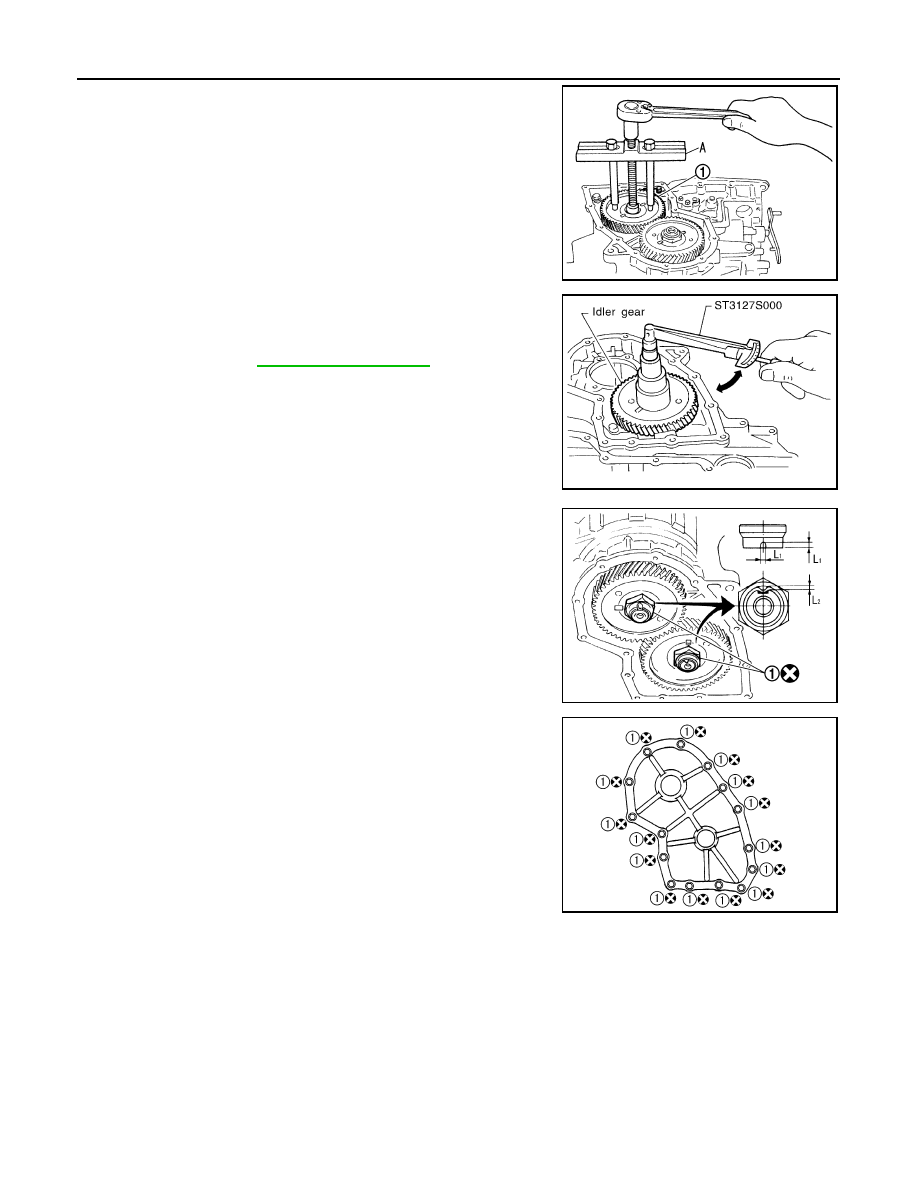

12. Tighten lock nut (1) of idler gear to the specified torque.

13. After properly adjusting turning torque, clinch lock nuts (1) of

idler gear and output gear as shown.

14. Install side cover gasket and side cover on transaxle case.

CAUTION:

• Do not reuse side cover gasket.
• Completely remove all moisture, oil and old gasket, etc.

from the transaxle case and side cover mating surfaces.

15. Tighten side cover bolts (1) to the specified torque.

Tool number:

ST27180001

SCIA5921J

Turning torque of output shaft:

Refer to

TM-323, "Output Shaft"

.

SAT190FB

L

1

: 3 mm (0.12 in) or more

L

2

: 1 mm (0.04 in) or more

SCIA5922J
