SHIFT CONTROL SYSTEM

TM-203

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

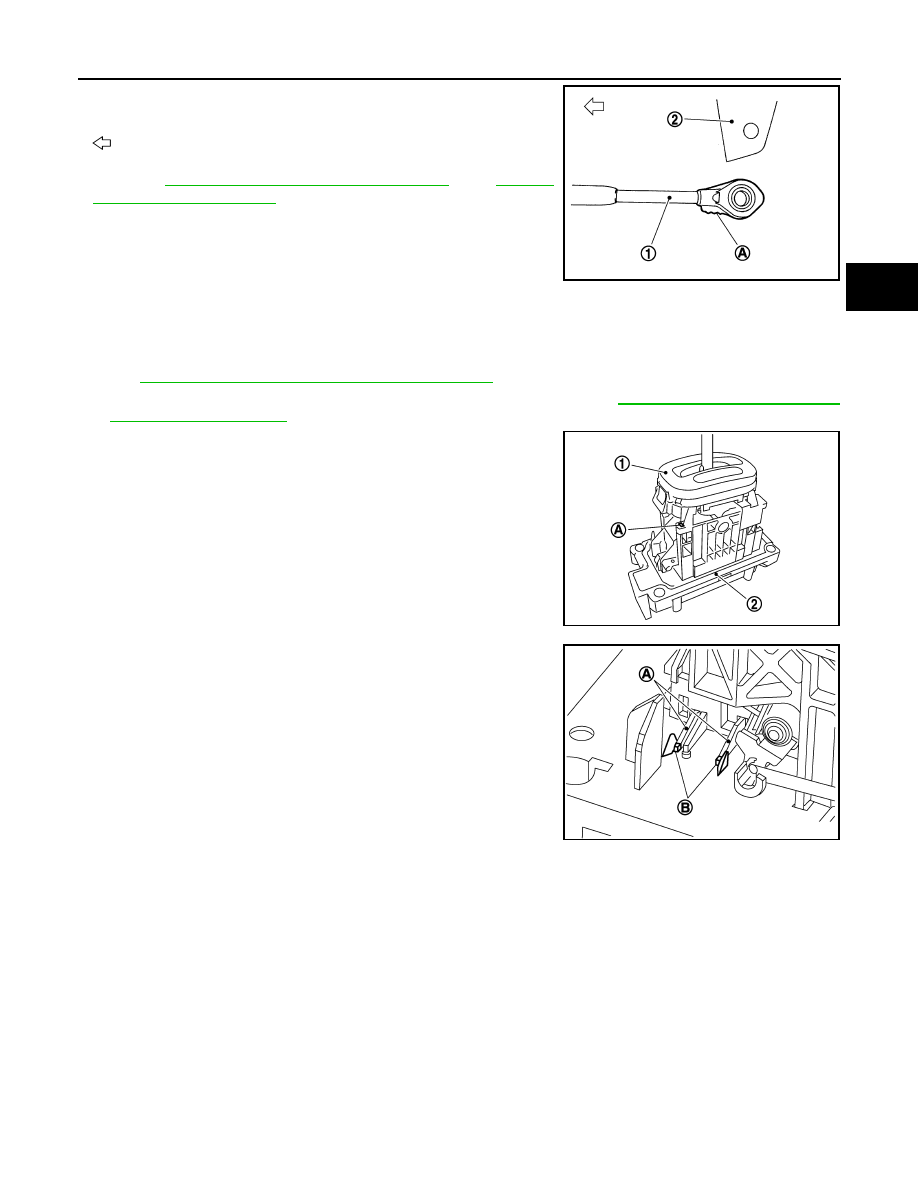

• When installing the control cable (1) to the control device assembly

(2), make sure that the control cable (1) is fully pressed in with the
ribbed surface (A) facing downward from the vehicle.

: Vehicle front

• After installation is completed, adjust and check the A/T position.

Refer to

TM-204, "Adjustment of A/T Position"

 and

TM-204,

"Checking of A/T Position"

.

Control Device Disassembly and Assembly

INFOID:0000000001731376

DISASSEMBLY

NOTE:
Refer to

TM-200, "Control Device Removal and Installation"

 to disassemble.

1.

Remove selector lever knob from control device assembly. Refer to

TM-203, "Selector Lever Knob

Removal and Installation"

.

2.

Remove position lamp from position indicator plate (1).

3.

Insert a flat-bladed screwdriver to (A) (at 4 locations) as shown,
and bend each hook slightly to raise position indicator plate (1)
and remove from control device assembly (2).

4.

Remove bracket from control device assembly (2).

5.

Remove A/T device harness connector from control device
assembly (2).

6.

Release tabs (A) on shift lock solenoid and park position switch
assembly from hooks (B) on control device assembly to shift
lock solenoid and park position switch assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

Selector Lever Knob Removal and Installation

INFOID:0000000001731377

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.

SCIA6253E

SCIA6969E

SCIA6977E

TM-204

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

SHIFT CONTROL SYSTEM

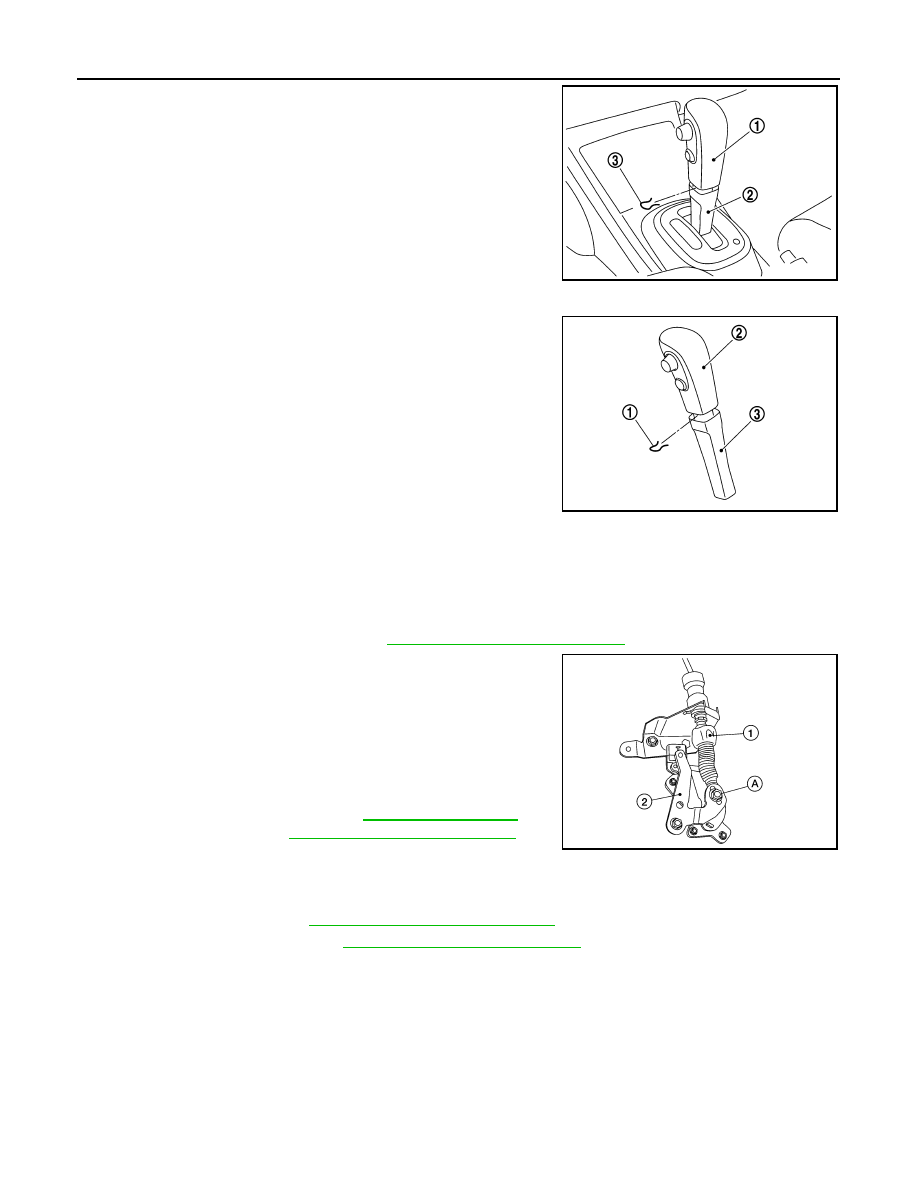

1.

Place the selector lever knob (1) in “N” position.

2.

Slide knob cover (2) downward.

3.

Pull out lock pin (3) from selector lever knob (1).

4.

Remove selector lever knob (1) and knob cover (2) as a set from
selector lever.

CAUTION:

Do not push selector button.

INSTALLATION

1.

Insert lock pin (1) to selector lever knob (2).

2.

Install knob cover (3) to selector lever knob (2).

3.

Place the selector lever in “N” position.

4.

Install selector lever knob over selector lever until a click is felt.

CAUTION:

• Do not tilt selector lever knob when installing. Install it

straight, and do not tap or apply any shock to install it.

• Do not push selector button.

Adjustment of A/T Position

INFOID:0000000001731378

Move selector lever from “P” position to “1” position. You should be able to feel the detents in each position. If
the detents cannot be felt or if the position indicator is improperly aligned, the control cable needs adjustment.

CAUTION:

Make sure that parking brake is applied before adjustment.

1.

Remove the air duct assembly. Refer to

EM-27, "Removal and Installation"

.

2.

Remove the control cable nut (A) and control cable (1) and
place the manual lever (2) in the "P' position.

3.

Place selector lever in “P” position.

4.

Hold control cable (1) at the end and pull it with a force of 9.8 N
(approximately 1 kg, 2.2 lb). Release the control cable and tem-
porarily tighten control cable nut (A).

5.

Tighten control cable nut (A) to the specified torque.

CAUTION:

Secure manual lever when tightening nut.

6.

Move selector lever from “P” to “1” position again. Make sure that selector lever moves smoothly.

7.

Check A/T position. Refer to

TM-204, "Checking of A/T Position"

.

8.

Install air duct assembly. Refer to

EM-27, "Removal and Installation"

.

Checking of A/T Position

INFOID:0000000001731379

1.

Place selector lever in “P” position, and turn ignition switch ON (Do not start engine).

2.

Make sure selector lever can be shifted to other than “P” position when brake pedal is depressed. Also
make sure selector lever can be shifted from “P” position only when brake pedal is depressed.

3.

Move selector lever and check for excessive effort, sticking, noise or rattle.

4.

Confirm selector lever stops at each position with the feel of engagement when it is moved through all the
positions. Check whether or not the actual position selector lever is in matches the position shown by the
shift position indicator and the transaxle.

SCIA6971E

SCIA6972E

Control cable nut

: Refer to

TM-200, "Control De-

vice Removal and Installation"

.

WCIA0635E

SHIFT CONTROL SYSTEM

TM-205

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

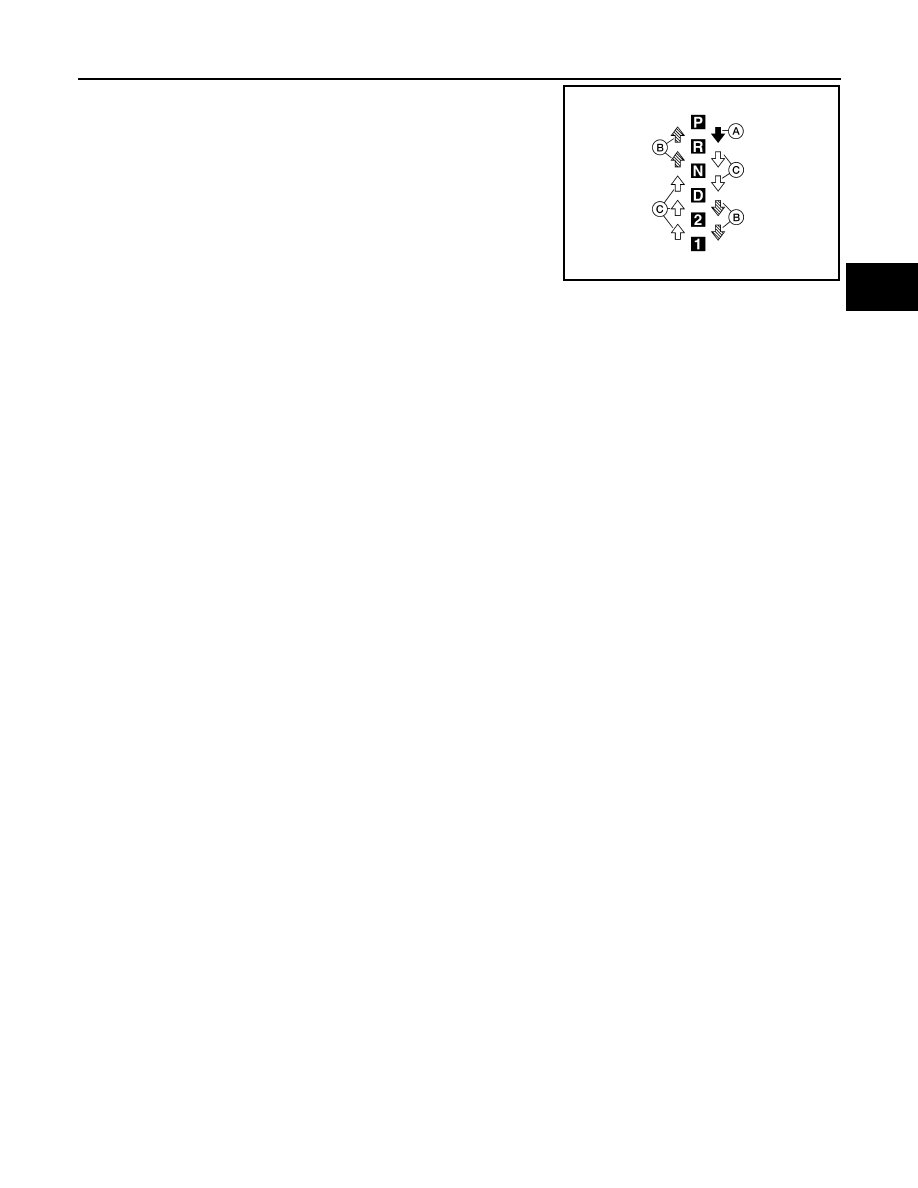

The method of operating selector lever to individual positions
correctly should be as shown.
• (A): Press selector button to operate selector lever, while

depressing the brake pedal.

• (B): Press selector button to operate selector lever.
• (C): Selector lever can be operated without pressing selector

button.

6.

Confirm back-up lamps illuminate only when selector lever is
placed in “R” position. Confirm back-up lamps do not illuminate
when selector lever is in “P” or “N” position even if it is pushed
toward “R” position without pressing selector button.

7.

Confirm engine can only be started with selector lever in “P” and
“N” positions.

8.

Make sure A/T is locked completely in “P” position.

WCIA0636E

TM-206

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

KEY INTERLOCK CABLE

KEY INTERLOCK CABLE

Removal and Installation

INFOID:0000000001731380

COMPONENTS

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal and installation.

1.

Place the selector lever in the “N” position.

2.

Remove the selector lever knob. Refer to

TM-203, "Selector Lever Knob Removal and Installation"

.

3.

Remove the center console assembly. Refer to

IP-11, "Removal and Installation"

.

4.

Slide the slider (A) toward the casing cap (B) while pressing tabs
(C) on the slider to separate the slider (A) from the adjust holder
(D).

5.

Remove the casing cap (B) from the cable bracket on the control
device assembly.

6.

Remove the key interlock cable from the key interlock rod (E).

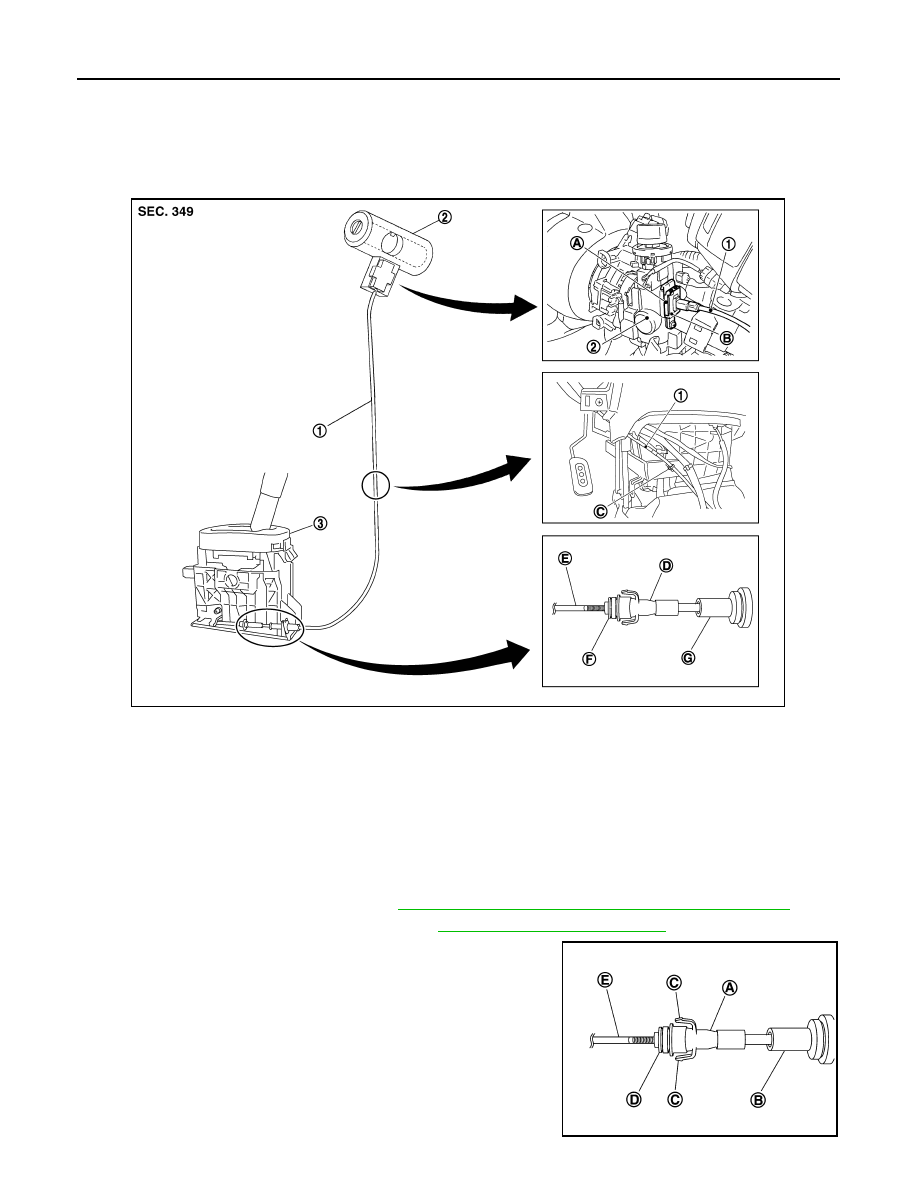

1.

Key interlock cable

2.

Key cylinder

3.

Control device assembly

A.

Lock plate

B.

Holder

C.

Clip

D.

Slider

E.

Key interlock rod

F.

Adjust holder

G.

Casing cap

WCIA0621E

SCIA6975E
