DIFFERENTIAL SIDE OIL SEAL

TM-199

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

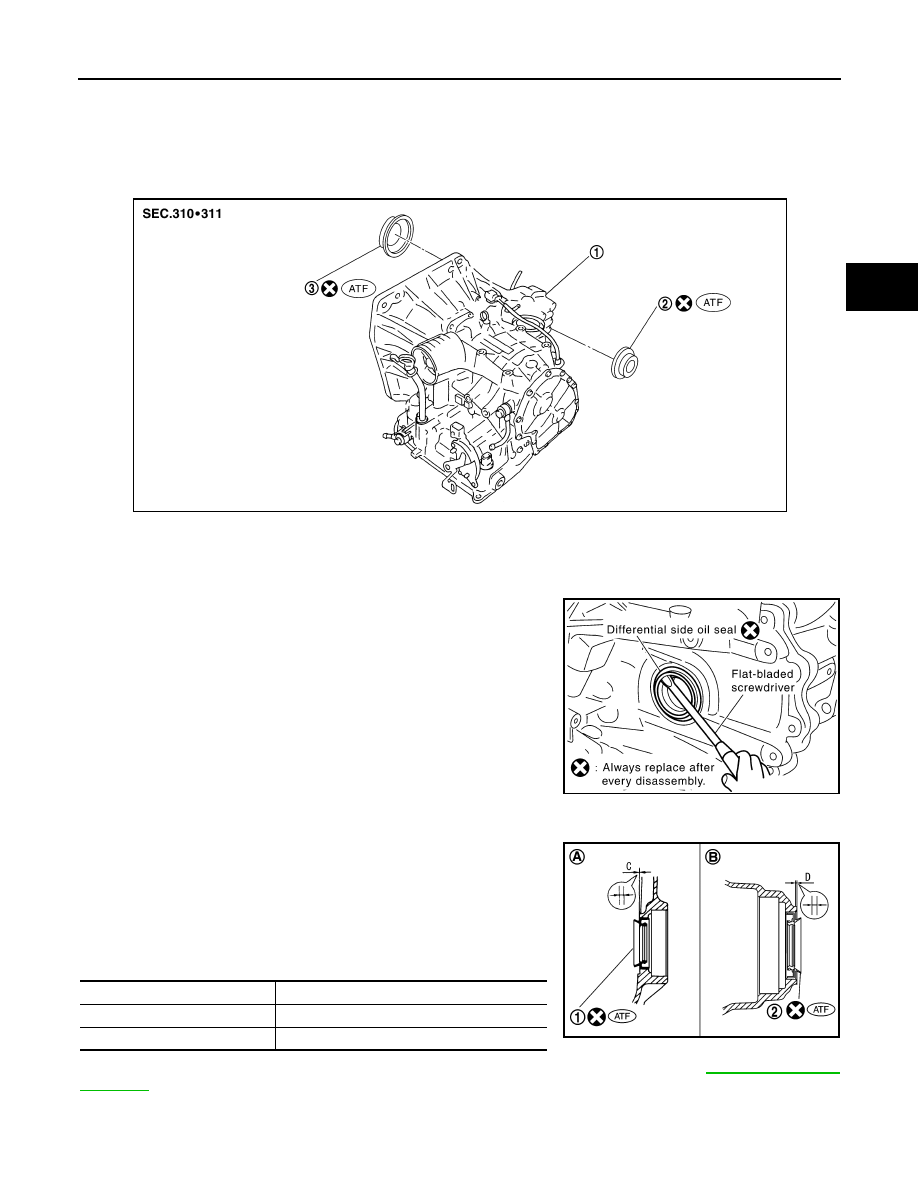

DIFFERENTIAL SIDE OIL SEAL

Differential Side Oil Seal

INFOID:0000000001733162

COMPONENTS

REMOVAL

Refer to figure for differential side oil seals removal procedure.
• Remove differential side oil seals using suitable tool.

CAUTION:

Do not scratch transaxle case and converter housing.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Drive each differential side oil seal (1) and (2) evenly into the tran-

saxle case side (A) using Tools and converter housing side (B)
using suitable tool to specified dimension “C” or “D”.

Unit: mm (in)

After installing differential side oil seal, check A/T fluid leakage and A/T fluid level. Refer to

TM-171, "Checking

A/T Fluid"

.

1.

A/T

2.

LH differential side oil seal

3.

RH differential side oil seal

SCIA6061J

SCIA4857E

Tool number

: ST35325000

: KV31103000

Engine type

HR16DE

Dimension “C”

0

±

 0.5 (0

±

 0.020)

Dimension “D”

1.1

±

 0.5 (0.043

±

 0.020)

SCIA7226E

TM-200

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

SHIFT CONTROL SYSTEM

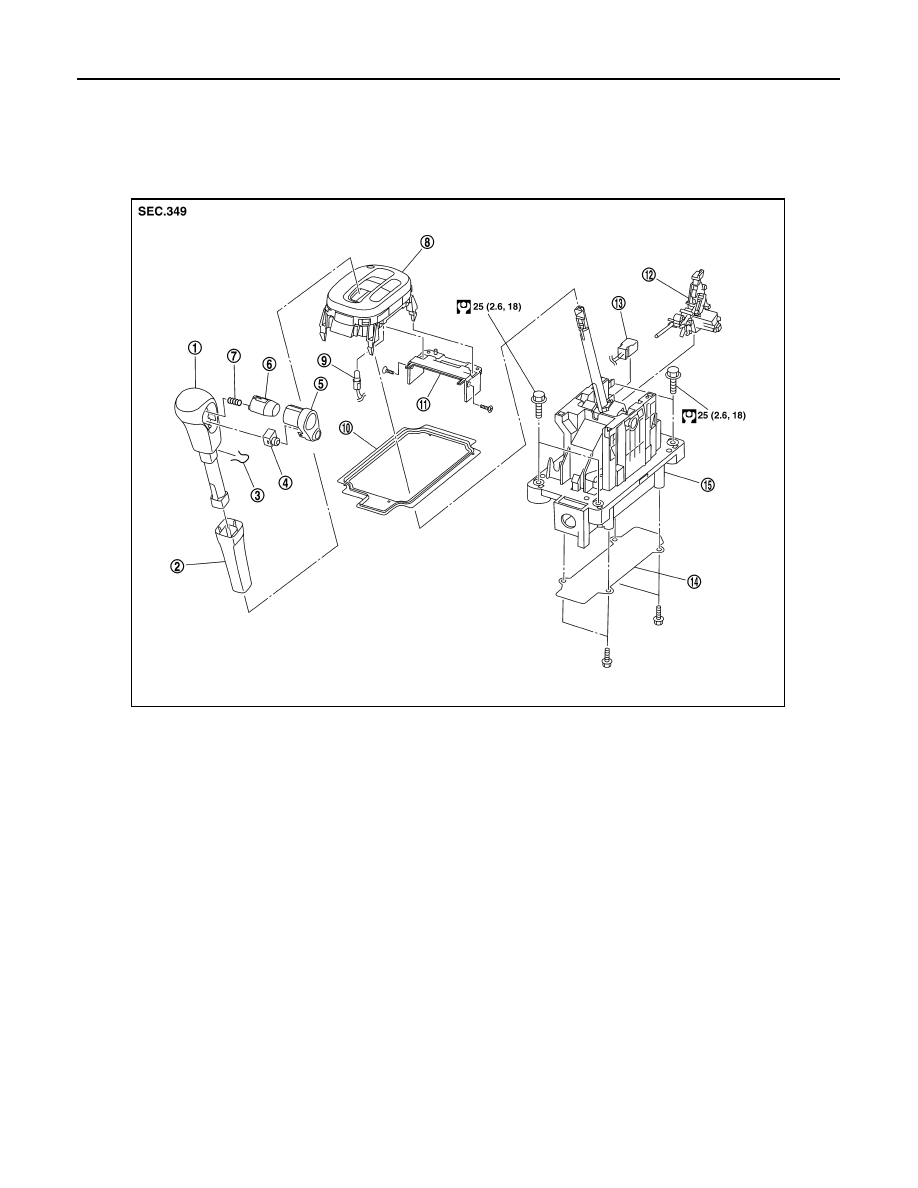

SHIFT CONTROL SYSTEM

Control Device Removal and Installation

INFOID:0000000001731375

CONTROL DEVICE COMPONENTS

CONTROL CABLE COMPONENTS

1.

Selector lever knob

2.

Knob cover

3.

Lock pin

4.

Overdrive control switch

5.

Knob finisher

6.

Selector button

7.

Selector button return spring

8.

Position indicator plate

9.

Position lamp

10. Dust cover

11.

Bracket

12. Shift lock solenoid and park position

switch assembly

13. A/T device harness connector

14. Plate

15. Control device assembly

WCIA0638E

SHIFT CONTROL SYSTEM

TM-201

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

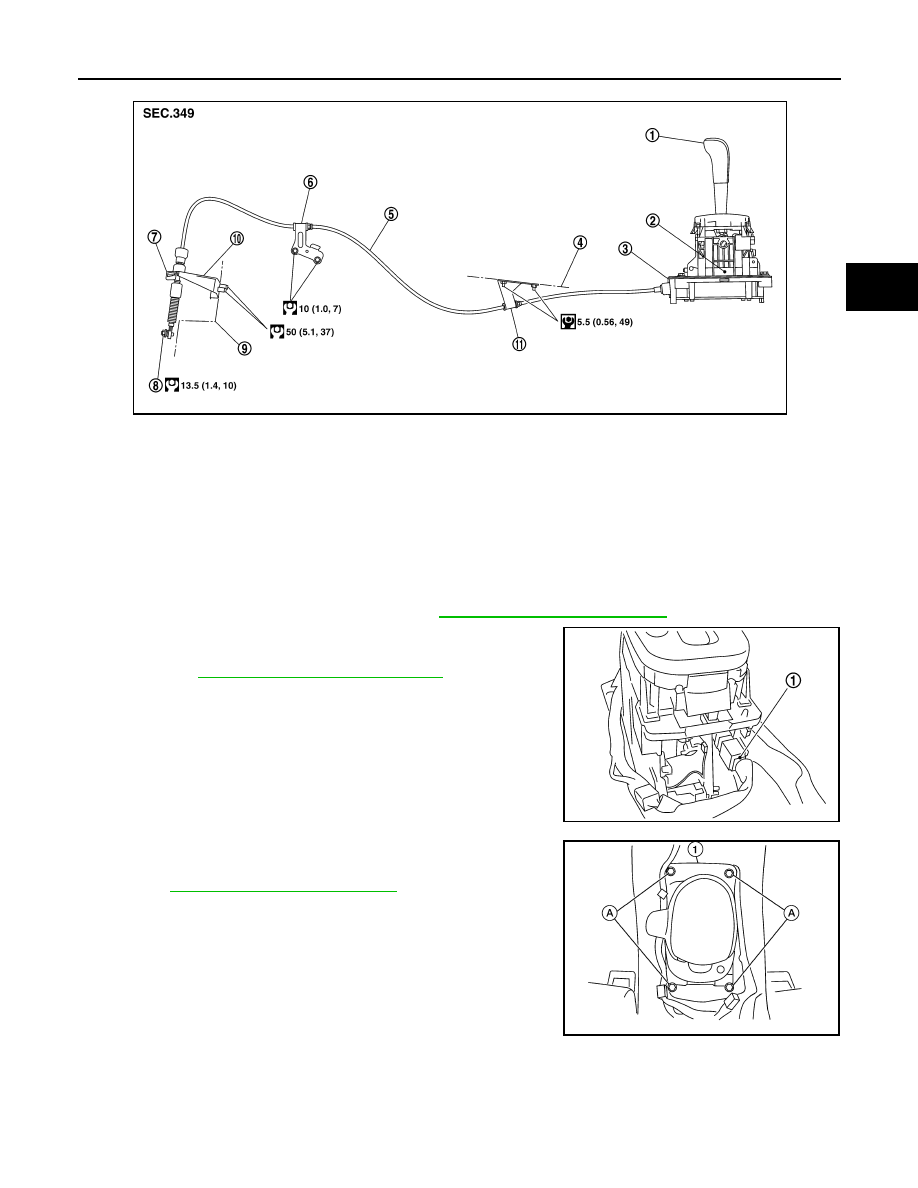

REMOVAL

CAUTION:

Make sure that parking brake is applied before removal/installation.

1.

Place the selector lever in the “N” position.

2.

Remove the center console assembly. Refer to

IP-11, "Removal and Installation"

.

3.

Disconnect the A/T device harness connector (1).

4.

Remove the key interlock cable from the control device assem-
bly. Refer to

TM-206, "Removal and Installation"

.

5.

Remove the bolts (A) from the control device assembly (1).

6.

Remove exhaust front tube, center muffler and heat plates.
Refer to

EX-5, "Removal and Installation"

.

1.

Selector lever knob

2.

Control device assembly

3.

Lock plate

4.

Floor panel

5.

Control cable

6.

Bracket

7.

Lock plate

8.

Lock nut

9.

A/T assembly

10. Bracket

11.

Bracket

WCIA0640E

SCIA6965E

WCIA0609E

TM-202

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

SHIFT CONTROL SYSTEM

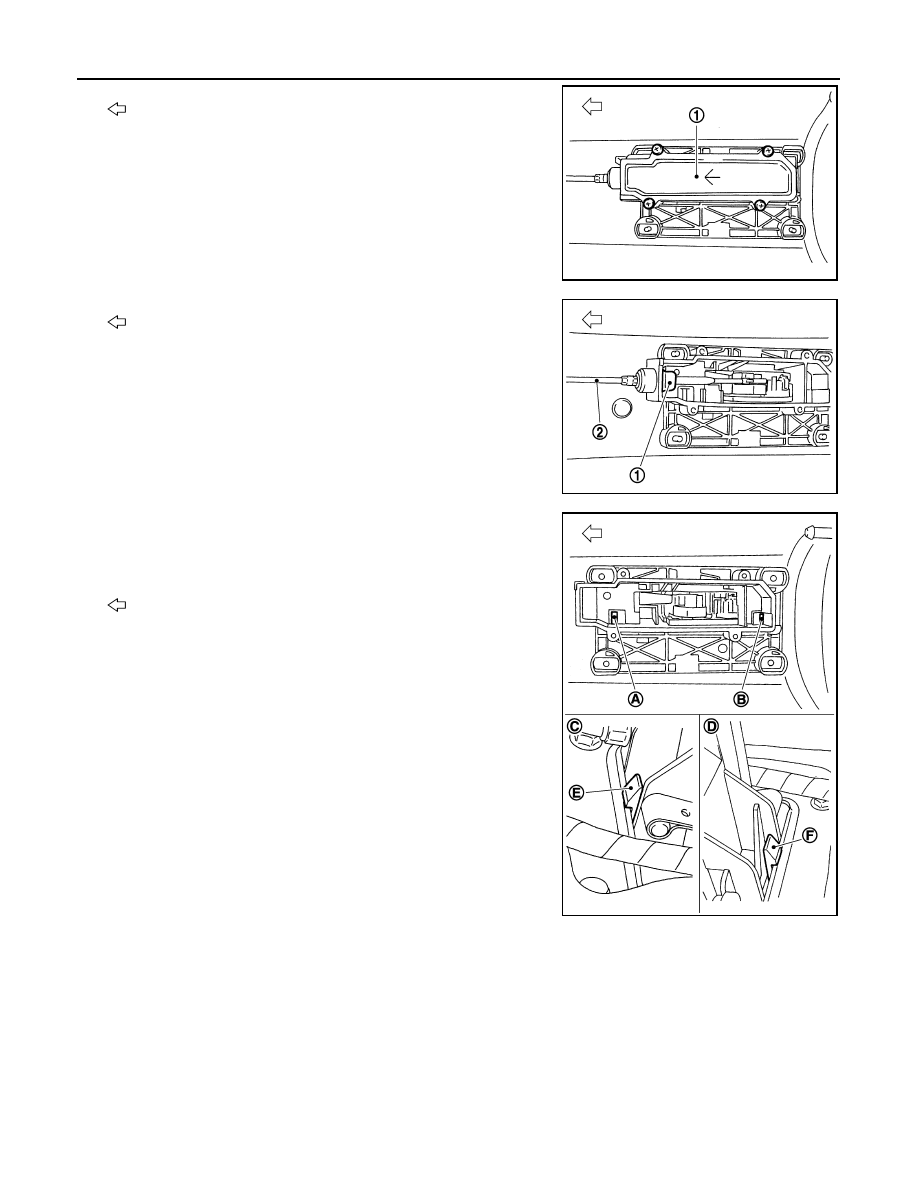

7.

Remove the plate (1) from the control device assembly.

: Vehicle front

8.

Remove the lock plate (1) from the control cable (2).

: Vehicle front

9.

Remove the control cable (2) from the control device assembly.

10. Insert flat-bladed screwdrivers at points (A) and (B) as shown,

and press both tabs (E) and (F) at the front (C) and rear (D)
slightly toward the center of the control device assembly to
remove the control device assembly from the underside of the
vehicle.

: Vehicle front

INSTALLATION

 Installation is in the reverse order of removal.

SCIA6967E

SCIA6968E

SCIA6970E
