Nissan Tiida C11. Manual - part 1286





PARK/NEUTRAL POSITION (PNP) SWITCH

TM-195

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

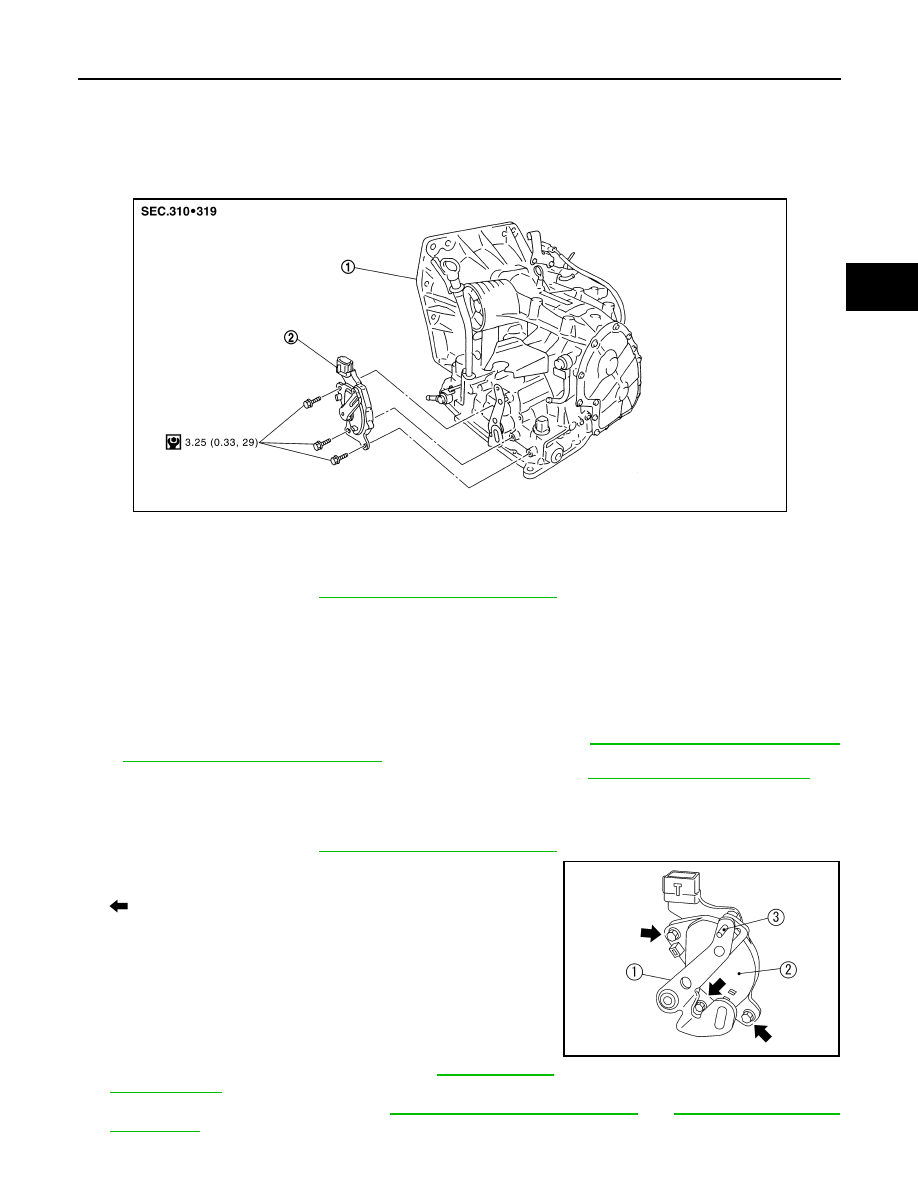

PARK/NEUTRAL POSITION (PNP) SWITCH

Park/Neutral Position (PNP) Switch

INFOID:0000000001733159

COMPONENTS

REMOVAL

1.

Remove the air duct. Refer to

EM-27, "Removal and Installation"

.

2.

Disconnect the PNP switch connector.

3.

Disconnect the control cable from the PNP switch.

4.

Remove the PNP switch bolts and the PNP switch.

INSTALLATION

Installation is in the reverse order of removal.
• Align PNP switch position when installing.
• After installation is completed, check and adjust A/T position. Refer to

TM-204, "Checking of A/T Position"

and

TM-204, "Adjustment of A/T Position"

.

• After installation is completed, check continuity of PNP switch. Refer to

TM-46, "Component Inspection"

.

PARK/NEUTRAL POSITION (PNP) SWITCH ADJUSTMENT

1.

Set selector lever and manual shaft (1) in “N” position.

2.

Remove the air duct. Refer to

EM-27, "Removal and Installation"

.

3.

Remove control cable from manual shaft (1).

4.

Loosen PNP switch bolts.

: Bolt

5.

Insert the pin (3) [4 mm (0.16 in) dia.] straight into manual shaft
(1) adjustment hole.

6.

Rotate PNP switch (2) until the pin (3) can also be inserted
straight into hole in PNP switch (2).

7.

Tighten PNP switch bolts to the specified torque.

8.

Remove the pin (3) from adjustment hole after adjusting PNP
switch (2).

9.

Check continuity of PNP switch (2). Refer to

TM-46, "Compo-

nent Inspection"

.

10. Adjust and check A/T position. Refer to

TM-204, "Checking of A/T Position"

 and

TM-204, "Adjustment of

A/T Position"

.

1.

A/T

2.

PNP switch

SCIA6204J

SCIA6218J

TM-196

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

PARK/NEUTRAL POSITION (PNP) SWITCH

11. Reinstall any parts removed.

REVOLUTION SENSOR

TM-197

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

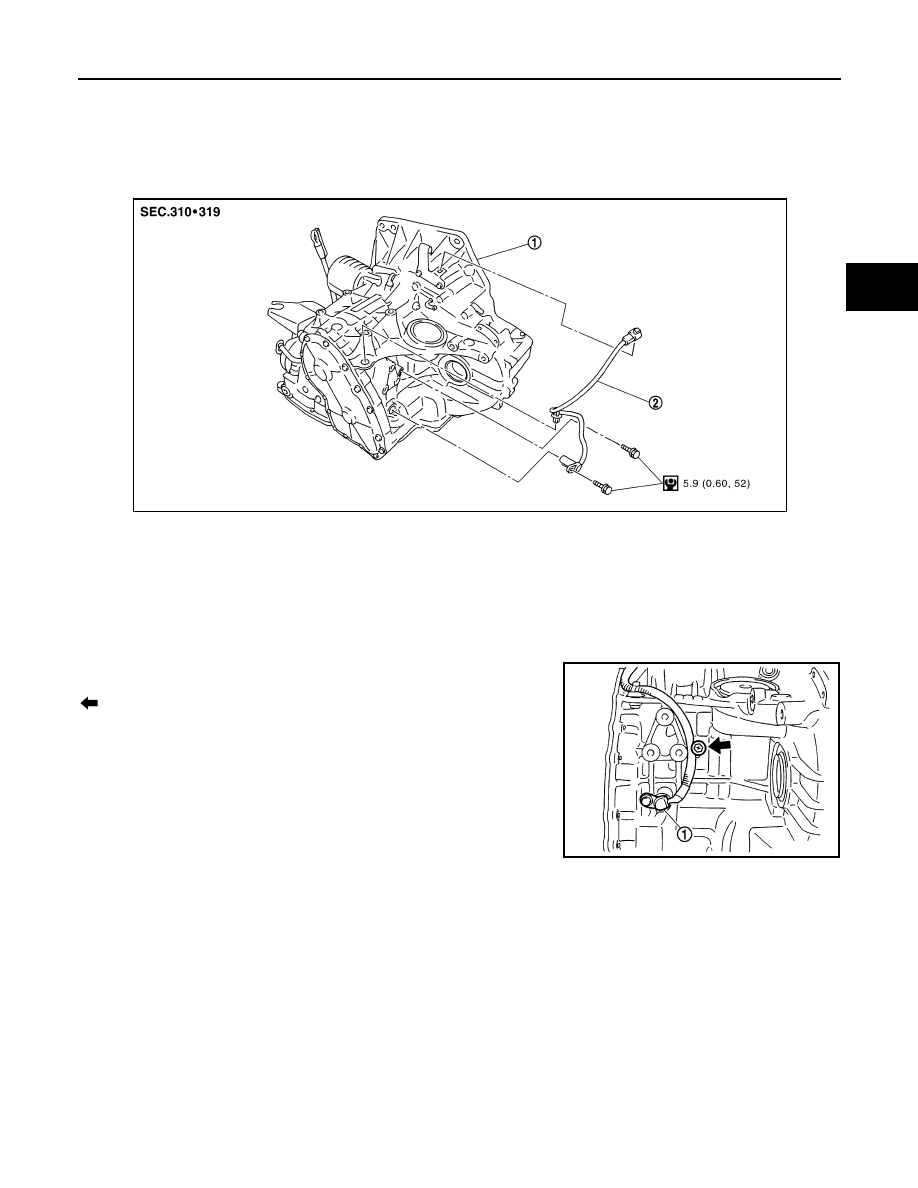

REVOLUTION SENSOR

Revolution Sensor

INFOID:0000000001733160

COMPONENTS

REMOVAL

Refer to the figure for revolution sensor removal procedure.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Ensure revolution sensor harness is firmly secured with bolt.
(1): Revolution sensor

: Bolt

Turbine Revolution Sensor (Power Train Revolution Sensor)

INFOID:0000000001733161

COMPONENTS

1.

A/T

2.

Revolution sensor

SCIA6205J

SCIA6518J

TM-198

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

REVOLUTION SENSOR

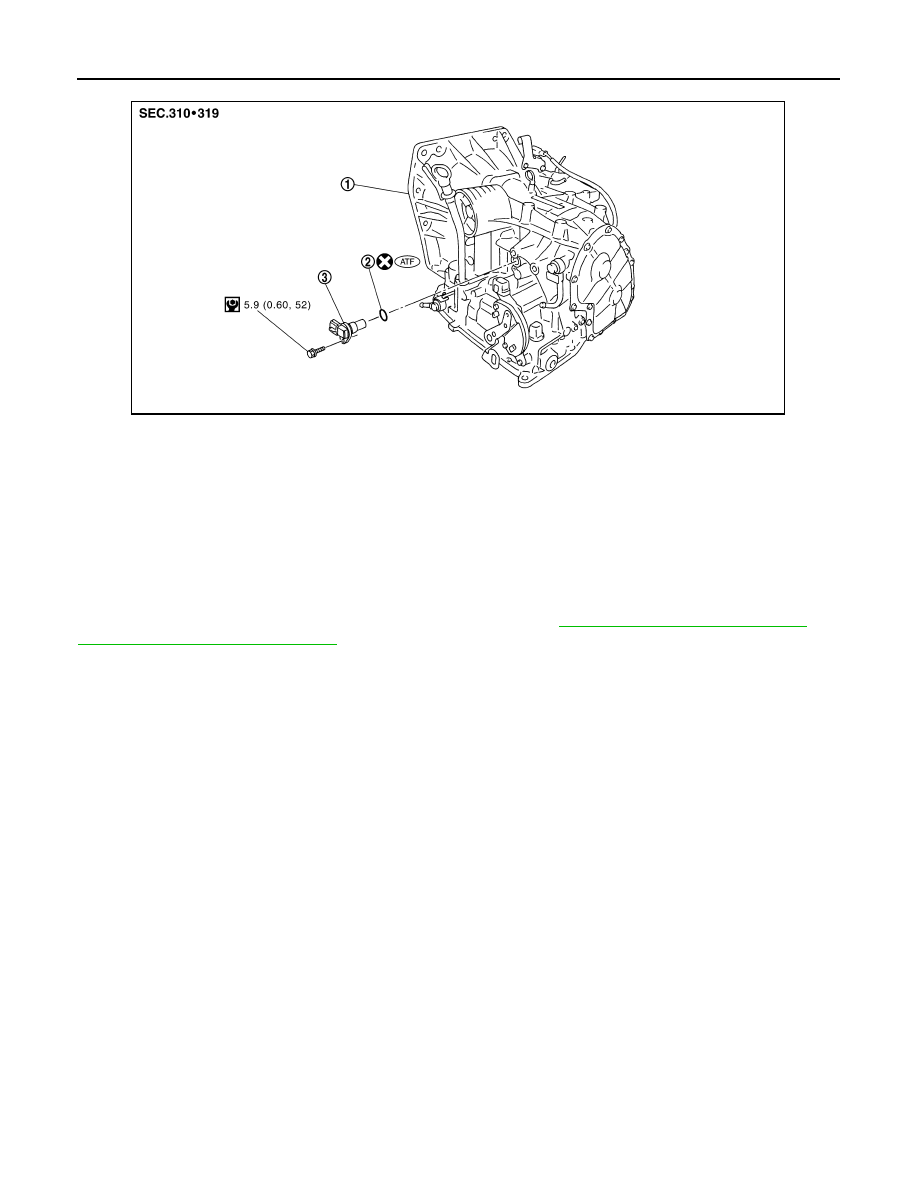

REMOVAL

Refer to the figure for turbine revolution sensor (power train revolution sensor) removal procedure.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.
• Apply ATF to O-ring.
After installing control cable, check and adjust A/T position. Refer to

TM-204, "Checking of A/T Position"

 and

TM-204, "Adjustment of A/T Position"

.

1.

A/T

2.

O-ring

3.

Turbine revolution sensor (power
train revolution sensor)

SCIA6207J
