Nissan Tiida C11. Manual - part 1284

ROAD TEST

TM-187

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

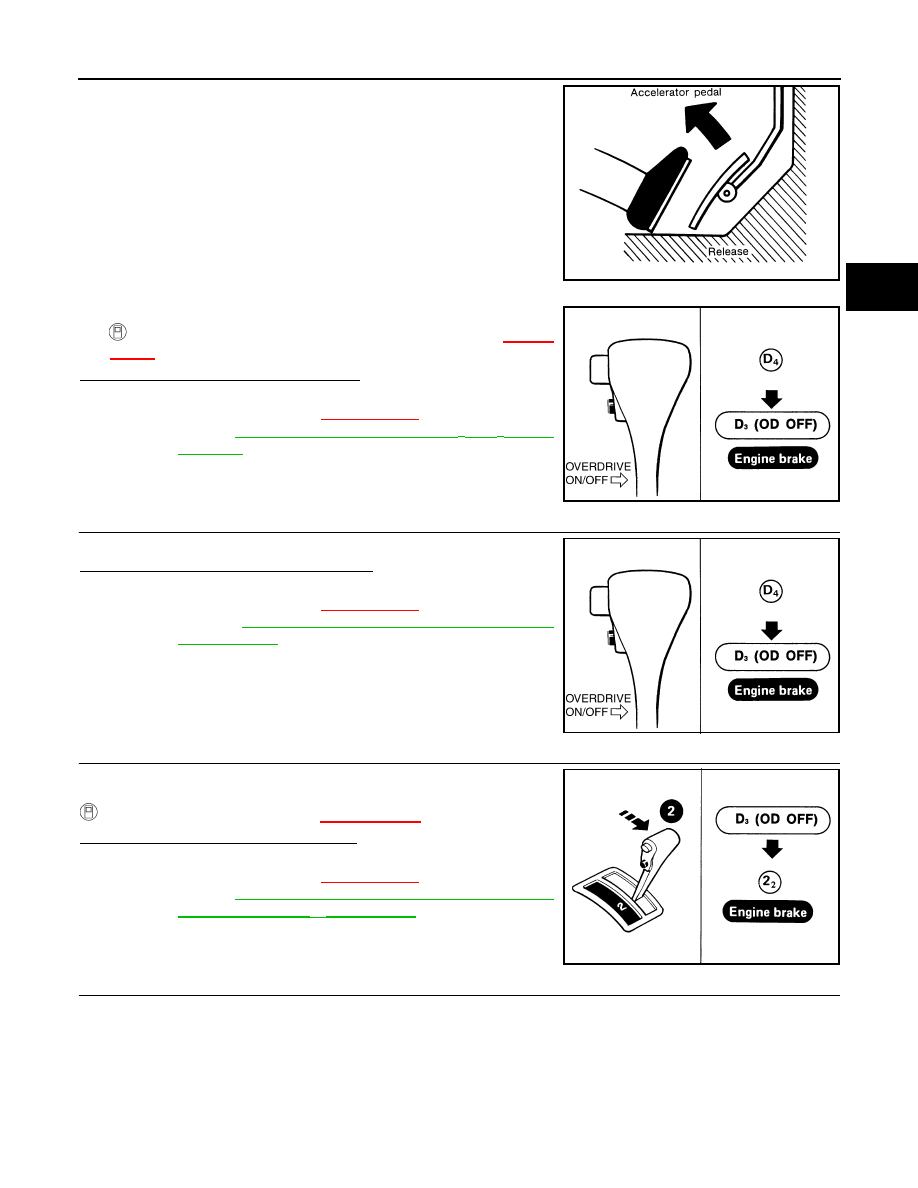

4.

Release accelerator pedal.

5.

Push overdrive control switch. (OD OFF indicator lamp is on.)

  Read gear position and vehicle speed. Refer to

XX-XX,

"*****"

.

Does A/T shift from D

4

 to D

3

 (OD OFF)?

YES

>> GO TO 2.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-154, "A/T Does Not Shift: D

4

→

 D

3

, When

OD OFF"

.

• Continue “Road Test”.

2.

CHECK ENGINE BRAKE

Check engine brake.

Does vehicle decelerate by engine brake?

YES

>> GO TO 3.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-158, "Vehicle Does Not Decelerate by

Engine Brake"

.

• Continue “Road Test”.

3.

CHECK SHIFT-DOWN (D

3

 TO 2

2

)

Move selector lever from “D” to “2” position while driving in D

3

 (OD

OFF).

 Read gear position. Refer to

XX-XX, "*****"

.

Does A/T shift from D

3

 (OD OFF) to 2

2

?

YES

>> GO TO 4.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-155, "A/T Does Not Shift: D

3

→

 2

2

, When

Selector Lever "D"

→

 "2" Position"

  .

• Continue “Road Test”.

4.

CHECK ENGINE BRAKE

SAT813A

SCIA5469E

SCIA5469E

SAT791GA

TM-188

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

ROAD TEST

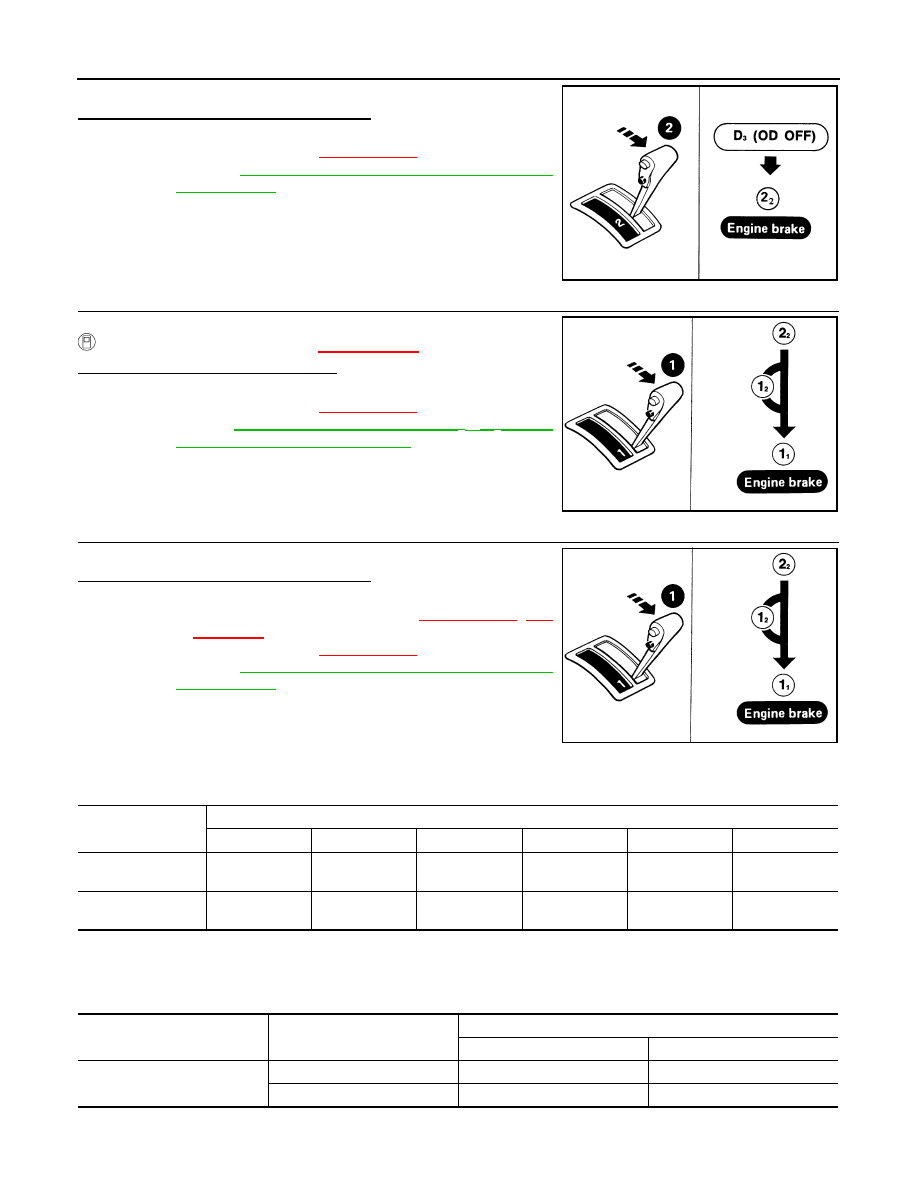

Check engine brake.

Does vehicle decelerate by engine brake?

YES

>> GO TO 5.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-158, "Vehicle Does Not Decelerate by

Engine Brake"

.

• Continue “Road Test”.

5.

CHECK SHIFT-DOWN (2

2

 TO 1

1

)

Move selector lever from “2” to “1” position while driving in 2

2

.

 Read gear position. Refer to

XX-XX, "*****"

.

Does A/T shift from 2

2

 to 1

1

 position?

YES

>> GO TO 6.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-156, "A/T Does Not Shift: 2

2

→

  1

1

, When

Selector Lever "2"

→

 "1" Position"

  .

• Continue “Road Test”.

6.

CHECK ENGINE BRAKE

Check engine brake.

Does vehicle decelerate by engine brake?

YES

>> 1.

Stop vehicle.

2.

Perform self-diagnosis. Refer to

XX-XX, "*****"

,

XX-

XX, "*****"

.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-158, "Vehicle Does Not Decelerate by

Engine Brake"

.

• Stop “Road Test”.

Vehicle Speed When Shifting Gears

INFOID:0000000001696175

• At half throttle, the accelerator opening is 4/8 of the full opening.

Vehicle Speed When Performing and Releasing Complete Lock-up

INFOID:0000000001696176

SAT791GA

SAT778B

SAT778B

Throttle position

Vehicle speed [km/h (MPH)]

D

1



→

 D

2

D

2



→

 D

3

D

3



→

 D

4

D

4



→

 D

3

D

3



→

 D

2

D

2



→

 D

1

Full throttle

51 - 59

(32 - 37)

97 - 105

(60 - 65)

 154 - 162

(96 - 101)

150 - 158

(93 - 98)

87 - 95

(54 - 59)

41 - 49

(25 - 30)

Half throttle

31 - 39

(19 - 24)

60 - 68

(37 - 42)

122 - 130

(76 - 81)

63 - 71

(39 - 44)

36 - 44

(22 - 27)

5 - 13

(3 - 8)

Throttle position

Selector lever position

Vehicle speed [km/h (MPH)]

Lock-up “ON”

Lock-up “OFF”

2.0 / 8

D position

76 - 84 (47 - 52)

56 - 64 (35 - 40)

D position (OD OFF)

86 - 94 (53 - 58)

83 - 91 (52 - 57)

TRANSMISSION CONTROL MODULE

TM-189

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

ON-VEHICLE REPAIR

TRANSMISSION CONTROL MODULE

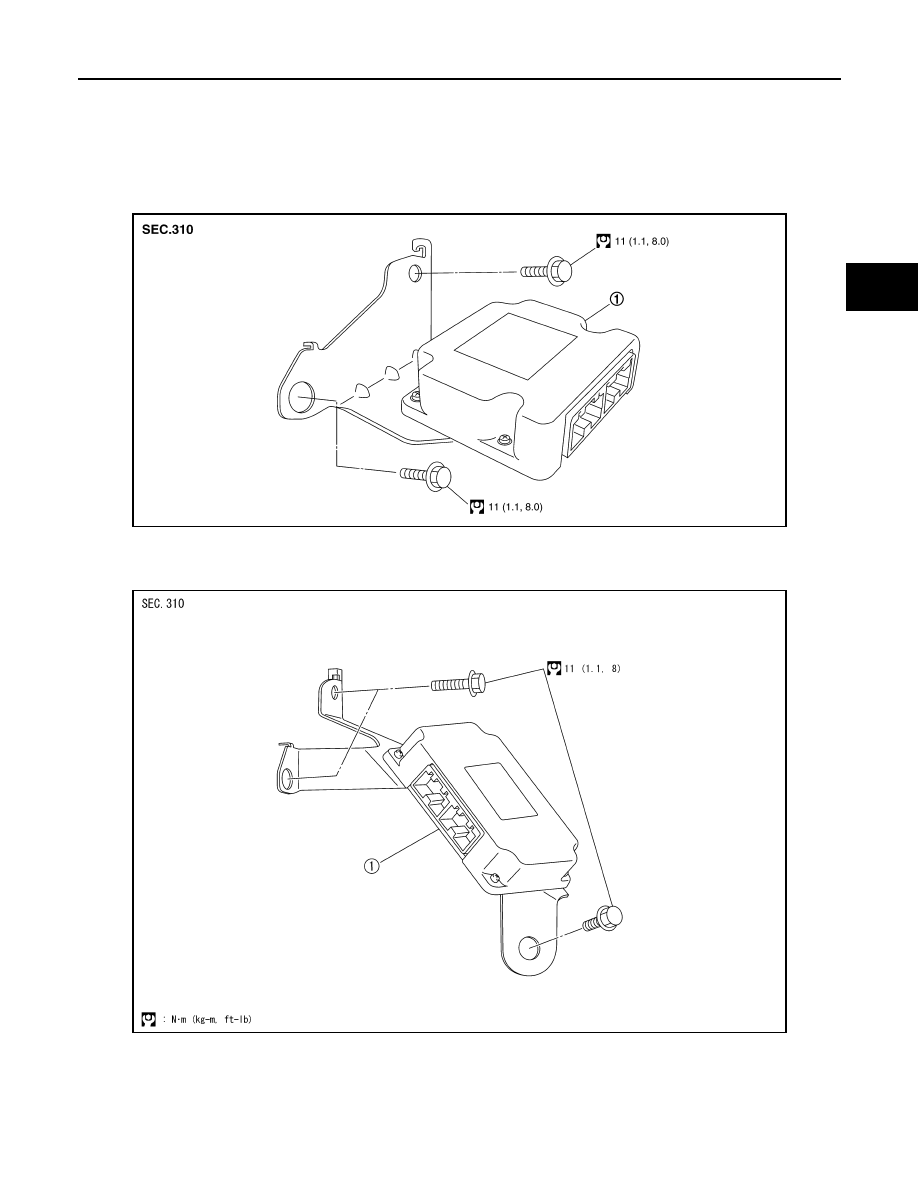

Exploded View

INFOID:0000000001731388

LHD MODELS

RHD MODELS

Removal and Installation

INFOID:0000000001731370

NOTE:

SCIA6963E

1.

TCM

SCIA6092J

1.

TCM

TM-190

< ON-VEHICLE REPAIR >

[TYPE 1 (4AT: RE4F03B)]

TRANSMISSION CONTROL MODULE

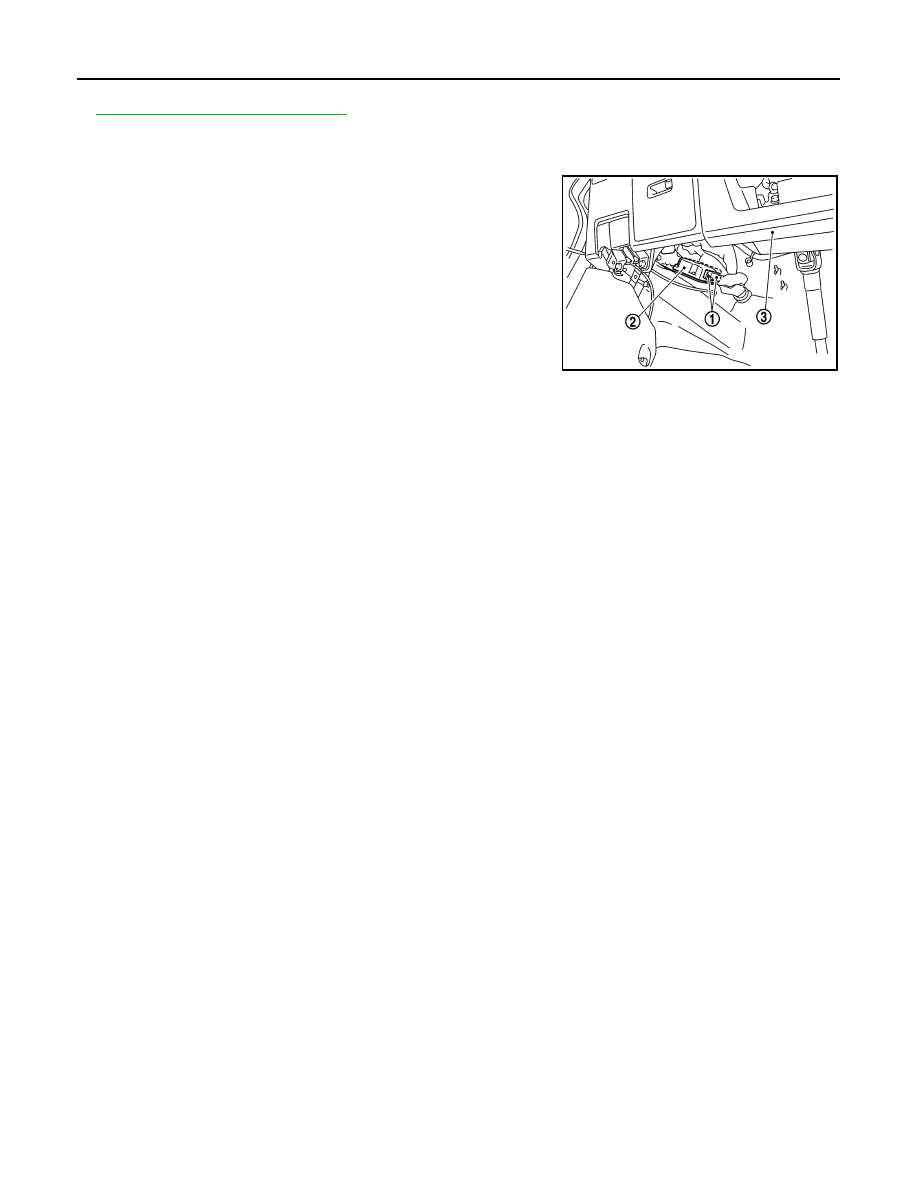

Removal of LHD is shown. TCM for RHD is in the same location and uses the same procedure as LHD. Refer
to

TM-30, "Component Parts Location"

 for location detail.

REMOVAL

1.

Disconnect the battery negative terminal.

2.

Disconnect TCM harness connectors (1) from TCM (2).
• Instrument lower finisher (3)

3.

Remove TCM (2).

INSTALLATION

Installation is in the reverse order of removal.

SCIA7167E
