ROAD TEST

TM-183

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

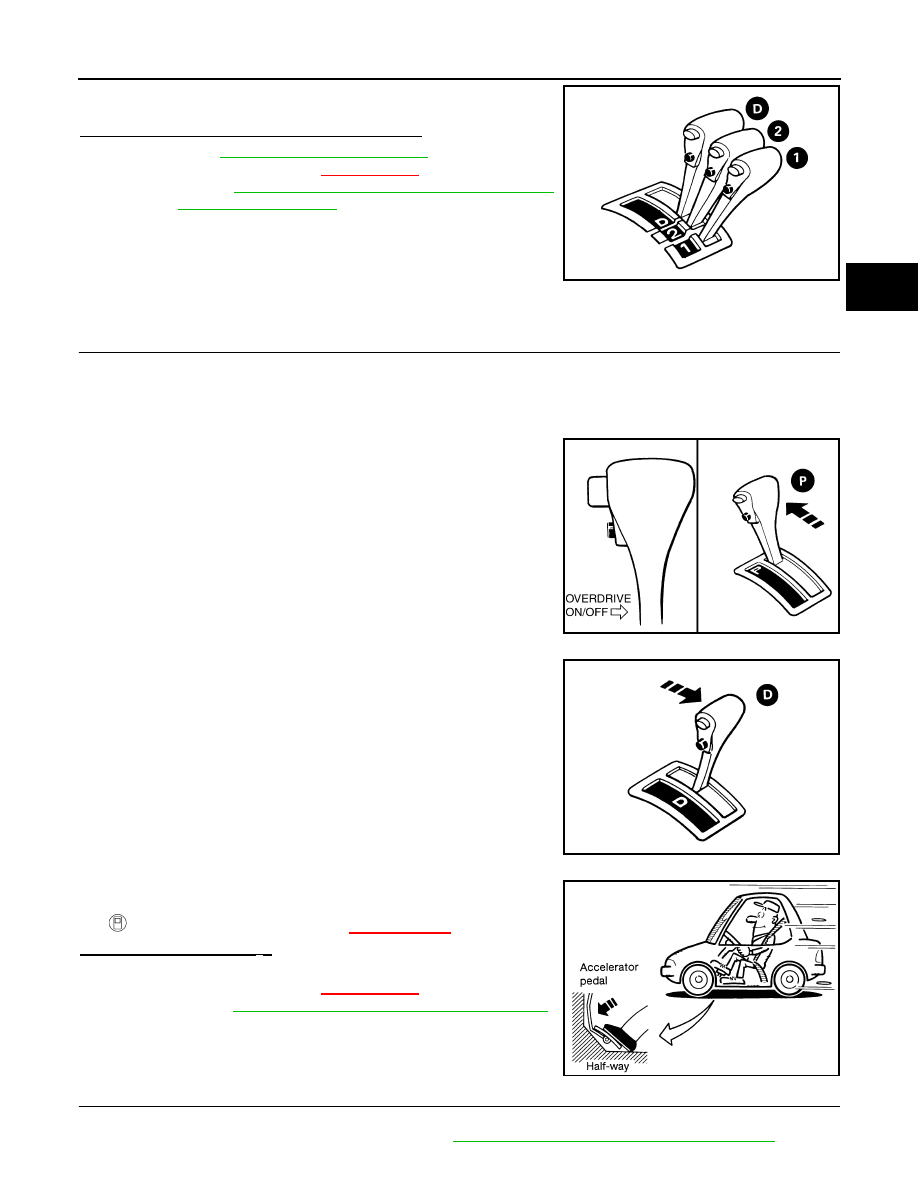

Move selector lever to “D”, “2” and “1” positions and check if vehicle
creeps forward.
Does vehicle creep forward in all three positions?

YES

>> GO TO

TM-183, "Cruise Test - Part 1"

.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-144, "Vehicle Does Not Creep Forward in

"D", "2" or "1" Position"

.

• Continue “Road Test”.

Cruise Test - Part 1

INFOID:0000000001696172

1.

CHECK STARTING GEAR (D

1

) POSITION

1.

Drive vehicle for approximately 10 minutes to warm engine oil and ATF up to operating temperature.

2.

Park vehicle on flat surface.

3.

Push overdrive control switch. (OD OFF indicator lamp is off.)

4.

Move selector lever to “P” position.

5.

Start engine.

6.

Move selector lever to “D” position.

7.

Accelerate vehicle by constantly depressing accelerator pedal
half-way.

 Read gear position. Refer to

XX-XX, "*****"

.

Does vehicle start from D

1

?

YES

>> GO TO 2.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-145, "Vehicle Cannot Be Started from D

1

"

.

• Continue “Road Test”.

2.

CHECK SHIFT-UP (D

1

TO D

2

)

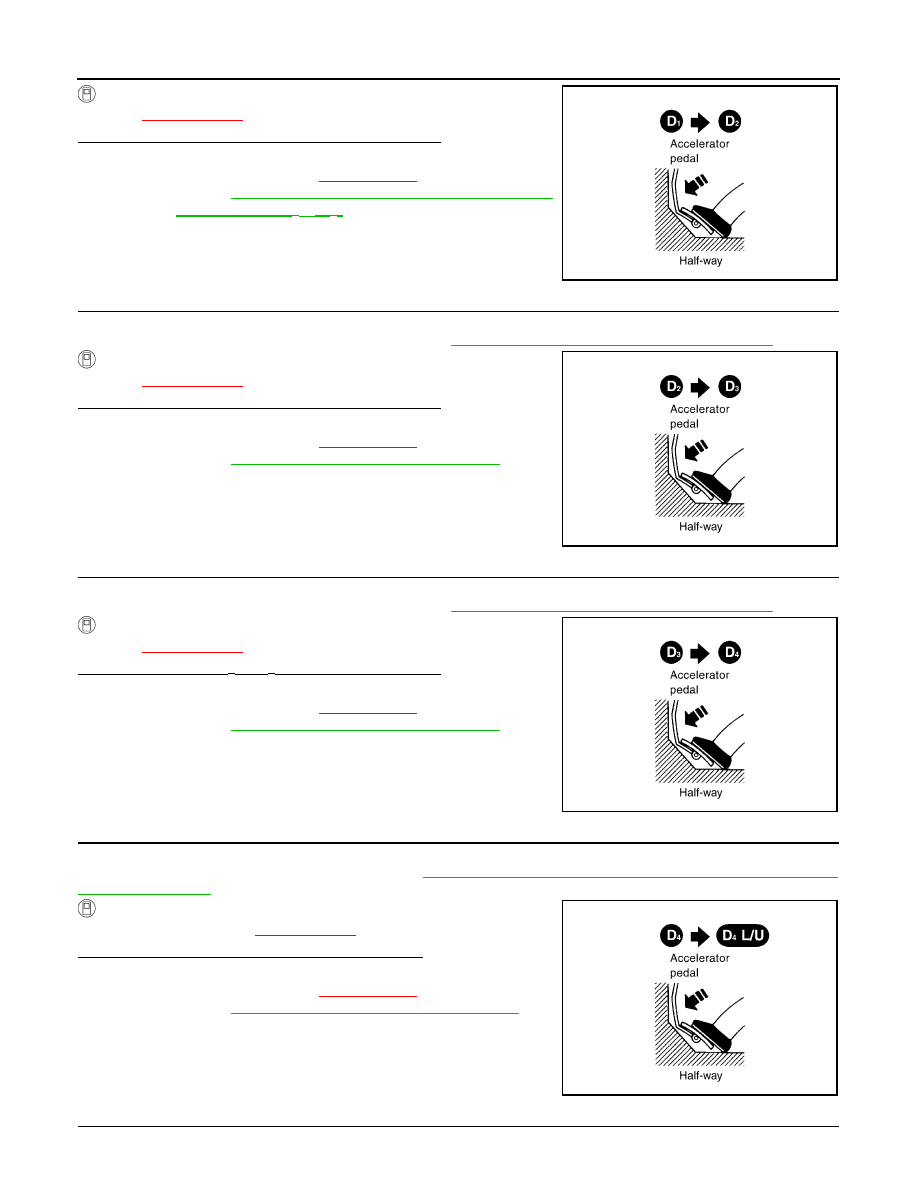

Check shift-up (D

1

 to D

2

).

Specified speed when shifting from D

1

 to D

2.

Refer to

TM-188, "Vehicle Speed When Shifting Gears"

.

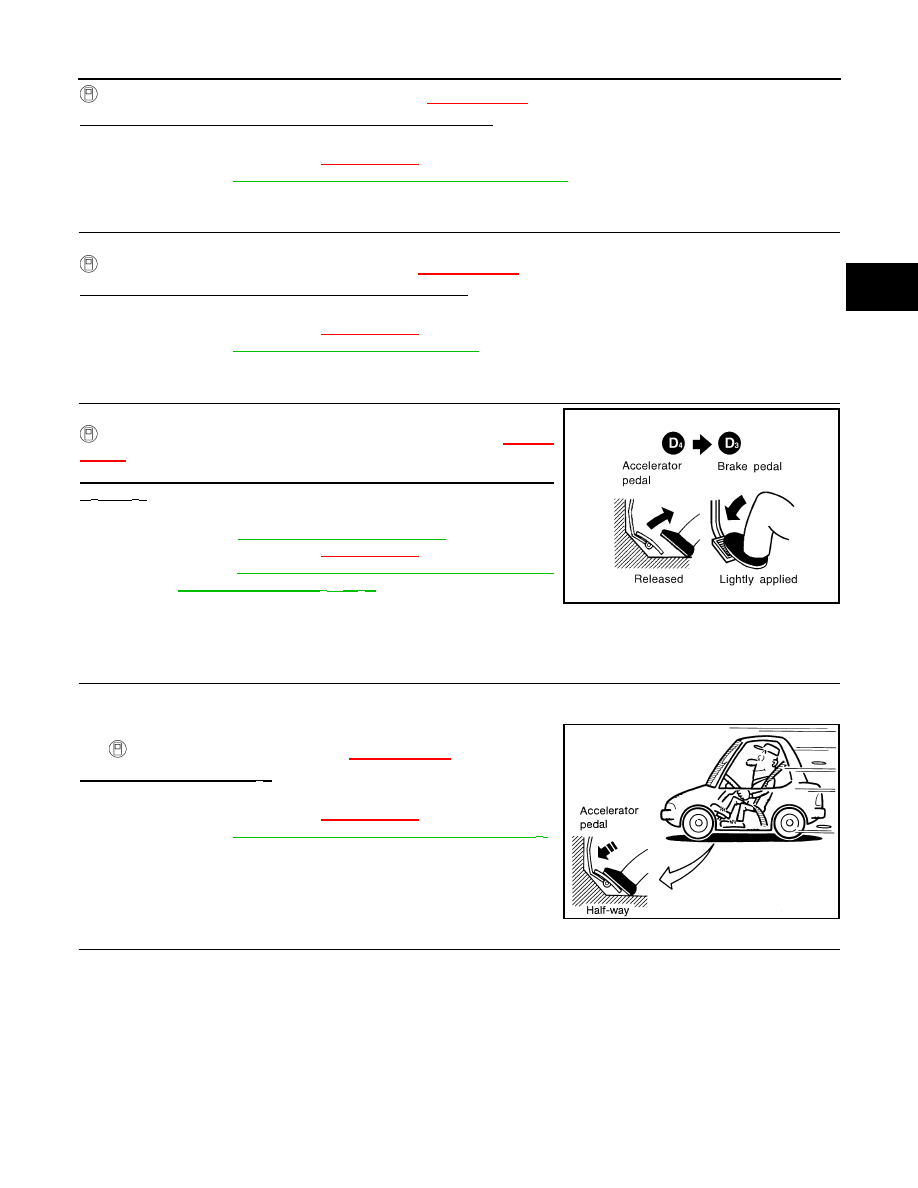

SAT773B

ATF operating temperature:

50 - 80

°

C (122 - 176

°

F)

SCIA5472E

SAT775B

SAT495G

TM-184

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

ROAD TEST

  Read gear position, throttle opening and vehicle speed.

Refer to

XX-XX, "*****"

.

Does A/T shift from D

1

 to D

2

 at the specified speed?

YES

>> GO TO 3.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-146, "A/T Does Not Shift: D

1

→

 D

2

or Does

Not Kickdown: D

4

→

 D

2

"

.

• Continue “Road Test”.

3.

CHECK SHIFT-UP (D

2

 TO D

3

)

Check shift-up (D

2

 to D

3

).

Specified speed when shifting from D

2

 to D

3.

Refer to

TM-188, "Vehicle Speed When Shifting Gears"

.

  Read gear position, throttle opening and vehicle speed.

Refer to

XX-XX, "*****"

.

Does A/T shift from D

2

 to D

3

 at the specified speed?

YES

>> GO TO 4.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-148, "A/T Does Not Shift: D

2

→

 D

3

"

.

• Continue “Road Test”.

4.

CHECK SHIFT-UP (D

3

 TO D

4

)

Check shift-up (D

3

 to D

4

).

Specified speed when shifting from D

3

 to D

4.

Refer to

TM-188, "Vehicle Speed When Shifting Gears"

.

  Read gear position, throttle opening and vehicle speed.

Refer to

XX-XX, "*****"

.

Does A/T shift from D

3

 to D

4

 at the specified speed?

YES

>> GO TO 5.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-149, "A/T Does Not Shift: D

3

→

 D

4

"

.

• Continue “Road Test”.

5.

CHECK LOCK-UP (D

4

 TO D

4

L/U)

Check lock-up (D

4

 to D

4

L/U).

Specified speed when lock-up occurs. Refer to

TM-188, "Vehicle Speed When Performing and Releasing

Complete Lock-up"

.

  Read vehicle speed, throttle opening when lock-up duty

becomes 94%. Refer to

XX-XX, "*****"

.

Does A/T perform lock-up at the specified speed?

YES

>> GO TO 6.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-151, "A/T Does Not Perform Lock-up"

.

• Continue “Road Test”.

6.

CHECK LOCK-UP HOLD

Check lock-up hold.

SCIA7188E

SCIA7189E

SCIA7190E

SCIA7191E

ROAD TEST

TM-185

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

 When lock-up duty becomes 94%. Refer to

XX-XX, "*****"

.

Does A/T hold lock-up condition for more than 30 seconds?

YES

>> GO TO 7.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-151, "A/T Does Not Hold Lock-up Condition"

.

• Continue “Road Test”.

7.

CHECK SHIFT-DOWN (D

4

L/U TO D

4

)

Release accelerator pedal.

 When lock-up duty becomes 4%. Refer to

XX-XX, "*****"

.

Is lock-up released when accelerator pedal is released?

YES

>> GO TO 8.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-152, "Lock-up Is Not Released"

.

• Continue “Road Test”.

8.

CHECK SHIFT-DOWN (D

4

 TO D

3

)

Decelerate vehicle by applying foot brake lightly.

  Read gear position and engine speed. Refer to

XX-XX,

"*****"

.

Does engine speed return to idle smoothly when A/T is shifted from
D

4

 to D

3

?

YES

>> 1.

Stop vehicle.

2.

Go to

TM-185, "Cruise Test - Part 2"

.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-153, "Engine Speed Does Not Return to

Idle (Light Braking D

4

→

 D

3

)"

.

• Continue “Road Test”.

Cruise Test - Part 2

INFOID:0000000001696173

1.

CHECK STARTING GEAR (D

1

) POSITION

1.

Push overdrive control switch. (OD OFF indicator lamp is off.)

2.

Move selector lever to “D” position.

3.

Accelerate vehicle by half throttle again.

 Read gear position. Refer to

XX-XX, "*****"

.

Does vehicle start from D

1

?

YES

>> GO TO 2.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO TO

TM-145, "Vehicle Cannot Be Started from D

1

"

.

• Continue “Road Test”.

2.

CHECK SHIFT-UP AND SHIFT-DOWN (D

3

 TO D

4

 TO D

2

)

1.

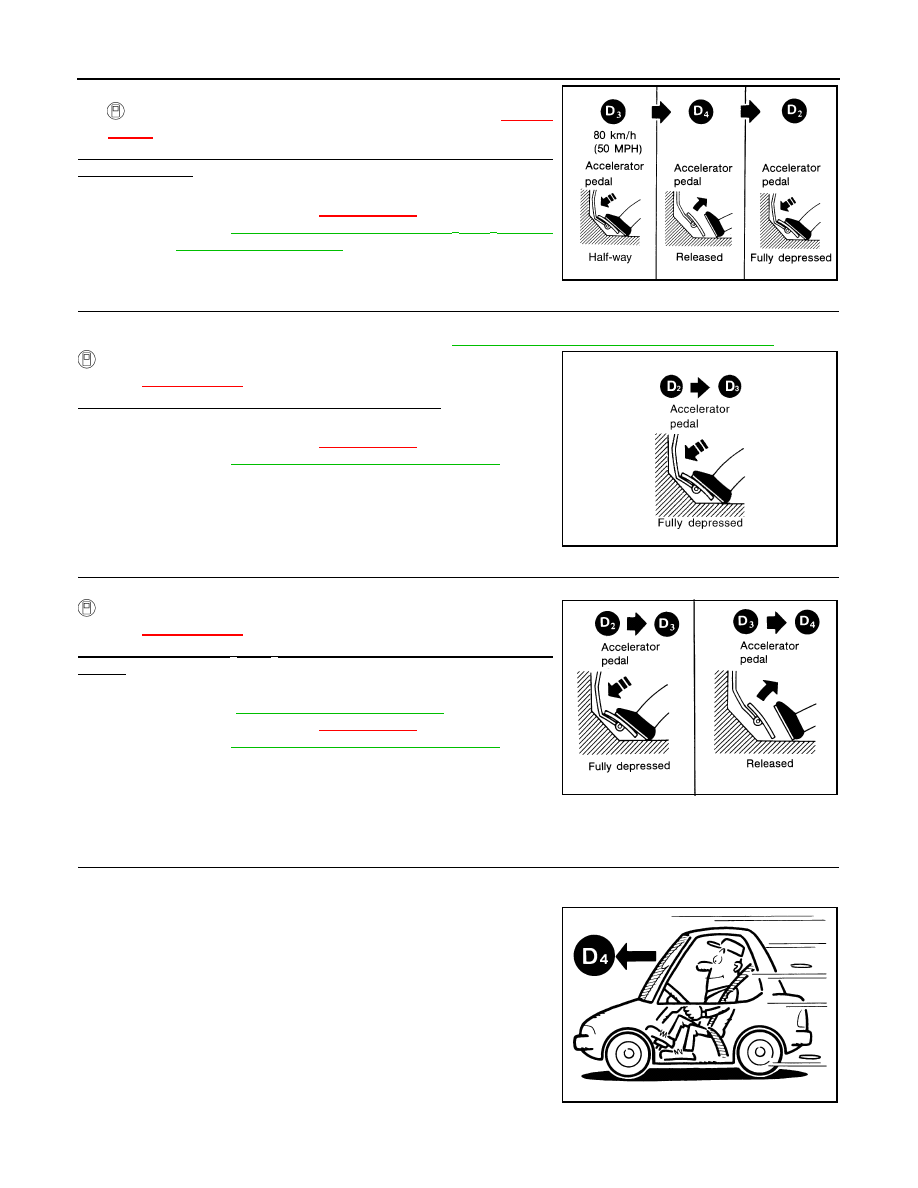

Accelerate vehicle to 80 km/h (50 MPH) as shown in the figure.

SAT959I

SAT495G

TM-186

< ON-VEHICLE MAINTENANCE >

[TYPE 1 (4AT: RE4F03B)]

ROAD TEST

2.

Release accelerator pedal and then quickly depress it fully.

 Read gear position and throttle opening. Refer to

XX-XX,

"*****"

.

Does A/T shift from D

4

 to D

2

 as soon as accelerator pedal is

depressed fully?

YES

>> GO TO 3.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-146, "A/T Does Not Shift: D

1

→

 D

2

or Does

Not Kickdown: D

4

→

 D

2

"

.

• Continue “Road Test”.

3.

CHECK SHIFT-UP (D

2

 TO D

3

)

Check shift-up (D

2

 to D

3

)

Specified speed when shifting from D

2

to D

3

. Refer to

TM-188, "Vehicle Speed When Shifting Gears"

.

  Read gear position, throttle opening and vehicle speed.

Refer to

XX-XX, "*****"

.

Does A/T shift from D

2

 to D

3

 at the specified speed?

YES

>> GO TO 4.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-148, "A/T Does Not Shift: D

2

→

 D

3

"

.

• Continue “Road Test”.

4.

CHECK SHIFT-UP (D

3

 TO D

4

) AND ENGINE BRAKE

Release accelerator pedal after shifting from D

2

 to D

3

.

  Read gear position, throttle opening and vehicle speed.

Refer to

XX-XX, "*****"

.

Does A/T shift from D

3

 to D

4

 and does vehicle decelerate by engine

brake?

YES

>> 1.

Stop vehicle.

2.

Go to

TM-186, "Cruise Test - Part 3"

.

NO

>> • Mark the box on the

XX-XX, "*****"

.

• GO  TO

TM-149, "A/T Does Not Shift: D

3

→

 D

4

"

.

• Continue “Road Test”.

Cruise Test - Part 3

INFOID:0000000001696174

1.

CHECK SHIFT-DOWN (D

4

TO D

3

) (WITH OVERDRIVE CONTROL SWITCH)

1.

Push overdrive control switch. (OD OFF indicator lamp is off.)

2.

Move selector lever to “D” position.

3.

Accelerate vehicle using half throttle to D

4

.

SCIA7192E

SAT960I

SAT405H

SAT812A
