DTC TURBINE REVOLUTION SENSOR

TM-107

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

Check continuity between TCM connector terminals and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

 OK or NG

 OK

>>  10A fuse (No. 49, located in the IPDM E/R) or ignition switch are malfunctioning.

 NG

>>  Repair open circuit or short to ground or short to power in harness or connectors.

7.

 CHECK HARNESS BETWEEN TCM AND TURBINE REVOLUTION [(POWER TRAIN REVOLUTION SEN-

SOR) SENSOR GROUND]

1.

Turn ignition switch OFF.

2.

Disconnect the turbine revolution sensor (power train revolution sensor) harness connector.

3.

Check continuity between TCM connector terminal and turbine
revolution sensor (power train revolution sensor) harness con-
nector terminal.

4.

If OK, check harness for short to ground and short to power.

5.

Reinstall any part removed.

 OK or NG

 OK

>> GO TO 5.

 NG

>>  Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK DTC

Perfor

TM-104, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

Item

Connector

Terminal

Continuity

TCM

E31

10

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

1

TCM

E31

19

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

1

SCIA2773E

Item

Connector

Terminal

Continuity

TCM

E32

42

Yes

Turbine revolution sensor
(power train revolution sensor)

F47

3

SCIA2774E

TM-108

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

CONTROL UNIT (RAM), CONTROL UNIT (ROM)

CONTROL UNIT (RAM), CONTROL UNIT (ROM)

Description

INFOID:0000000001694408

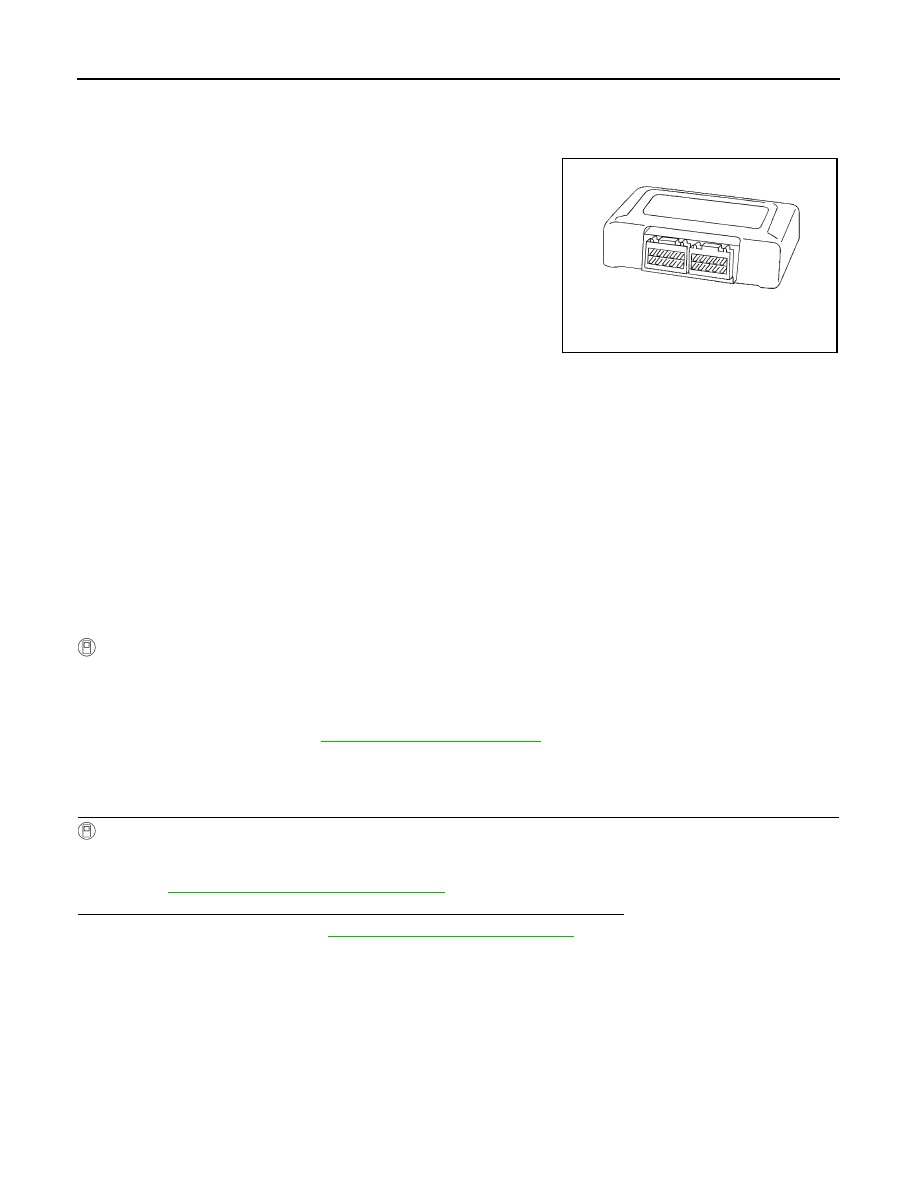

The TCM consists of a microcomputer and connectors for signal
input and output and for power supply. The unit controls the A/T.

On Board Diagnosis Logic

INFOID:0000000001694409

• This is not an OBD self-diagnostic item.
• Diagnostic trouble code “CONTROL UNIT (RAM)”, “CONTROL UNIT (ROM)” with CONSULT-III is detected

when TCM memory (RAM) or (ROM) is malfunctioning.

Possible Cause

INFOID:0000000001694410

TCM.

DTC Confirmation Procedure

INFOID:0000000001694411

CAUTION:

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON and select “DATA MONITOR” mode for A/T with CONSULT-III.

2.

Touch “START”.

3.

Start engine.

4.

Run engine for at least 2 seconds at idle speed.

5.

If the check result is NG, go to

TM-108, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001694412

1.

CHECK DTC

With CONSULT-III

1.

Turn ignition switch ON and select “SELF-DIAG RESULTS” mode for A/T with CONSULT-III.

2.

Touch “ERASE”.

3.

Perform

TM-108, "DTC Confirmation Procedure"

.

Is the “CONTROL UNIT (RAM)” or “CONTROL UNIT (ROM)” displayed again?

YES

>> Replace TCM. Refer to

TM-189, "Removal and Installation"

.

NO

>> INSPECTION END

SAT574J

MAIN POWER SUPPLY AND GROUND CIRCUIT

TM-109

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

MAIN POWER SUPPLY AND GROUND CIRCUIT

Description

INFOID:0000000001694413

When the power supply to the TCM is cut OFF, for example because the battery is removed, and the self-diag-
nosis memory function stops, malfunction is detected.

On Board Diagnosis Logic

INFOID:0000000001694414

• This is not an OBD self-diagnostic item.
• Diagnostic trouble code “INITIAL START” with CONSULT-III is detected when TCM dose not receive the

voltage signal from the battery power supply.

• This is not a malfunction message. (Whenever shutting OFF a power supply to the TCM, this message

appears on the screen.)

Possible Cause

INFOID:0000000001694415

Harness or connector
(Battery or ignition switch and TCM circuit is open or shorted.)

DTC Confirmation Procedure

INFOID:0000000001694416

CAUTION:

If performing this “DTC Confirmation Procedure” again, always turn ignition switch OFF and wait at
least 10 seconds before continuing.
After the repair, perform the following procedure to confirm the malfunction is eliminated.

 WITH CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “DATA MONITOR” mode for “A/T” with CONSULT-III.

3.

Touch “START”.

4.

Wait for at least 2 consecutive seconds.

5.

If DTC is detected, go to

TM-109, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000001694418

1.

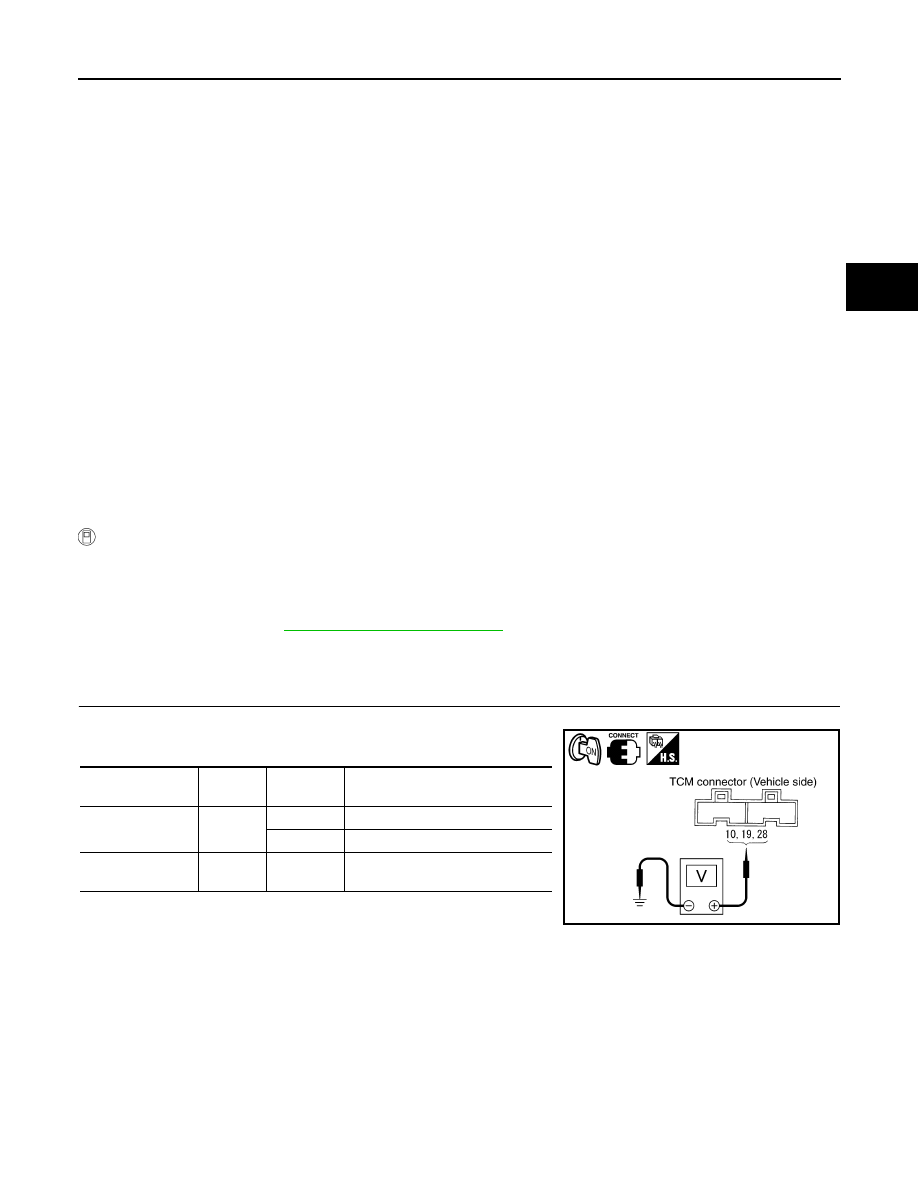

CHECK TCM POWER SOURCE

1.

Turn ignition switch ON. (Do not start engine.)

2.

Check voltage between TCM connector terminals and ground.

3.

Turn ignition switch OFF.

Item

Connec-

tor

Terminal

Judgement standard (Approx.)

Power supply

E31

10

Battery voltage

19

Battery voltage

Power supply

(Memory back-up)

E32

28

Battery voltage

SCIA2656E

TM-110

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

MAIN POWER SUPPLY AND GROUND CIRCUIT

4.

Check voltage between TCM connector terminals and ground.

OK or NG

OK

>> GO TO 3.

NG

>> GO TO 2.

2.

DETECT MALFUNCTIONING ITEM

Check the following items:
• Harness for short or open between ignition switch and TCM terminals 10, 19
• Harness for short or open between battery and TCM terminal 28
• 10A fuse (No.13, located in the fuse block) and 10A fuse (No. 49, located in the IPDM E/R)
• Ignition switch.

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace damaged parts.

3.

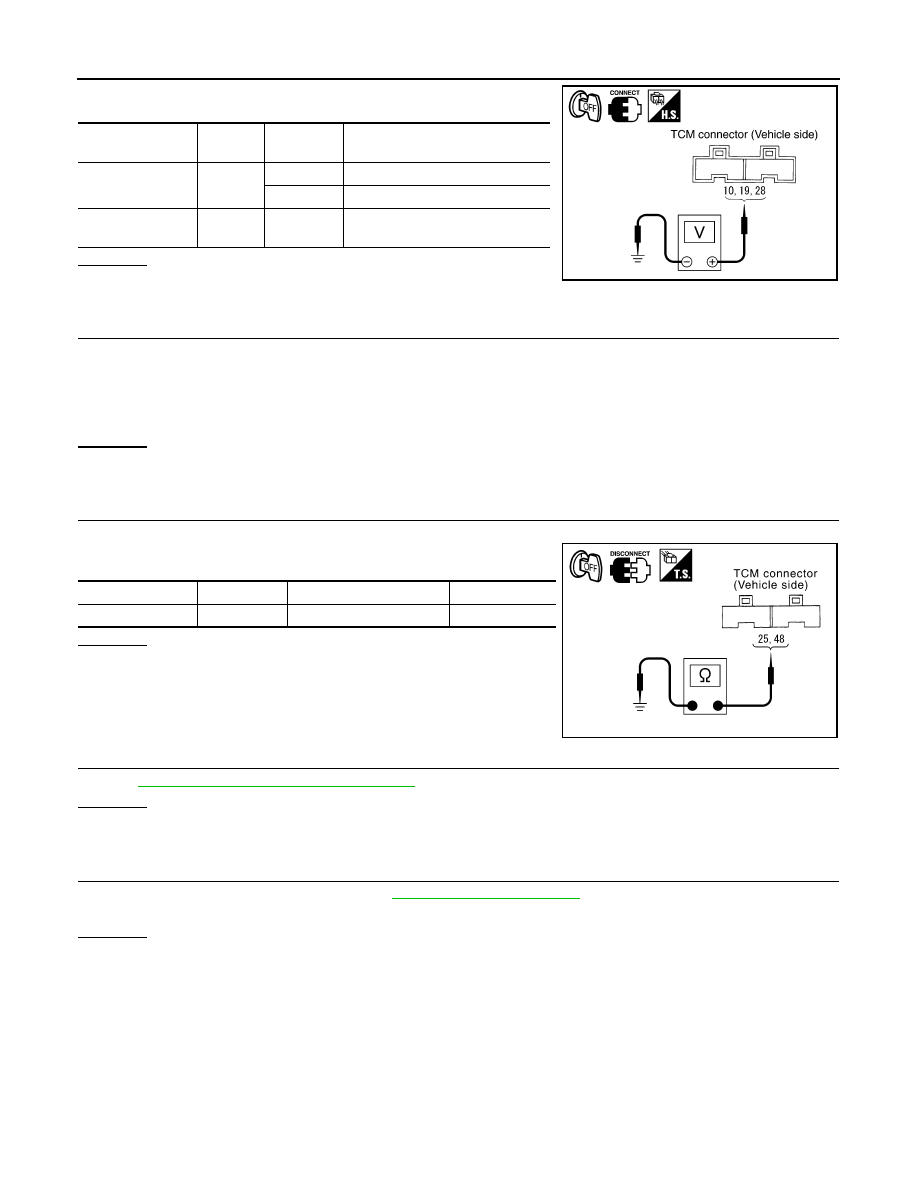

CHECK TCM GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Check continuity between TCM connector terminals and ground.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power

in harness or connectors.

4.

CHECK DTC

Perform

TM-109, "DTC Confirmation Procedure"

.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 5.

5.

CHECK TCM

1.

Check TCM input/output signal. Refer to

TM-119, "Reference Value"

.

2.

If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

OK or NG

OK

>> INSPECTION END

NG

>> Repair or replace damaged parts.

Item

Connec-

tor

Terminal

Judgement standard (Approx.)

Power supply

E31

10

0V

19

0V

Power supply

(Memory back-up)

E32

28

Battery voltage

SCIA2657E

Item

Connector

Terminal

Continuity

Ground

E32

25, 48 - Ground

Yes

SCIA2671E
