PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

TM-111

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE PO-
SITION SIGNAL CIRCUIT

CONSULT-III Reference Value in Data Monitor Mode

INFOID:0000000001694273

Remarks: Specification data are reference values.

TCM Terminal and Reference Value

INFOID:0000000001694274

 TCM terminal data are reference values, measured between each terminal and ground.

Diagnosis Procedure

INFOID:0000000001694275

1.

CHECK CAN COMMUNICATION LINE

Perform self-diagnosis. Refer to

TM-35, "CONSULT-III Function (TRANSMISSION)"

.

Is a malfunction in the CAN communication indicated in the results?

YES

>> Check CAN communication line. Refer to

TM-43

.

NO (With CONSULT-III) >>GO TO 2.
NO (Without CONSULT-III) >>GO TO 3.

Item name

Condition

Display value

PN POSI SW

When setting selector lever to “N” or “P” position.

ON

When setting selector lever to other positions.

OFF

R POSITION SW

When setting selector lever to “R” position.

ON

When setting selector lever to other positions.

OFF

D POSITION SW

When setting selector lever to “D” position.

ON

When setting selector lever to other positions.

OFF

2 POSITION SW

When setting selector lever to “2” position.

ON

When setting selector lever to other positions.

OFF

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

OVERDRIVE SW

When overdrive control switch is depressed.

ON

When overdrive control switch is released.

OFF

CLOSED THL/SW

Released accelerator pedal.

ON

Depressed accelerator pedal.

OFF

W/O THRL/P-SW

Fully depressed accelerator pedal.

ON

Released accelerator pedal.

OFF

Terminal

Wire color

Item

Condition

Judgement standard

(Approx.)

26

Y

PNP switch “1” posi-
tion

and

When setting selector lever to “1” position.

Battery voltage

When setting selector lever to other positions.

0V

27

G

PNP switch “2” posi-
tion

When setting selector lever to “2” position.

Battery voltage

When setting selector lever to other positions.

0V

34

LG

PNP switch “D” posi-
tion

When setting selector lever to “D” position.

Battery voltage

When setting selector lever to other positions.

0V

35

SB

PNP switch “R” posi-
tion

When setting selector lever to “R” position.

Battery voltage

When setting selector lever to other positions.

0V

36

R

PNP switch “N” or “P”
position

When setting selector lever to “N” or “P” posi-
tions.

Battery voltage

When setting selector lever to other positions.

0V

TM-112

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

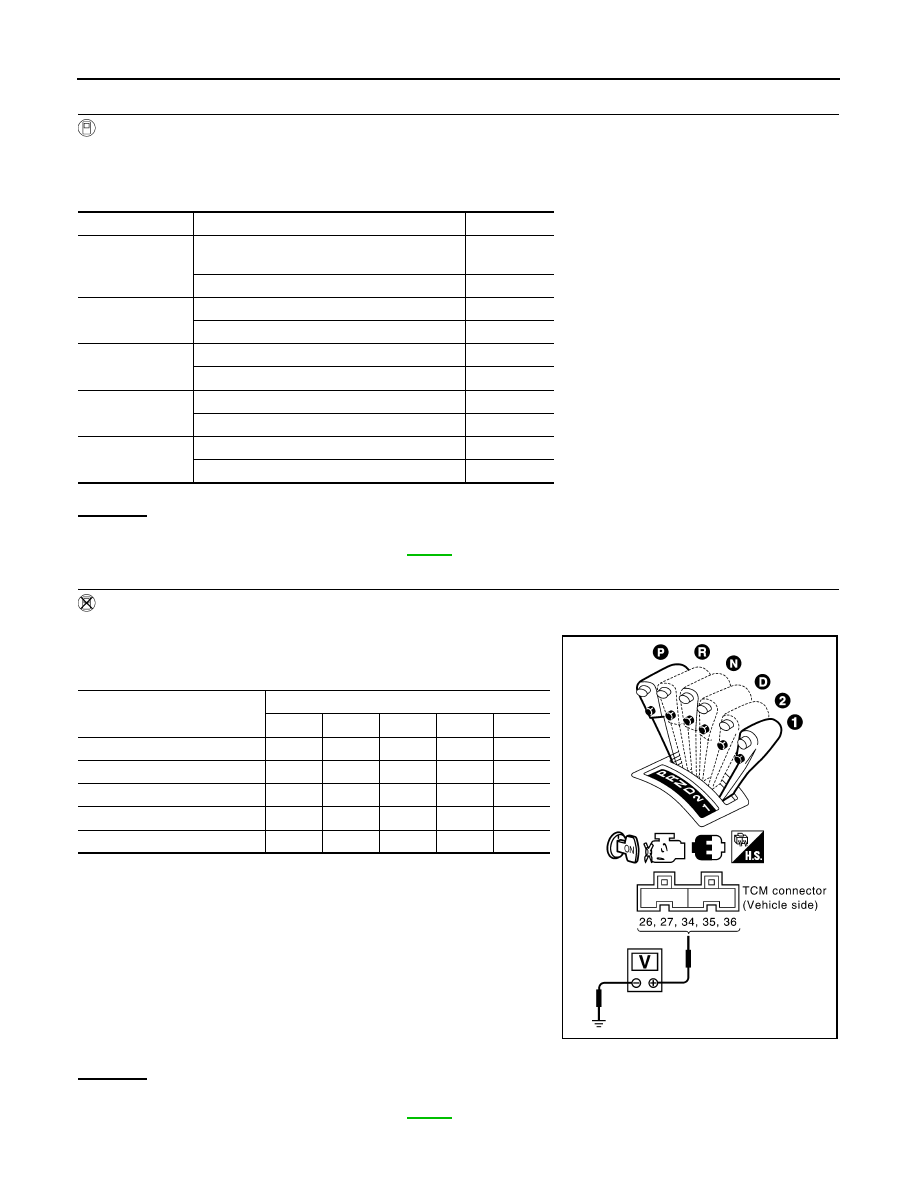

2.

CHECK PNP SWITCH CIRCUIT

With CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.

3.

Read out “P·N”, “R”, “D”, “2” and “1” position switches moving selector lever to each position.

OK or NG

OK

>> GO TO 4.

NG

>> Check PNP switch circuit. Refer to

TM-44

.

3.

CHECK PNP SWITCH CIRCUIT

Without CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Check voltage between TCM connector terminals and ground
while moving selector lever through each position.

B: Battery voltage

0: 0V

OK or NG

OK

>> GO TO 4.

NG

>> Check PNP switch circuit. Refer to

TM-44

.

Item name

Condition

Display value

PN POSI SW

When setting selector lever to “N” or “P” posi-
tion.

ON

When setting selector lever to other positions.

OFF

R POSITION SW

When setting selector lever to “R” position.

ON

When setting selector lever to other positions.

OFF

D POSITION SW

When setting selector lever to “D” positions.

ON

When setting selector lever to other positions.

OFF

2 POSITION SW

When setting selector lever to “2” position.

ON

When setting selector lever to other positions.

OFF

1 POSITION SW

When setting selector lever to “1” position.

ON

When setting selector lever to other positions.

OFF

Selector lever position

Terminal

36

35

34

27

26

“P”,  “N”

B

0

0

0

0

“R”

0

B

0

0

0

“D”

0

0

B

0

0

“2”

0

 0

0

B

0

“1”

0

0

0

0

B

SCIA7162E

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

TM-113

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

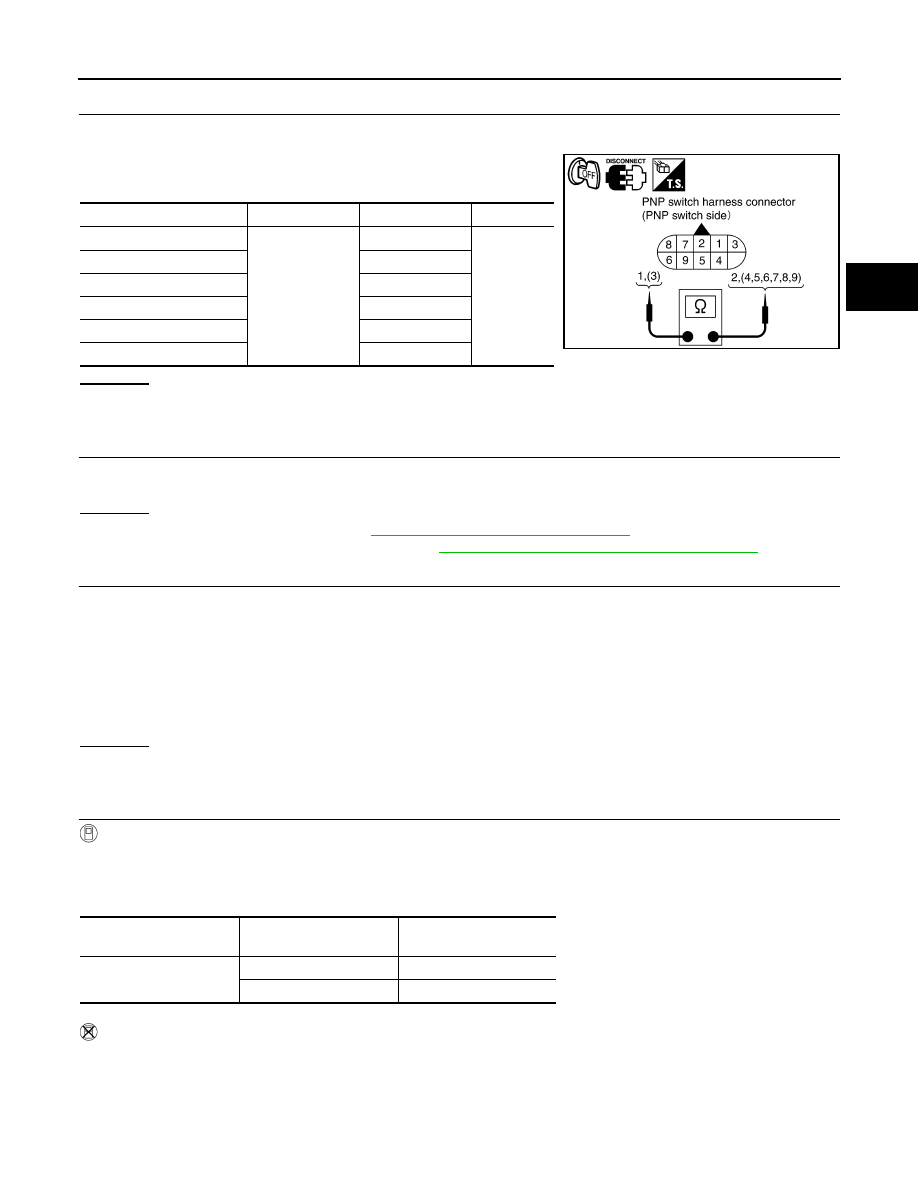

4.

CHECK PNP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect PNP switch harness connector.

3.

Check continuity between PNP switch harness connector termi-
nals.

OK or NG

OK

>> GO TO 6.

NG

>> GO TO 5.

5.

CHECK CONTROL CABLE ADJUSTMENT

Check PNP switch again with control cable disconnected from manual shaft of A/T assembly. Refer to test
group 4.

OK or NG

OK

>> Adjust control cable. Refer to

TM-204, "Adjustment of A/T Position"

.

NG

>> Repair or replace PNP switch. Refer to

TM-195, "Park/Neutral Position (PNP) Switch"

.

6.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between ignition switch and PNP switch
• Harness for short or open between PNP switch and TCM
• Harness for short or open between PNP switch and combination meter
• Harness for short or open between combination meter and TCM
• 10A fuse (No. 51, located in the IPDM E/R)
• Combination meter.
• Ignition switch.

OK or NG

OK

>> GO TO 7.

NG

>> Repair or replace damaged parts.

7.

CHECK OVERDRIVE CONTROL SWITCH CIRCUIT

With CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-III.

3.

Read out “OVERDRIVE SW”. Check the signal of overdrive control switch is indicated properly.

Without CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

Selector lever position

Connector

Terminal

Continuity

“P”

F25

1 - 2, 3 - 7

Yes

*Continuity

should not

exist in posi-

tions other

than the

specified

positions.

“R”

3 - 8

“N”

1 - 2, 3 - 9

“D”

3 - 6

“2”

3 - 5

“1”

3 - 4

SCIA5588E

Item name

Overdrive control switch
Condition

Display value

OVERDRIVE SW

Depressed

ON

Released

OFF

TM-114

< COMPONENT DIAGNOSIS >

[TYPE 1 (4AT: RE4F03B)]

PNP, OD SWITCH AND CLOSED THROTTLE, WIDE OPEN THROTTLE POSI-

TION SIGNAL CIRCUIT

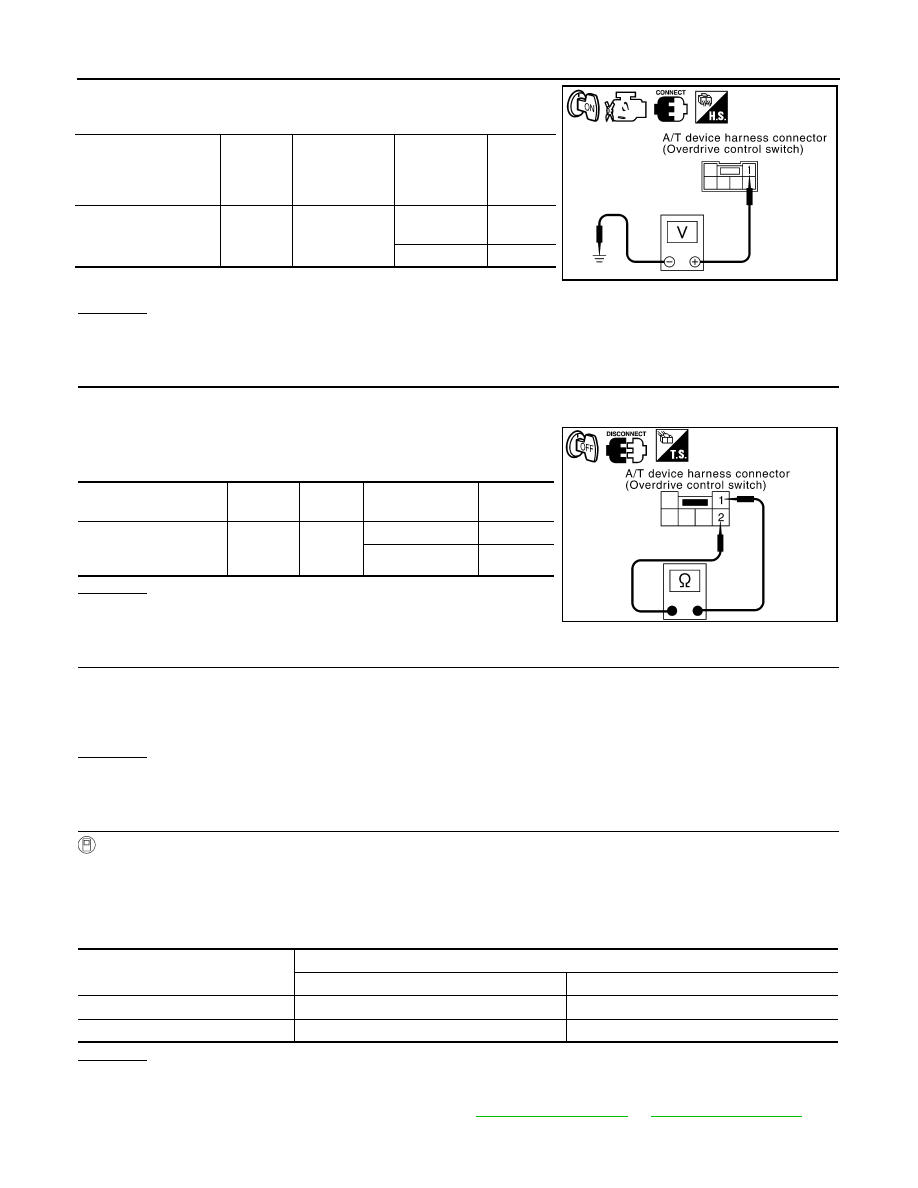

2.

Check voltage between A/T device harness connector terminal
and ground.

OK or NG

OK

>> GO TO 10.

NG

>> GO TO 8.

8.

CHECK OVERDRIVE CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect A/T device harness connector.

3.

Check continuity between A/T device harness connector termi-
nals.

OK or NG

OK

>> GO TO 9.

NG

>> Repair or replace damaged parts.

9.

DETECT MALFUNCTIONING ITEM

Check the following.
• Harness for short or open between combination meter and A/T device harness connector
• Harness for short or open between A/T device harness connector and ground
• Combination meter.
OK or NG

OK

>> GO TO 10.

NG

>> Repair or replace damaged parts.

10.

CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT

 With CONSULT-III

1.

Turn ignition switch ON. (Do not start engine.)

2.

Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for A/T with CONSULT-III.

3.

Read out “CLOSED THL/SW” and “W/O THRL/P-SW” depressing and releasing accelerator pedal.
Check that the signals of throttle position are indicated properly.

OK or NG

OK

>> GO TO 11.

NG

>>

Check the following. If any items are damaged, repair or replace damaged parts.

• Accelerator pedal position sensor. Refer to

EC-286, "Description"

 or

EC-290, "Description"

.

Item

Connector

Terminal

Overdrive

control switch

Condition

Judge-

ment

standard

(Approx.)

A/T device harness
connector (Overdrive
control switch)

M38

1 - Ground

Released

Battery
voltage

Depressed

0V

SCIA5336E

Item

Connector

Terminal

Overdrive control

switch condition

Continuity

A/T device harness con-
nector (Overdrive con-
trol switch)

M38

1 - 2

Released

No

Depressed

Yes

SCIA5330E

Accelerator pedal condition

Data monitor

CLOSED THL/SW

W/O THRL/P-SW

Released

ON

OFF

Fully depressed

OFF

ON
