REAR SEAT

SE-25

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

60:40 SPLIT FOLD DOWN FIXED SEAT

7.

Armrest

8.

Armrest insert

9.

Outer hinge cover

10. Seatback hinge

11. Inner hinge cover

12. Seatback hinge assembly

13. Seat cushion trim and pad

14. Rear leg base cover

15. Sliding seat frame rail

16. Front leg base cover

17. Seat cushion frame

18. Left seatback frame

19. Left seatback pad and trim

WIIA1231E

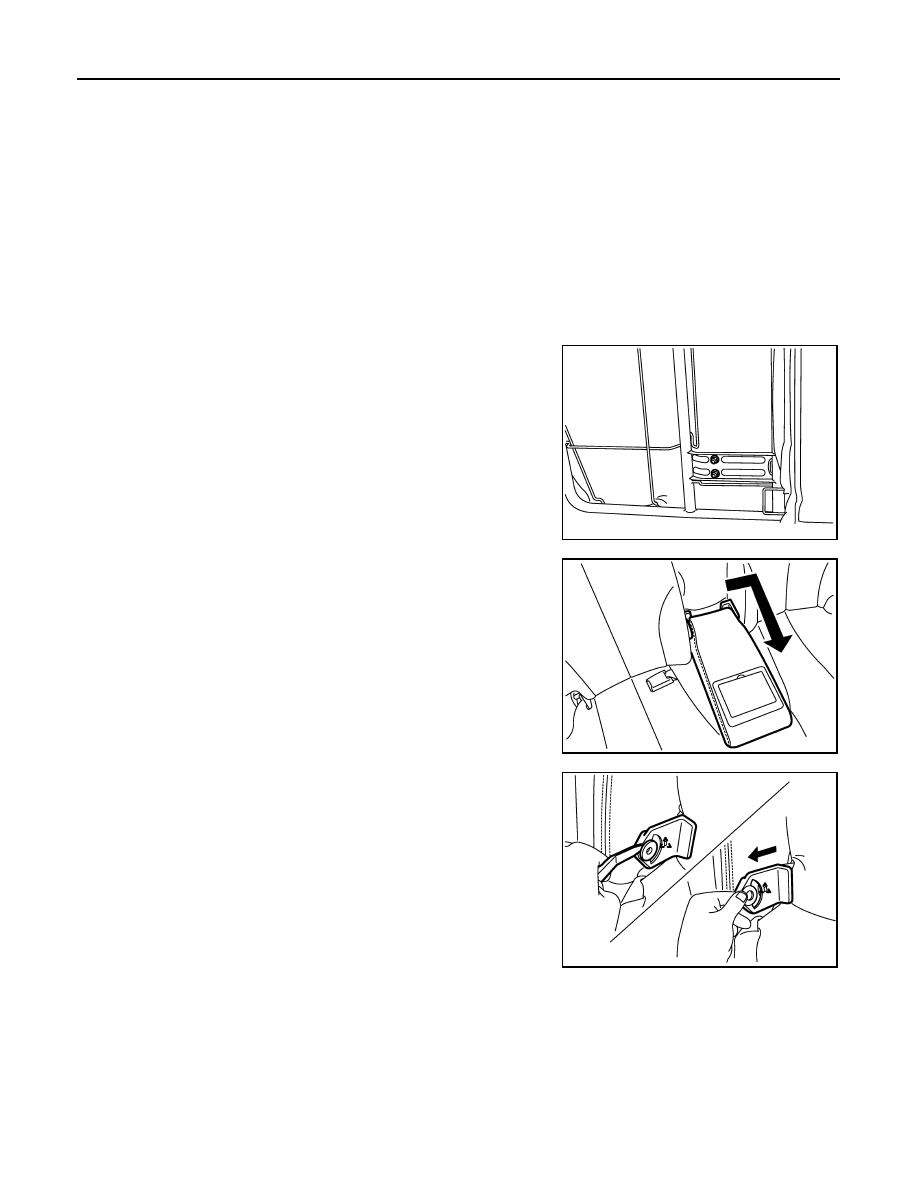

SE-26

< ON-VEHICLE REPAIR >

REAR SEAT

Disassembly and Assembly

INFOID:0000000001710914

60:40 SPLIT FOLD DOWN SLIDING SEAT

Disassembly of Armrest

1.

Fold up the backside of the seatback trim and then remove the
armrest nuts.

2.

Push the armrest toward left side while pulling backward to
remove.

3.

Remove the rear seat bushing, and then remove the armrest
hinge cover by pulling it backward.

Assembly of Armrest

Assembly in the reverse order of disassembly.

Disassembly of Seatback Trim and Pad

1.

Remove the headrest.

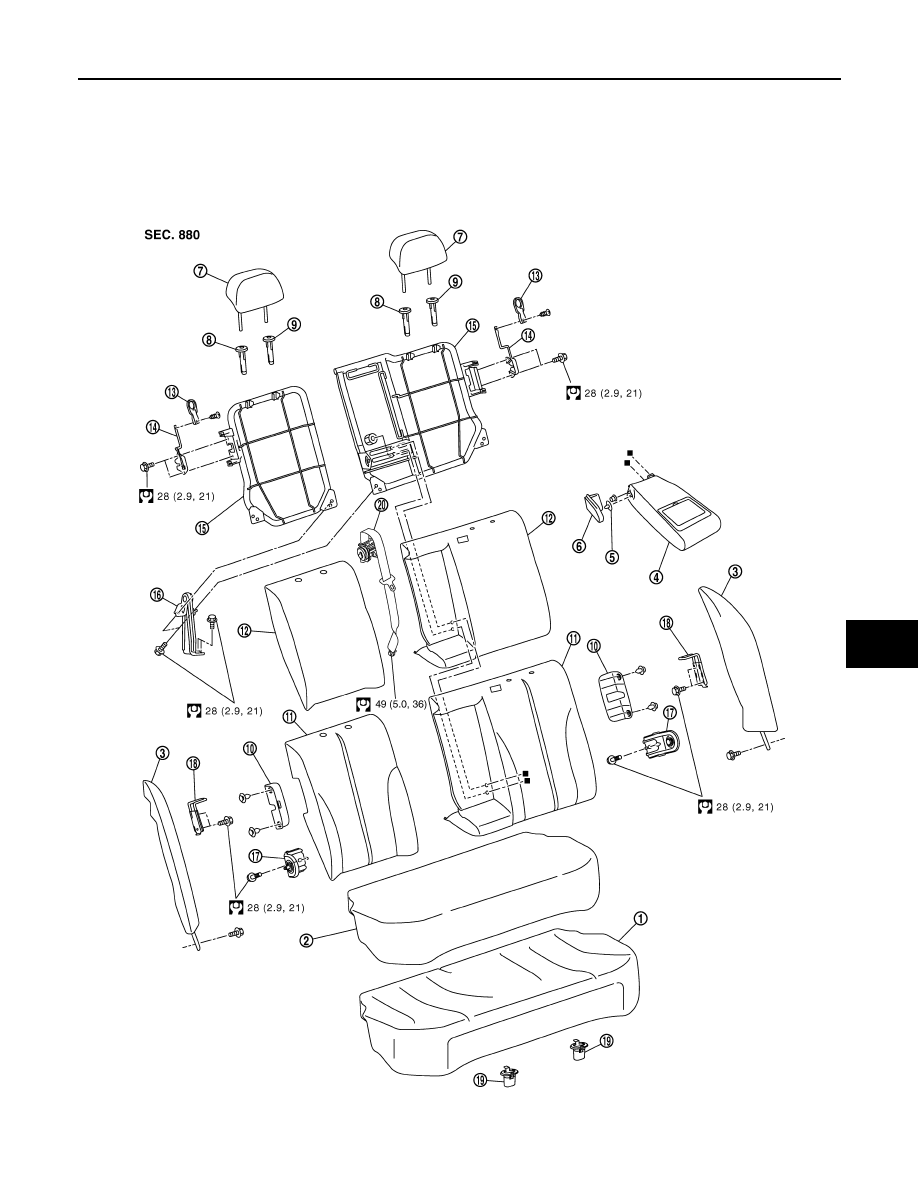

1.

Seat cushion trim

2.

Seat cushion pad

3.

Seatback side

4.

Armrest

5.

Rear seat bushing

6.

Armrest hinge cover

7.

Headrest

8.

Headrest holder (free)

9.

Headrest holder (locked)

10. Striker cover

11. Seatback trim

12. Seatback pad

13. Rear seatback lock knob

14. Rear seat lock assembly

15. Seatback frame

16. Rear seatback center bracket

17. Rear seatback side bracket

18. Rear seat striker

19. Seat cushion hook

20. Seatbelt guide

PIIB2913J

PIIB2915J

PIIB6507E

REAR SEAT

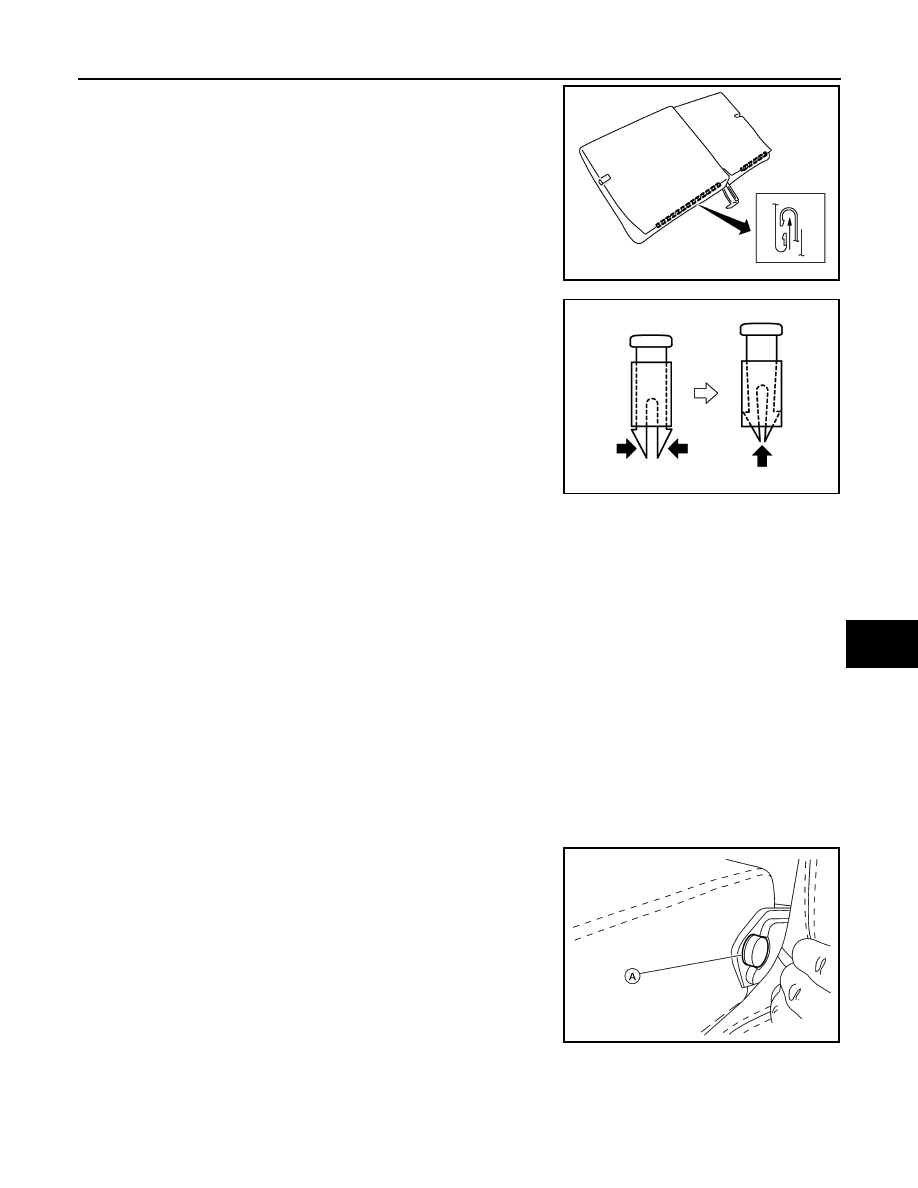

SE-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

2.

Remove the retainer under the back of seatback.

3.

Remove the headrest holder.

4.

To remove armrest, refer to "Disassembly of Armrest " .

5.

Remove the seatback trim.

6.

Remove the seatback pad from the seatback frame.

7.

Remove the seatback center bracket bolt and then remove the seatback frame.

Assembly of Seatback Trim and Pad

Assembly is the reverse order of disassembly. Be careful of the following one point.
• Before installing headrest holder, check its orientation (front/rear and right/left).

Disassembly of Seat Cushion Trim and Pad

Remove the rings to separate the trim and pad.

Assembly of Seat Cushion Trim and Pad

Assembly is the reverse order of disassembly.

Disassembly and Assembly

INFOID:0000000001710917

60:40 SPLIT FOLD DOWN FIXED SEAT

Disassembly of Armrest

1.

Fold down the armrest and remove the armrest bolt cover (A).

PIIB2486J

PIIB4084J

WIIA1384E

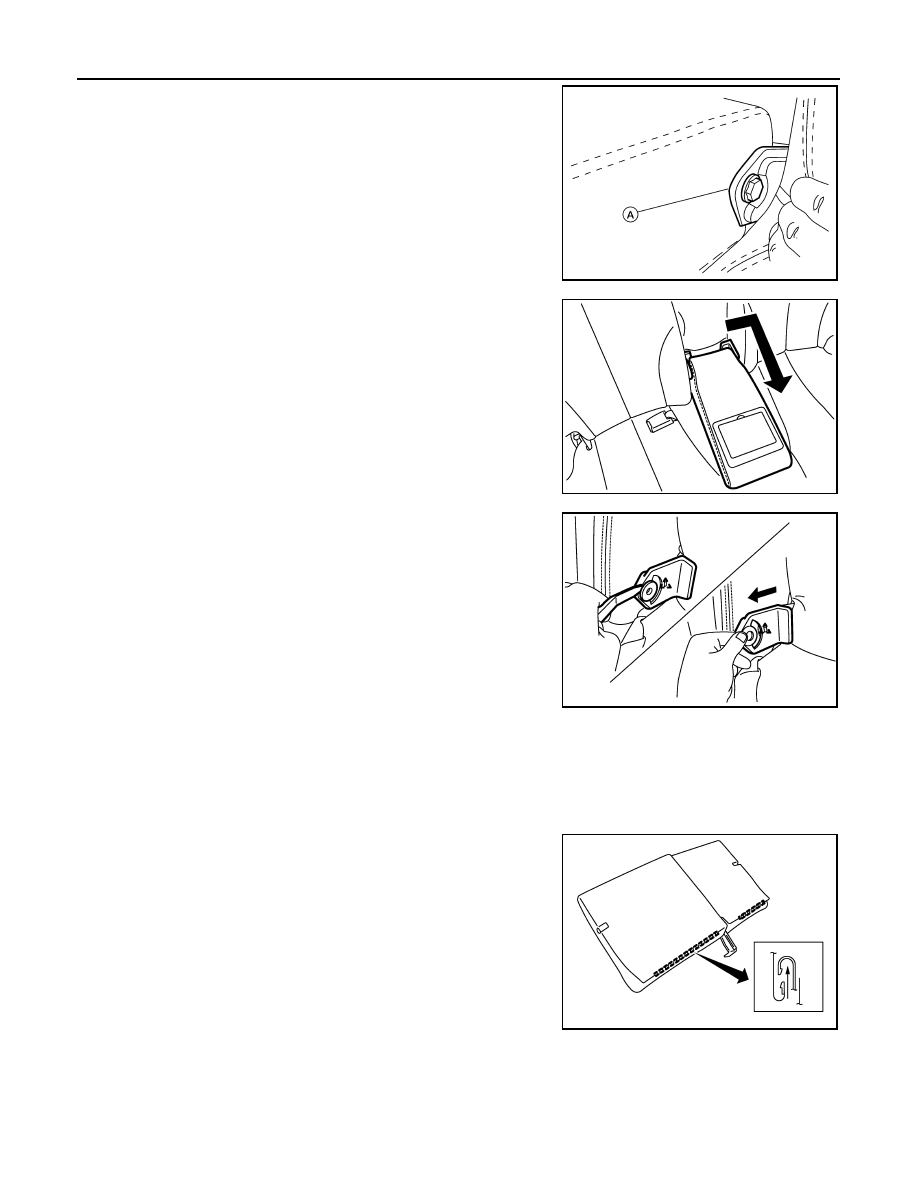

SE-28

< ON-VEHICLE REPAIR >

REAR SEAT

2.

Remove the armrest bolt (A).

3.

Push the armrest toward left side while pulling backward to
remove.

4.

Remove the rear seat bushing, and then remove the armrest
hinge cover by pulling it backward.

Assembly of Armrest

Assembly in the reverse order of disassembly.

Disassembly of Seatback Trim and Pad

1.

Remove the headrest.

2.

Remove the retainer under the back of seatback.

WIIA1385E

PIIB2915J

PIIB6507E

PIIB2486J
