FRONT SEAT

SE-21

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

Exploded View

INFOID:0000000001710933

Driver Seat

Passenger Seat

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seat assembly

5.

Seat belt buckle

6.

Rear leg cover

7.

Push nut

8.

Seat cushion inner finisher

9.

Snap pin

10. Reclining lever

11. Lever cover

12. Lifter lever

13. Seat cushion finisher B

14. Reclining device control wire

15. Front leg cover

16. Seat cushion lower finisher

17. Seat cushion outer finisher

18. Seat cushion pad

19. Seat cushion trim

WIIA1285E

SE-22

< ON-VEHICLE REPAIR >

FRONT SEAT

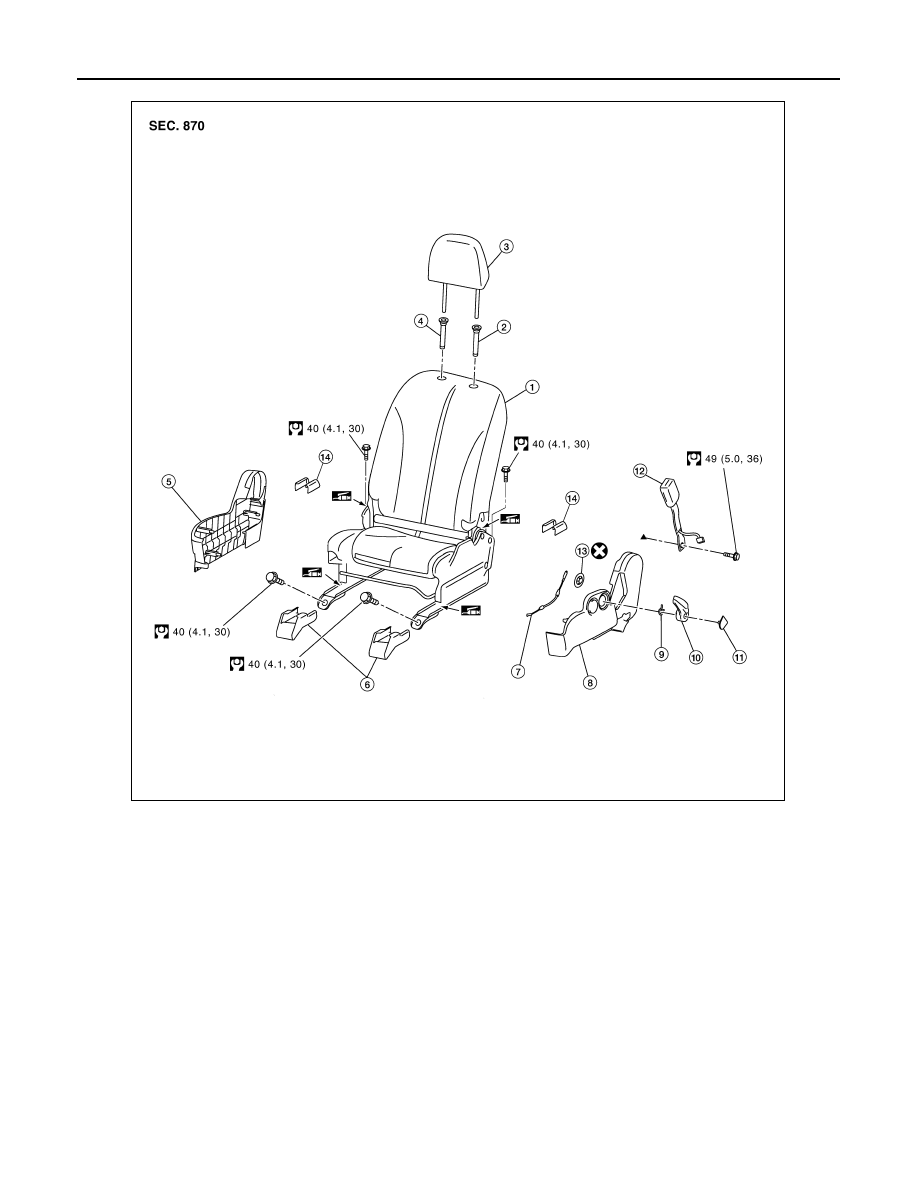

Disassembly and Assembly

INFOID:0000000001710903

SEAT CUSHION TRIM AND PAD

CAUTION:

• Front passenger seat is equipped with an Occupant Classification System sensor and control mod-

ule. Do not disassemble front passenger seat cushion assembly or remove the trim as this will affect
the Occupant Classification System calibration.

• During installation, the wire harness clips must be installed in the holes they were originally in. Do

not add additional clips.

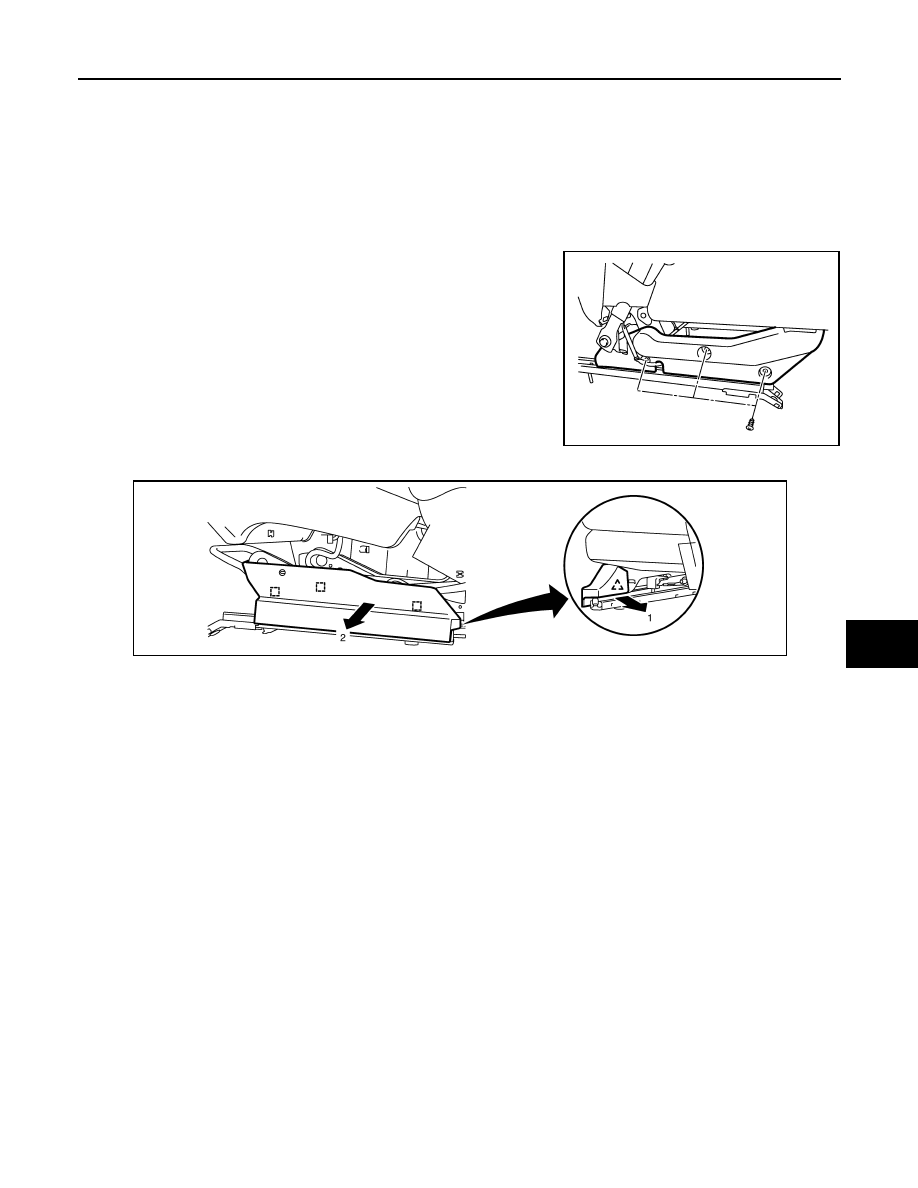

Disassembly

1.

Remove the retainer of seat cushion trim.

1.

Seat assembly

2.

Head rest holder (free)

3.

Headrest

4.

Headrest holder (locked)

5.

Seat cushion outer finisher

6.

Front leg cover

7.

Reclining device control wire

8.

Seat cushion inner finisher

9.

Snap pin

10. Reclining lever knob

11. Lever cover

12. Seat belt buckle

13. Push nut

14. Rear leg cover

WBIA0848E

FRONT SEAT

SE-23

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

2.

Remove the hog rings to separate the seat cushion pad and seat cushion trim.

3.

Remove seat cushion trim and seat cushion pad from the seat cushion frame.

Assembly

Assembly is the reverse order of removal.

SEAT CUSHION FRAME

Disassembly

1.

Remove the seat cushion trim and pad. Refer to "SEAT CUSHION TRIM AND PAD"  .

2.

Remove the seat cushion finisher B. (Driver seat)

3.

Remove the seat cushion lower finisher.

4.

Remove the front seat belt buckle.

Assembly

Assembly is the reverse order of removal.

PIIB2607E

PIIB2609E

SE-24

< ON-VEHICLE REPAIR >

REAR SEAT

REAR SEAT

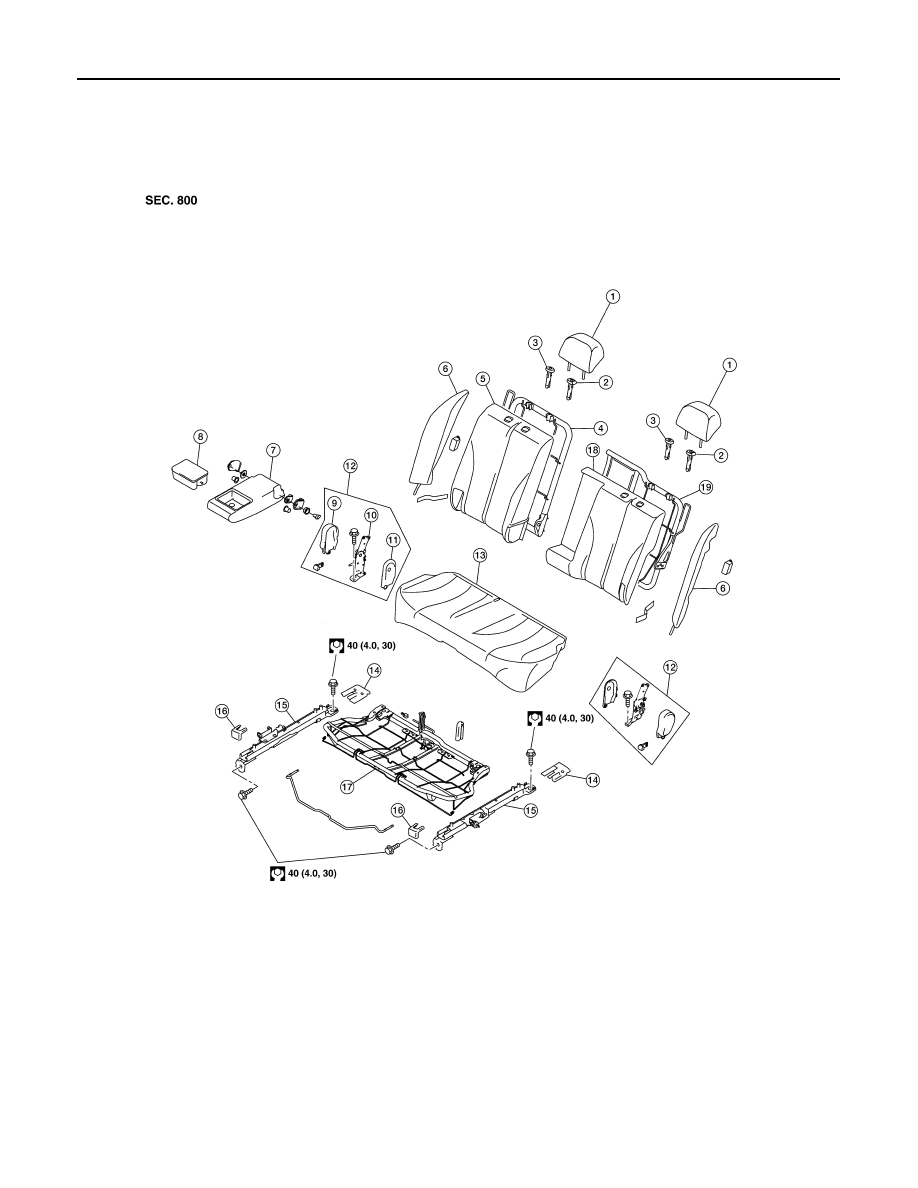

Exploded View

INFOID:0000000001710934

60:40 SPLIT FOLD DOWN SLIDING SEAT

WIIA1305E

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Right seatback frame

5.

Right seatback pad and trim

6.

Seatback side
