REAR SEAT

SE-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

60:40 SPLIT FOLD DOWN FIXED SEAT

7.

Armrest

8.

Armrest insert

9.

Outer hinge cover

10. Seatback hinge

11. Inner hinge cover

12. Seatback hinge assembly

13. Seat cushion trim and pad

14. Rear leg base cover

15. Sliding seat frame rail

16. Front leg base cover

17. Seat cushion frame

18. Left seatback frame

19. Left seatback pad and trim

WBIA0849E

SE-18

< REMOVAL AND INSTALLATION >

REAR SEAT

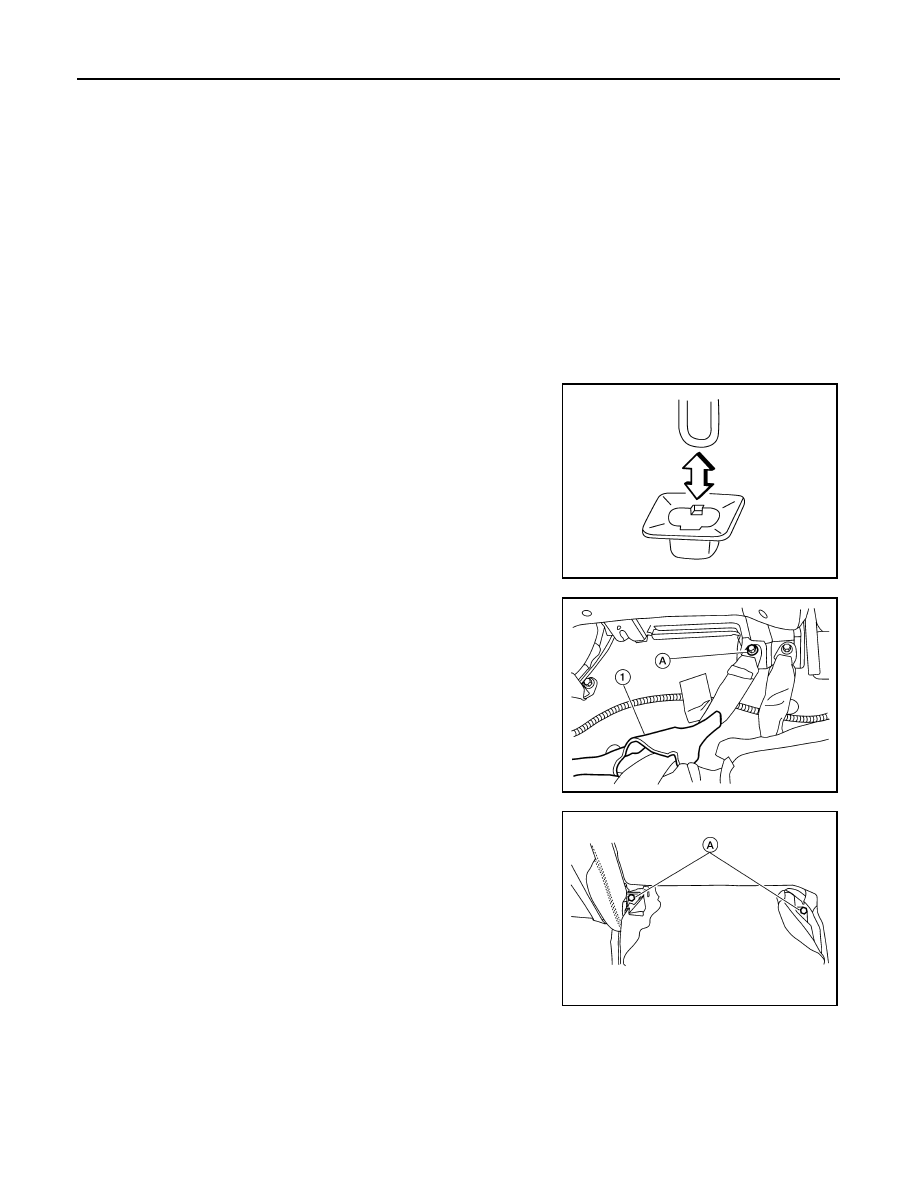

Removal and Installation

INFOID:0000000001710908

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

60:40 SPLIT FOLD DOWN FIXED SEAT

Removal

1.

Pull seat cushion up, and then remove the seat cushion from the
seat cushion hook. Slide the seat cushion forward.

2.

Remove the center seatbelt anchor bolt (A) from under the seat
and slide the seatbelt through the seat cushion trim cover.

3.

Fold the right seatback and remove the seatback mounting bolts
(A) from the left rear seat back brackets. Remove the seatback
from the vehicle.

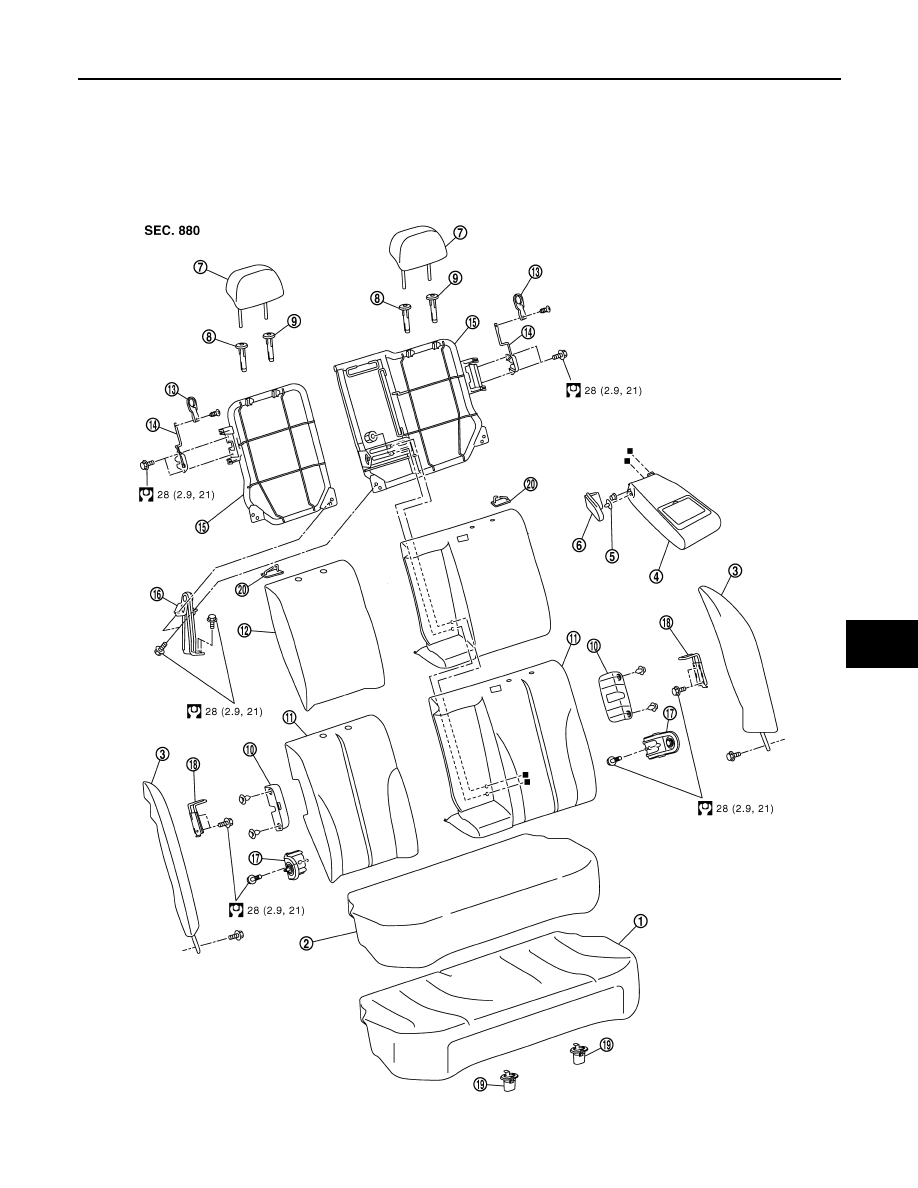

1.

Seat cushion trim

2.

Seat cushion pad

3.

Seatback side

4.

Armrest

5.

Rear seat bushing

6.

Armrest hinge cover

7.

Headrest

8.

Headrest holder (free)

9.

Headrest holder (locked)

10. Striker cover

11. Seatback trim

12. Seatback pad

13. Rear seatback lock knob

14. Rear seat lock assembly

15. Seatback frame

16. Rear seatback center bracket

17. Rear seatback side bracket

18. Rear seat striker

19. Seat cushion hook

20. Seatbelt guide

PIIB4085J

WIIA1380E

WIIA1382E

REAR SEAT

SE-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

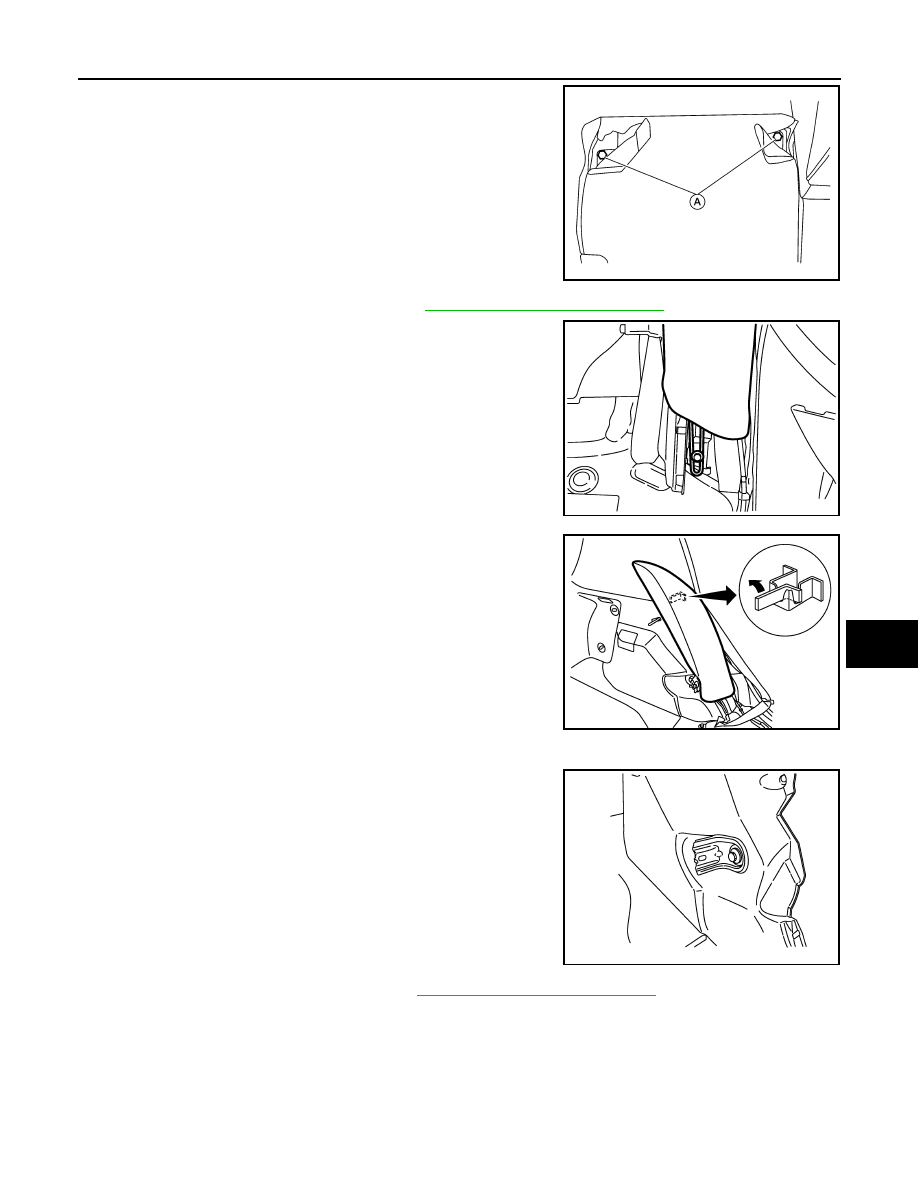

4.

Fold the left seatback and remove the seatback mounting bolts
(A) from the left rear seat back brackets. Remove the seatback
from the vehicle.

5.

Remove the kicking plate rear inner. Refer to

INT-20, "Removal and Installation"

  .

6.

Remove the bolt under the seatback side.

7.

Pull seatback side up, and then remove seatback side.

8.

Remove the bolts, and then remove rear seatback center bracket.

9.

Remove the bolt, and then remove rear seatback side bracket
from the vehicle.

10. Remove the rear seatback finisher. Refer to

INT-20, "Removal and Installation"

  .

11. Remove the bolts, and then remove the rear seat striker.

Installation

Installation is the reverse order of removal. Be careful of the following point.
• Seatback assembly and rear seatback side bracket installation procedure.

WIIA1383E

PIIB2482J

PIIB2483J

PIIB2484J

SE-20

< REMOVAL AND INSTALLATION >

REAR SEAT

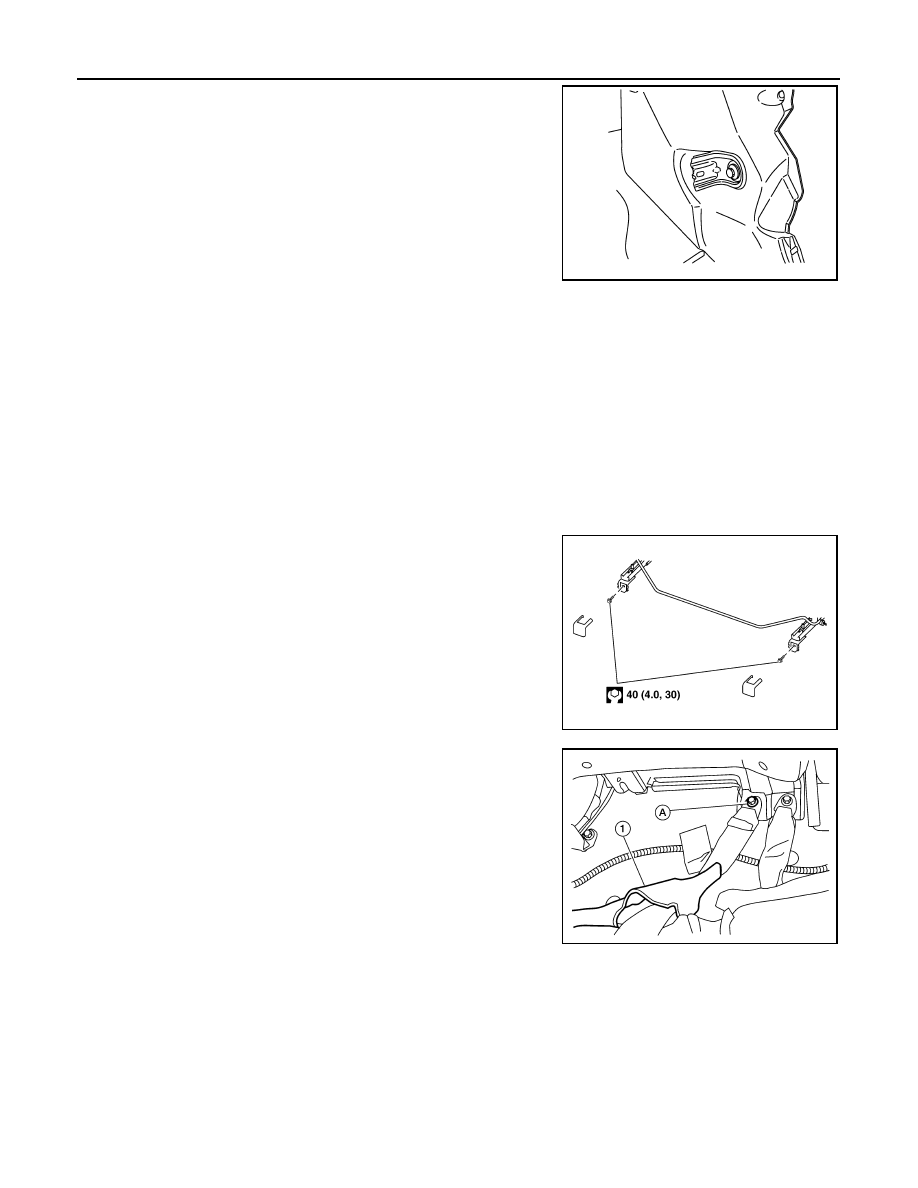

1.

Install the rear seatback side bracket in the vehicle.

2.

Temporarily tighten the seatback assembly and rear seatback side bracket.

3.

Lift to fold up seatback assembly. Be sure to lock seatback assembly to rear seat striker.

4.

Tighten the bolt.
NOTE:
Confirm that side hinge bracket location pin is set to the hole on the seatback backside.

Removal and Installation

INFOID:0000000001710910

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

60:40 SPLIT FOLD DOWN SLIDING SEAT

Removal

1.

Remove the front leg covers. Remove the front anchor bolts.

2.

Remove the rear leg covers. Remove the front anchor bolts.

3.

Remove the seat assembly.

Installation

Installation is the reverse order of removal.
