FRONT SEAT

SE-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

REMOVAL AND INSTALLATION

FRONT SEAT

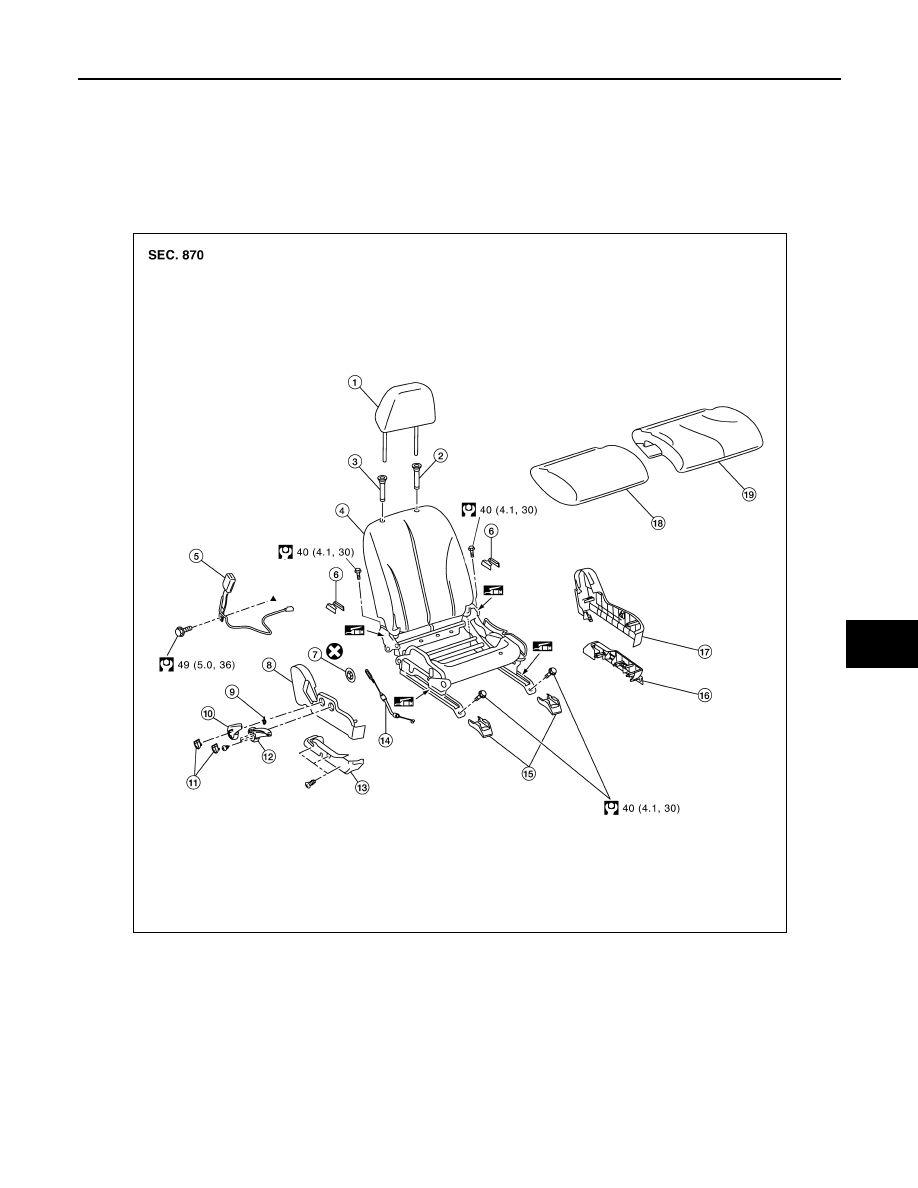

Exploded View

INFOID:0000000001710927

Driver Seat

1.

Headrest

2.

Headrest holder (free)

3.

Headrest holder (locked)

4.

Seat assembly

5.

Seat belt buckle

6.

Rear leg cover

7.

Push nut

8.

Seat cushion inner finisher

9.

Snap pin

10. Reclining lever

11. Lever cover

12. Lifter lever

13. Seat cushion finisher B

14. Reclining device control wire

15. Front leg cover

16. Seat cushion lower finisher

17. Seat cushion outer finisher

18. Seat cushion pad

19. Seat cushion trim

WIIA1285E

SE-14

< REMOVAL AND INSTALLATION >

FRONT SEAT

Removal and Installation

INFOID:0000000001710898

CAUTION:

• When removing and installing, use shop cloths to protect parts from damage.
• Disconnect both battery cables before work.

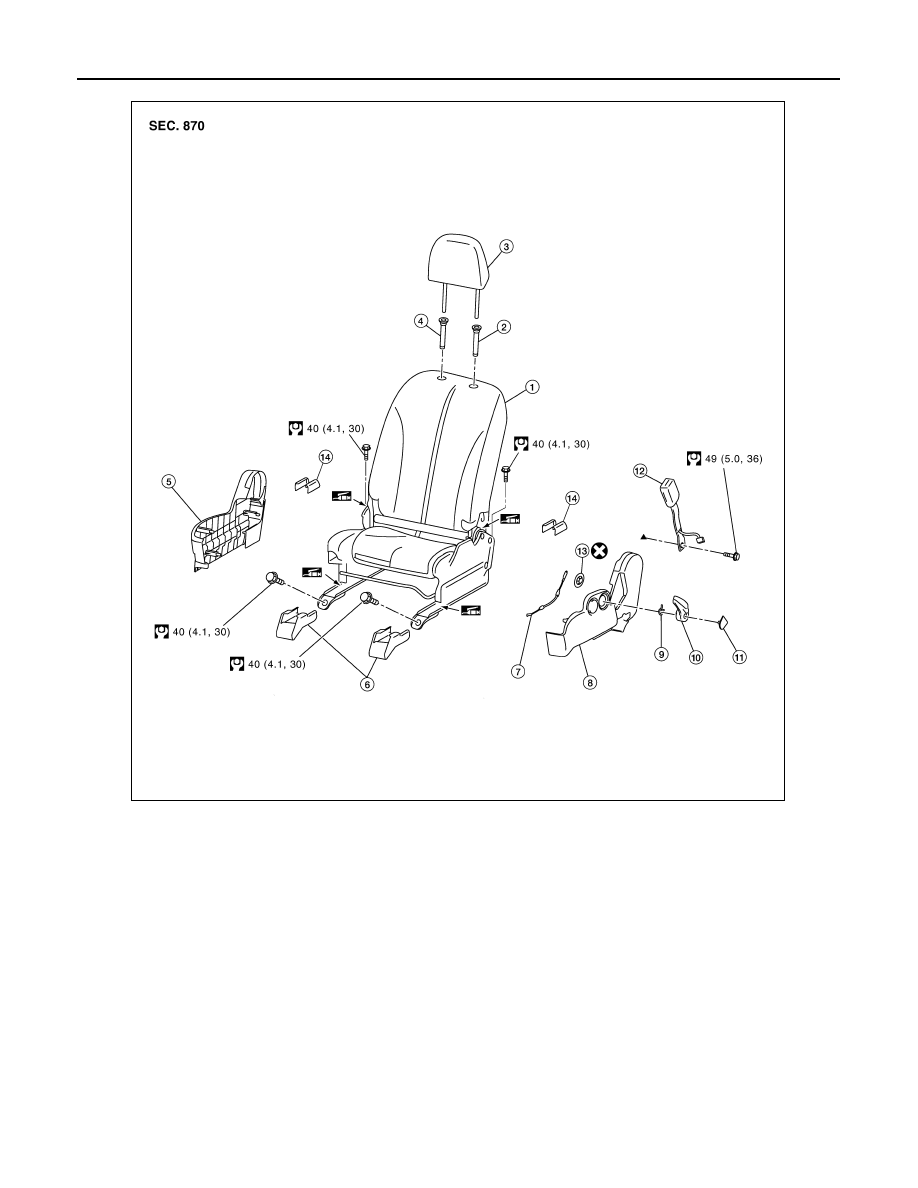

MANUAL SEAT

Removal

1.

Seat assembly

2.

Head rest holder (free)

3.

Headrest

4.

Headrest holder (locked)

5.

Seat cushion outer finisher

6.

Front leg cover

7.

Reclining device control wire

8.

Seat cushion inner finisher

9.

Snap pin

10. Reclining lever knob

11. Lever cover

12. Seat belt buckle

13. Push nut

14. Rear leg cover

WBIA0848E

FRONT SEAT

SE-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Remove the rear leg covers.

2.

Remove the front leg covers.

3.

Remove the mounting bolts on the back side of the front seat. (TORX bolt: T50)

4.

Remove the mounting bolts on the front side of the front seat. (TORX bolt: T50)

5.

Disconnect the harness connector under the seat and remove harness securing clips.

CAUTION:

Before removal, be sure to turn ignition switch OFF, disconnect both battery cables, and then wait
for at least 3 minutes.

6.

Set seatback in a neutral position, and then remove front seat from the vehicle.

Installation

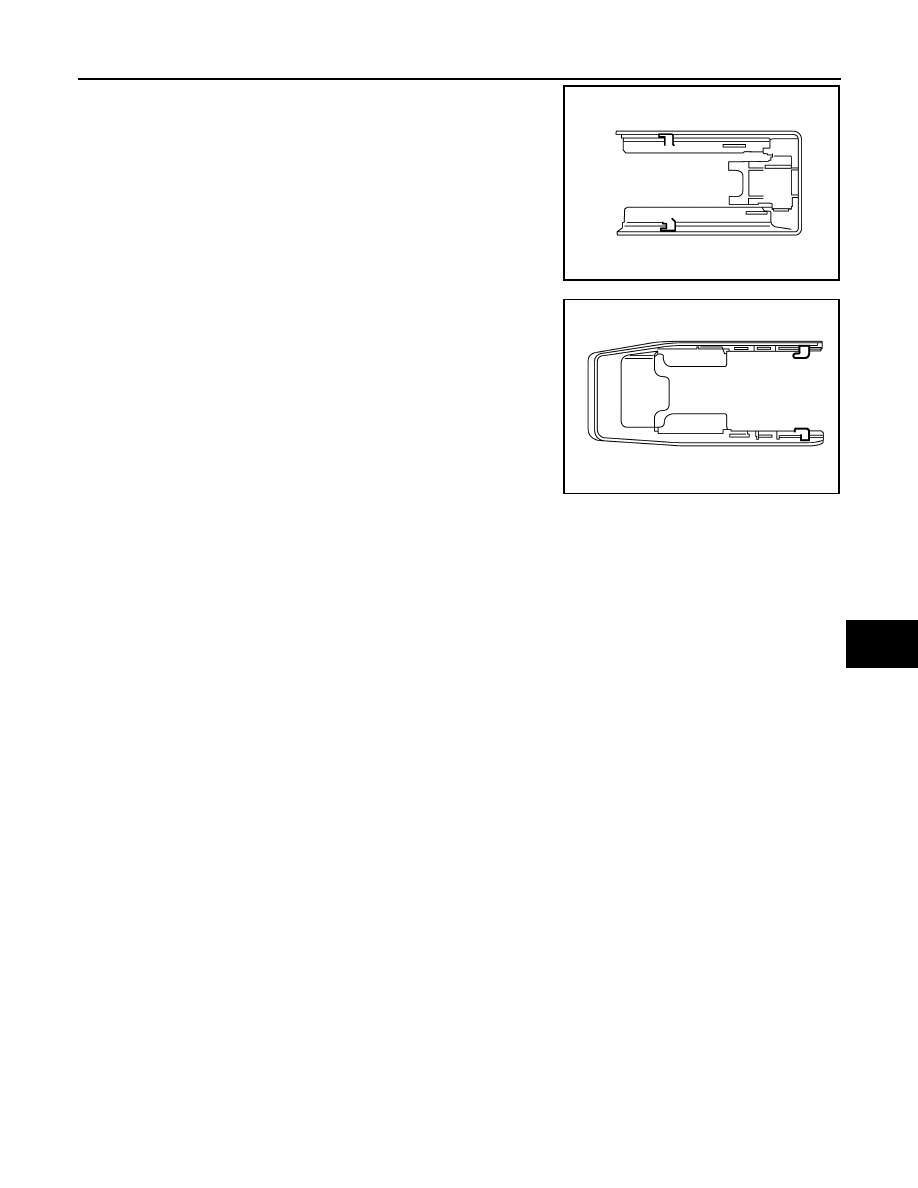

Install in the reverse order of removal. Be careful of the following three points.
• Before the installation, confirm that the inside and outside slide rails are locked at the same positions.
• Confirm that the slide rail location pin is set to the hole on the floor.
• Clamp the harness in position.

PIIB2669J

PIIB2668J

SE-16

< REMOVAL AND INSTALLATION >

REAR SEAT

REAR SEAT

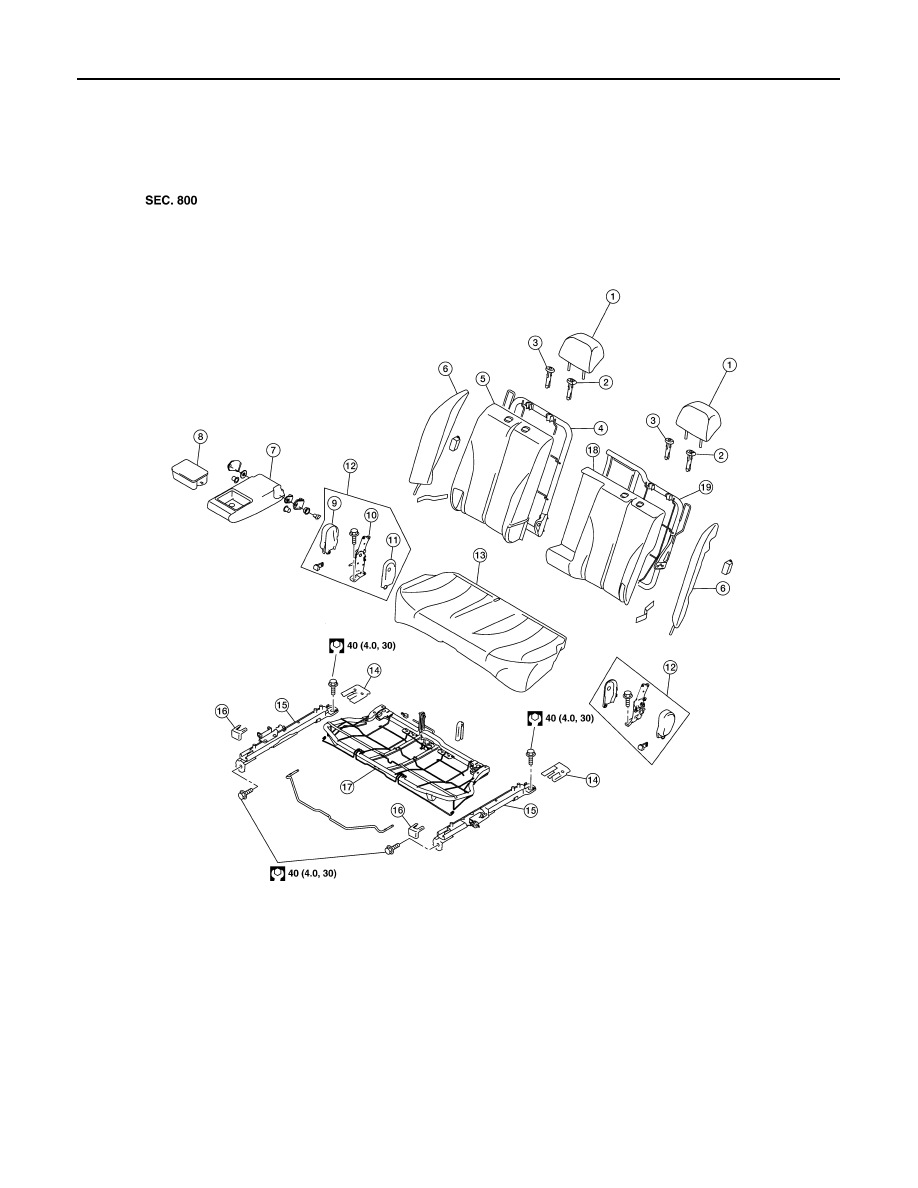

Exploded View

INFOID:0000000001710932

60:40 SPLIT FOLD DOWN SLIDING SEAT

WIIA1305E

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Right seatback frame

5.

Right seatback pad and trim

6.

Seatback side
