Nissan Tiida C11. Manual - part 1102





PB-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

PB

A

B

PB

N

O

P

CONTENTS

PARKING BRAKE SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

PREPARATION ............................................

3

PREPARATION ...................................................

3

Commercial Service Tool  ..........................................

3

ON-VEHICLE MAINTENANCE .....................

4

PARKING BRAKE CONTROL  ............................

4

On-Vehicle Service  ...................................................

4

REMOVAL AND INSTALLATION ................

5

PARKING BRAKE CONTROL ...........................

5

Component ...............................................................

5

Removal and Installation  ..........................................

5

PARKING BRAKE SHOE  ..................................

7

Exploded View ..........................................................

7

Removal and Installation  ..........................................

7

Drum and Lining Break-in .........................................

9

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

10

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

10

Parking Brake Control  .............................................

10

Parking Drum Brake  ................................................

10

PB-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001716772

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SR and SB section of this Service Man-
ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

PREPARATION

PB-3

< PREPARATION >

C

D

E

G

H

I

J

K

L

M

A

B

PB

N

O

P

PREPARATION

PREPARATION

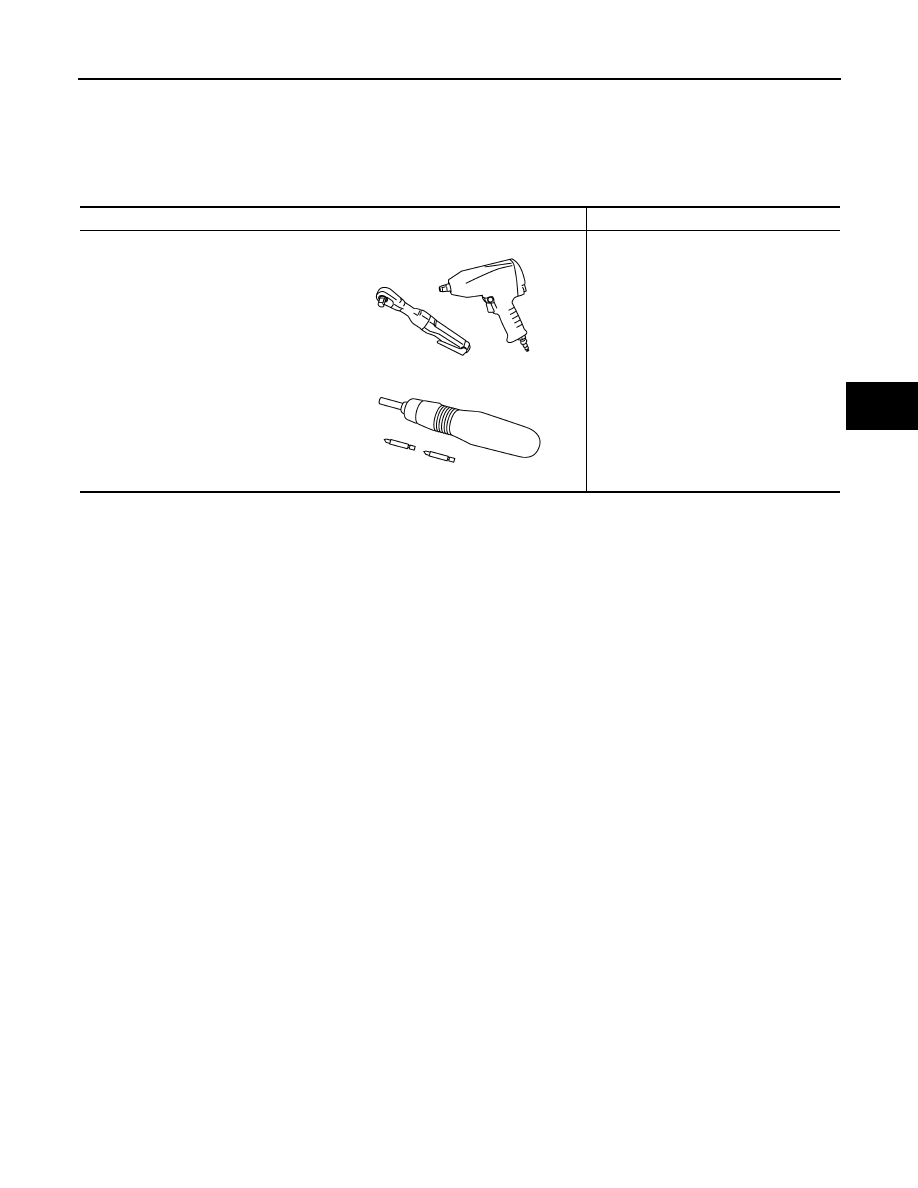

Commercial Service Tool

INFOID:0000000001716773

Tool name

Description

Power tool

Removing nuts, bolts and screws

PBIC0190E

PBIC0191E

PB-4

< ON-VEHICLE MAINTENANCE >

PARKING BRAKE CONTROL

ON-VEHICLE MAINTENANCE

PARKING BRAKE CONTROL

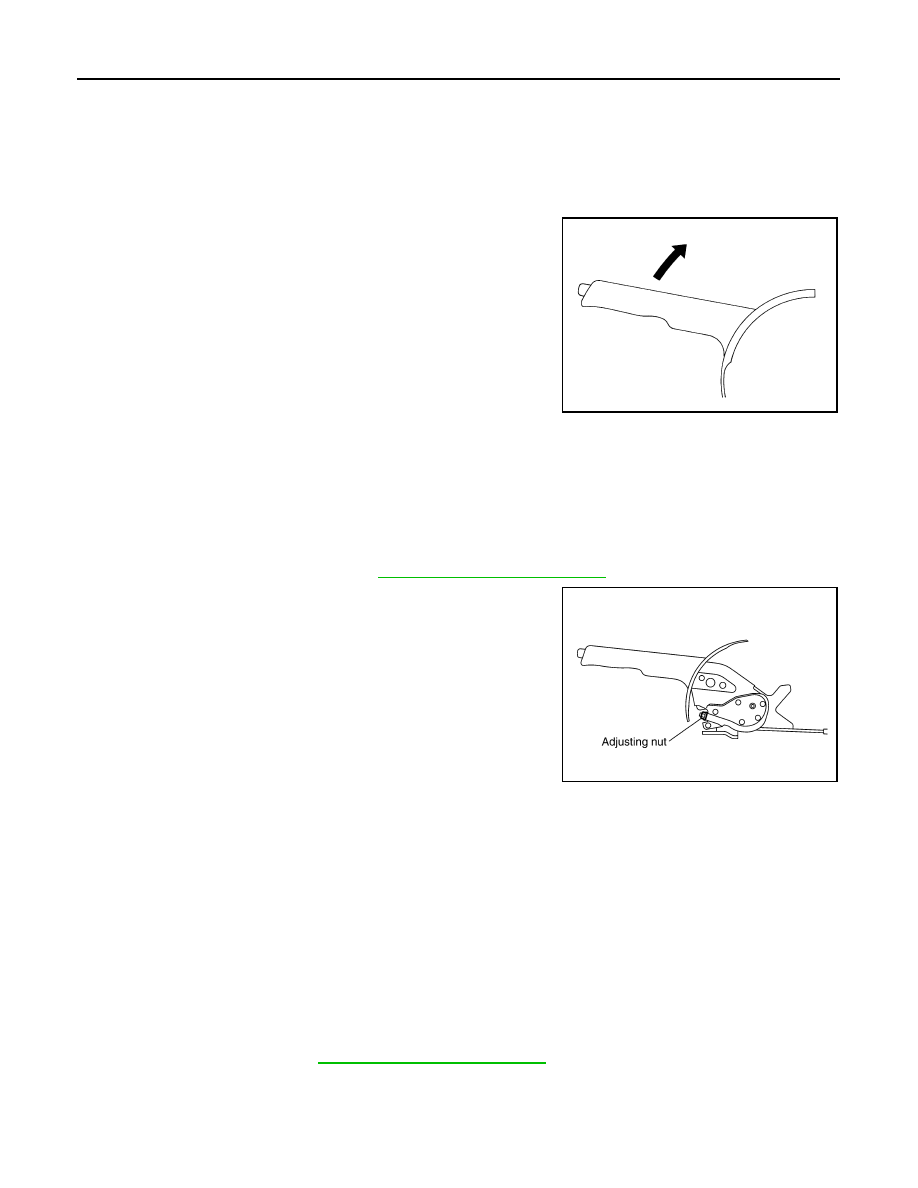

On-Vehicle Service

INFOID:0000000001716774

INSPECTION

When parking brake lever is operated with a force of 196 N (20 kg-f,
44 lb-f), make sure  parking brake lever stroke is within the specified
number of notches. (Check it by listening and counting ratchet
clicks.)

COMPONENTS INSPECTION

• Make sure that the mounting conditions (looseness, backlash, etc.) of each component are normal.
• Check the following:
- Device assembly for bends, damage and cracks. Replace if any damage is noted.
- Cables and equalizer for wear and damage. Replace if any damage is noted.
- Parking brake switch. Replace if it does not work correctly.

ADJUSTMENT

1.

Remove console mask cover. Refer to

IP-11, "Removal and Installation"

.

2.

Engage parking brake lever, then lift up the end of the trim on
the lever to access the adjusting nut.

3.

Insert a deep socket wrench onto adjusting nut. Rotate adjusting
nut to fully loosen cable, and then release parking brake lever.

4.

Depress the foot brake about 10 times and adjust the rear shoe clearance.

CAUTION:

Be sure to securely depress the foot brake.

5.

Rotate brake drum to make sure that there is no drag.

6.

Adjust parking brake cable with the following procedure.

a.

When replace parking brake cable, operate parking brake lever with a force of 490 N (50 kg-f, 110 lb-f)
about 10 times.

b.

Engage parking brake lever, then lift up the end of the trim on the lever to access the adjusting nut.

c.

Rotate adjusting nut to adjust parking brake lever stroke using a deep socket wrench.

d.

Operate parking brake lever with a force of 196 N (20 kg-f, 44 lb-f), make sure the parking brake lever
stroke is within the specified number of notches. (Check it by listening and counting ratchet clicks.)

e.

Make sure that there is no drag on rear brake with parking brake lever completely released.

7.

Install console mask. Refer to

IP-11, "Removal and Installation"

.

Number of notches

: 8 - 9

WFIA0508E

SFIA2453E
