COMBINATION METER

ON-VEHICLE REPAIR

COMBINATION METER

Removal and Installation

INFOID:0000000001569484

COMBINATION METER

Removal

NOTE:
LH drive shown RH drive similar.
1.

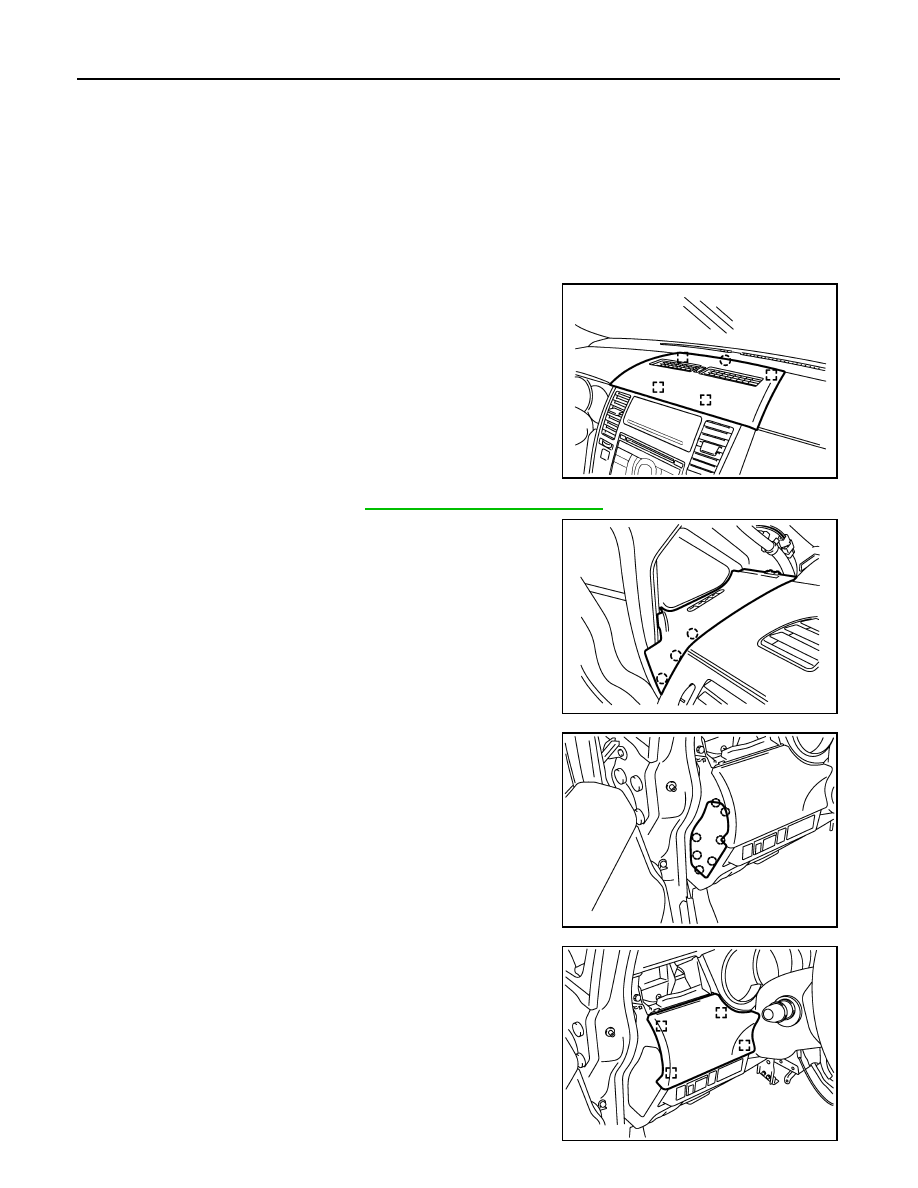

Pull instrument finisher E backward by approximately 30
degrees while disengaging the metal clips and pawl.

2.

Remove front pillar garnish. Refer to

INT-20, "Removal and Installation"

.

3.

Pull up instrument side panel and disengage pawls.

4.

Remove instrument side panel.

5.

Insert a remover into upper space of instrument mask.

6.

Disengage pawls, and then remove instrument side mask.

7.

Insert a remover into space of instrument side finisher.

8.

Disengage metal clips, and then remove instrument side fin-
isher.

WIIA1224E

PIIB2439J

PIIB2448E

PIIB2440E

MWI

COMBINATION METER

MWI-95

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

9.

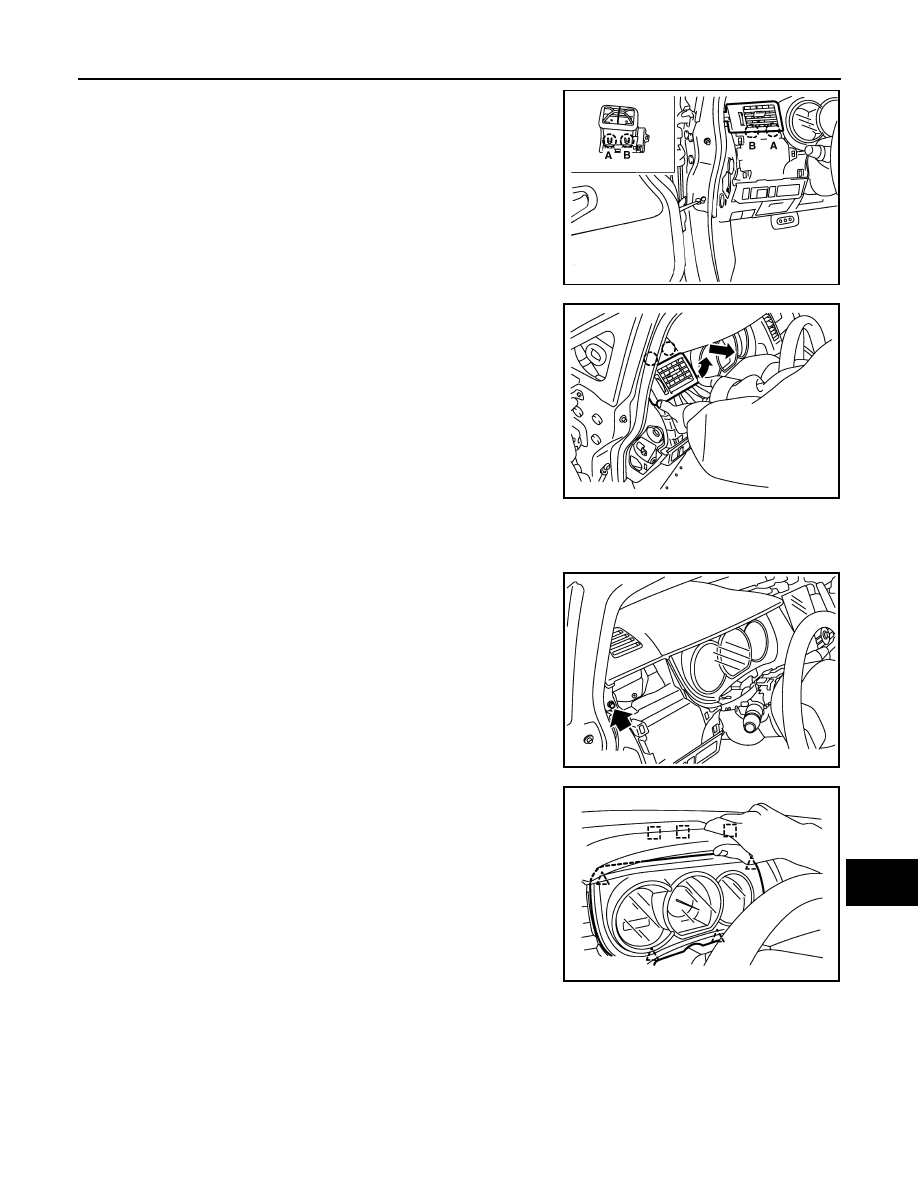

Insert suitable tool into the bottom gap of side ventilator assem-
bly after removing the instrument side mask, push against A and
B as shown to disengage the pawls.

10. Lift the side ventilator up from the bottom, pull backward while

disengaging the side ventilator assembly's upper pawls, and
then remove the side ventilator.

11. Remove screws, and disengage pawls.

12. Remove steering column cover upper.

13. Remove screws from instrument upper panel right side.

14. Lift the instrument upper panel up, disengage metal clips.
15. Pull backward and disengage clips.

16. Remove cluster lid A.

WIIA1226E

PIIB3976E

PIIB3969E

PIIB2880E

MWI-96

< ON-VEHICLE REPAIR >

COMBINATION METER

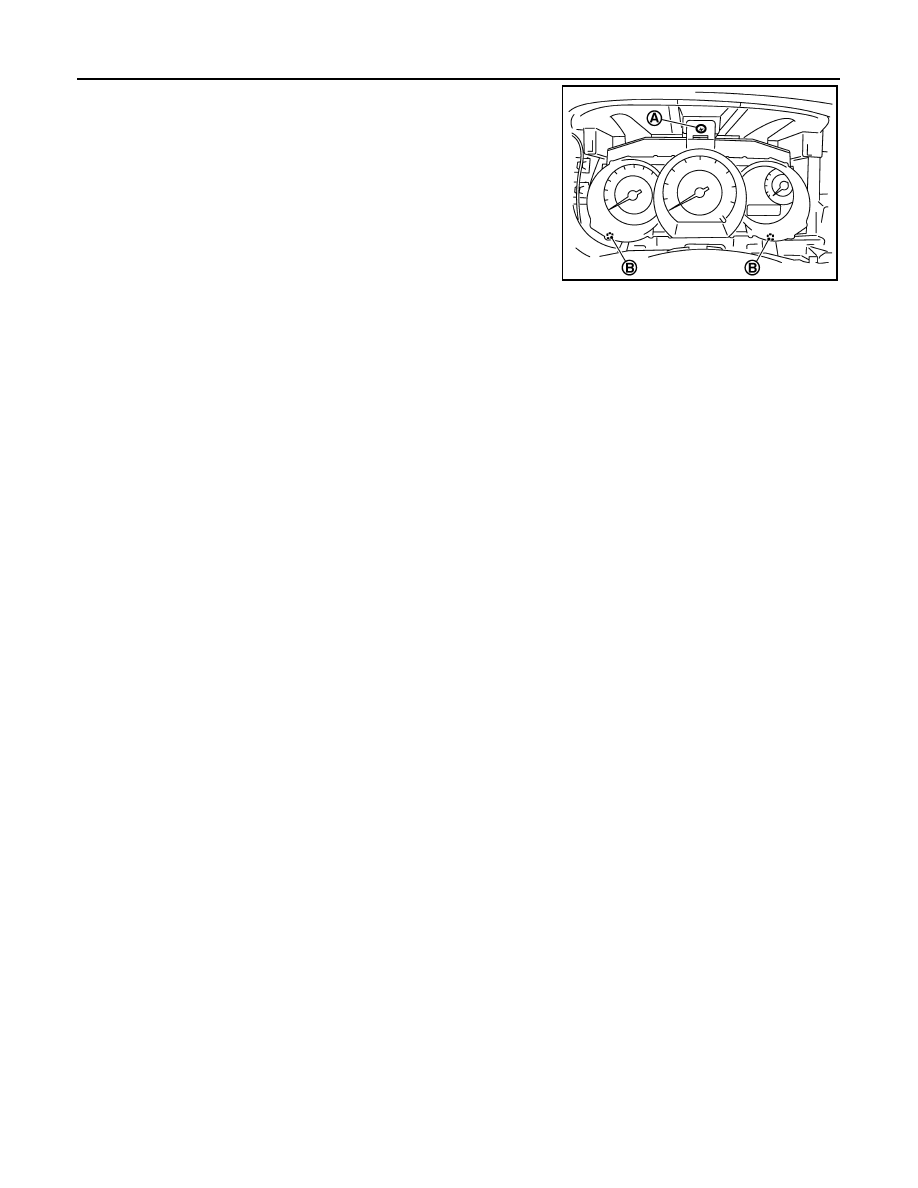

17. Remove screws (A) and metal clip (B), and remove combination

meter.

Installation

Installation is in the reverse order of removal.

PKIC0703E

MWI

COMBINATION METER

MWI-97

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DISASSEMBLY AND ASSEMBLY

COMBINATION METER

Disassembly and Assembly

INFOID:0000000001716785

COMBINATION METER

Disassembly

1.

Remove the combination meter. Refer to

MWI-94, "Removal and Installation"

.

2.

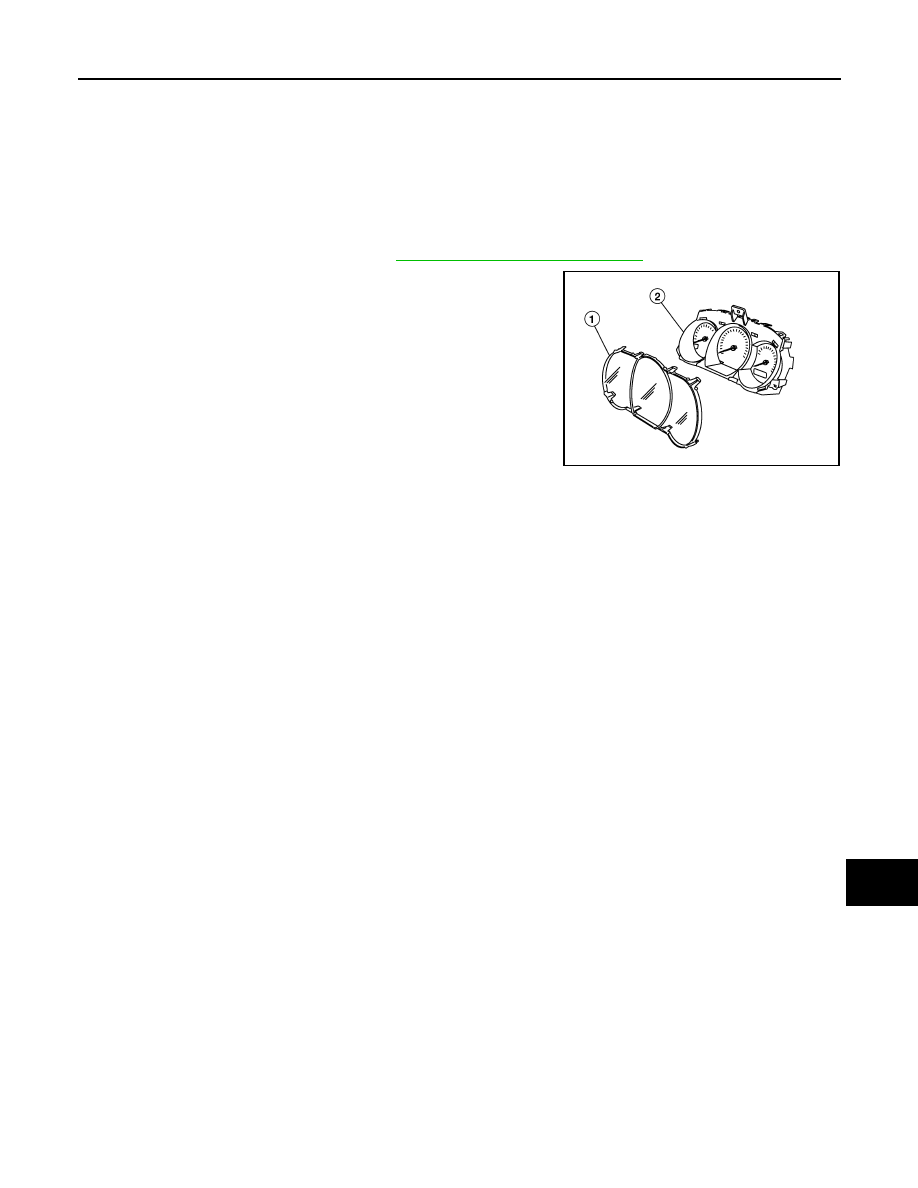

Disengage the eight tabs to separate front cover (1) from the
unified meter control unit assembly (2).

Assembly

Assembly is in the reverse order of disassembly.

LIIA2582E
